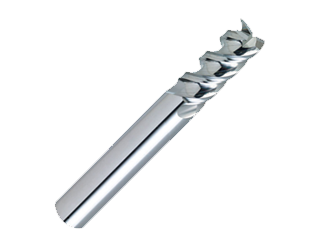

A+ End Mills
First choice for fine finishing applications in non-ferrous machining
Ultra-sharp cutting edges & mirror polished flutes reduce cutting load for smooth chip evacuation & the best surface finish
N
Advantages
Mirror-Like Finish
Our first choice milling range for mirror workpiece surface finish
Clears Sticky Materials
Special geometry quickly eliminates swarf without flute clogging
Not just Aluminium
Also for copper, brass, plastics and other non-ferrous metals
>Be More Efficient
Optimised solutions for finishing, roughing & medium cutting
Features
U-Shaped Flutes
Deep flute pockets and buffed flute surfaces inhibit built-up edge
Double Relief Angle
Double Relief Angle High rigidity of the cutting edge ensures high productivity
Lapped Flutes
Polished flute design offers an extremely high quality surface finish
Various Geometries
Suitable for both roughing and finishing applications

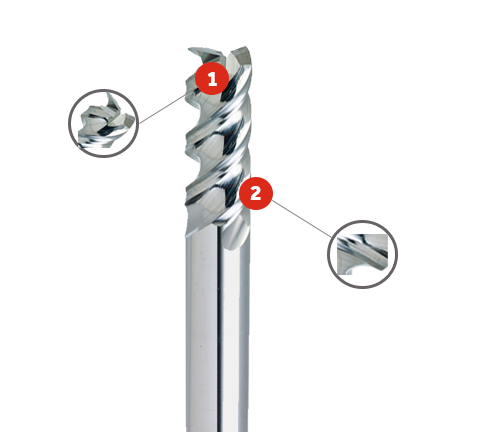

APFE

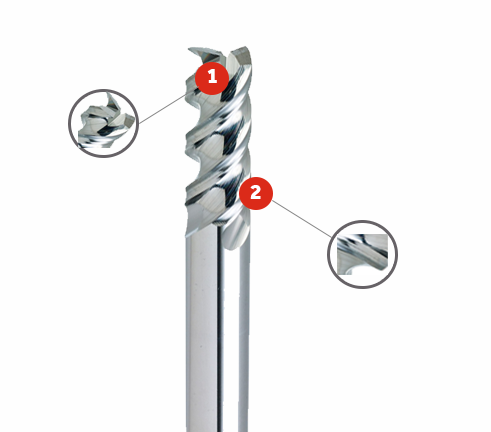

Sharp cutting edges and double relief angles
▪
Reduced cutting force
▪
Inhibited tool breakage due to reinforced cutting edges
U-shaped flutes with mirror-like finishing
▪
Efficient chip evacuation through wide chip pockets
▪
Inhibited build-up edges due to mirror-like finishing
Sharp cutting edges & double relief angles
â– Reduced cutting force
â– Inhibited tool breakage due to reinforced cutting edges
U-shaped flutes with mirror-like finishing
â– Efficient chip evacuation through wide chip pockets
â– Inhibited build-up edges due to mirror-like finishing

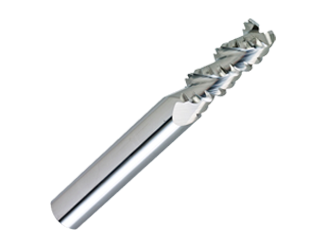

APRE
Blade design of wave form
▪
Lower cutting force
▪
Efficient chip evacuation through chip breaking
Sharp cutting edges
▪
Lower cutting force
▪
Reduced loads over equipment
Blade design of wave form
Lower cutting force
Efficient chip evacuation through chip breaking
Sharp cutting edges
Lower cutting force
Reduced loads over equipment
V7 Plus 4 Flute HPC
Sharp cutting edges & double relief angles
Reduced cutting force
Inhibited tool breakage due to reinforced cutting edges
U-shaped flutes with mirror-like finishing
Efficient chip evacuation through wide chip pockets
Inhibited build-up edges due to mirror-like finishing
Sharp cutting edges & double relief angles
Reduced cutting force
Inhibited tool breakage due to reinforced cutting edges
U-shaped flutes with mirror-like finishing
Efficient chip evacuation through wide chip pockets
Inhibited build-up edges due to mirror-like finishing
Application
Material Suitability
| Material | Excellent | Good |
|---|---|---|
|
P
Steel
|
• | • |
|
H
Hardened Steel
|
• | • |
|
M
Stainless Steel
|
• | • |
|
S
HRSA's
|
• | • |
|
K
Cast Iron
|
• | • |
|
N
Aluminium & Non-Ferrous
|
• | • |
*Up to 40HRC
Possible Machining Methods
Shoulder Milling
Slotting
Profiling
Face Milling
Circular Interpolation
Example Cutting Data
| Ø8mm, 3 Flute Uncoated Slotting - Aluminium |
Ø10mm, 3 Flute Uncoated Side Cutting (Profiling) - Aluminium |
Ø12mm, 3 Flute Uncoated Slotting - Aluminium |
Ø16mm, 3 Flute Uncoated Side Cutting (Profiling) - Aluminium |
|
|---|---|---|---|---|
| Tool Series | APFE3080-060 | APFE3100-075 | APFE3120-075 | APFE3160-100 |
| RPM | 9500 | 9230 | 6360 | 5970 |
| Feed (mm/min) | 940 | 1460 | 950 | 1505 |
| Vc (m/min) | 238 | 290 | 240 | 300 |
| Fz (mm/tooth) | 0.033 | 0.053 | 0.05 | 0.084 |
| Depth of Cut (AP) | 8 | 30 | 12 | 45 |
| Depth of Cut (AE) | 8 | 5 | 12 | 8 |
