Alu-Splitter Milling Cutters
Superior chip management at large depths of cut on non-ferrous material
Cutting depths <3.5xD, reinforced cores & specially developed chip dividers allow high working depths with superior chip control & supreme surface finish.
★★★★★
N
Advantages
High Working Depths
TVC geometry offers exceptional chip management up to 3.5xD
Choice of Geometries
Ultra N Pro-Coated or High Gloss Polished depending on application
Best Swarf Evacuation
Unique chip divider gives superior chip control & improved tool life
High Metal Removal
Ultra-sharp cutting edges means high speeds are achieved
Features
Special Chip Splitters
Unique geometry gives incredible performance & swarf management

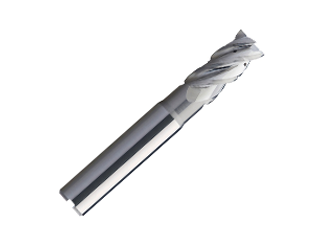

Optional Coolant Holes
Internal coolant on HPC geometry dissipates heat at high speeds

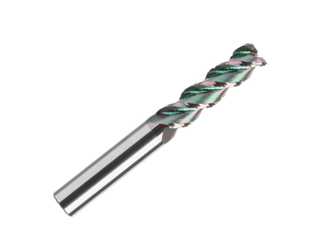

Ultra-N Pro Coating
TVC geometry features special smooth coating for improved tool life
Material Suitability
Can machine aluminium, plastic, brass, bronze & copper
Geometry Description

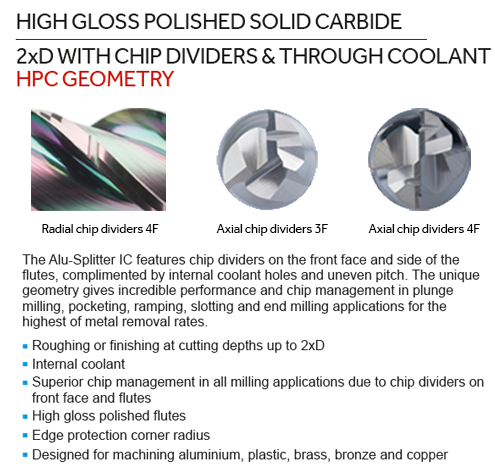

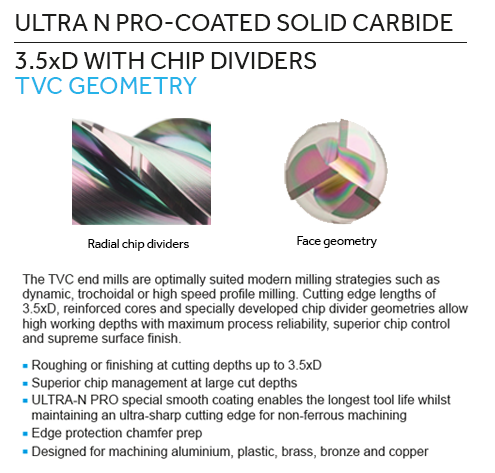

TVC & HPC Styles
Application
Material Suitability
| Material | Excellent | Good |
|---|---|---|
|
P
Steel
|
• | • |
|
H
Hardened Steel
|
• | • |
|
M
Stainless Steel
|
• | • |
|
S
HRSA's
|
• | • |
|
K
Cast Iron
|
• | • |
|
N
Aluminium & Non-Ferrous
|
• | • |
*Up to 40HRC
Possible Machining Methods
Face Milling
Shoulder Milling
Slotting
Circular Interpolation
Example Cutting Data
| Ø8mm, 3 Flute Coated Side Cutting (profiling) - Aluminium Alloys |
Ø6mm, 3 Flute Coated 0.5mm Corner Rad Side Cutting (profiling) - Aluminium Alloys |
Ø10mm, 3 Flute Coated Side Cutting (profiling) - Thermo Plastic PVC |
Ø8mm, 3 Flute, Through Coolant Slotting - Aluminium Alloys |
|
|---|---|---|---|---|
| Tool Series | 16665705 | 16666200 | 16665710 | 16655040 |
| RPM | 11150 | 14890 | 12250 | 19920 |
| Feed (mm/min) | 2175 | 2235 | 2940 | 2870 |
| Vc (m/min) | 280 | 280 | 385 | 500 |
| Fz (mm/tooth) | 0.065 | 0.05 | 0.08 | 0.048 |
| Depth of Cut (AP) | 24 | 18 | 30 | 8 |
| Depth of Cut (AE) | 0.9 | 0.7 | 1.2 | 8 |
