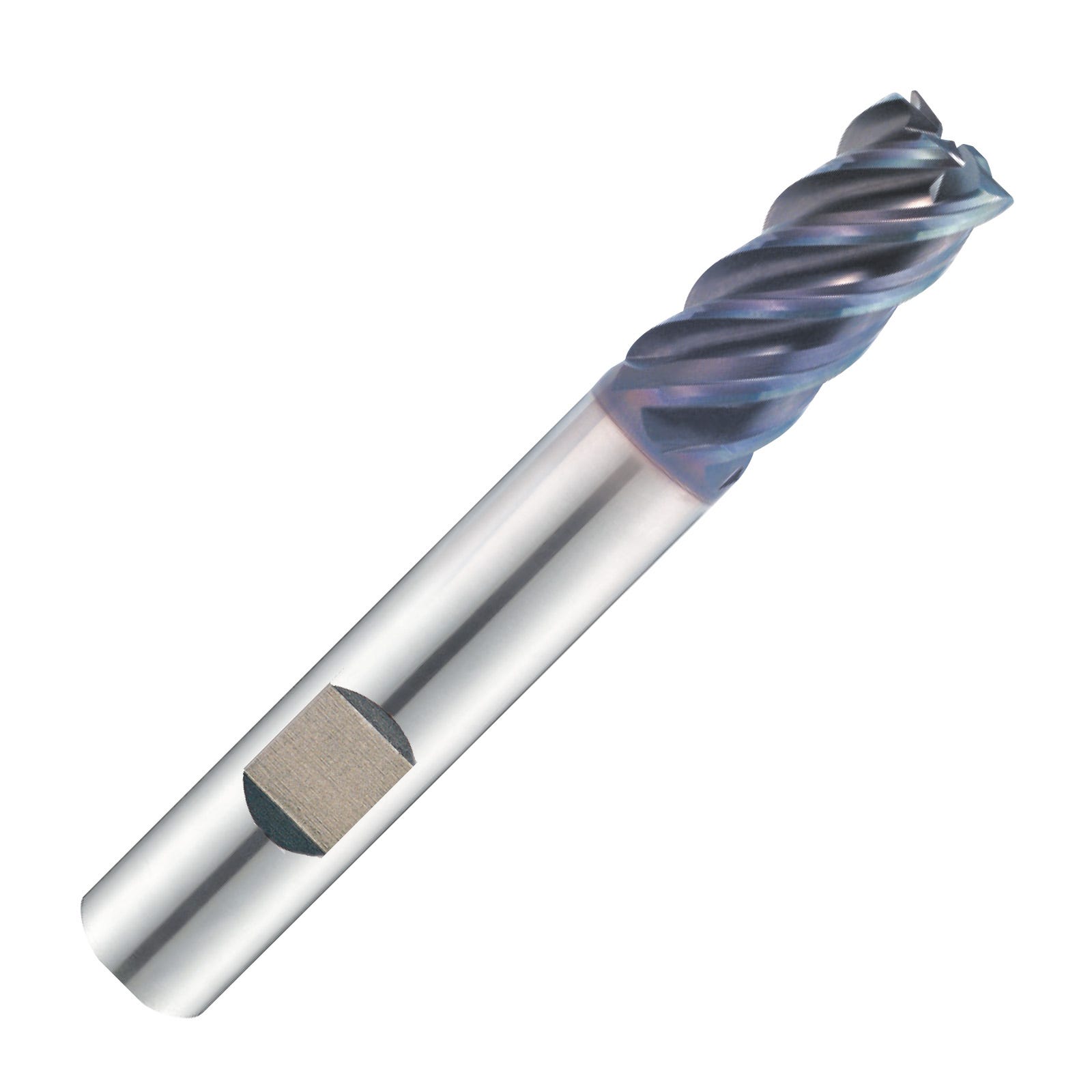

16mm 5 Flute TitaNox Coated Carbide Long Length Chamfer Prep Weldon Shank End Mill - GMG27 (YG-1)
16mm 5 Flute TitaNox Coated Carbide Long Length Chamfer Prep Weldon Shank End Mill - GMG27 (YG-1)

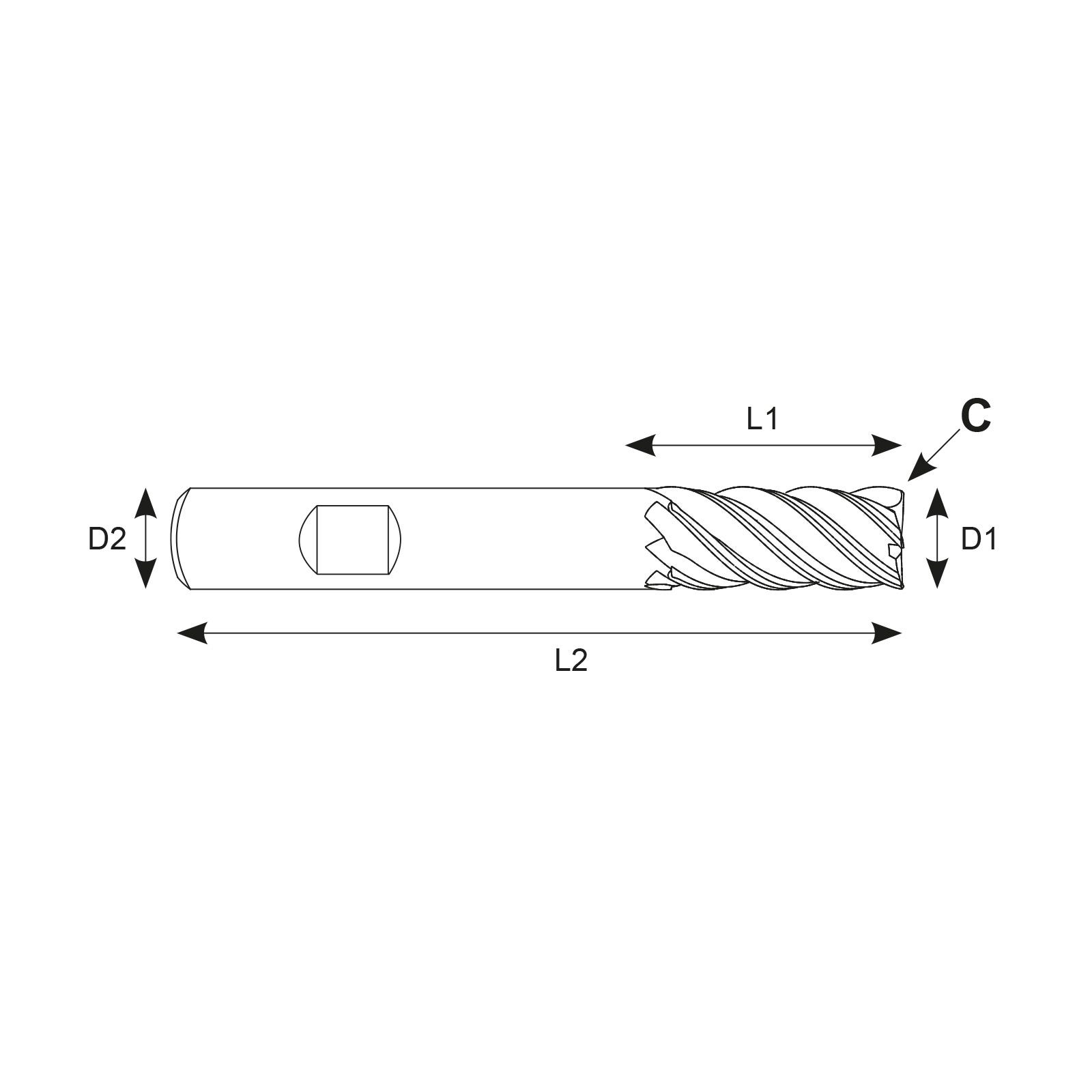

| Diameter (mm) | 16 |
|---|---|
| Overall Length (mm) | 92 |
| Flute Length (mm) | 36 |
| Shank (mm) | 16 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Extreme Machining of Titanium, Inconel, Hastelloy, Stainless Steel &��Steels
- HPC (High performance cutting)
- Unequal flute spacing and multiple helix reduces vibration in HPC machining
- Chamfer edge preparation to protect cutting edge from chipping
- 5 flute design ideal for medium to finish machining (up to 30% side cut) with high feed rates and high rigidity in profiling operations
- Special design for sticky materials prevents flutes from clogging in slotting operations
- Special high heat resistant Y1200 coating
- Micrograin carbide substrate
- To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck)
Specification
| Category | Milling |
|---|---|
| Sub Category | Milling Cutters |
| Sub Category 2 | Titanox Milling Cutters |
| Diameter (mm) | 16 |
| Shank (mm) | 16 |
| Flute Length (mm) | 36 |
| Overall Length (mm) | 92 |
| Flutes | 5 |
| Chamfer Prep (mm) | 0.4 |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| End Profile | Chamfer Prep |
| Flute Type | Standard |
| Shank Type | Weldon |
| Applicable Materials | Steel, Stainless Steel, Exotics |
| Helix Profile | Multiple Helix |
| Performance | 5 |
| Coating Description | Y1200 Coated |
| Substrate Description | Micrograin Carbide |
| Helix Angle | Multiple Helix |
| Brand | YG-1 |
