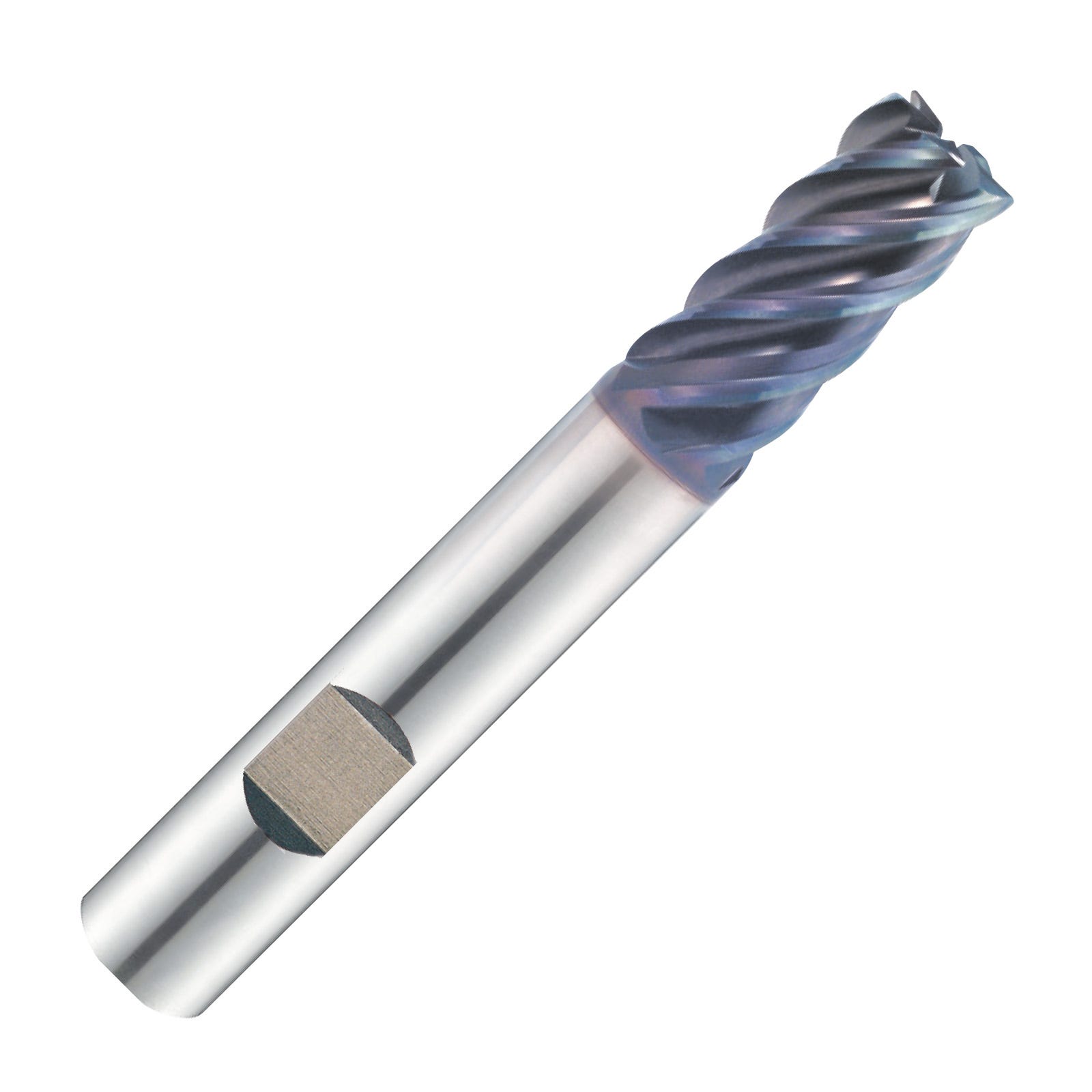

20mm 5 Flute TitaNox Coated Carbide Long Length Chamfer Prep Weldon Shank End Mill - GMG27 (YG-1)

Cutwel Sku
GMG27200

20mm 5 Flute TitaNox Coated Carbide Long Length Chamfer Prep Weldon Shank End Mill - GMG27 (YG-1)

Cutwel Sku
GMG27200
The GMG27 series range from 6-25mm diameter. These long length chamfer prep end mills have 5 flutes and a...
Read more
Diameter (mm)20
Overall Length (mm)104
Flute Length (mm)44
Shank (mm)20
minus plus

*Estimated lead time, subject to availability

View Full Range
unavailable 5 days*

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Product Information

Features & Benefits

The GMG27 series range from 6-25mm diameter. These long length chamfer prep end mills have 5 flutes and a flat/weldon shank. The TitaNox Power range from YG-1 have exceptional tool life on Titanium Hastelloy, Stainless Steel, Inconel and Steel up to HRc40. The 45 degree chamfer edge preparation helps prevent the cutting edge from chipping during the first impact with the workpiece.
  • Extreme Machining of Titanium, Inconel, Hastelloy, Stainless Steel &��Steels
  • HPC (High performance cutting)

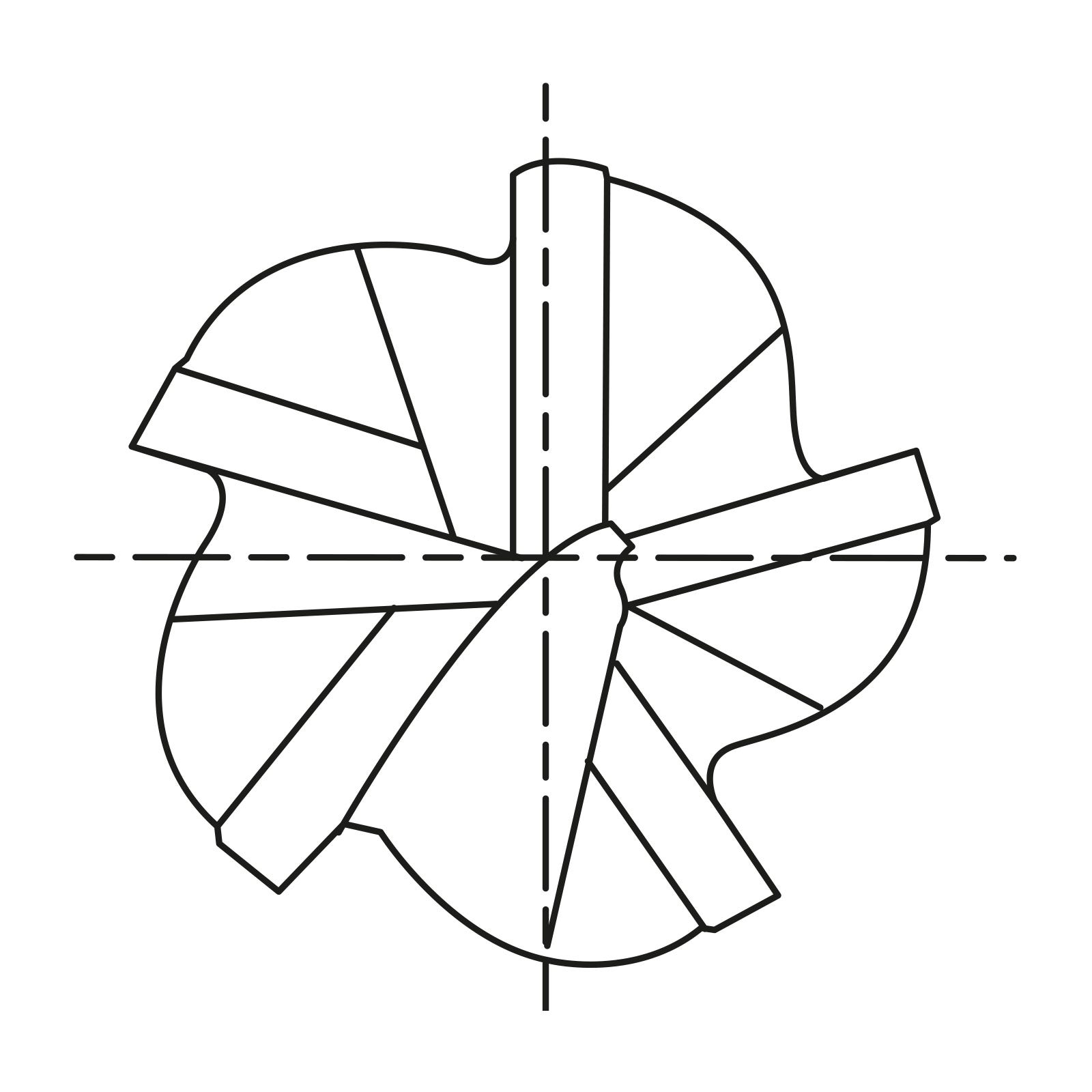

  • Unequal flute spacing and multiple helix reduces vibration in HPC machining
  • Chamfer edge preparation to protect cutting edge from chipping
  • 5 flute design ideal for medium to finish machining (up to 30% side cut) with high feed rates and high rigidity in profiling operations
  • Special design for sticky materials prevents flutes from clogging in slotting operations
  • Special high heat resistant Y1200 coating
  • Micrograin carbide substrate
  • To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck)

Specification

Category Milling
Sub Category Milling Cutters
Sub Category 2 Titanox Milling Cutters
Diameter (mm) 20
Shank (mm) 20
Flute Length (mm) 44
Overall Length (mm) 104
Flutes 5
Chamfer Prep (mm) 0.5
Substrate Carbide
Surface Treatment Coated (PVD/CVD)
End Profile Chamfer Prep
Flute Type Standard
Shank Type Weldon
Applicable Materials Steel, Stainless Steel, Exotics
Helix Profile Multiple Helix
Performance 5
Coating Description Y1200 Coated
Substrate Description Micrograin Carbide
Helix Angle Multiple Helix
Brand YG-1
