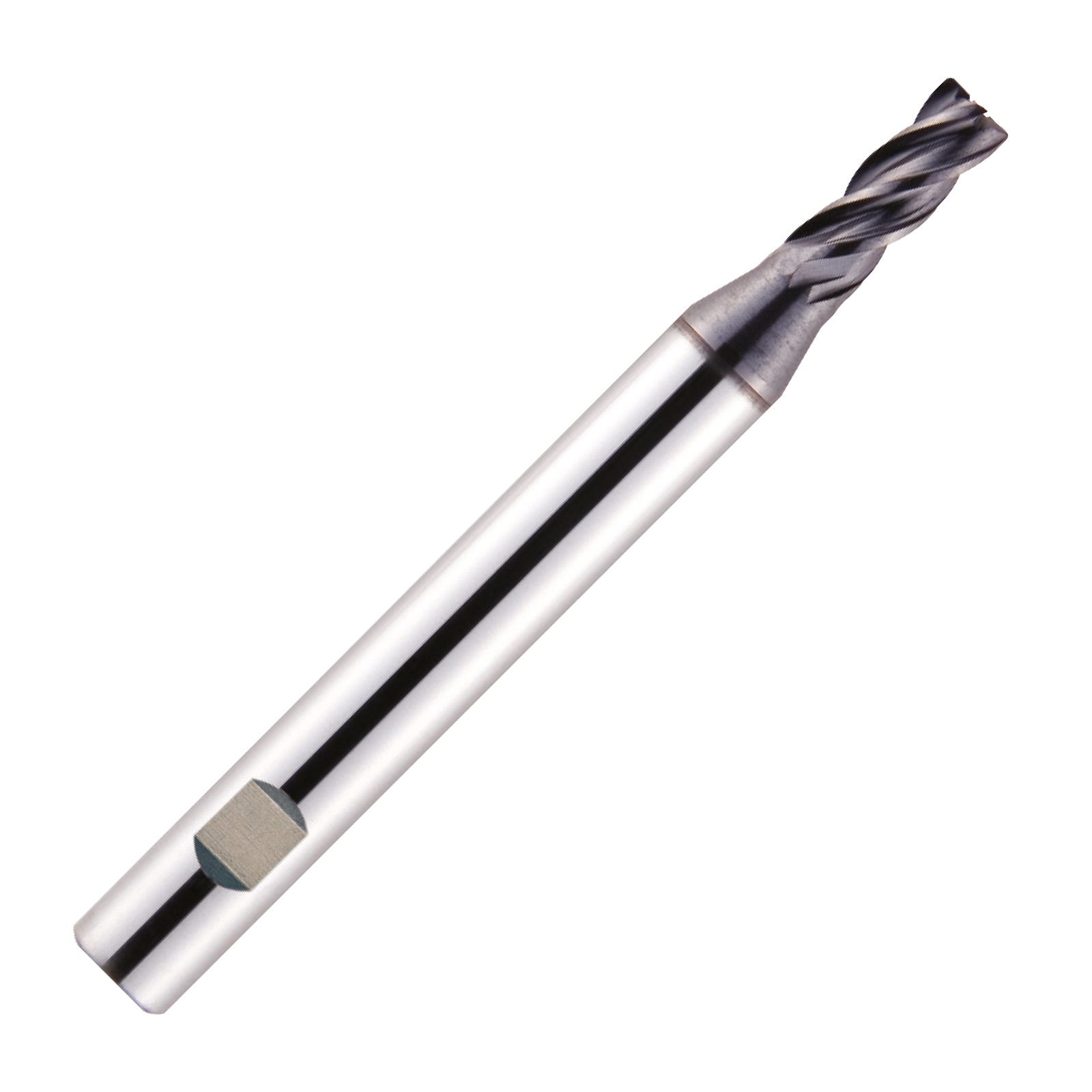

4 Flute V7 Inox Variable Helix TiAlN Coated Carbide Chamfer Prep Weldon Shank End Mill - EMB42 (YG-1)
4 Flute V7 Inox Variable Helix TiAlN Coated Carbide Chamfer Prep Weldon Shank End Mill - EMB42 (YG-1)
Related Products

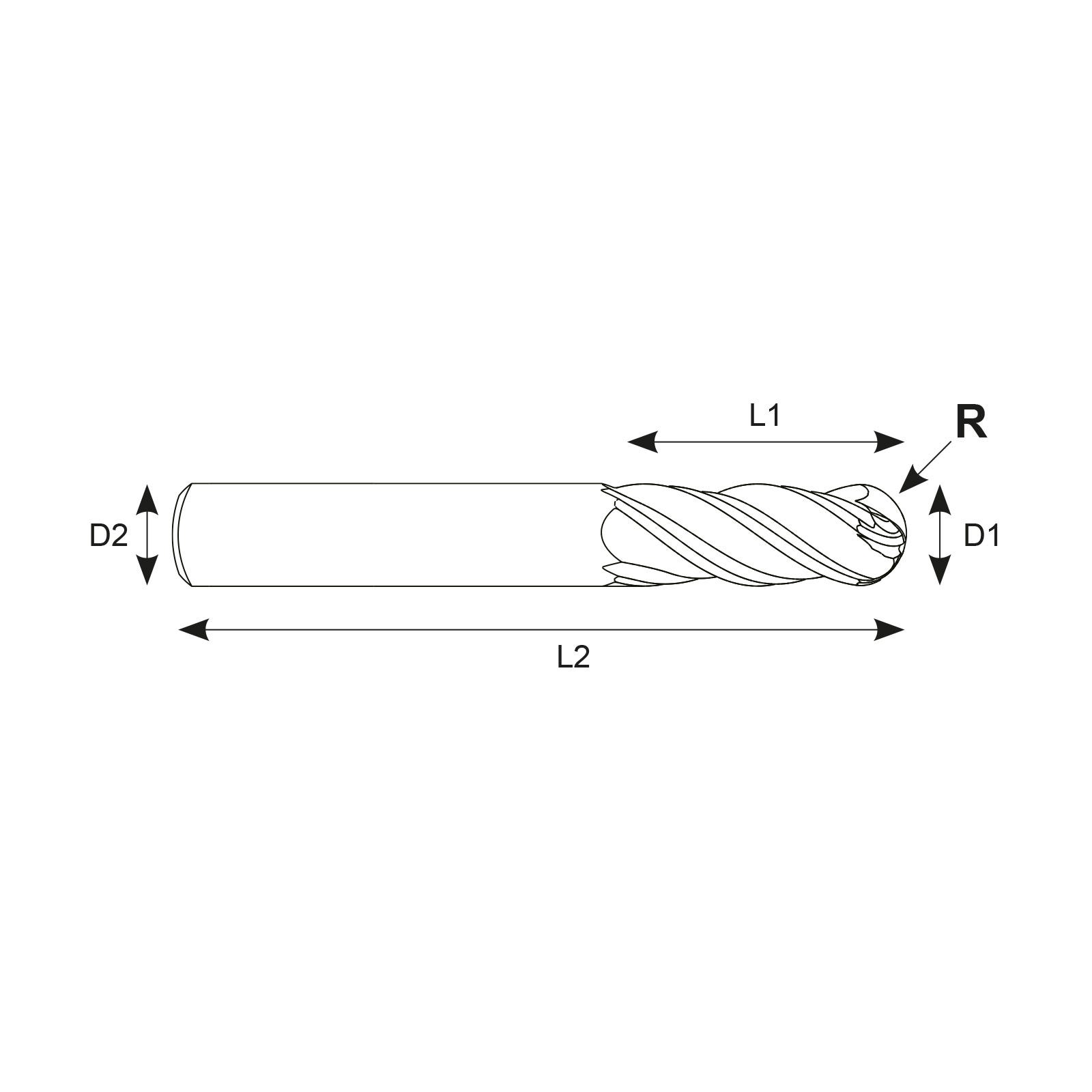

| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Diameter (mm)
|
Shank (mm)
|
Flute Length (mm)
|
Overall Length (mm)
|
Flutes
|
Neck Diameter (mm)
|
||||
|---|---|---|---|---|---|---|---|---|---|
| Diameter (mm): 3 | Shank (mm): 6 | Flute Length (mm): 7 | Overall Length (mm): 54 | Flutes: 4 | Neck Diameter (mm): |
In stock
|
£22.07
£18.39
|
|
|
| Diameter (mm): 4 | Shank (mm): 6 | Flute Length (mm): 8 | Overall Length (mm): 54 | Flutes: 4 | Neck Diameter (mm): |
In stock
|
£22.32
£18.60
|
|
|
| Diameter (mm): 5 | Shank (mm): 6 | Flute Length (mm): 10 | Overall Length (mm): 54 | Flutes: 4 | Neck Diameter (mm): |
In stock
|
£22.51
£18.76
|
|
|
| Diameter (mm): 6 | Shank (mm): 6 | Flute Length (mm): 10 | Overall Length (mm): 54 | Flutes: 4 | Neck Diameter (mm): |
In stock
|
£22.73
£18.94
|
|
|
| Diameter (mm): 8 | Shank (mm): 8 | Flute Length (mm): 12 | Overall Length (mm): 58 | Flutes: 4 | Neck Diameter (mm): |
5 days*
|
£31.19
£25.99
|
|
|
| Diameter (mm): 10 | Shank (mm): 10 | Flute Length (mm): 14 | Overall Length (mm): 66 | Flutes: 4 | Neck Diameter (mm): |
In stock
|
£48.16
£40.13
|
|
|
| Diameter (mm): 12 | Shank (mm): 12 | Flute Length (mm): 16 | Overall Length (mm): 73 | Flutes: 4 | Neck Diameter (mm): |
In stock
|
£67.96
£56.63
|
|
|
| Diameter (mm): 14 | Shank (mm): 14 | Flute Length (mm): 18 | Overall Length (mm): 75 | Flutes: 4 | Neck Diameter (mm): 0.2 |
In stock
|
£101.89
£84.91
|
|
|
| Diameter (mm): 16 | Shank (mm): 16 | Flute Length (mm): 22 | Overall Length (mm): 82 | Flutes: 4 | Neck Diameter (mm): 0.2 |
In stock
|
£123.52
£102.93
|
|
|
| Diameter (mm): 20 | Shank (mm): 20 | Flute Length (mm): 26 | Overall Length (mm): 92 | Flutes: 4 | Neck Diameter (mm): 0.2 |
In stock
|
£200.88
£167.40
|
|
Product Information
Features & Benefits
- TiALN coated premium grade micrograin carbide
- HPC (High performance cutting)
- Higher speeds, deeper cuts and higher metal removal rates than standard cutters
- Variable helix & unequal flute spacing eliminates vibration

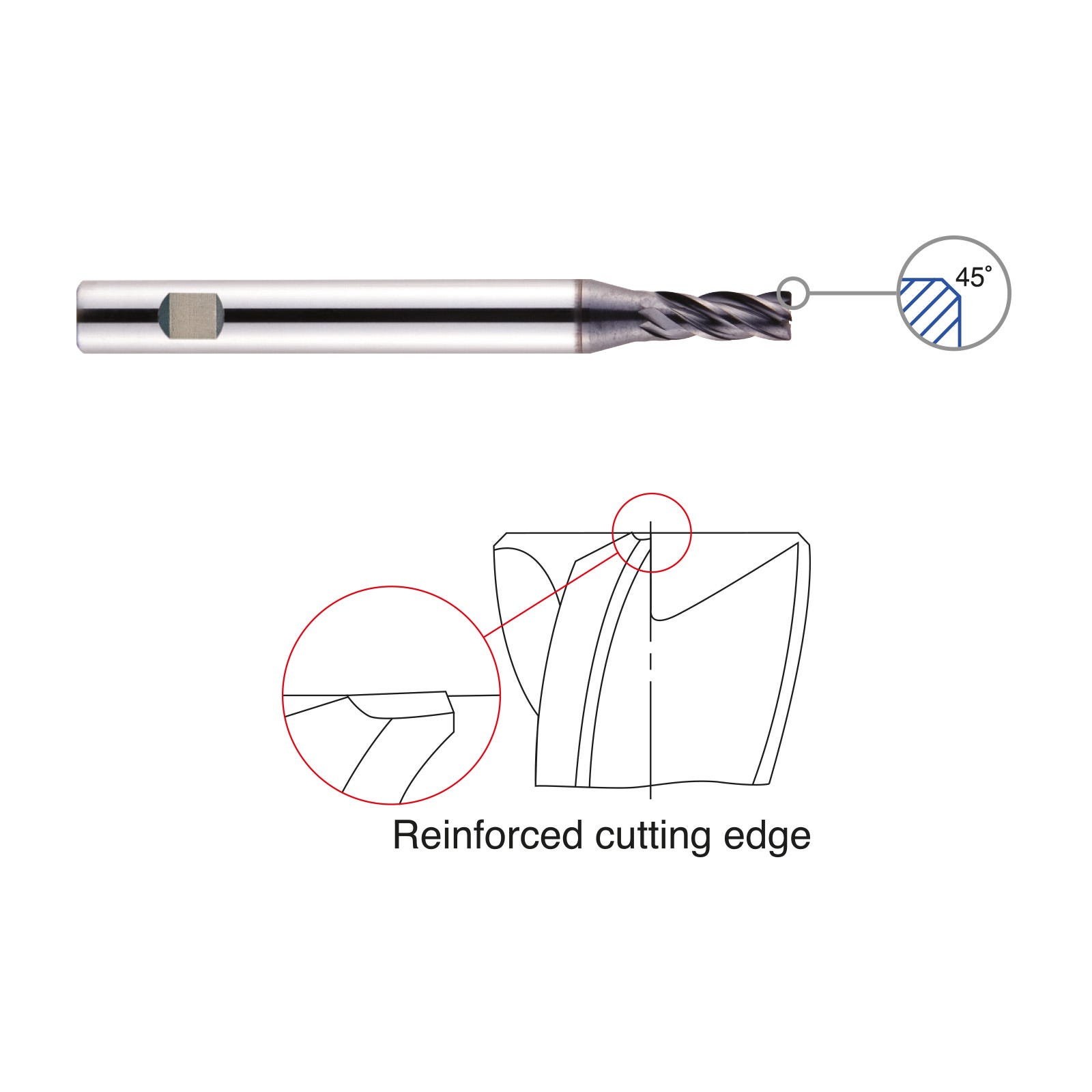

- Chamfer corner protection to prevent against tool chipping
- Rough and finish with one tool
- Longer tool life
- Excellent for machining Stainless Steel, Titanium, Inconel and Low Hardness Steels
Specification
| Category | Milling |
|---|---|
| Sub Category | Milling Cutters |
| Sub Category 2 | V7 Inox Milling Cutters |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| End Profile | Chamfer Prep |
| Flute Type | Standard |
| Shank Type | Weldon |
| Applicable Materials | Steel, Stainless Steel, Exotics |
| Helix Profile | Variable Helix |
| Performance | 4 |
| Brand | YG-1 |
