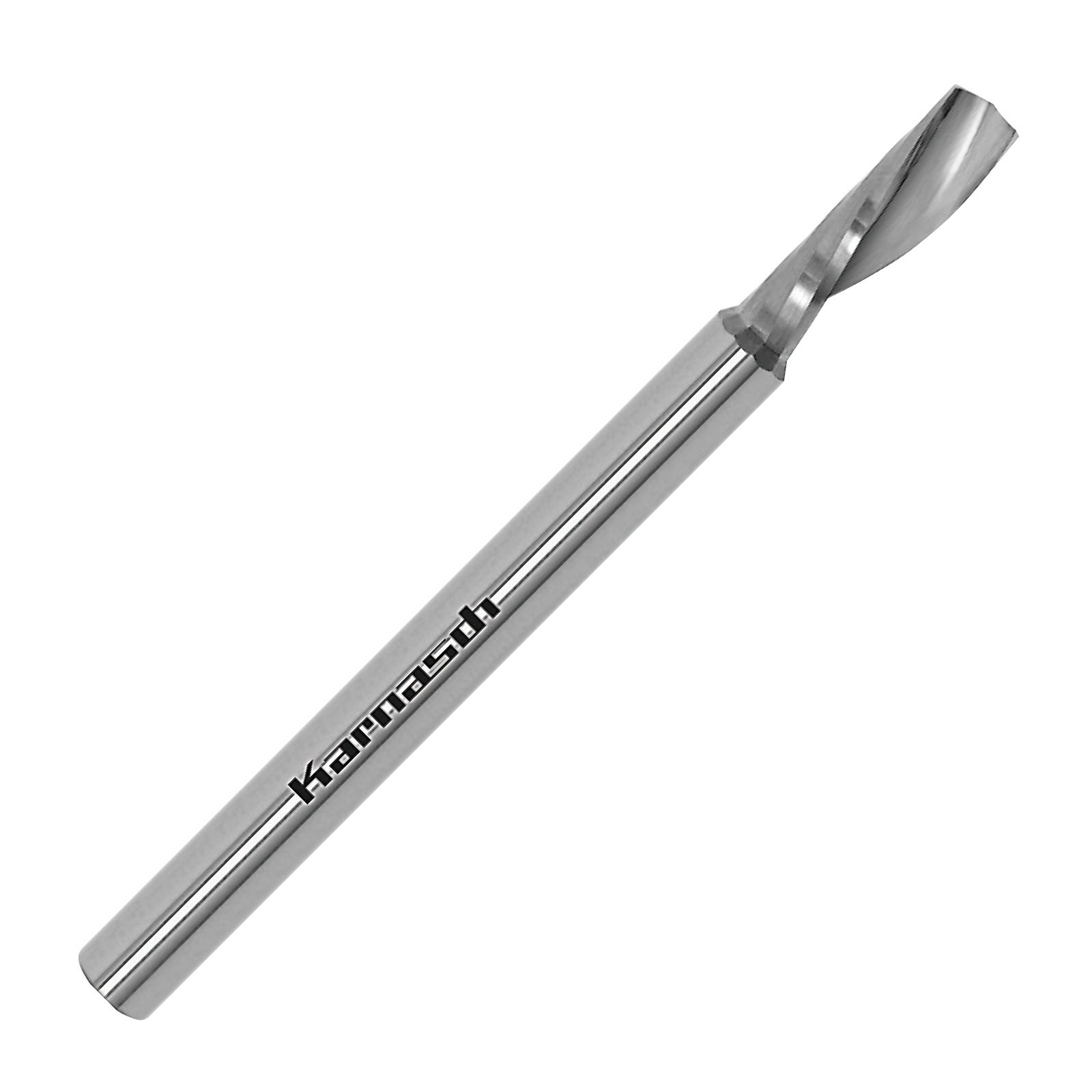

5mm 1 Flute Lapped Plastic-Cut Carbide Down Cut Slot Drill - 29.1654 (Karnasch)
5mm 1 Flute Lapped Plastic-Cut Carbide Down Cut Slot Drill - 29.1654 (Karnasch)

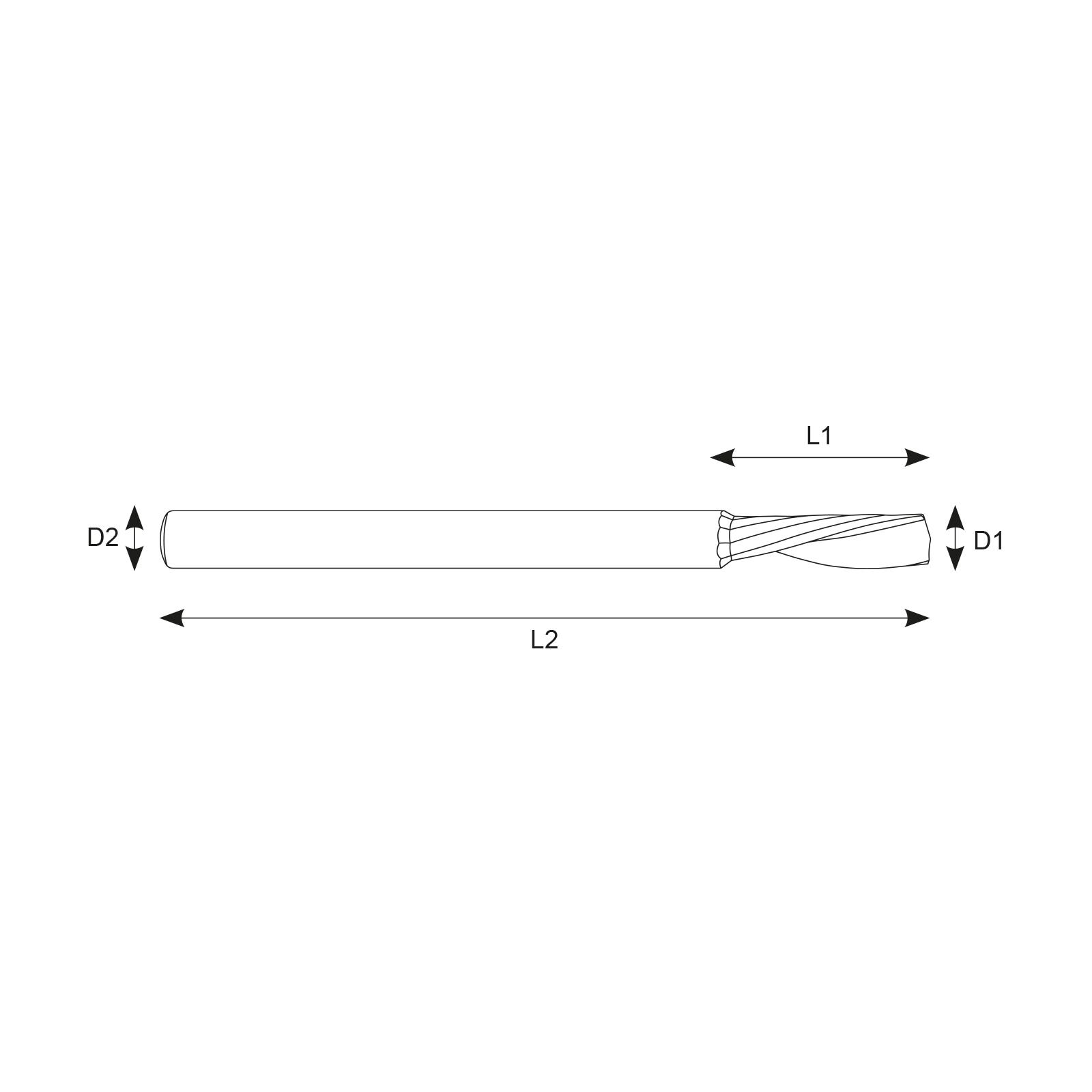

| Diameter (mm) | 5 |
|---|---|
| Overall Length (mm) | 50 |
| Flute Length (mm) | 16 |
| Shank (mm) | 6 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Lapped Flute Design for Excellent Workpiece Finish
- Single Flute for Excellent Chip Evacuation
- 1st Choice for Machining Plastics
- Push Cut (Down Cut) prevents workpiece lift especially with vacuum clamping
- Mirror Finish Machining
- Router Style Cutter Prevents Chip Build Up in Flute Pockets
Specification
| Category | Milling |
|---|---|
| Sub Category | Milling Cutters |
| Sub Category 2 | Plastic Cut Milling Cutters |
| Diameter (mm) | 5 |
| Shank (mm) | 6 |
| Flute Length (mm) | 16 |
| Overall Length (mm) | 50 |
| Flutes | 1 |
| Substrate | Carbide |
| Surface Treatment | Uncoated (Polished) |
| End Profile | Square |
| Flute Type | Standard |
| Shank Type | Plain |
| Applicable Materials | Non-Ferrous |
| Helix Profile | Standard |
| Performance | 4 |
| Substrate Description | Micrograin Carbide |
| Helix Angle | 30° |
| Type | Lapped Flutes |
| Brand | Karnasch |
