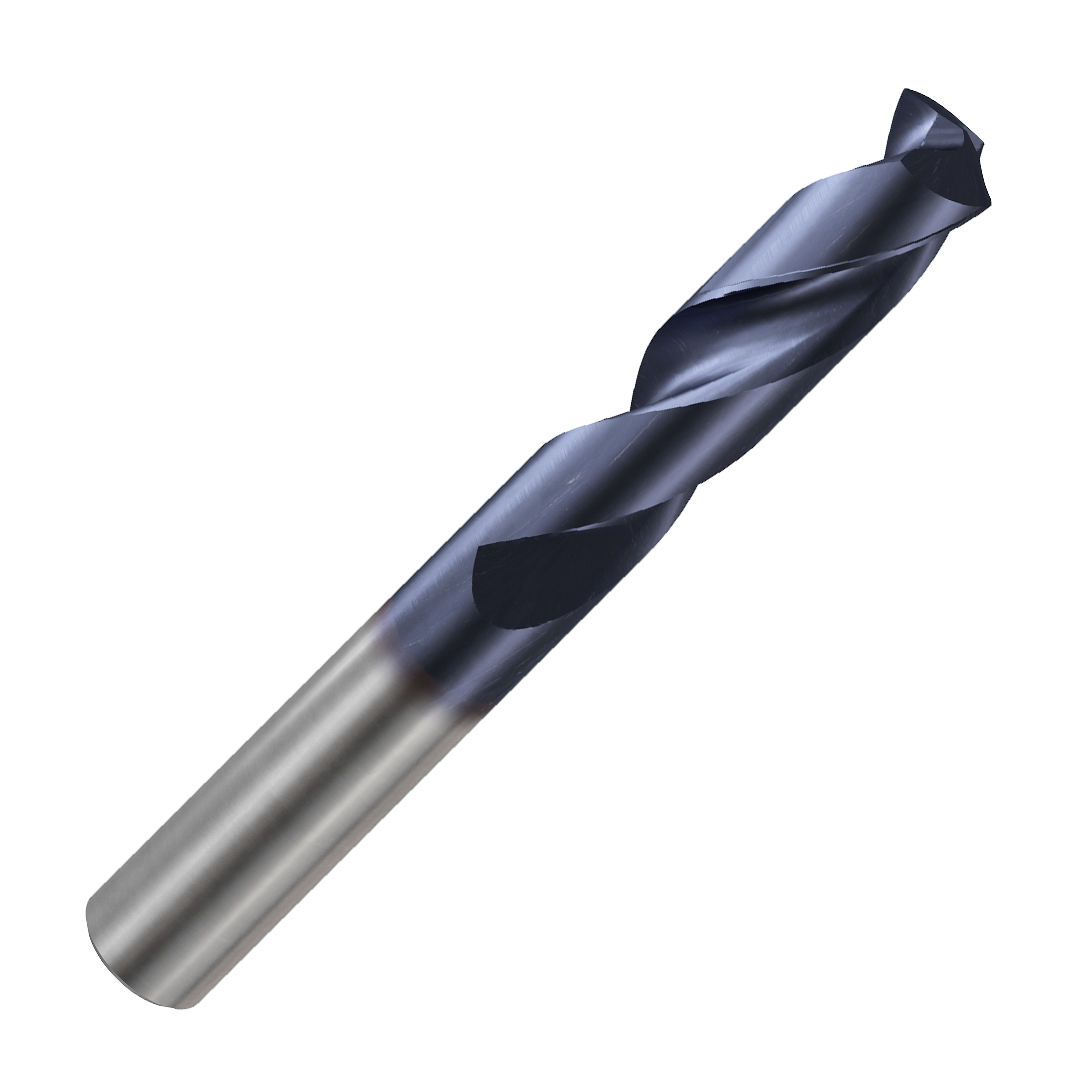

7.4mm TiALN Coated Carbide 3xD Stub Length General Purpose NC Drill - DH223 Series (YG-1)
7.4mm TiALN Coated Carbide 3xD Stub Length General Purpose NC Drill - DH223 Series (YG-1)

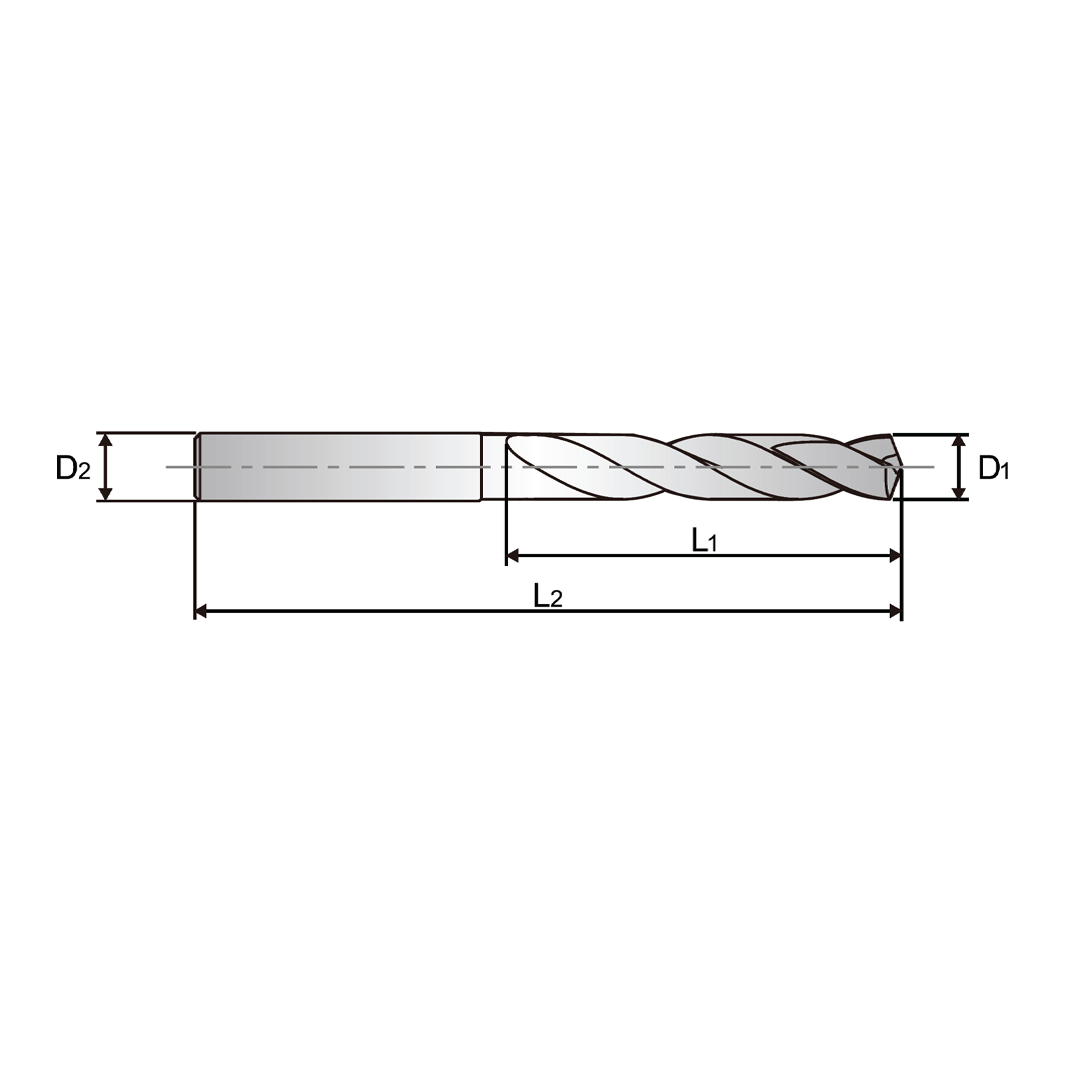

| Diameter (mm) | 7.4 |
|---|---|
| Overall Length (mm) | 79 |
| Flute Length (mm) | 41 |
| Shank (mm) | 8 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
Specification
| Category | Hole Making |
|---|---|
| Sub Category | Carbide Drills |
| Sub Category 2 | NC Drill |
| Diameter (mm) | 7.4 |
| Shank (mm) | 8 |
| Flute Length (mm) | 41 |
| Overall Length (mm) | 79 |
| Tolerance | m7 |
| Shank Tolerance | h6 |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| Drill Type | Jobber |
| Depth | 3xD |
| Performance | 3 |
| Coating Description | TiALN Coated |
| Through Coolant | No |
| Self Centring | Yes |
| Helix Angle | 30° |
| Brand | YG-1 |
