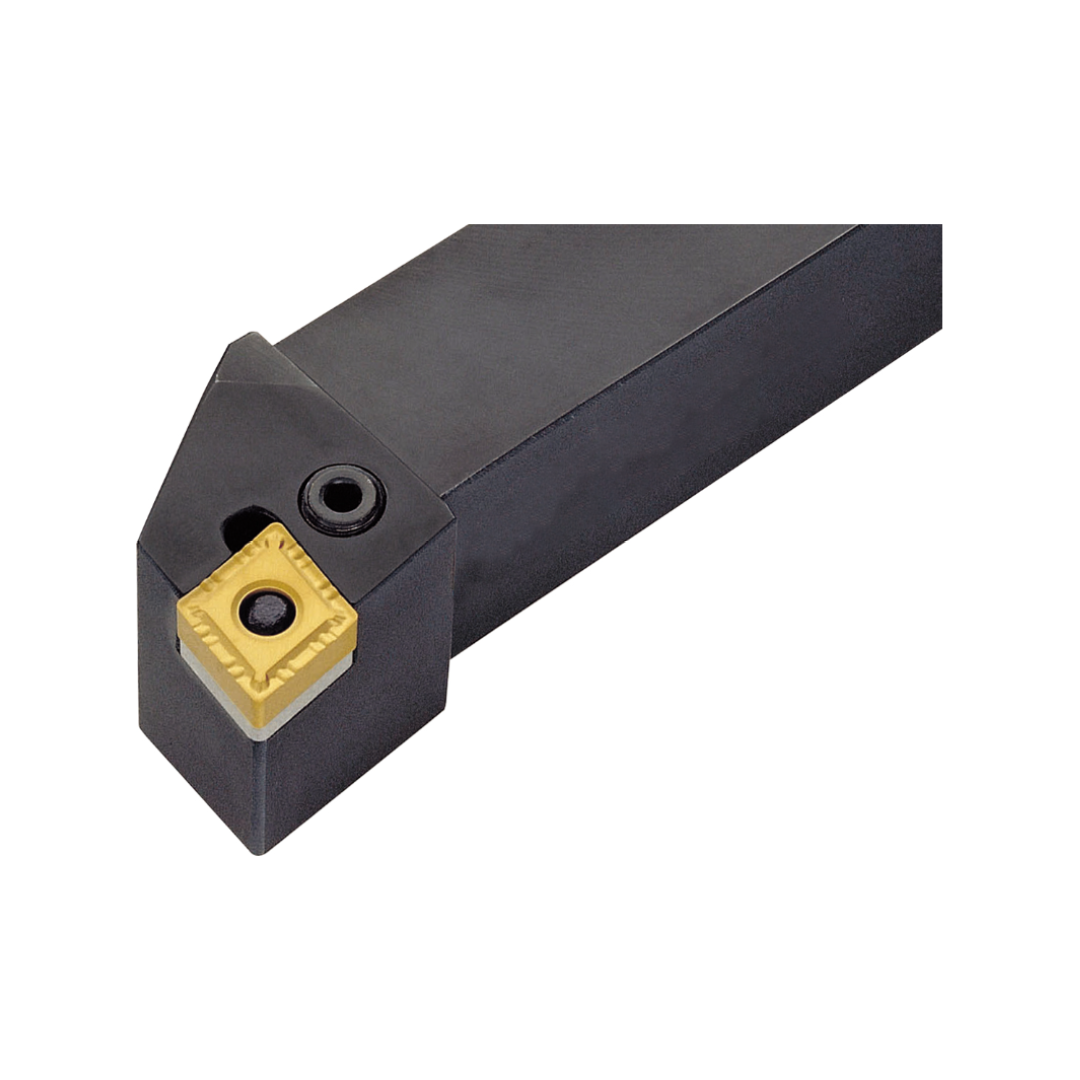

PCLNR3232-P16 Standard Turning Tool Holder, 32 x 32mm Shank, 170mm Long, Right Hand, 95 Degree Approach, Lever Lock, for CNMG16 inserts - PCLNR/L Series (Korloy)

Cutwel Sku
1-06-002913

PCLNR3232-P16 Standard Turning Tool Holder, 32 x 32mm Shank, 170mm Long, Right Hand, 95 Degree Approach, Lever Lock, for CNMG16 inserts - PCLNR/L Series (Korloy)

Cutwel Sku
1-06-002913
High quality solid steel shank turning tool holder suitable for use with CNMG style turning inserts (also suitable...
Read more
Overall Length (mm)170
Shank (mm)32
minus plus
View Full Range
available In stock

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Product Information

Features & Benefits

High quality solid steel shank turning tool holder suitable for use with CNMG style turning inserts (also suitable for CNMA, CNMM, CNGA, CNGG etc). The PCLNR/L series have a Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts with a 95° degree approach angle. Available in Right hand, these turning tool holders are made from Korloy from a high grade tool steel for the highest accuracy, rigidity and best performance turning. Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

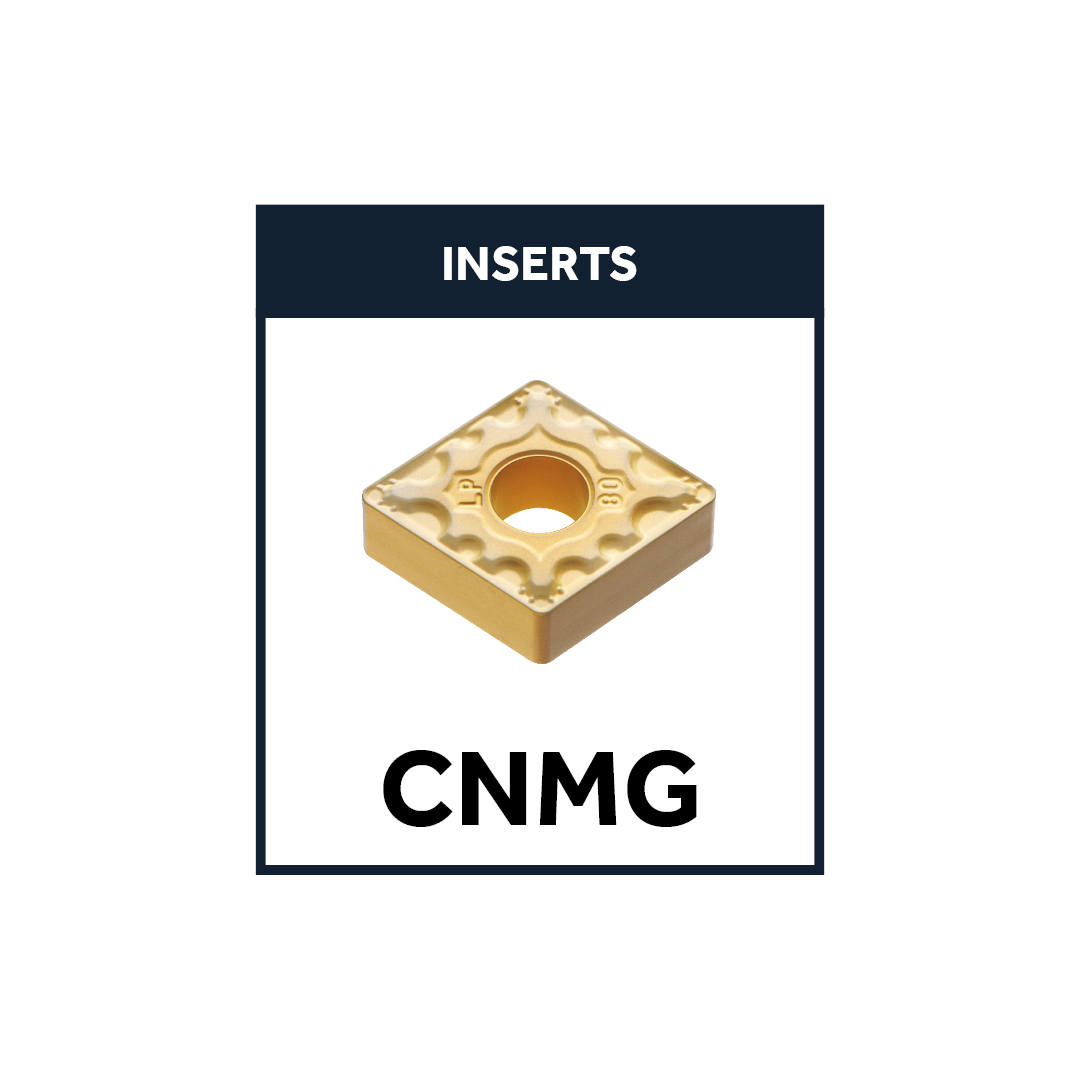

  • Suitable for use with CNMG style turning inserts (also suitable for CNMA, CNMM, CNGA, CNGG etc)

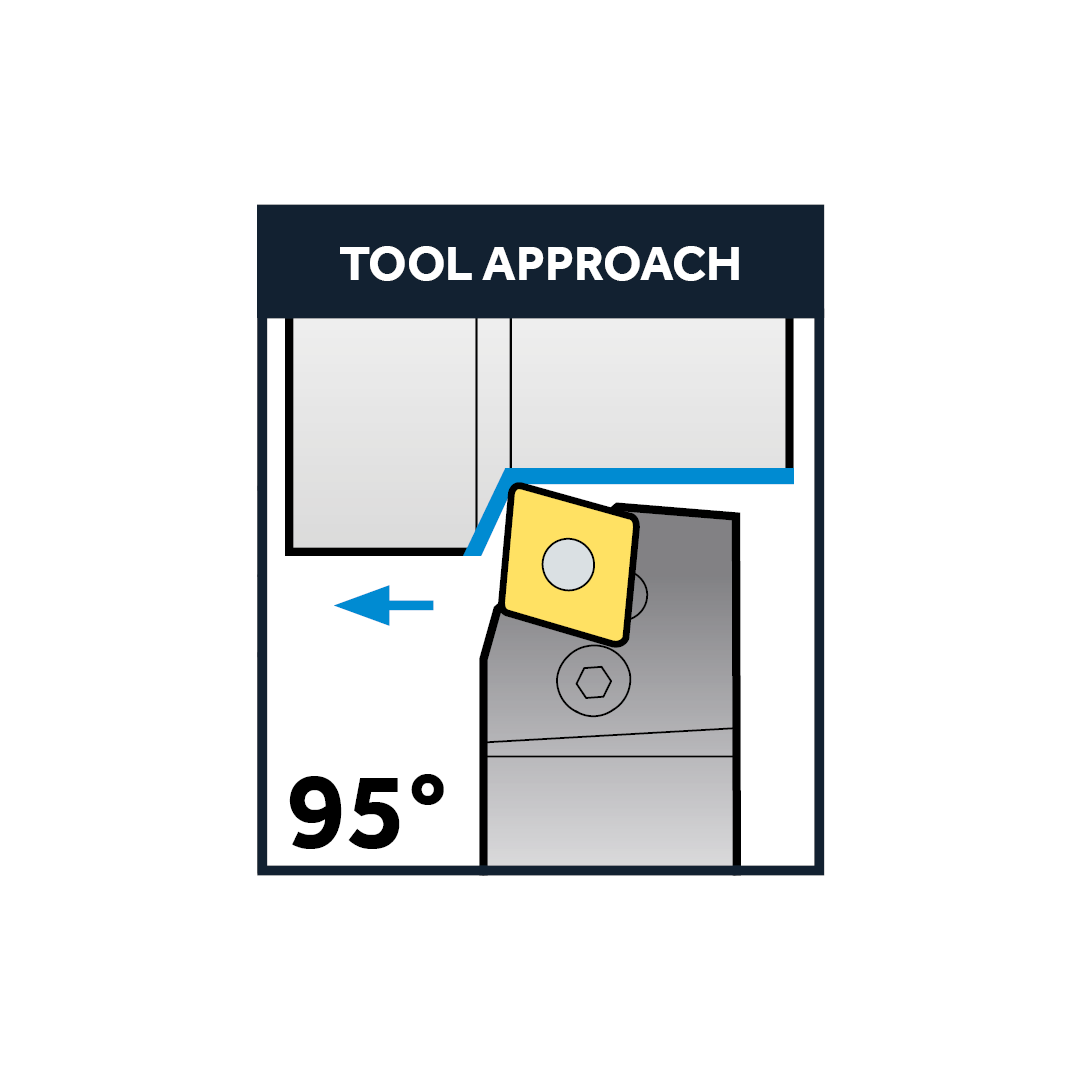

  • High quality solid steel shank turning tool holder with 95° degree approach angle
  • Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts
  • Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

Specification

Category Lathe Tools
Sub Category Turning Tools
Sub Category 2 Standard Turning Tools
Shank (mm) 32
Overall Length (mm) 170
Inserts CN**1606
ISO Code PCLNR3232-P16
Shank 32mm x 32mm
Hand Right
Insert Size CN**1606
Alternative Part Number PCLNR3232-P16
Screw VHX0825
Shim SC53
Lever LV5
Insert Series CNMG
Through Coolant No
Angle 95°
Holder Style PCLNR/L
Clamp Type Lever Lock
Brand Korloy
