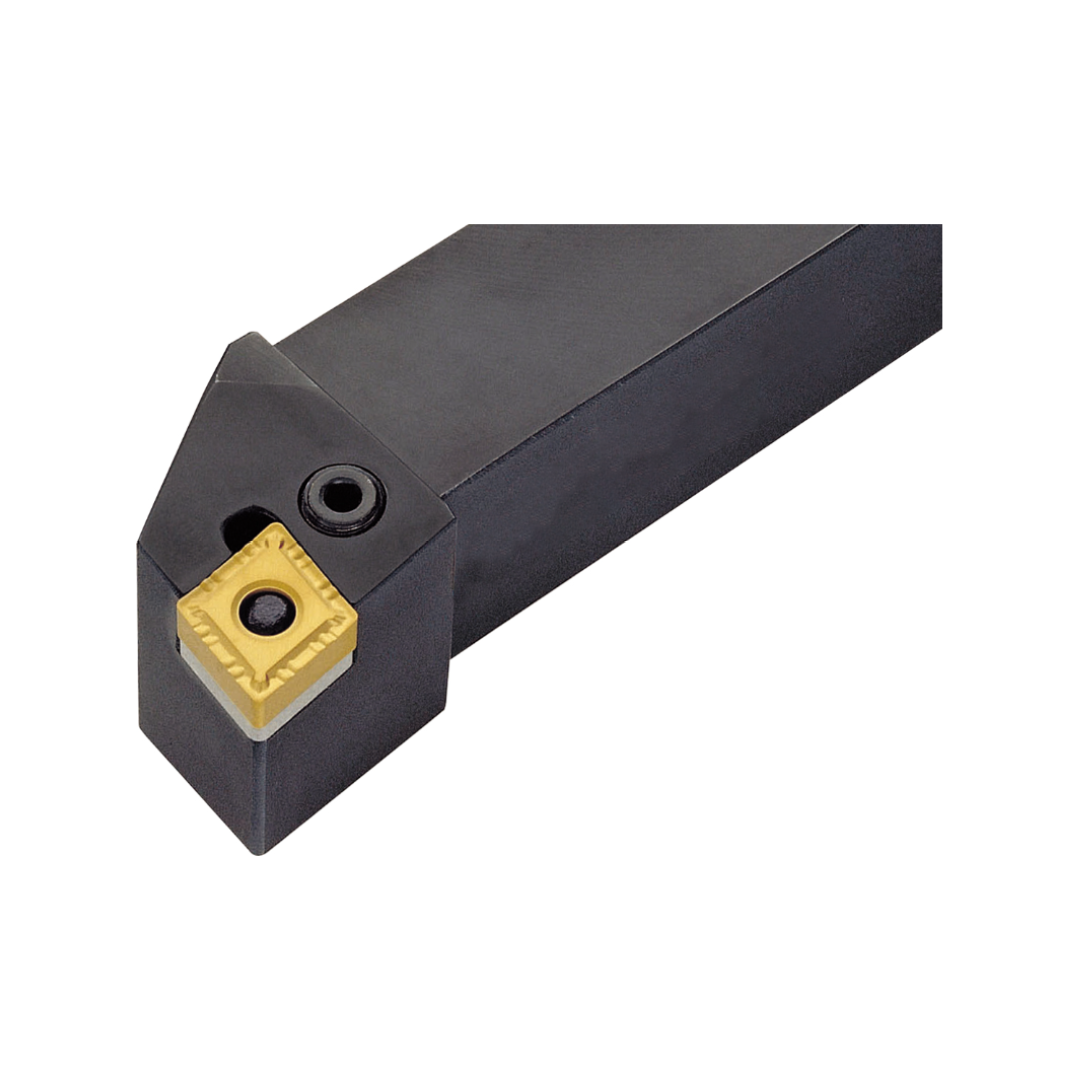

PCLNR4040-P19 Standard Turning Tool Holder, 40 x 40mm Shank, 170mm Long, Right Hand, 95 Degree Approach, Lever Lock, for CNMG19 inserts - PCLNR/L Series (Korloy)
PCLNR4040-P19 Standard Turning Tool Holder, 40 x 40mm Shank, 170mm Long, Right Hand, 95 Degree Approach, Lever Lock, for CNMG19 inserts - PCLNR/L Series (Korloy)

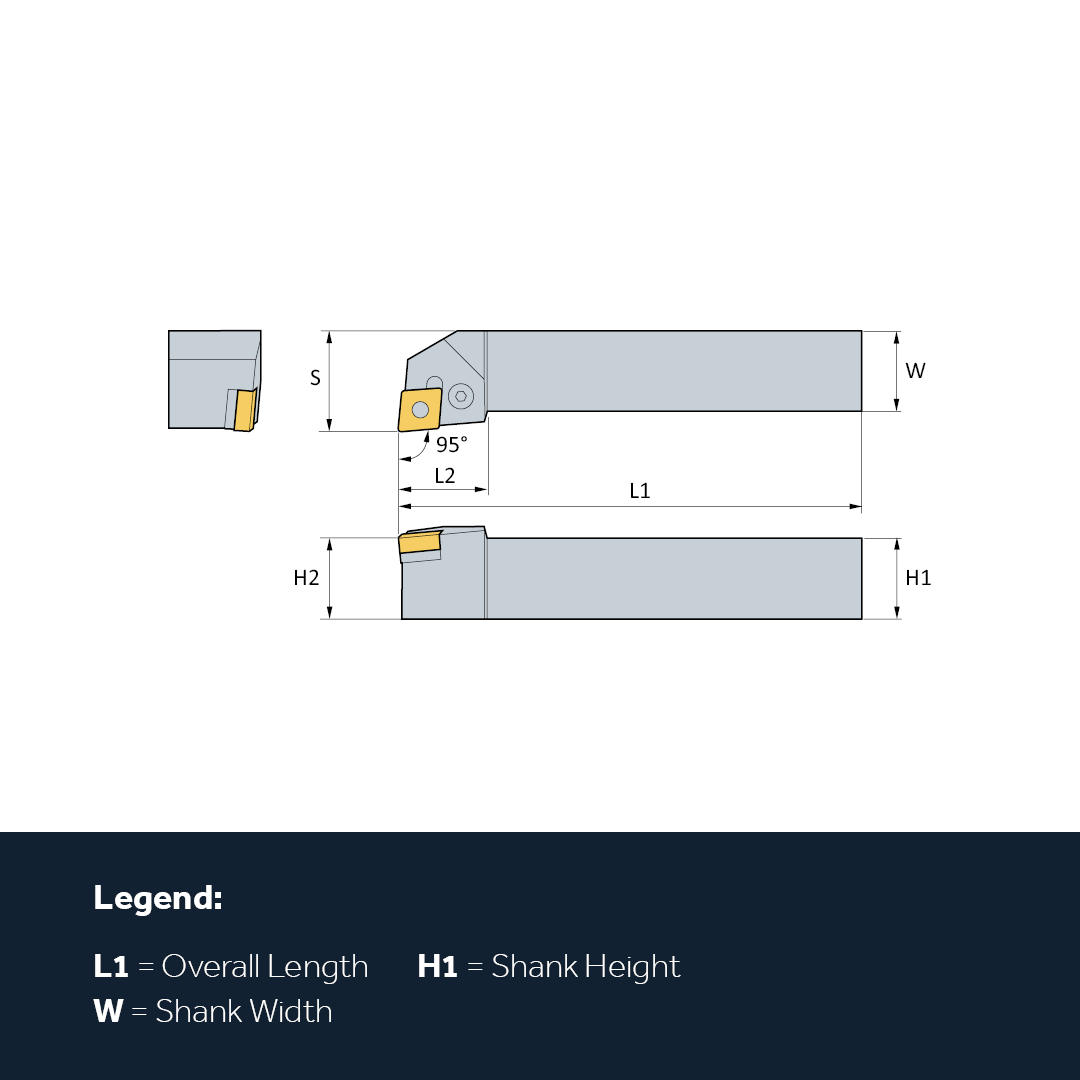

| Overall Length (mm) | 170 |
|---|---|
| Shank (mm) | 40 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits

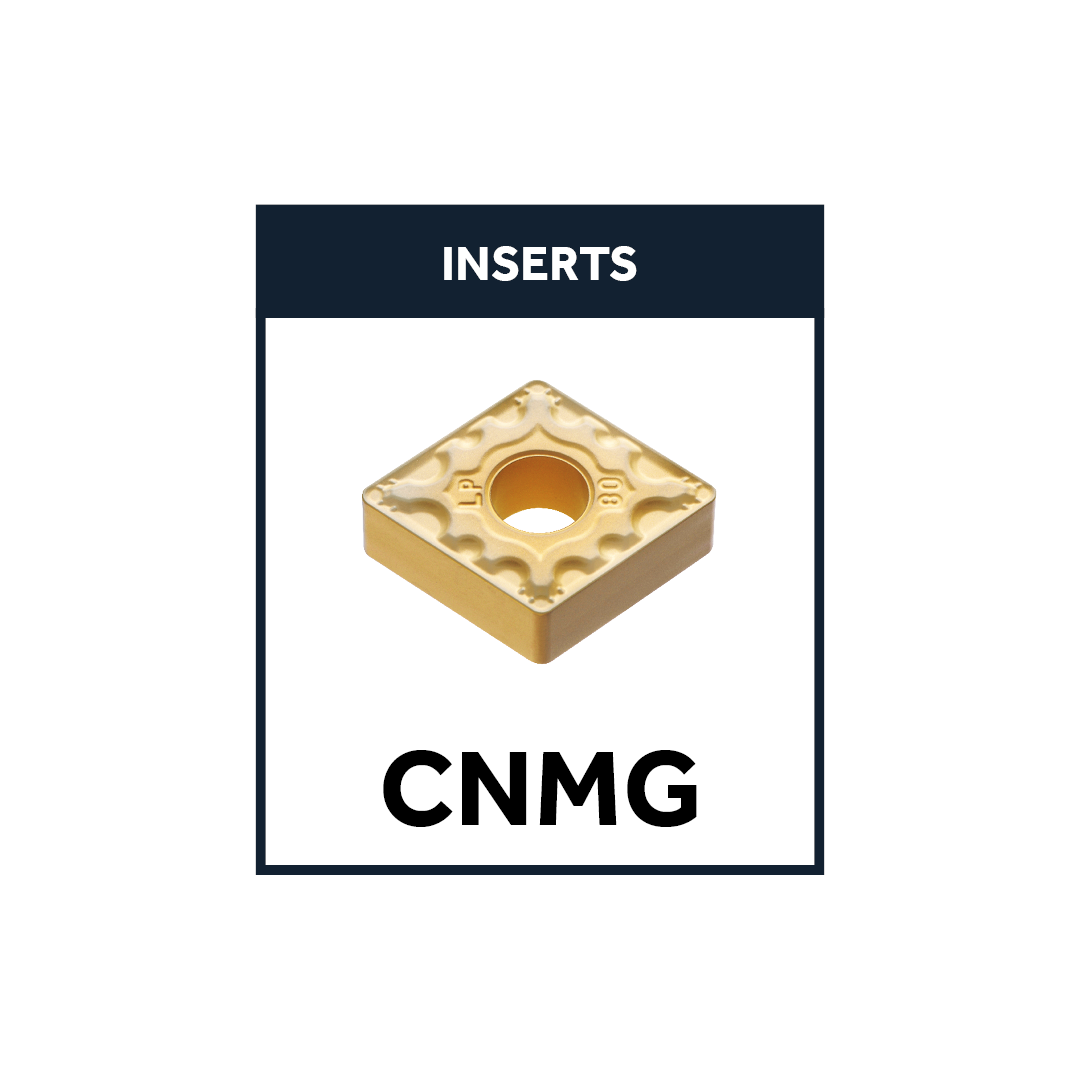

- Suitable for use with CNMG style turning inserts (also suitable for CNMA, CNMM, CNGA, CNGG etc)

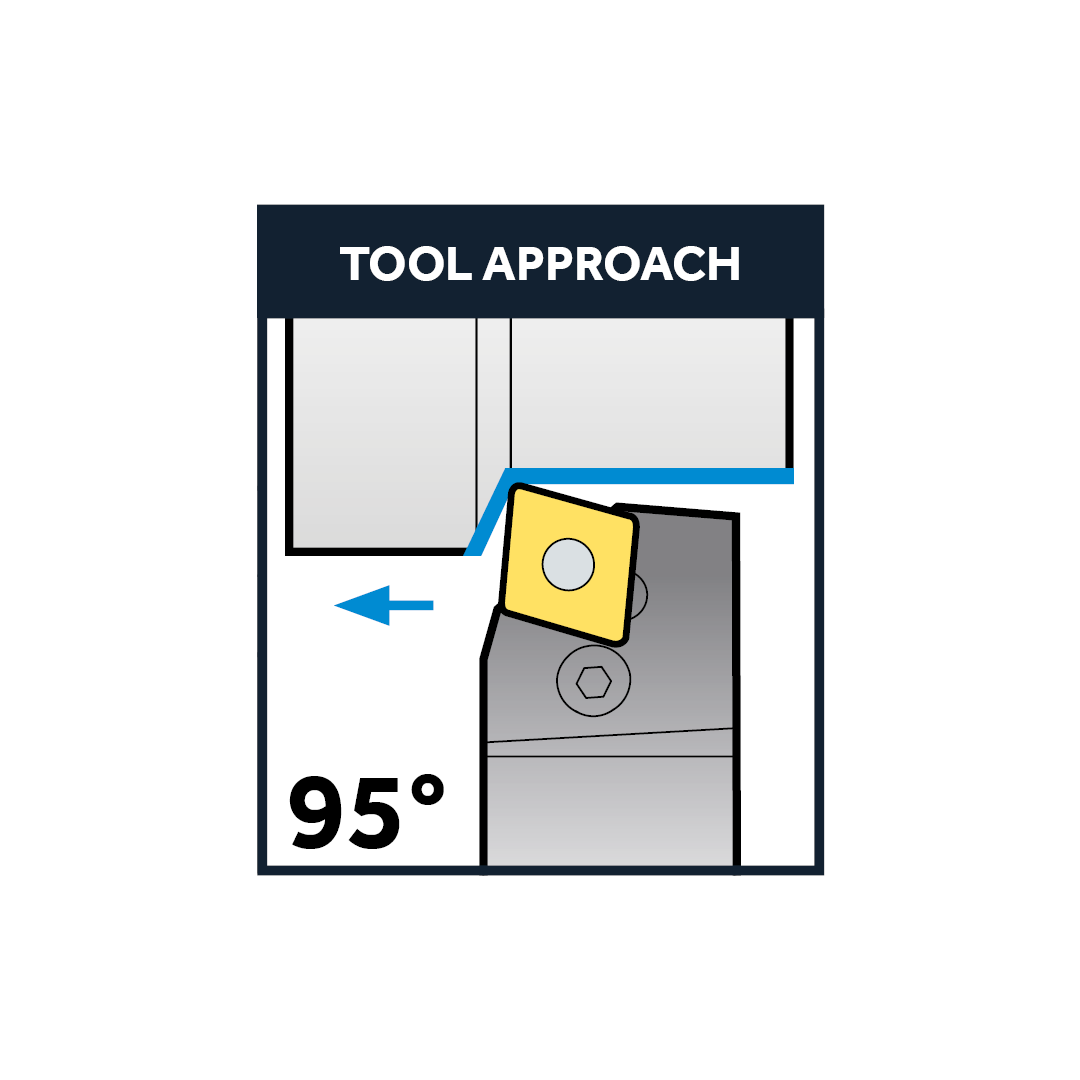

- High quality solid steel shank turning tool holder with 95° degree approach angle
- Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts
- Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.
Specification
| Category | Lathe Tools |
|---|---|
| Sub Category | Turning Tools |
| Sub Category 2 | Standard Turning Tools |
| Shank (mm) | 40 |
| Overall Length (mm) | 170 |
| Inserts | CN**1906 |
| ISO Code | PCLNR4040-P19 |
| Shank | 40mm x 40mm |
| Hand | Right |
| Insert Size | CN**1906 |
| Alternative Part Number | PCLNR4040-P19 |
| Screw | VHX1027N |
| Shim | SC63N |
| Lever | LV6N |
| Insert Series | CNMG |
| Through Coolant | No |
| Angle | 95° |
| Holder Style | PCLNR/L |
| Clamp Type | Lever Lock |
| Brand | Korloy |
