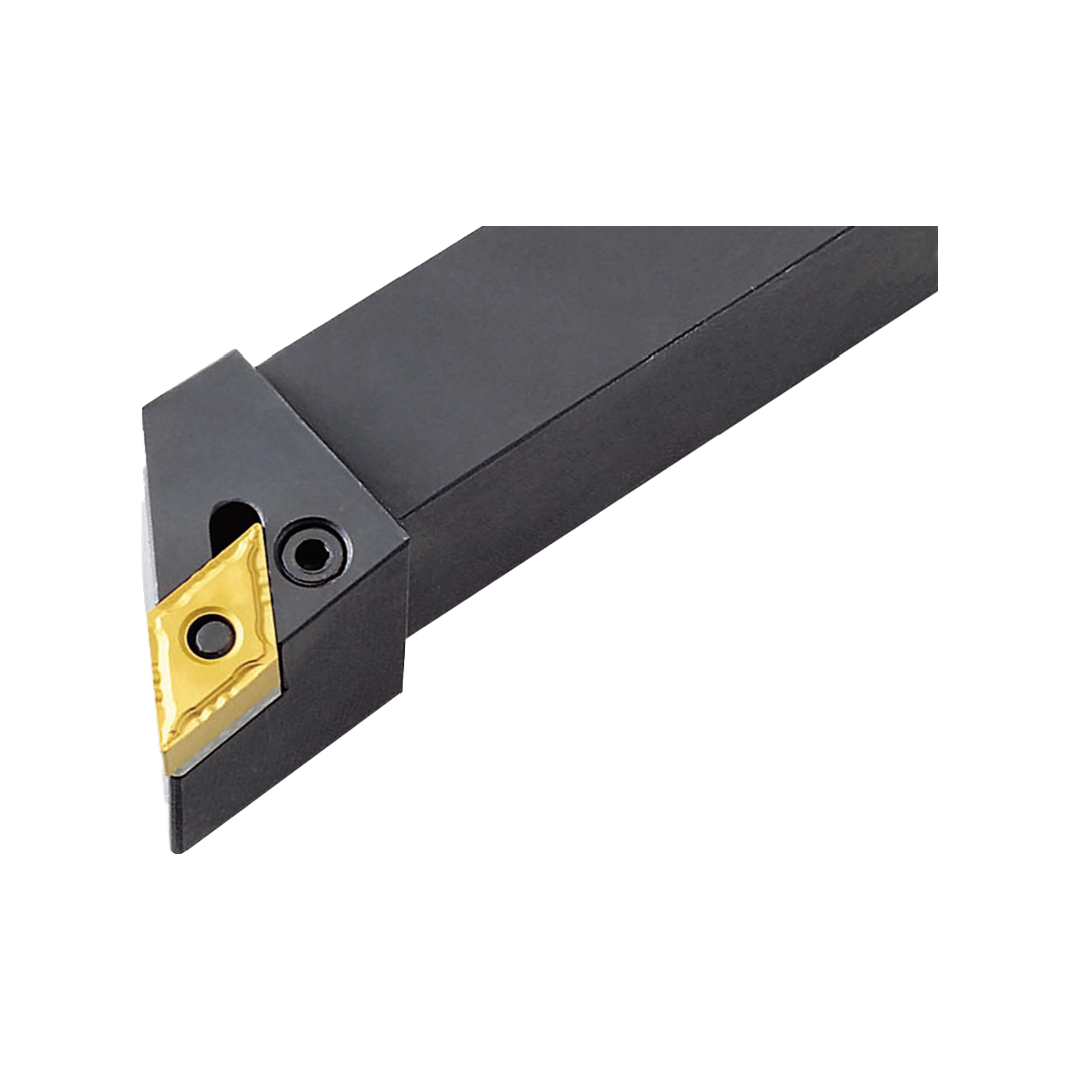

PDJNR2020-K11 Standard Turning Tool Holder, 20 x 20mm Shank, 125mm Long, Right Hand, 93 Degree Approach, Lever Lock, for DNMG15 inserts - PDJNR/L Series (Korloy)

Cutwel Sku
1-06-003446

PDJNR2020-K11 Standard Turning Tool Holder, 20 x 20mm Shank, 125mm Long, Right Hand, 93 Degree Approach, Lever Lock, for DNMG15 inserts - PDJNR/L Series (Korloy)

Cutwel Sku
1-06-003446

Key Features

available Suitable for use with DNMG style turning inserts (also suitable for DNMA, DNMM, DNGA, DNGG etc)
available High quality solid steel shank turning tool holder with 93° degree approach angle
available Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts
Read More
Overall Length (mm)125
Shank (mm)20
green In Stock for Next Day Delivery *
minus plus
View Full Range
*Geographical & product exclusions apply. Delivery calculated on checkout.

Need Help?

Contact Sales

01924 869660 Call us 8am - 5:30pm Call us 8am - 5pm Call us from 8am on Monday

Specification

Category Lathe Tools
Sub Category Turning Tools
Sub Category 2 Standard Turning Tools
Shank (mm) 20
Overall Length (mm) 125
Inserts DN**1104
ISO Code PDJNR2020-K11
Shank 20mm x 20mm
Hand Right
Insert Size DN**1104
Alternative Part Number PDJNR2020-K11
Screw VHX0617
Shim SD317
Lever LV3

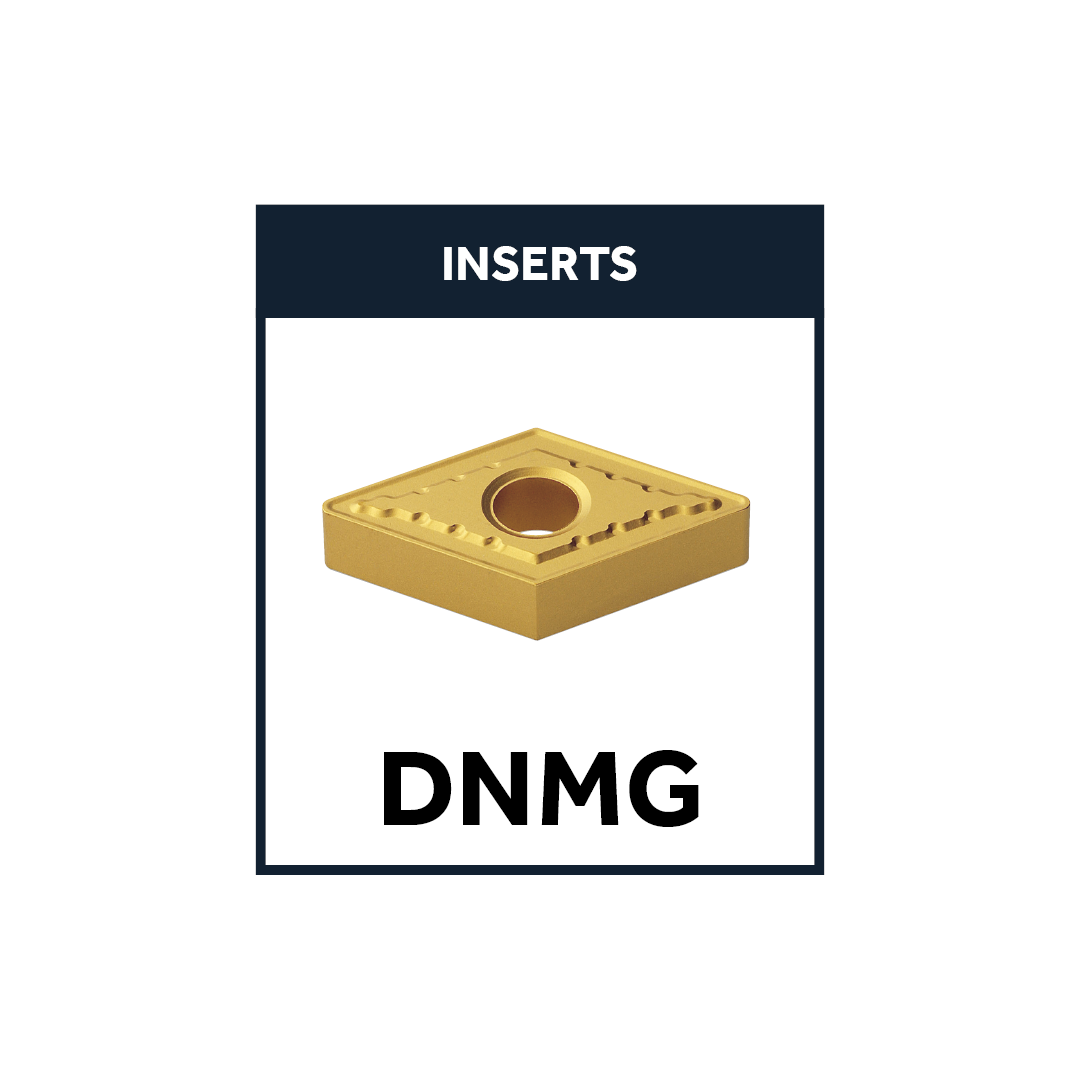

Insert Series DNMG
Through Coolant No

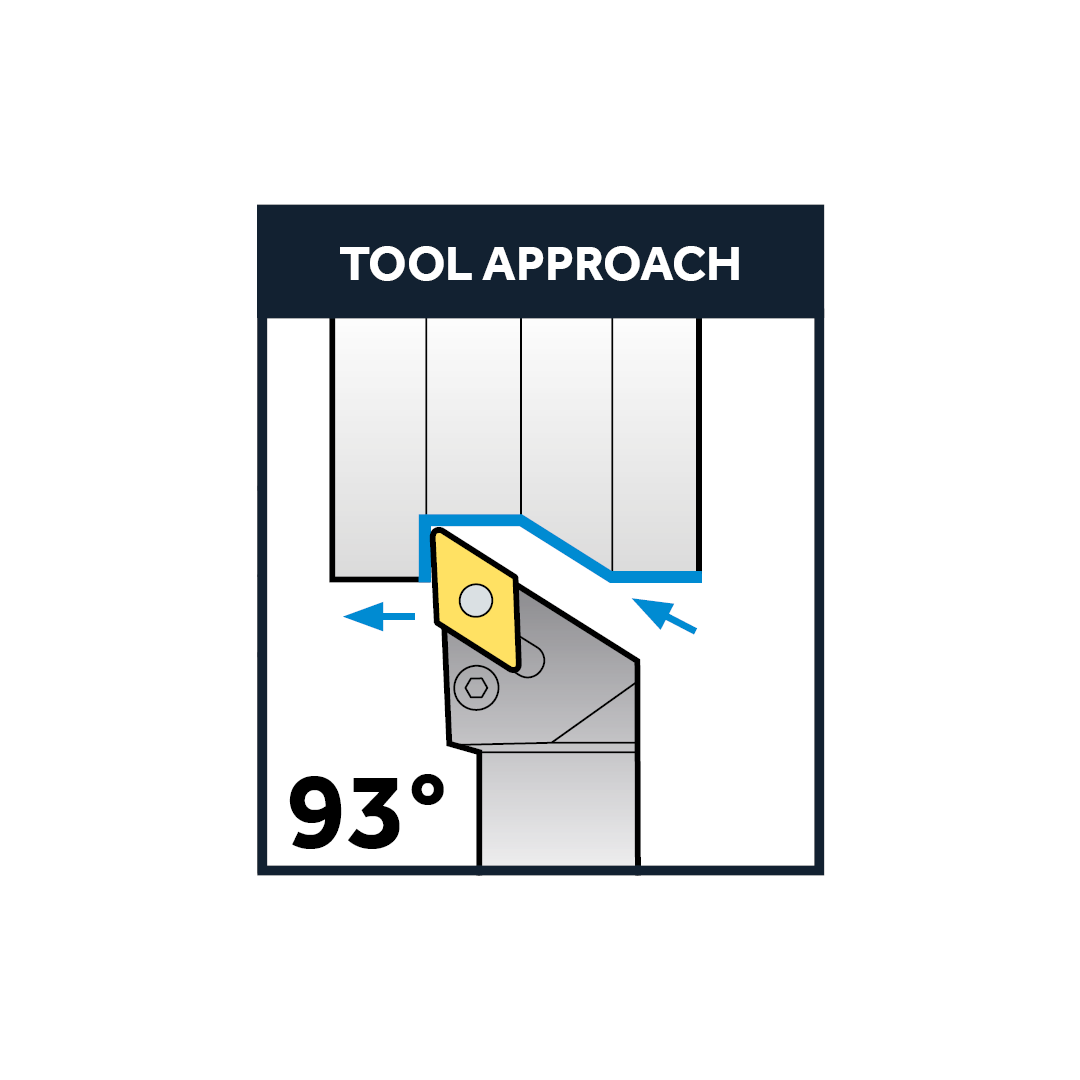

Angle 93°
Holder Style PDJNR/L
Clamp Type Lever Lock
Brand Korloy
Part Numbers
  • Cutwel Part Number 1-06-003446

Description

High quality solid steel shank turning tool holder suitable for use with DNMG style turning inserts (also suitable for DNMA, DNMM, DNGA, DNGG etc). The PDJNR/L series have a Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts with a 93° degree approach angle. Available in Right hand, these turning tool holders are made from Korloy from a high grade tool steel for the highest accuracy, rigidity and best performance turning. Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

Features & Benefits

  • Suitable for use with DNMG style turning inserts (also suitable for DNMA, DNMM, DNGA, DNGG etc)
  • High quality solid steel shank turning tool holder with 93° degree approach angle
  • Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts
  • Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

What time are we open?

We are open Monday to Friday and able to dispatch orders between 8am and 5:30pm Monday to Thursday, and up to 5pm on Friday.

What delivery services do we offer?

To mainland UK we offer FREE UK next day delivery on all standard orders above £69 (ex vat), and £125 (ex vat) on all orders including any liquids.*

Alternatively, we offer a FREE Click and Collect service from our distribution centre in Cleckheaton, West Yorkshire. Click here for the full address.

For standard orders under £69 (ex vat), we offer the following:

  • 1st class post - £2.75
  • DPD Standard Next Day Delivery - £7.00
  • DPD Next Day Pre-12pm - £10.00 or (£5.25 on orders over £69 (ex VAT)
  • DPD Next Day Pre-10.30am - £18.00

For orders containing liquids under £125 (ex vat), standard UK Mail Next Day Delivery is £8.50 and UK Mail Next Day Pre-12pm Delivery is £13.75.

We also offer Saturday delivery for those that require it. If you order before 5pm on a Friday we offer a range of options which can be viewed here.

For a full breakdown of costs for all types of item and geographical locations including Scottish Highlands, Northern Ireland, Channel Islands & Republic of Ireland, click here.

How do I return an order/item?

Our returns policy is easier than ever. We understand that if an item isn’t correct, then it needs to be returned. If you are wanting to return anything supplied by Cutwel please see our returns page for full instructions.

*T’s & C’s and exclusions apply. Please see our delivery page for more information on all our services including those outside of mainland UK (Republic of Ireland, Northern Ireland, Scottish Highlands, Channel Islands etc).

Filter Items arrow
Code Shank (mm) Overall Length (mm) Inserts ISO Code Shank Hand Insert Size Related Products Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Shank (mm)
carrat-down
Overall Length (mm)
carrat-down
Inserts
carrat-down
ISO Code
carrat-down
Shank
carrat-down
Hand
carrat-down
Insert Size
carrat-down
Shank (mm): 16 Overall Length (mm): 100 Inserts: DN**1104 ISO Code: PDJNR1616-H11 Shank: 16mm x 16mm Hand: Right Insert Size: DN**1104
green In Stock for Next Day Delivery *
£57.04 £47.53
minus plus
Shank (mm): 16 Overall Length (mm): 100 Inserts: DN**1104 ISO Code: PDJNL1616-H11 Shank: 16mm x 16mm Hand: Left Insert Size: DN**1104
green Available for Delivery within 4-5 Days *
£57.04 £47.53
minus plus
Shank (mm): 20 Overall Length (mm): 125 Inserts: DN**1104 ISO Code: PDJNR2020-K11 Shank: 20mm x 20mm Hand: Right Insert Size: DN**1104
green In Stock for Next Day Delivery *
£62.74 £52.28
minus plus
Shank (mm): 20 Overall Length (mm): 125 Inserts: DN**1104 ISO Code: PDJNL2020-K11 Shank: 20mm x 20mm Hand: Left Insert Size: DN**1104
green In Stock for Next Day Delivery *
£62.74 £52.28
minus plus
Shank (mm): 25 Overall Length (mm): 150 Inserts: DN**1104 ISO Code: PDJNR2525-M11 Shank: 25mm x 25mm Hand: Right Insert Size: DN**1104
green In Stock for Next Day Delivery *
£71.04 £59.20
minus plus
Shank (mm): 25 Overall Length (mm): 150 Inserts: DN**1104 ISO Code: PDJNL2525-M11 Shank: 25mm x 25mm Hand: Left Insert Size: DN**1104
green In Stock for Next Day Delivery *
£70.90 £59.08
minus plus
Shank (mm): 20 Overall Length (mm): 125 Inserts: DN**1504 ISO Code: PDJNR2020-K15-3 Shank: 20mm x 20mm Hand: Right Insert Size: DN**1504
green Available for Delivery within 4-5 Days *
£62.74 £52.28
minus plus
Shank (mm): 20 Overall Length (mm): 125 Inserts: DN**1504 ISO Code: PDJNL2020-K15-3 Shank: 20mm x 20mm Hand: Left Insert Size: DN**1504
green Available for Delivery within 4-5 Days *
£62.74 £52.28
minus plus
Shank (mm): 25 Overall Length (mm): 150 Inserts: DN**1504 ISO Code: PDJNR2525-M15-3 Shank: 25mm x 25mm Hand: Right Insert Size: DN**1504
green In Stock for Next Day Delivery *
£71.04 £59.20
minus plus
Shank (mm): 25 Overall Length (mm): 150 Inserts: DN**1504 ISO Code: PDJNL2525-M15-3 Shank: 25mm x 25mm Hand: Left Insert Size: DN**1504
green In Stock for Next Day Delivery *
£71.04 £59.20
minus plus
Shank (mm): 32 Overall Length (mm): 170 Inserts: DN**1504 ISO Code: PDJNR3232-P15-3 Shank: 32mm x 32mm Hand: Right Insert Size: DN**1504
green Available for Delivery within 4-5 Days *
£83.15 £69.29
minus plus
Shank (mm): 20 Overall Length (mm): 125 Inserts: DN**1506 ISO Code: PDJNR2020-K15 Shank: 20mm x 20mm Hand: Right Insert Size: DN**1506
green Available for Delivery within 4-5 Days *
£62.74 £52.28
minus plus
Shank (mm): 20 Overall Length (mm): 125 Inserts: DN**1506 ISO Code: PDJNL2020-K15 Shank: 20mm x 20mm Hand: Left Insert Size: DN**1506
green In Stock for Next Day Delivery *
£62.74 £52.28
minus plus
Shank (mm): 25 Overall Length (mm): 150 Inserts: DN**1506 ISO Code: PDJNR2525-M15 Shank: 25mm x 25mm Hand: Right Insert Size: DN**1506
green In Stock for Next Day Delivery *
£71.04 £59.20
minus plus
Shank (mm): 25 Overall Length (mm): 150 Inserts: DN**1506 ISO Code: PDJNL2525-M15 Shank: 25mm x 25mm Hand: Left Insert Size: DN**1506
green In Stock for Next Day Delivery *
£71.04 £59.20
minus plus
Shank (mm): 32 Overall Length (mm): 170 Inserts: DN**1506 ISO Code: PDJNR3225-P15 Shank: 32mm x 25mm Hand: Right Insert Size: DN**1506
green Available for Delivery within 4-5 Days *
£83.15 £69.29
minus plus
Shank (mm): 32 Overall Length (mm): 170 Inserts: DN**1506 ISO Code: PDJNR3232-P15 Shank: 32mm x 32mm Hand: Right Insert Size: DN**1506
green Available for Delivery within 4-5 Days *
£83.15 £69.29
minus plus
Shank (mm): 32 Overall Length (mm): 170 Inserts: DN**1506 ISO Code: PDJNL3225-P15 Shank: 32mm x 25mm Hand: Left Insert Size: DN**1506
green Available for Delivery within 4-5 Days *
£83.15 £69.29
minus plus
Shank (mm): 32 Overall Length (mm): 170 Inserts: DN**1506 ISO Code: PDJNL3232-P15 Shank: 32mm x 32mm Hand: Left Insert Size: DN**1506
green In Stock for Next Day Delivery *
£83.15 £69.29
minus plus

*Geographical & product exclusions apply for next day delivery (calculated on checkout). Any other lead times shown are estimated and subject to availability.
