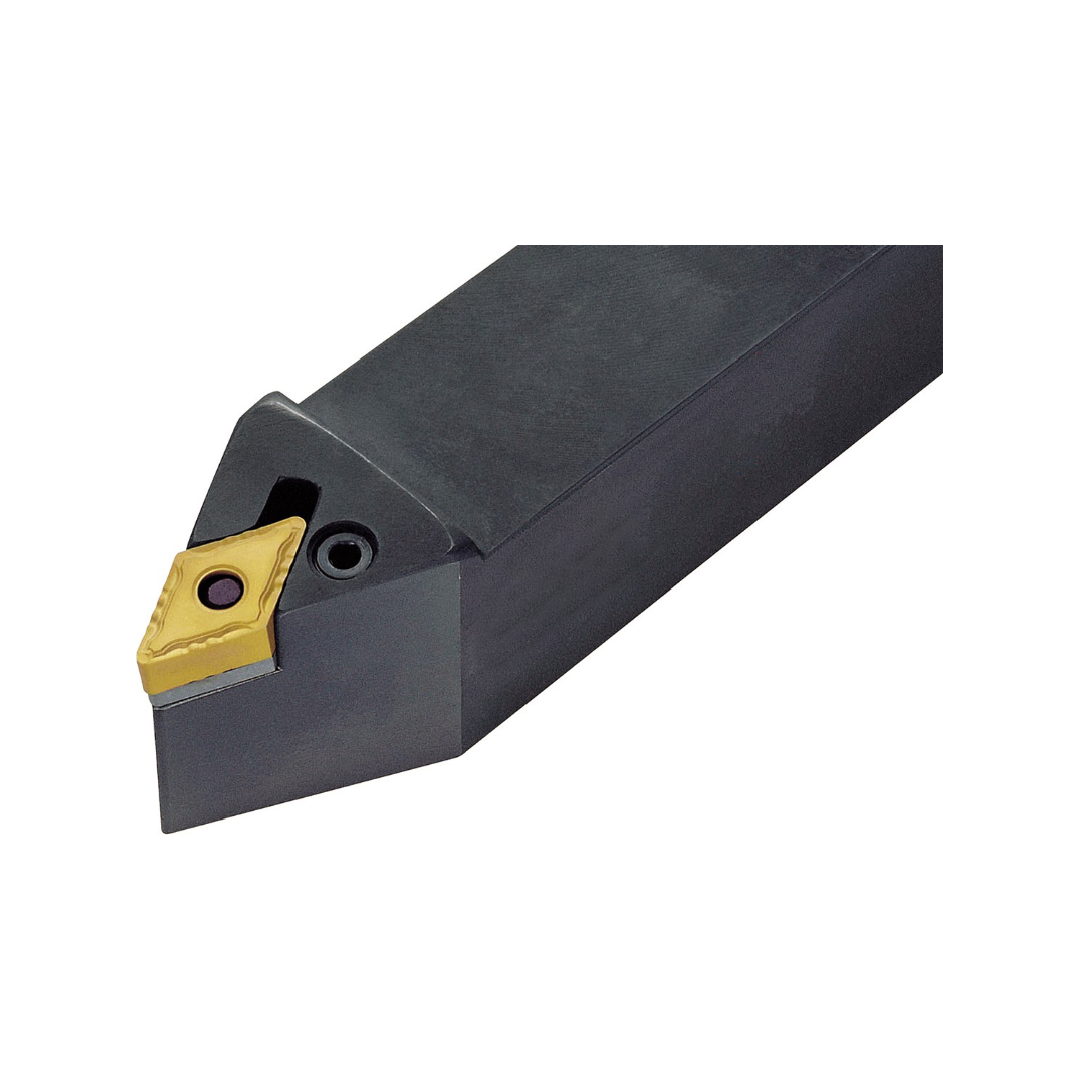

PDNNL3232-P15 Standard Turning Tool Holder, 32 x 32mm Shank, 170mm Long, Left Hand, 62.5 Degree Approach, Lever Lock, for DNMG15 inserts - PDNNR/L Series (Korloy)
PDNNL3232-P15 Standard Turning Tool Holder, 32 x 32mm Shank, 170mm Long, Left Hand, 62.5 Degree Approach, Lever Lock, for DNMG15 inserts - PDNNR/L Series (Korloy)
| Overall Length (mm) | 170 |
|---|---|
| Shank (mm) | 32 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits

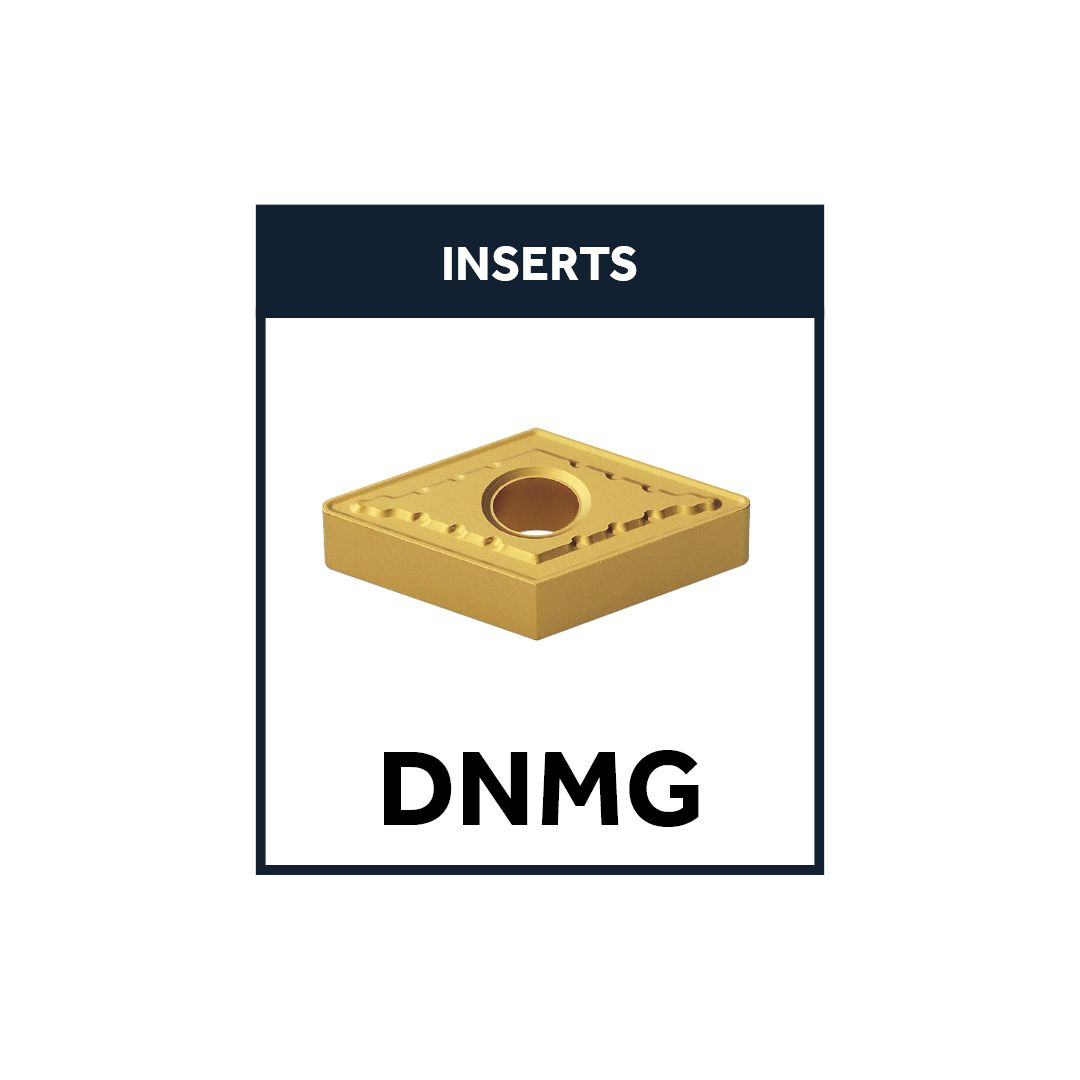

- Suitable for use with DNMG style turning inserts (also suitable for DNMA, DNMM, DNGA, DNGG etc)

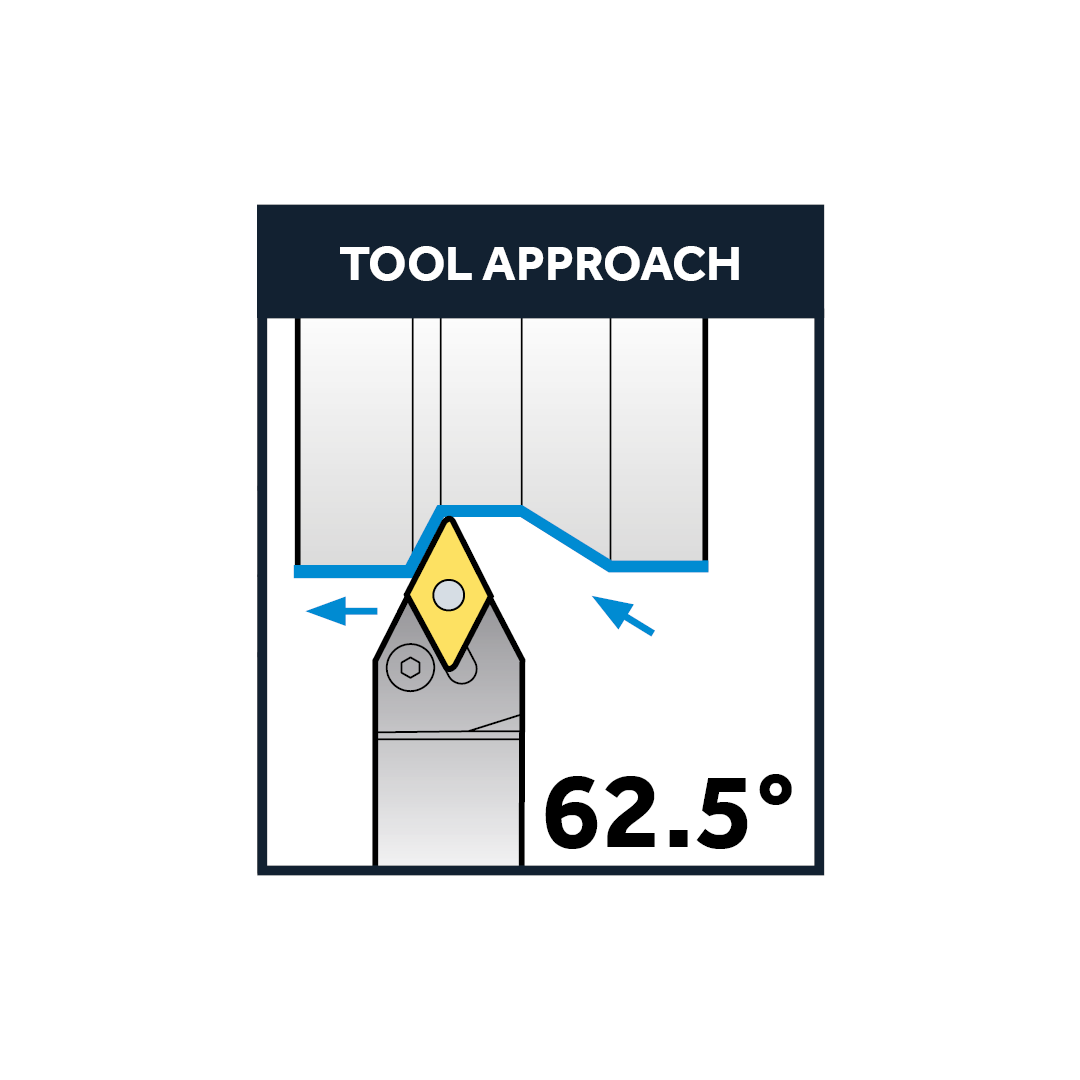

- High quality solid steel shank turning tool holder with 62.5° degree approach angle
- Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts
- Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.
Specification
| Category | Lathe Tools |
|---|---|
| Sub Category | Turning Tools |
| Sub Category 2 | Standard Turning Tools |

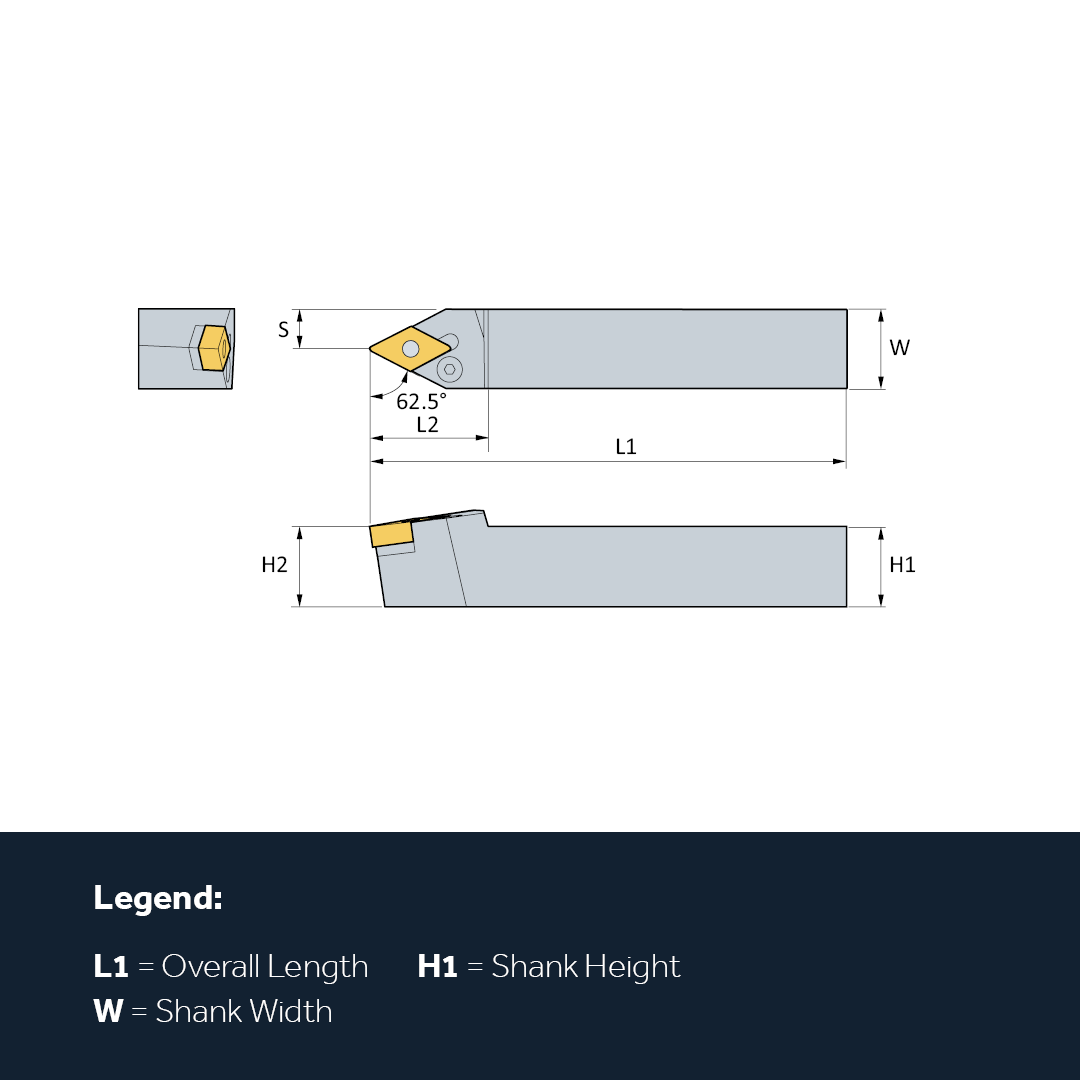

| Shank (mm) | 32 |
| Overall Length (mm) | 170 |
| Inserts | DN**1506 |
| Hand | Left |
| Alternative Part Number | PDNNL3232-P15 |
| Screw | VHX0821 |
| Shim | SD42 |
| Lever | LV4B |
| Insert Series | DNMG |
| Through Coolant | No |
| Angle | 62.5° |
| Holder Style | PDNNR/L |
| Clamp Type | Lever Lock |
| Brand | Korloy |
