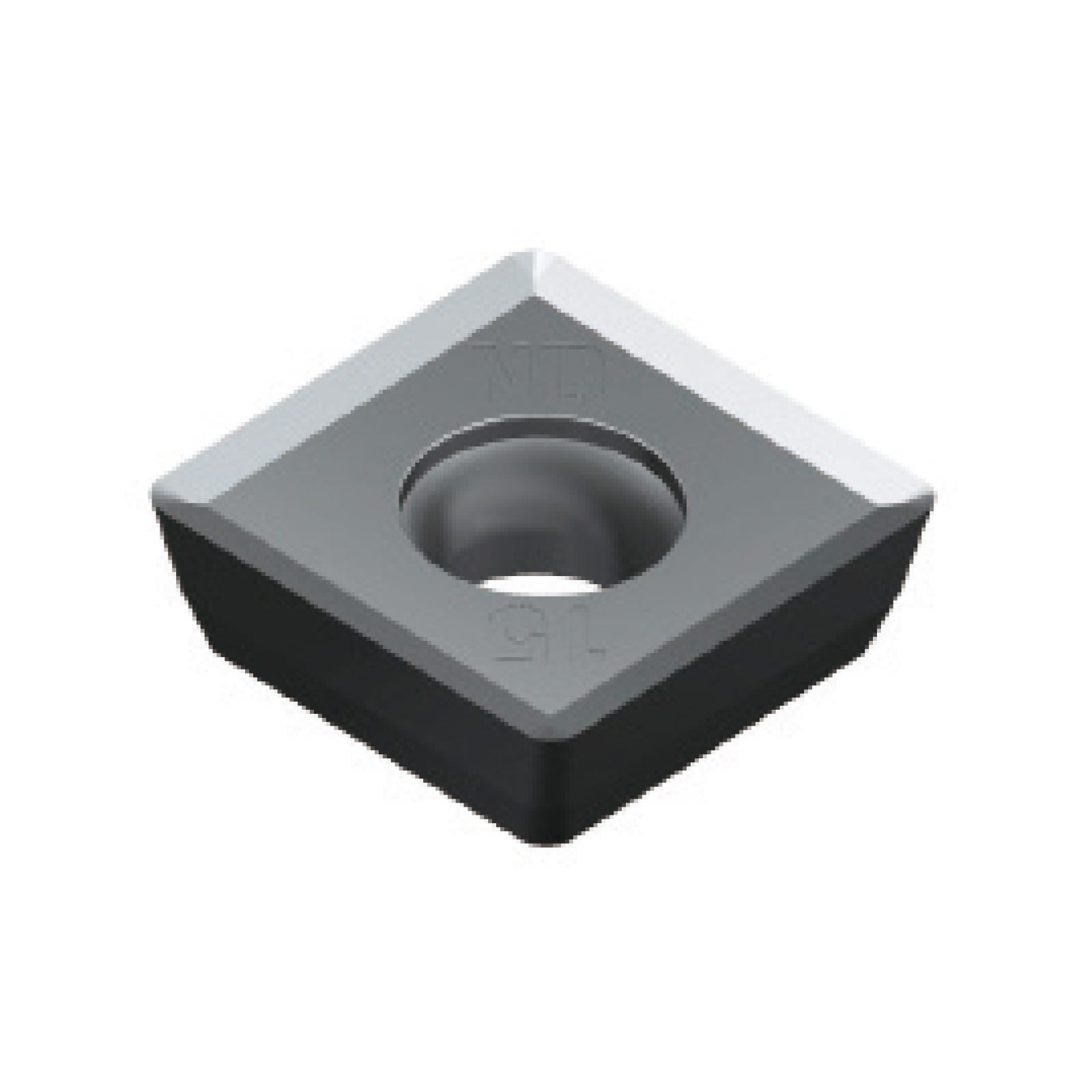

Peripheral SPET Inserts (H01 Aluminium Grade) for King Drill Indexable U-Drill (Korloy)

Peripheral SPET Inserts (H01 Aluminium Grade) for King Drill Indexable U-Drill (Korloy)

Korloy's SPET are a high rake aluminium geometry inserts for use with the King Drill U-Drill system and are...
Read more
View Products

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm
Filter Items arrow
Code Diameter Range (mm) Radius Grade t d1 Length Related Products Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Diameter Range (mm)
carrat-down
Radius
carrat-down
Grade
carrat-down
t
carrat-down
d1
carrat-down
Length
carrat-down
Diameter Range (mm): 12-13.5 Radius: 0.4 Grade: H01 (Aluminium & Non-Ferrous) t: 2.4 d1: 2.3 Length: 4.7
available In stock
£13.06 £10.88
minus plus
Diameter Range (mm): 14-16 Radius: 0.4 Grade: H01 (Aluminium & Non-Ferrous) t: 2.4 d1: 2.3 Length: 5.1
available In stock
£13.06 £10.88
minus plus
Diameter Range (mm): 16.5-19.5 Radius: 0.5 Grade: H01 (Aluminium & Non-Ferrous) t: d1: 2.5 Length: 6.2
available In stock
£13.06 £10.88
minus plus
Diameter Range (mm): 20-23.5 Radius: 0.7 Grade: H01 (Aluminium & Non-Ferrous) t: d1: 2.8 Length: 7.5
available In stock
£13.06 £10.88
minus plus
Diameter Range (mm): 24-29.5 Radius: 0.8 Grade: H01 (Aluminium & Non-Ferrous) t: d1: 3.4 Length: 9.2
available In stock
£13.06 £10.88
minus plus
Diameter Range (mm): 30-35.5 Radius: 0.8 Grade: H01 (Aluminium & Non-Ferrous) t: 4 d1: 4 Length: 11
available In stock
£13.06 £10.88
minus plus
Diameter Range (mm): 36-42.5 Radius: 1 Grade: H01 (Aluminium & Non-Ferrous) t: 4.5 d1: 4.5 Length: 13
available In stock
£13.50 £11.25
minus plus
Diameter Range (mm): 43-50.5 Radius: 1 Grade: H01 (Aluminium & Non-Ferrous) t: 5 d1: 5.5 Length: 15.2
available In stock
£13.50 £11.25
minus plus
Diameter Range (mm): 51-60.5 Radius: 1 Grade: H01 (Aluminium & Non-Ferrous) t: 5.5 d1: 6 Length: 18.2
available In stock
£13.50 £11.25
minus plus

*Estimated lead time, subject to availability

Product Information

Features & Benefits

Korloy's SPET are a high rake aluminium geometry inserts for use with the King Drill U-Drill system and are used on the outer pocket. These come in an uncoated H01 grade for aluminium, aluminium alloys and non-ferrous materials. The insert offers excellent chip control, surface finish and tool life. The outer pocket rotates at a high surface speed than the inner pocket. On materials such as alloy steel or cast iron, it is important to select different grades for the 2 pockets to optimise tool wear and prevent central pocket failure.
  • Peripheral Inserts for Outer Pocket
  • High Rake Chipbreaker for Excellent Chip Flow
  • Uncoated H01 Grade for Dedicated Non-Ferrous Machining
  • For Use With Korloy King Drill
  • Optimised for Accuracy and Reduced Tool Failure
  • Exceptionally Accurate Compared to other U-Drill/Indexable Drills

Specification

Applicable Materials Non-Ferrous
Performance 5
Brand Range King Drill
Brand Korloy
