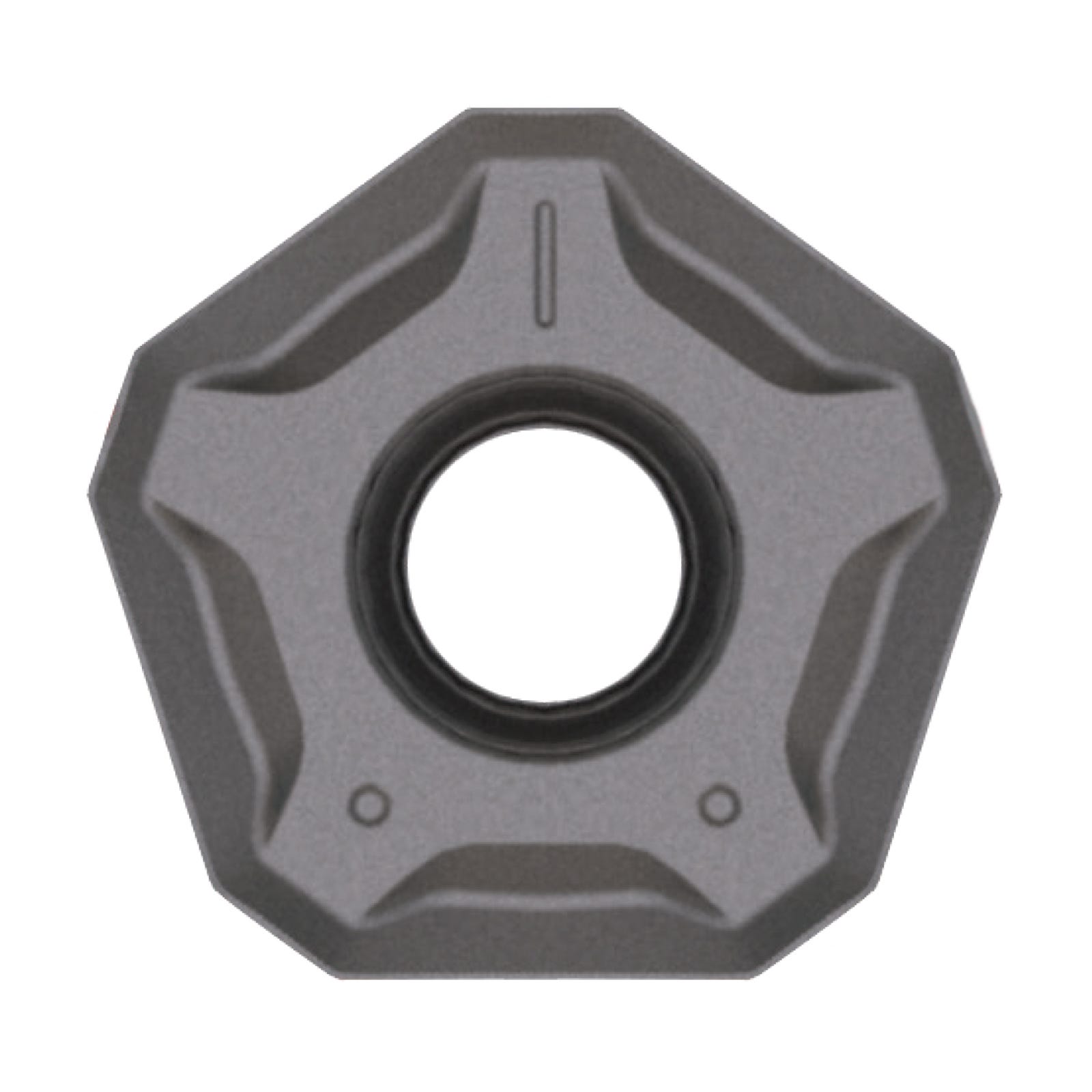

PNMU1206ZNN-YG712 36 Degree FM10 Indexable Face Milling Inserts (YG-1)

Cutwel Sku
12000596

PNMU1206ZNN-YG712 36 Degree FM10 Indexable Face Milling Inserts (YG-1)

Cutwel Sku
12000596

Key Features

available Economical pentagonal double sided insert with 10 cutting edges
available Higher depth of cut than high feed mill and higher feed rate than conventional face mill
available Optimised insert grades for steel and cast iron
Read More
P
Steel
30+ £12.49 £10.41
green In Stock for Next Day Delivery *
minus plus
View Full Range
*Geographical & product exclusions apply. Delivery calculated on checkout.

Need Help?

Contact Sales

01924 869660 Call us 8am - 5:30pm Call us 8am - 5pm Call us from 8am on Monday

Specification

Category Milling
Sub Category Indexable Milling
Sub Category 2 FM10 Indexable Milling System

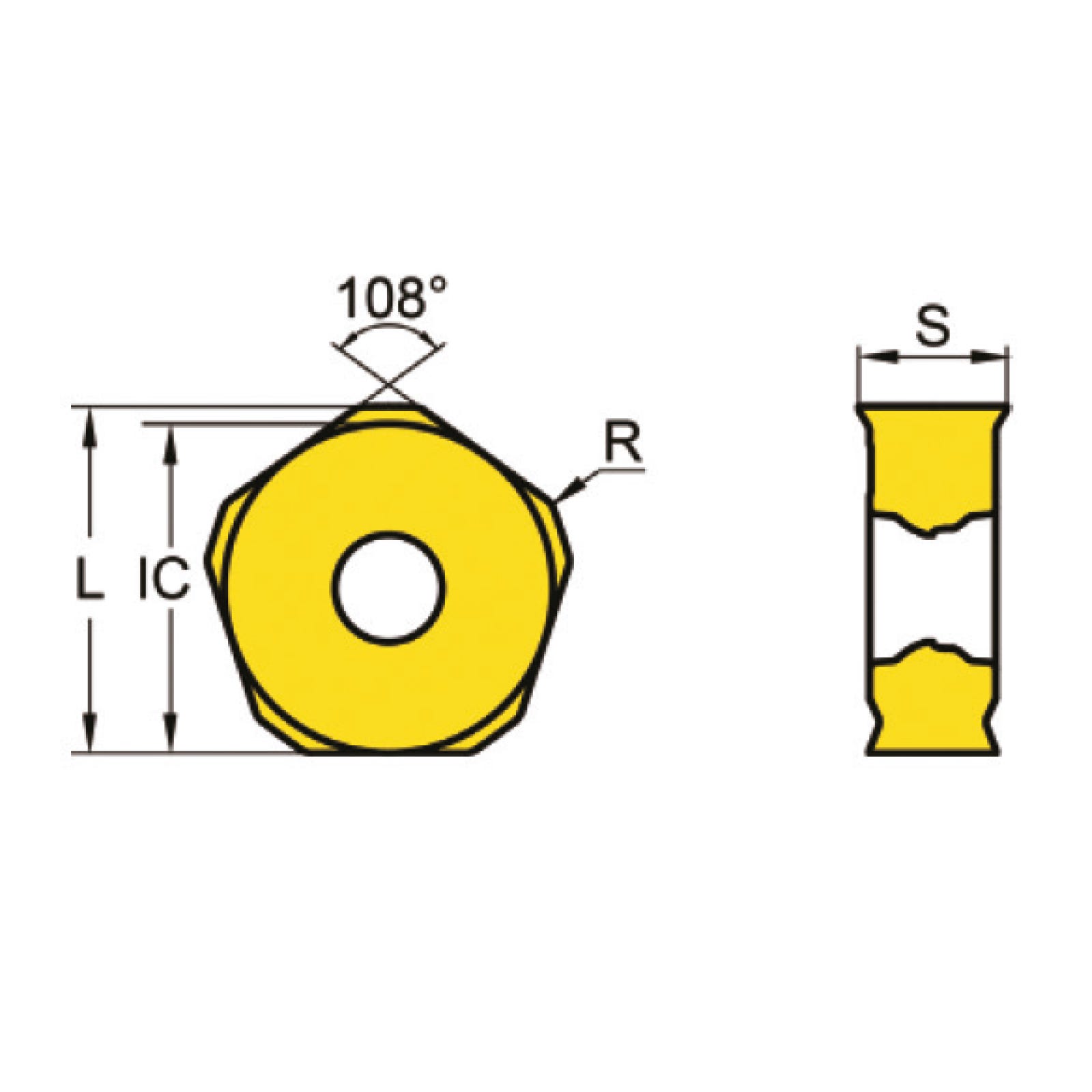

Designation PNMU12
Radius 0.8
Insert Radius (mm) 0.8
Chipbreaker ZNN (General)
Grade YG712 (Steel)
Applicable Materials Steel
Insert Series PNMU
Brand YG-1
Part Numbers
  • Cutwel Part Number 12000596

Description

PNMU Inserts offer an increased feed rate due to chip thinning and outstanding stability due to direction of force into the spindle. Featuring a curved cutting edge & wiper reduce cutting forces to improve surface finish. The seperation of the cutting edge and wiper gives full use of all 10 insert edges, resulting in outstanding value.

Features & Benefits

  • Economical pentagonal double sided insert with 10 cutting edges
  • Higher depth of cut than high feed mill and higher feed rate than conventional face mill
  • Optimised insert grades for steel and cast iron

What time are we open?

We are open Monday to Friday and able to dispatch orders between 8am and 5:30pm Monday to Thursday, and up to 5pm on Friday.

What delivery services do we offer?

To mainland UK we offer FREE UK next day delivery on all standard orders above £69 (ex vat), and £125 (ex vat) on all orders including any liquids.*

Alternatively, we offer a FREE Click and Collect service from our distribution centre in Cleckheaton, West Yorkshire. Click here for the full address.

For standard orders under £69 (ex vat), we offer the following:

  • 1st class post - £2.75
  • DPD Standard Next Day Delivery - £7.00
  • DPD Next Day Pre-12pm - £10.00 or (£5.25 on orders over £69 (ex VAT)
  • DPD Next Day Pre-10.30am - £18.00

For orders containing liquids under £125 (ex vat), standard UK Mail Next Day Delivery is £8.50 and UK Mail Next Day Pre-12pm Delivery is £13.75.

We also offer Saturday delivery for those that require it. If you order before 5pm on a Friday we offer a range of options which can be viewed here.

For a full breakdown of costs for all types of item and geographical locations including Scottish Highlands, Northern Ireland, Channel Islands & Republic of Ireland, click here.

How do I return an order/item?

Our returns policy is easier than ever. We understand that if an item isn’t correct, then it needs to be returned. If you are wanting to return anything supplied by Cutwel please see our returns page for full instructions.

*T’s & C’s and exclusions apply. Please see our delivery page for more information on all our services including those outside of mainland UK (Republic of Ireland, Northern Ireland, Scottish Highlands, Channel Islands etc).

Filter Items arrow
Code Designation Radius Insert Radius (mm) Chipbreaker Grade Related Products Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Designation
carrat-down
Radius
carrat-down
Insert Radius (mm)
carrat-down
Chipbreaker
carrat-down
Grade
carrat-down
Designation: PNMU12 Radius: 0.8 Insert Radius (mm): 0.8 Chipbreaker: ZNN (General) Grade: YG602 (Steel & Cast Iron)
green In Stock for Next Day Delivery *
30+ £12.49 £10.41
£16.66 £13.88
minus plus
Designation: PNMU12 Radius: 0.8 Insert Radius (mm): 0.8 Chipbreaker: ZNN (General) Grade: YG712 (Steel)
green In Stock for Next Day Delivery *
30+ £12.49 £10.41
£16.66 £13.88
minus plus
Designation: PNMU12 Radius: 0.8 Insert Radius (mm): 0.8 Chipbreaker: ZNN (General) Grade: YG613 (Stainless Steel)
green In Stock for Next Day Delivery *
30+ £12.49 £10.41
£16.66 £13.88
minus plus
Designation: PNMU12 Radius: 0.8 Insert Radius (mm): 0.8 Chipbreaker: ZNN (General) Grade: YG5020 (Cast Iron)
green In Stock for Next Day Delivery *
30+ £12.49 £10.41
£16.66 £13.88
minus plus
Designation: PNMU12 Radius: Insert Radius (mm): 0.8 Chipbreaker: ZNN (General) Grade: YG612 (Steel, Stainless Steel, Cast Iron & HRSA's)
green In Stock for Next Day Delivery *
30+ £12.98 £10.82
£17.32 £14.43
minus plus
Designation: PNMU12 Radius: Insert Radius (mm): 0.8 Chipbreaker: ST (Stainless & Exotics) Grade: YG612 (Steel, Stainless Steel, Cast Iron & HRSA's)
orange Available for Delivery within 3-4 Weeks *
30+ £12.98 £10.82
£17.32 £14.43
minus plus
Designation: PNMU12 Radius: 0.8 Insert Radius (mm): 0.8 Chipbreaker: ST (Stainless & Exotics) Grade: YG613 (Stainless Steel)
green In Stock for Next Day Delivery *
30+ £12.98 £10.82
£17.32 £14.43
minus plus
