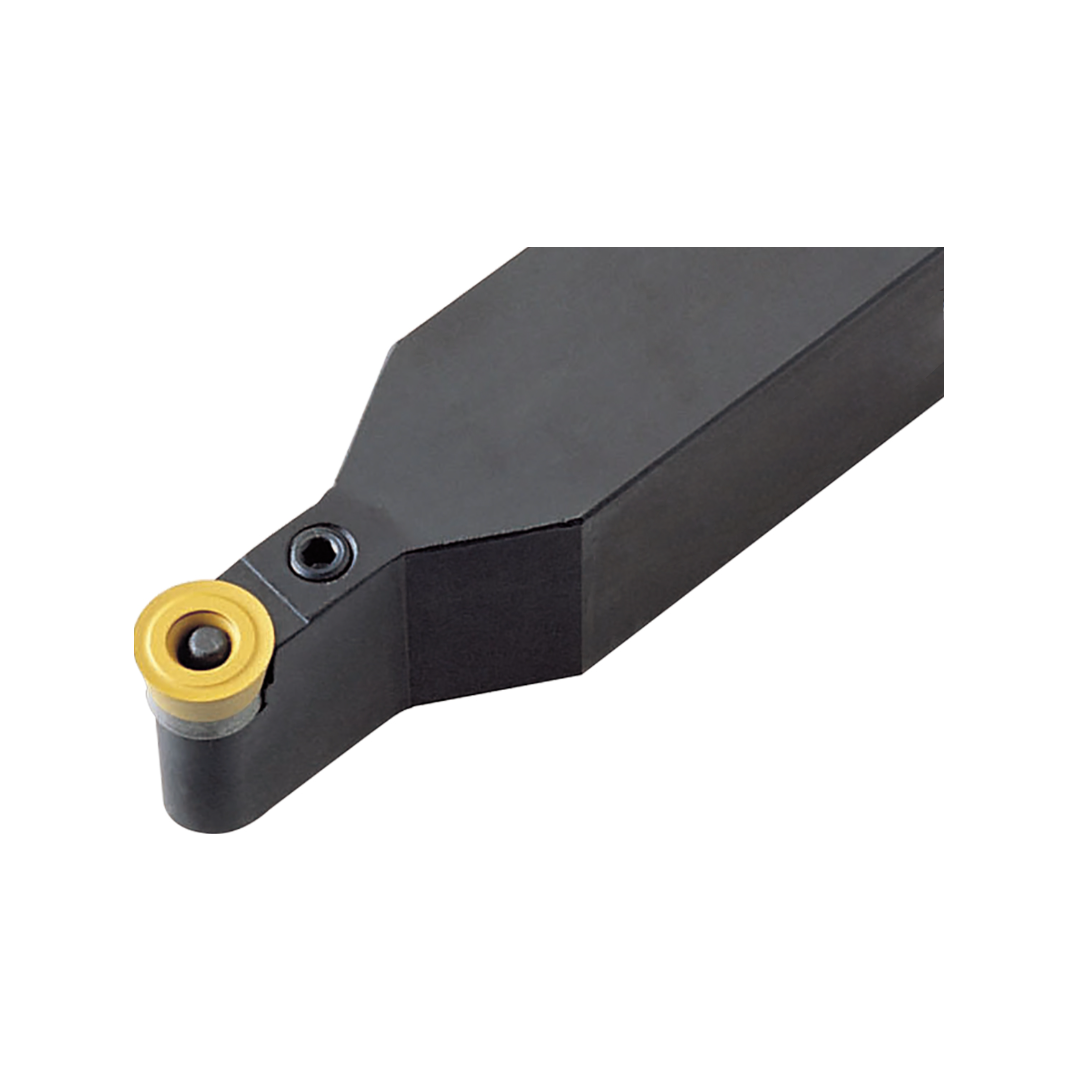

PRDCN3232-Q20 Standard Turning Tool Holder, 32 x 32mm Shank, 180mm Long, Neutral Hand, 45 Degree Approach, Lever Lock, for RCMT20 inserts - PRDCN Series (Korloy)

Cutwel Sku
1-06-009148

PRDCN3232-Q20 Standard Turning Tool Holder, 32 x 32mm Shank, 180mm Long, Neutral Hand, 45 Degree Approach, Lever Lock, for RCMT20 inserts - PRDCN Series (Korloy)

Cutwel Sku
1-06-009148
High quality solid steel shank turning tool holder suitable for use with RCGT style turning inserts (also suitable...
Read more
Overall Length (mm)180
Shank (mm)32
minus plus
View Full Range
available In stock

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Product Information

Features & Benefits

High quality solid steel shank turning tool holder suitable for use with RCGT style turning inserts (also suitable for RCMX & RCMT ). The PRDCN series have a Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts with a 45° degree approach angle. Available in Neutral hand, these turning tool holders are made from Korloy from a high grade tool steel for the highest accuracy, rigidity and best performance turning. Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

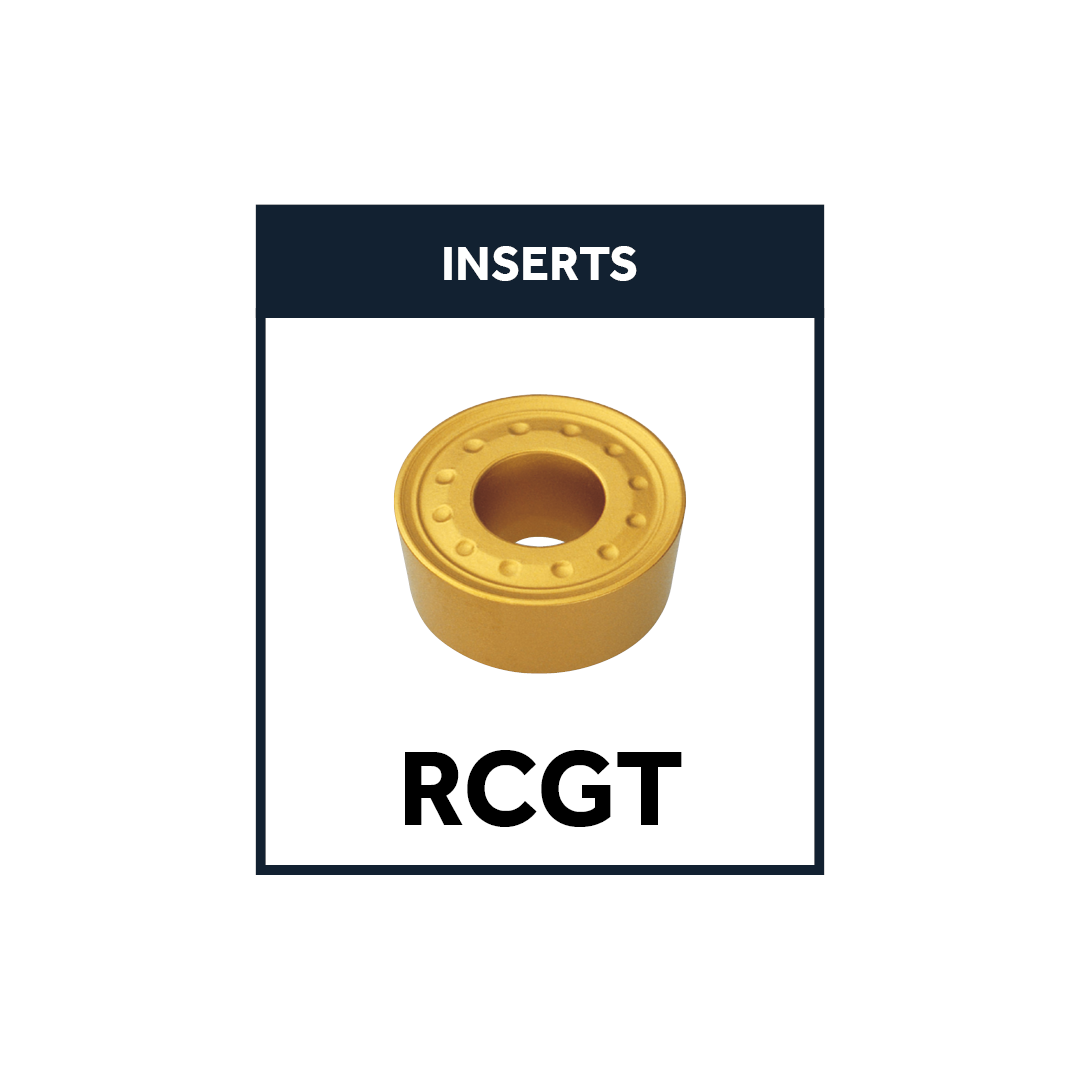

  • Suitable for use with RCGT style turning inserts (also suitable for RCMX & RCMT )

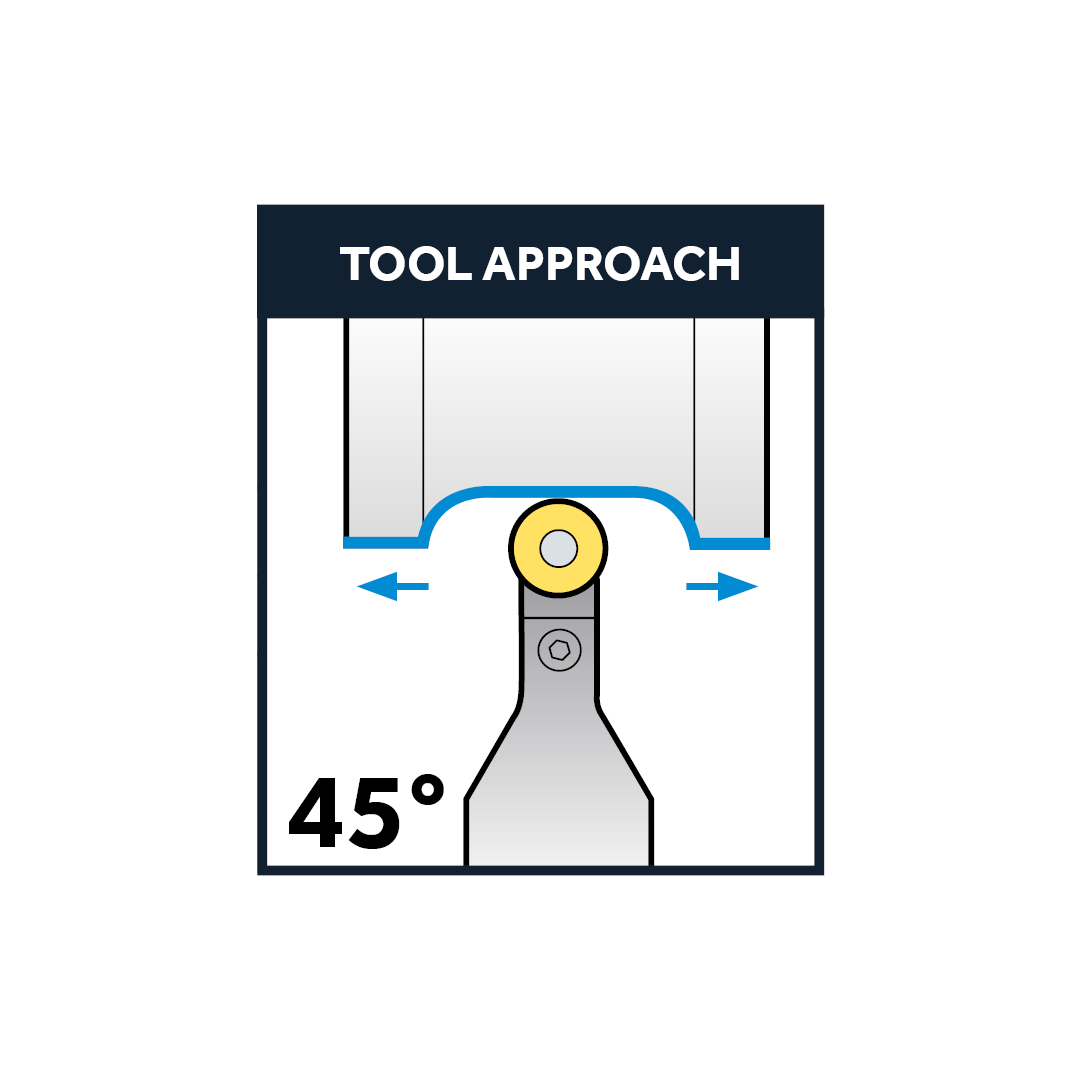

  • High quality solid steel shank turning tool holder with 45° degree approach angle
  • Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts
  • Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

Specification

Category Lathe Tools
Sub Category Turning Tools
Sub Category 2 Standard Turning Tools

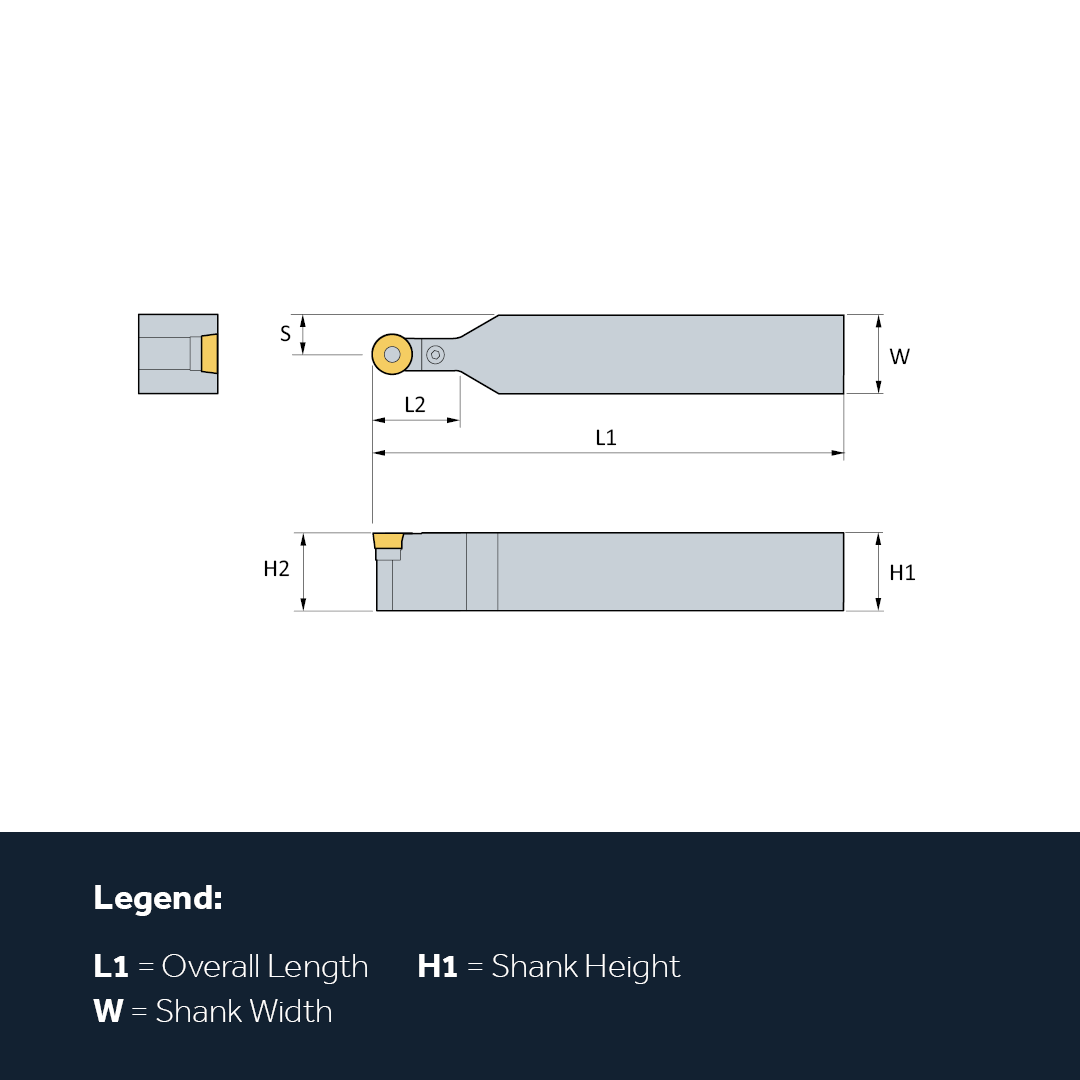

Shank (mm) 32
Overall Length (mm) 180
ISO Code PRDCN3232-Q20
Shank 32mm x 32mm
Hand Neutral
Insert Size RC**2006
Alternative Part Number PRDCN3232-Q20
Screw VHX0823
Shim SR20
Lever LR20
Insert Series RCMT
Through Coolant No
Angle 45°
Holder Style PRDCN
Clamp Type Lever Lock
Brand Korloy
