PRGNR3232-P19 Standard Turning Tool Holder, 32 x 32mm Shank, 170mm Long, Right Hand, 90 Degree Approach, Lever Lock, for RNMG19 inserts - PRGNR/L Series (Korloy)

Cutwel Sku
1-06-045972

PRGNR3232-P19 Standard Turning Tool Holder, 32 x 32mm Shank, 170mm Long, Right Hand, 90 Degree Approach, Lever Lock, for RNMG19 inserts - PRGNR/L Series (Korloy)

Cutwel Sku
1-06-045972
High quality solid steel shank turning tool holder suitable for use with RNMG style turning inserts. The PRGNR/L...
Read more
Overall Length (mm)170
Shank (mm)32
minus plus

*Estimated lead time, subject to availability

View Full Range
unavailable 21 days*

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Product Information

Features & Benefits

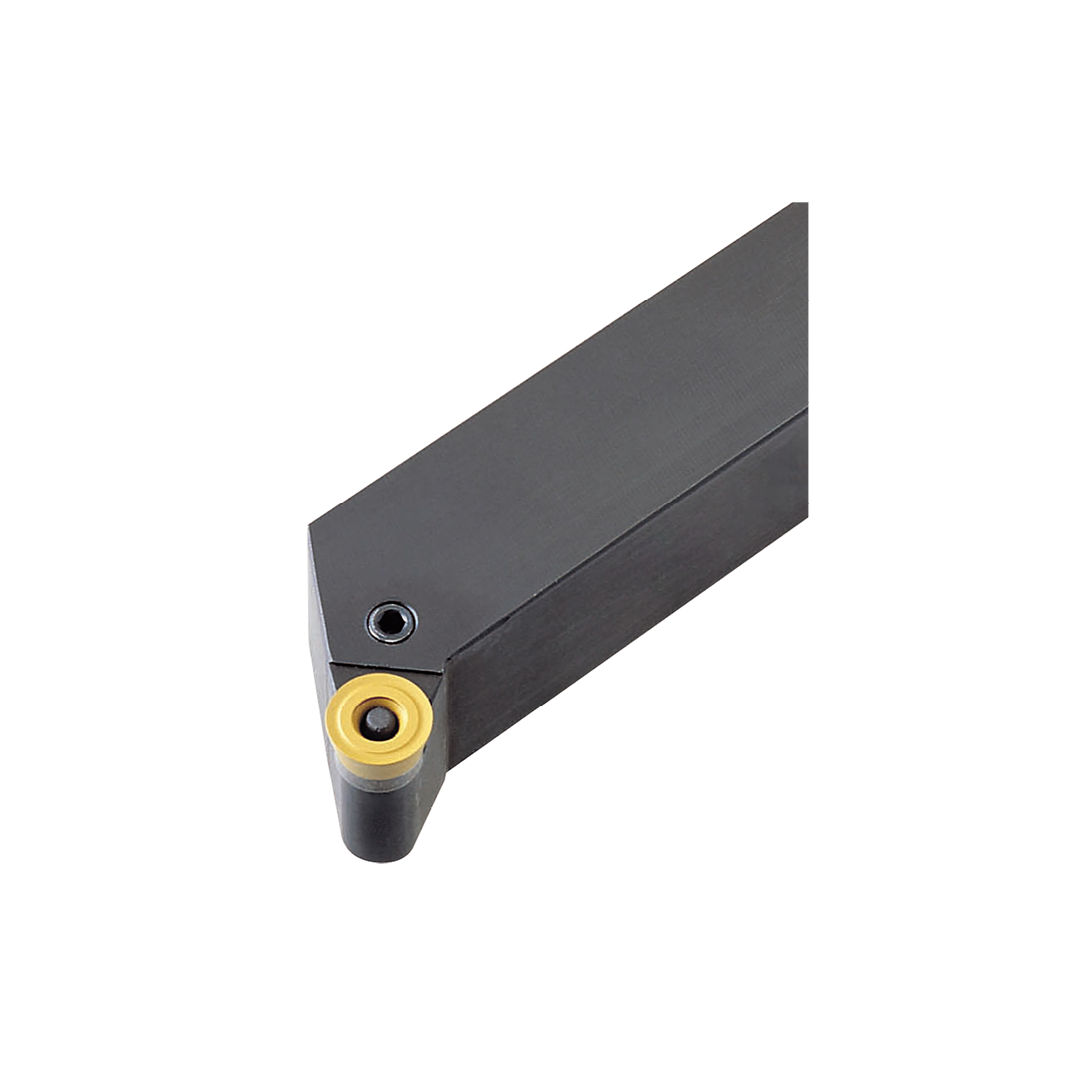

High quality solid steel shank turning tool holder suitable for use with RNMG style turning inserts. The PRGNR/L series have a Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts with a 90° degree approach angle. Available in Right hand, these turning tool holders are made from Korloy from a high grade tool steel for the highest accuracy, rigidity and best performance turning. Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

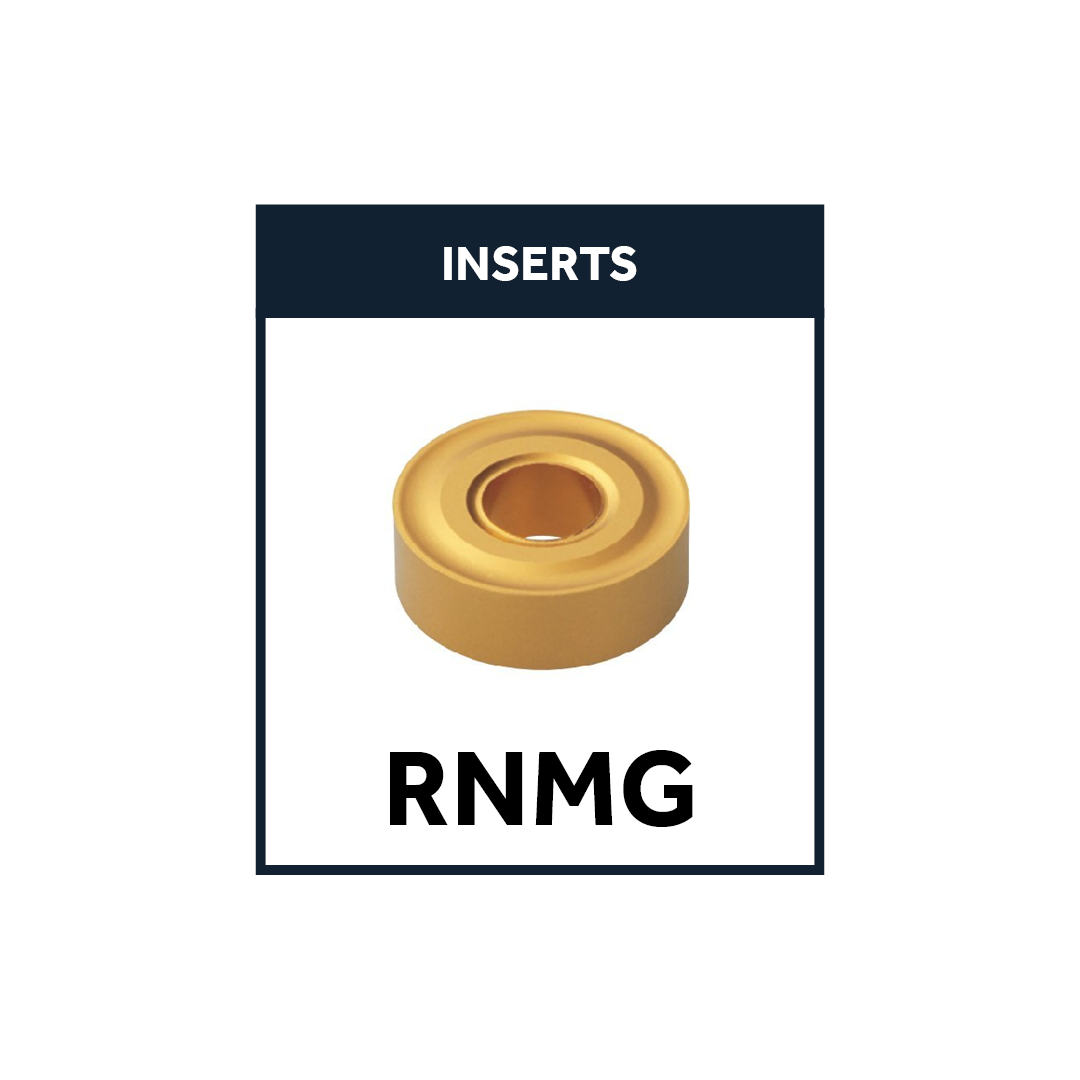

  • Suitable for use with RNMG style turning inserts

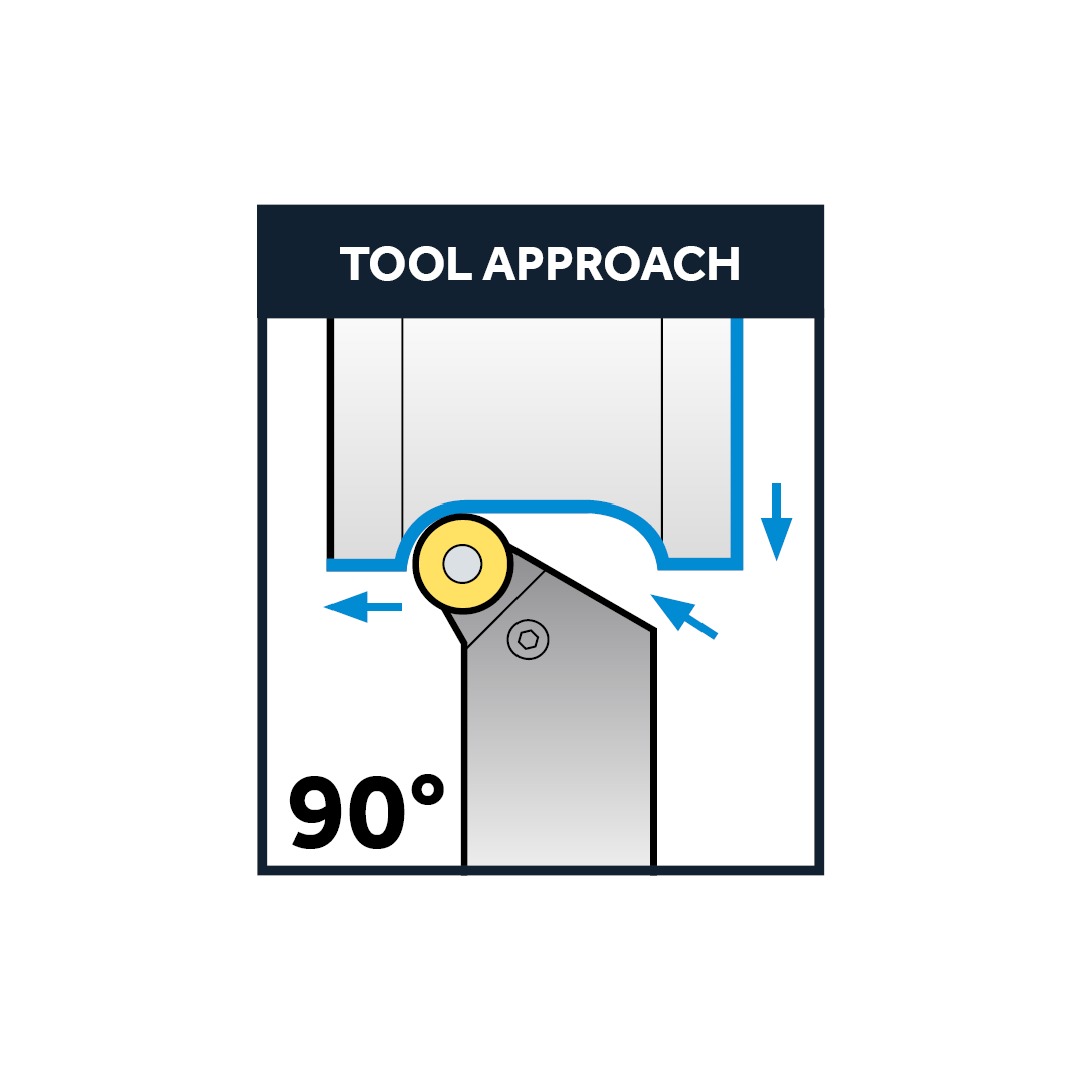

  • High quality solid steel shank turning tool holder with 90° degree approach angle
  • Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts
  • Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

Specification

Category Lathe Tools
Sub Category Turning Tools
Sub Category 2 Standard Turning Tools

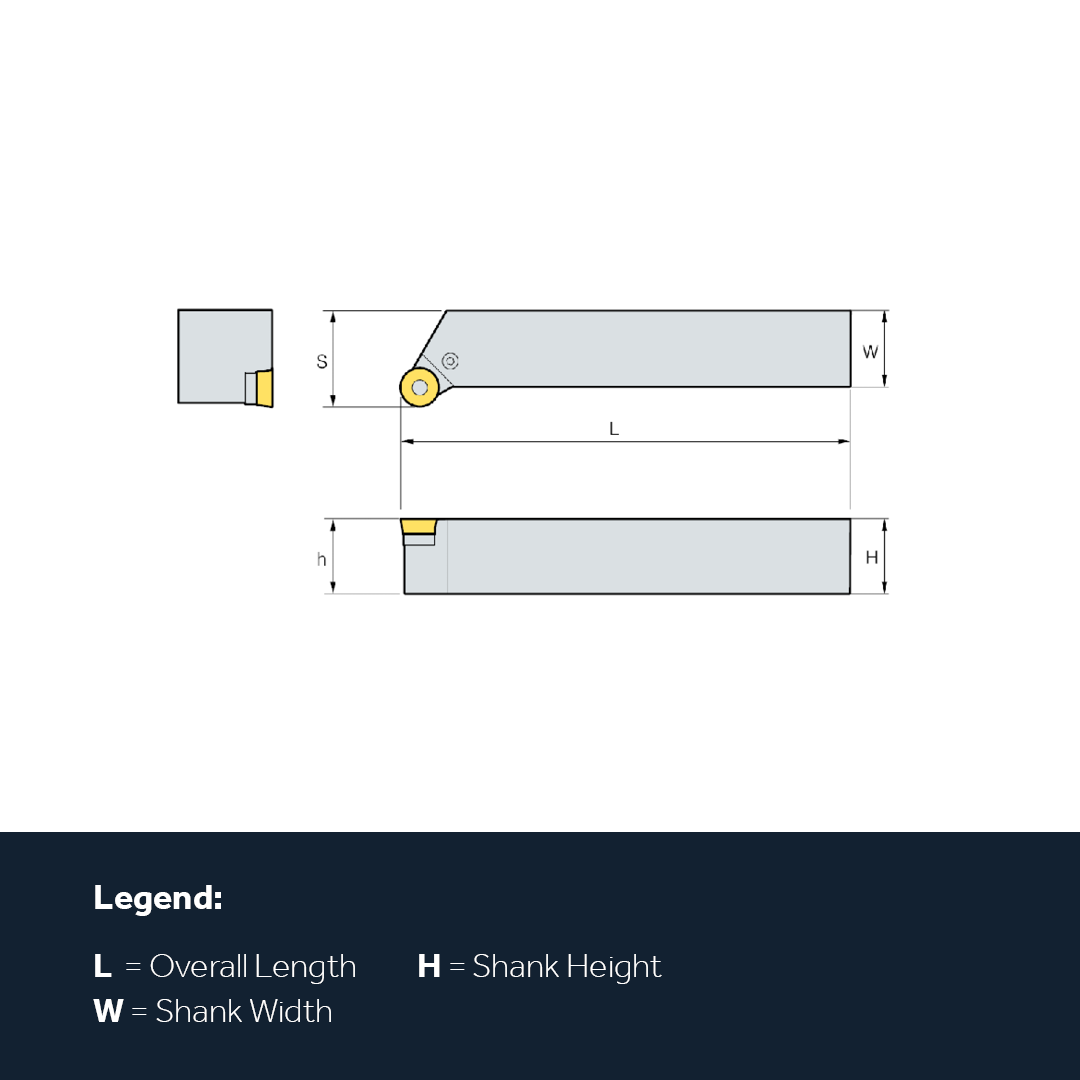

Shank (mm) 32
Overall Length (mm) 170
ISO Code PRGNR3232-P19
Shank 32mm x 32mm
Hand Right
Insert Size RN**1906
Alternative Part Number PRGNR3232-P19
Screw VHX1030
Through Coolant No
Angle 90°
Holder Style PRGNR/L
Clamp Type Lever Lock
Brand Korloy
