PSBNL3225-P12 Standard Turning Tool Holder, 32 x 25mm Shank, 170mm Long, Left Hand, 75 Degree Approach, Lever Lock, for SNMG12 inserts - PSBNR/L Series (Korloy)

Cutwel Sku
1-06-009165

PSBNL3225-P12 Standard Turning Tool Holder, 32 x 25mm Shank, 170mm Long, Left Hand, 75 Degree Approach, Lever Lock, for SNMG12 inserts - PSBNR/L Series (Korloy)

Cutwel Sku
1-06-009165

Key Features

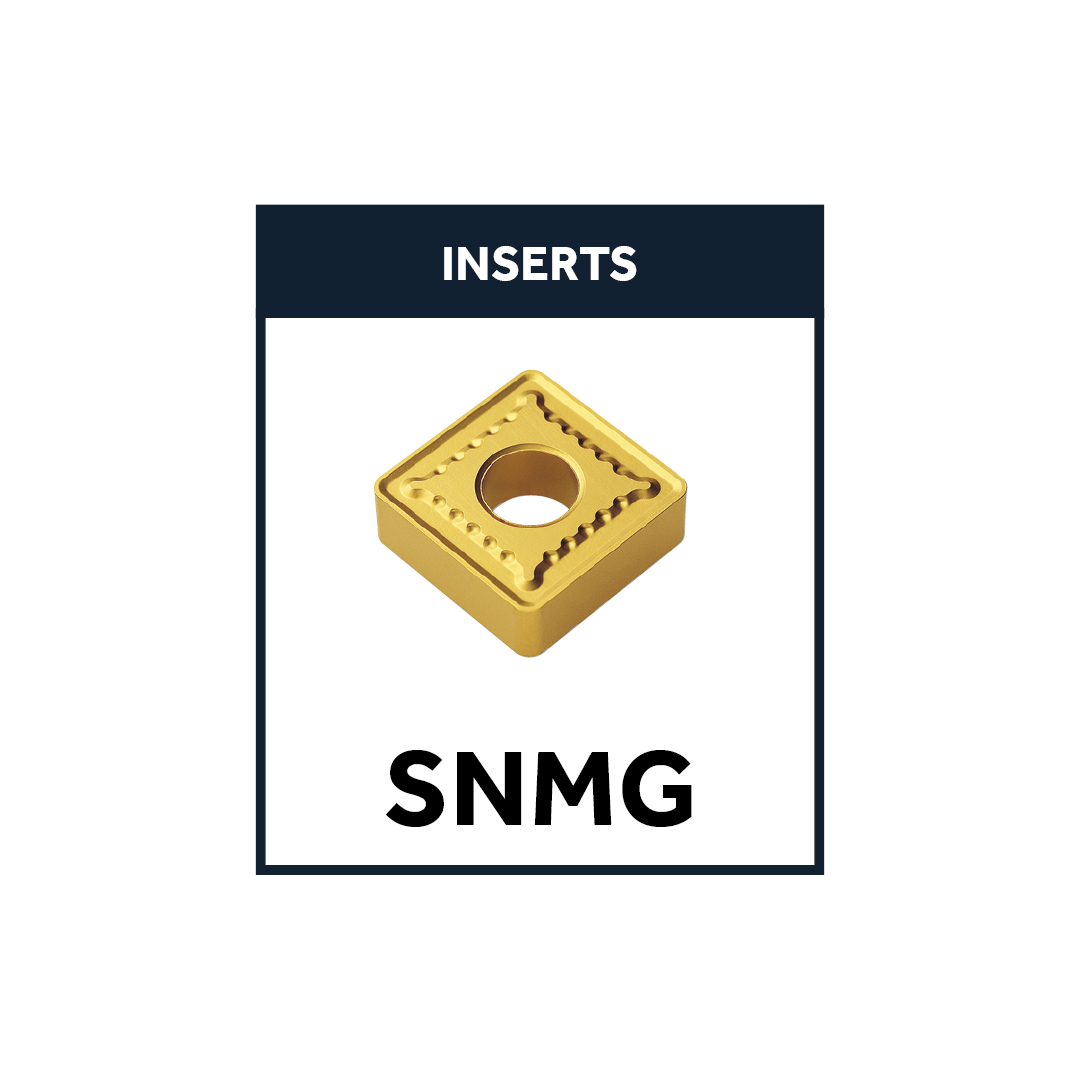

available Suitable for use with SNMG style turning inserts (also suitable for SNMA, SNMM, SNGA, SNGG etc)
available High quality solid steel shank turning tool holder with 75° degree approach angle
available Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts
Read More
Overall Length (mm)170
Shank (mm)32
green In Stock for Next Day Delivery *
minus plus
View Full Range
*Geographical & product exclusions apply. Delivery calculated on checkout.

Need Help?

Contact Sales

01924 869660 Call us 8am - 5:30pm Call us 8am - 5pm Call us from 8am on Monday

Specification

Category Lathe Tools
Sub Category Turning Tools
Sub Category 2 Standard Turning Tools
Shank (mm) 32
Overall Length (mm) 170
ISO Code PSBNL3225-P12
Shank 32mm x 25mm
Hand Left
Insert Size SN**1204
Alternative Part Number PSBNL3225-P12
Screw VHX0821
Shim SS42
Lever LV4
Insert Series SNMG
Through Coolant No
Angle 75°
Holder Style PSBNR/L
Clamp Type Lever Lock
Brand Korloy
Part Numbers
  • Cutwel Part Number 1-06-009165

Description

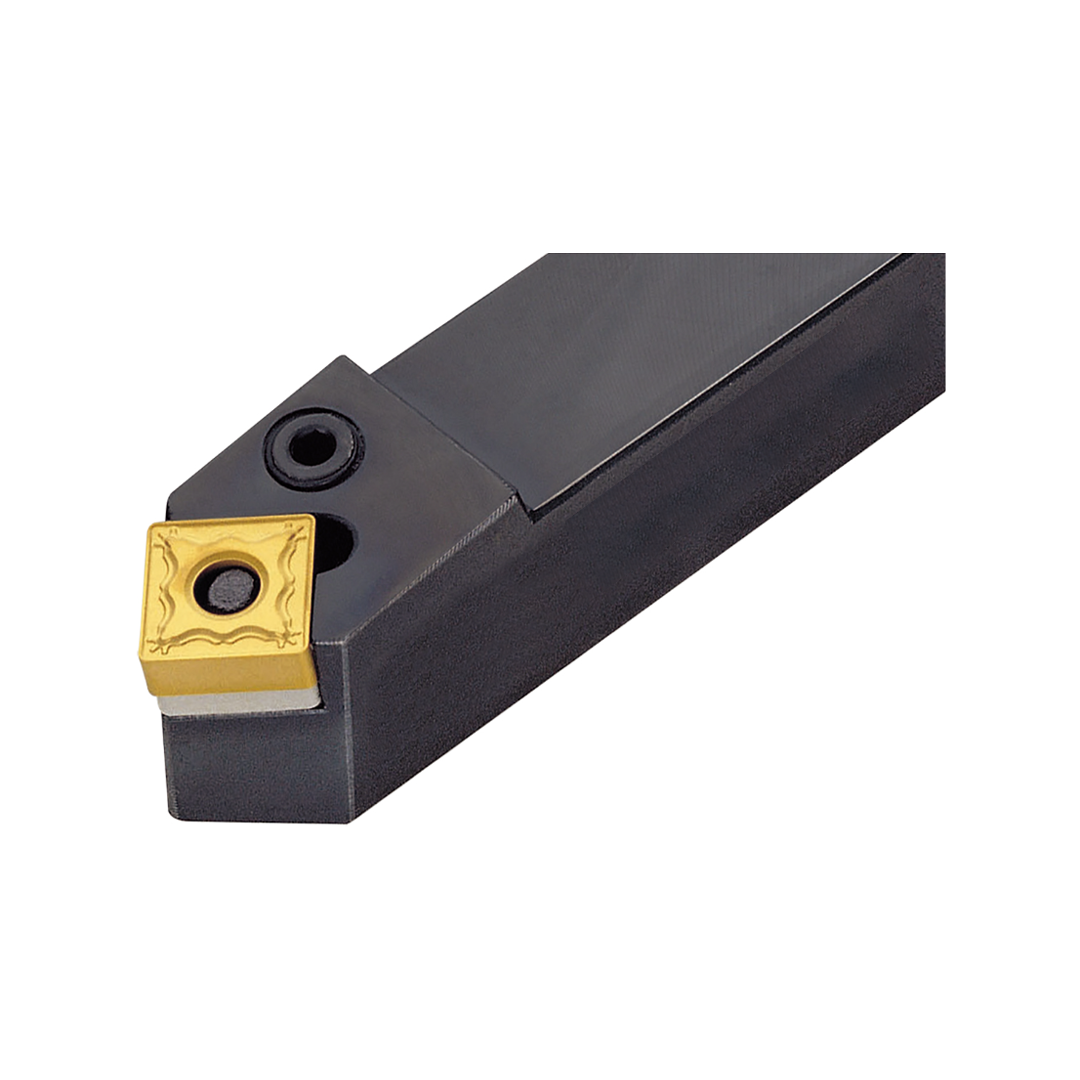

High quality solid steel shank turning tool holder suitable for use with SNMG style turning inserts (also suitable for SNMA, SNMM, SNGA, SNGG etc). The PSBNR/L series have a Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts with a 75° degree approach angle. Available in Left hand, these turning tool holders are made from Korloy from a high grade tool steel for the highest accuracy, rigidity and best performance turning. Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

Features & Benefits

  • Suitable for use with SNMG style turning inserts (also suitable for SNMA, SNMM, SNGA, SNGG etc)
  • High quality solid steel shank turning tool holder with 75° degree approach angle
  • Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts
  • Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

What time are we open?

We are open Monday to Friday and able to dispatch orders between 8am and 5:30pm Monday to Thursday, and up to 5pm on Friday.

What delivery services do we offer?

To mainland UK we offer FREE UK next day delivery on all standard orders above £69 (ex vat), and £125 (ex vat) on all orders including any liquids.*

Alternatively, we offer a FREE Click and Collect service from our distribution centre in Cleckheaton, West Yorkshire. Click here for the full address.

For standard orders under £69 (ex vat), we offer the following:

  • 1st class post - £2.75
  • DPD Standard Next Day Delivery - £7.00
  • DPD Next Day Pre-12pm - £10.00 or (£5.25 on orders over £69 (ex VAT)
  • DPD Next Day Pre-10.30am - £18.00

For orders containing liquids under £125 (ex vat), standard UK Mail Next Day Delivery is £8.50 and UK Mail Next Day Pre-12pm Delivery is £13.75.

We also offer Saturday delivery for those that require it. If you order before 5pm on a Friday we offer a range of options which can be viewed here.

For a full breakdown of costs for all types of item and geographical locations including Scottish Highlands, Northern Ireland, Channel Islands & Republic of Ireland, click here.

How do I return an order/item?

Our returns policy is easier than ever. We understand that if an item isn’t correct, then it needs to be returned. If you are wanting to return anything supplied by Cutwel please see our returns page for full instructions.

*T’s & C’s and exclusions apply. Please see our delivery page for more information on all our services including those outside of mainland UK (Republic of Ireland, Northern Ireland, Scottish Highlands, Channel Islands etc).

Filter Items arrow
Code Shank (mm) Overall Length (mm) ISO Code Shank Hand Insert Size Related Products Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Shank (mm)
carrat-down
Overall Length (mm)
carrat-down
ISO Code
carrat-down
Shank
carrat-down
Hand
carrat-down
Insert Size
carrat-down
Shank (mm): 16 Overall Length (mm): 100 ISO Code: PSBNL1616-H09 Shank: 16mm x 16mm Hand: Left Insert Size: SN**0903
green Available for Delivery within 4-5 Days *
£46.85 £39.04
minus plus
Shank (mm): 20 Overall Length (mm): 125 ISO Code: PSBNR2020-K09 Shank: 20mm x 20mm Hand: Right Insert Size: SN**0903
green In Stock for Next Day Delivery *
£49.34 £41.12
minus plus
Shank (mm): 20 Overall Length (mm): 125 ISO Code: PSBNR2020-K12 Shank: 20mm x 20mm Hand: Right Insert Size: SN**1204
green In Stock for Next Day Delivery *
£49.34 £41.12
minus plus
Shank (mm): 20 Overall Length (mm): 125 ISO Code: PSBNL2020-K12 Shank: 20mm x 20mm Hand: Left Insert Size: SN**1204
green In Stock for Next Day Delivery *
£49.34 £41.12
minus plus
Shank (mm): 25 Overall Length (mm): 150 ISO Code: PSBNR2525-M12 Shank: 25mm x 25mm Hand: Right Insert Size: SN**1204
green In Stock for Next Day Delivery *
£55.51 £46.26
minus plus
Shank (mm): 25 Overall Length (mm): 150 ISO Code: PSBNL2525-M12 Shank: 25mm x 25mm Hand: Left Insert Size: SN**1204
green Available for Delivery within 4-5 Days *
£55.51 £46.26
minus plus
Shank (mm): 32 Overall Length (mm): 170 ISO Code: PSBNR3225-P12 Shank: 32mm x 25mm Hand: Right Insert Size: SN**1204
green Available for Delivery within 4-5 Days *
£64.90 £54.08
minus plus
Shank (mm): 32 Overall Length (mm): 170 ISO Code: PSBNR3232-P12 Shank: 32mm x 32mm Hand: Right Insert Size: SN**1204
green Available for Delivery within 4-5 Days *
£64.90 £54.08
minus plus
Shank (mm): 32 Overall Length (mm): 170 ISO Code: PSBNL3225-P12 Shank: 32mm x 25mm Hand: Left Insert Size: SN**1204
green In Stock for Next Day Delivery *
£64.90 £54.08
minus plus
Shank (mm): 25 Overall Length (mm): 150 ISO Code: PSBNR2525-M15 Shank: 25mm x 25mm Hand: Right Insert Size: SN**1506
green Available for Delivery within 4-5 Days *
£55.51 £46.26
minus plus
Shank (mm): 25 Overall Length (mm): 150 ISO Code: PSBNL2525-M15 Shank: 25mm x 25mm Hand: Left Insert Size: SN**1506
green Available for Delivery within 4-5 Days *
£55.51 £46.26
minus plus
Shank (mm): 32 Overall Length (mm): 170 ISO Code: PSBNR3232-P15 Shank: 32mm x 32mm Hand: Right Insert Size: SN**1506
green Available for Delivery within 4-5 Days *
£64.90 £54.08
minus plus
Shank (mm): 32 Overall Length (mm): 170 ISO Code: PSBNL3232-P15 Shank: 32mm x 32mm Hand: Left Insert Size: SN**1506
green Available for Delivery within 4-5 Days *
£64.90 £54.08
minus plus
Shank (mm): 32 Overall Length (mm): 170 ISO Code: PSBNR3232-P19 Shank: 32mm x 32mm Hand: Right Insert Size: SN**1906
green Available for Delivery within 4-5 Days *
£64.90 £54.08
minus plus
Shank (mm): 32 Overall Length (mm): 170 ISO Code: PSBNL3232-P19 Shank: 32mm x 32mm Hand: Left Insert Size: SN**1906
green Available for Delivery within 4-5 Days *
£64.90 £54.08
minus plus
Shank (mm): 40 Overall Length (mm): 250 ISO Code: PSBNR4040-S19 Shank: 40mm x 40mm Hand: Right Insert Size: SN**1906
green Available for Delivery within 4-5 Days *
£132.74 £110.62
minus plus
Shank (mm): 40 Overall Length (mm): 250 ISO Code: PSBNL4040-S19 Shank: 40mm x 40mm Hand: Left Insert Size: SN**1906
green Available for Delivery within 4-5 Days *
£132.74 £110.62
minus plus
Shank (mm): 40 Overall Length (mm): 250 ISO Code: PSBNR4040-S25 Shank: 40mm x 40mm Hand: Right Insert Size: SN**2507
green Available for Delivery within 4-5 Days *
£132.74 £110.62
minus plus
Shank (mm): 40 Overall Length (mm): 250 ISO Code: PSBNL4040-S25 Shank: 40mm x 40mm Hand: Left Insert Size: SN**2507
green Available for Delivery within 4-5 Days *
£132.74 £110.62
minus plus
Shank (mm): 50 Overall Length (mm): 300 ISO Code: PSBNR5050-T25 Shank: 50mm x 50mm Hand: Right Insert Size: SN**2507
green Available for Delivery within 4-5 Days *
£263.05 £219.21
minus plus
Shank (mm): 50 Overall Length (mm): 300 ISO Code: PSBNL5050-T25 Shank: 50mm x 50mm Hand: Left Insert Size: SN**2507
green Available for Delivery within 4-5 Days *
£263.05 £219.21
minus plus
Shank (mm): 40 Overall Length (mm): 250 ISO Code: PSBNR4040-S25-6 Shank: 40mm x 40mm Hand: Right Insert Size: SN**2509
green Available for Delivery within 4-5 Days *
£132.74 £110.62
minus plus
Shank (mm): 40 Overall Length (mm): 250 ISO Code: PSBNL4040-S25-6 Shank: 40mm x 40mm Hand: Left Insert Size: SN**2509
green Available for Delivery within 4-5 Days *
£132.74 £110.62
minus plus
Shank (mm): 50 Overall Length (mm): 300 ISO Code: PSBNR5050-T25-6 Shank: 50mm x 50mm Hand: Right Insert Size: SN**2509
green Available for Delivery within 4-5 Days *
£263.05 £219.21
minus plus
Shank (mm): 50 Overall Length (mm): 300 ISO Code: PSBNL5050-T25-6 Shank: 50mm x 50mm Hand: Left Insert Size: SN**2509
green Available for Delivery within 4-5 Days *
£268.14 £223.45
minus plus

*Geographical & product exclusions apply for next day delivery (calculated on checkout). Any other lead times shown are estimated and subject to availability.
