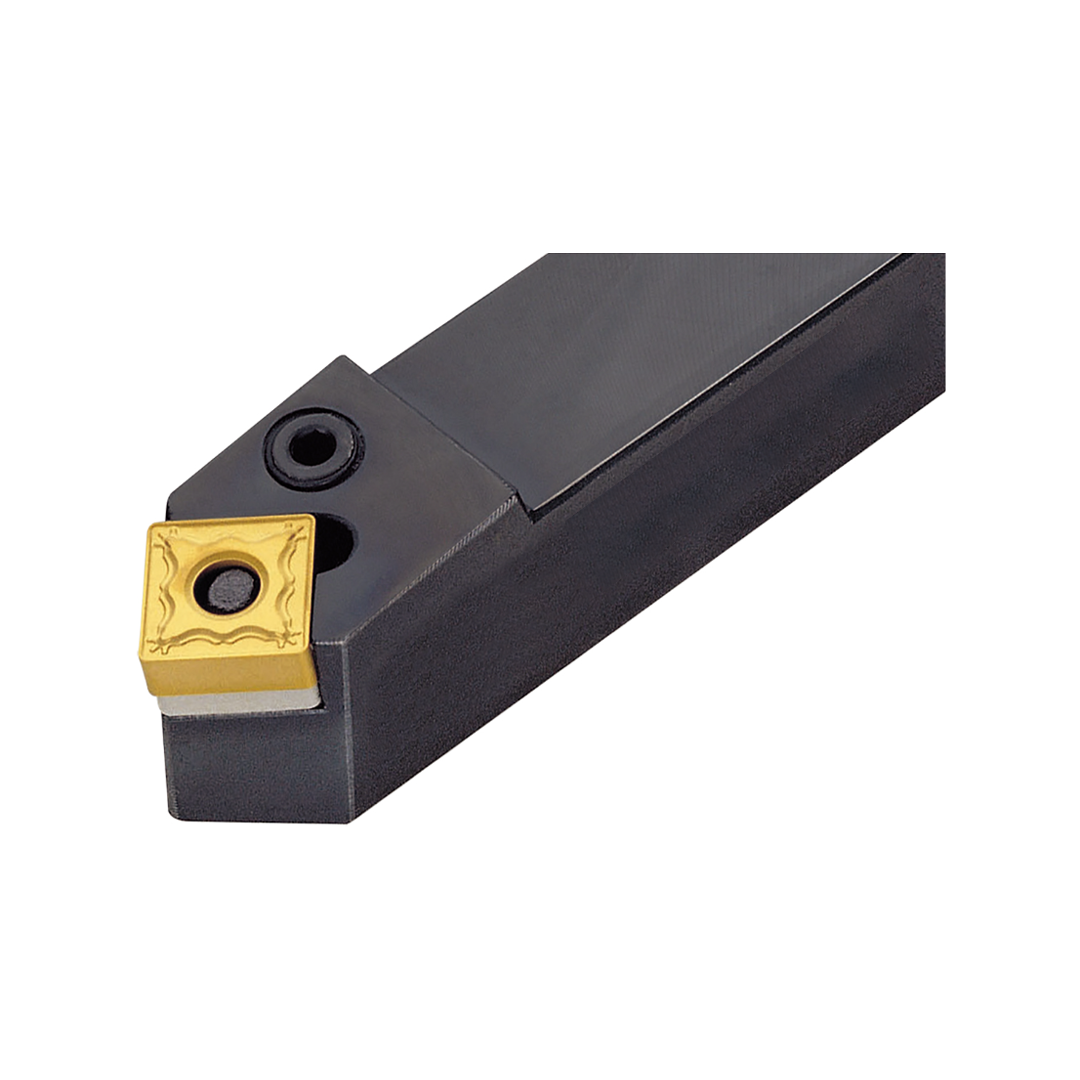

PSBNL4040-S25 Standard Turning Tool Holder, 40 x 40mm Shank, 250mm Long, Left Hand, 75 Degree Approach, Lever Lock, for SNMG25 inserts - PSBNR/L Series (Korloy)

Cutwel Sku
1-06-001254

PSBNL4040-S25 Standard Turning Tool Holder, 40 x 40mm Shank, 250mm Long, Left Hand, 75 Degree Approach, Lever Lock, for SNMG25 inserts - PSBNR/L Series (Korloy)

Cutwel Sku
1-06-001254

Key Features

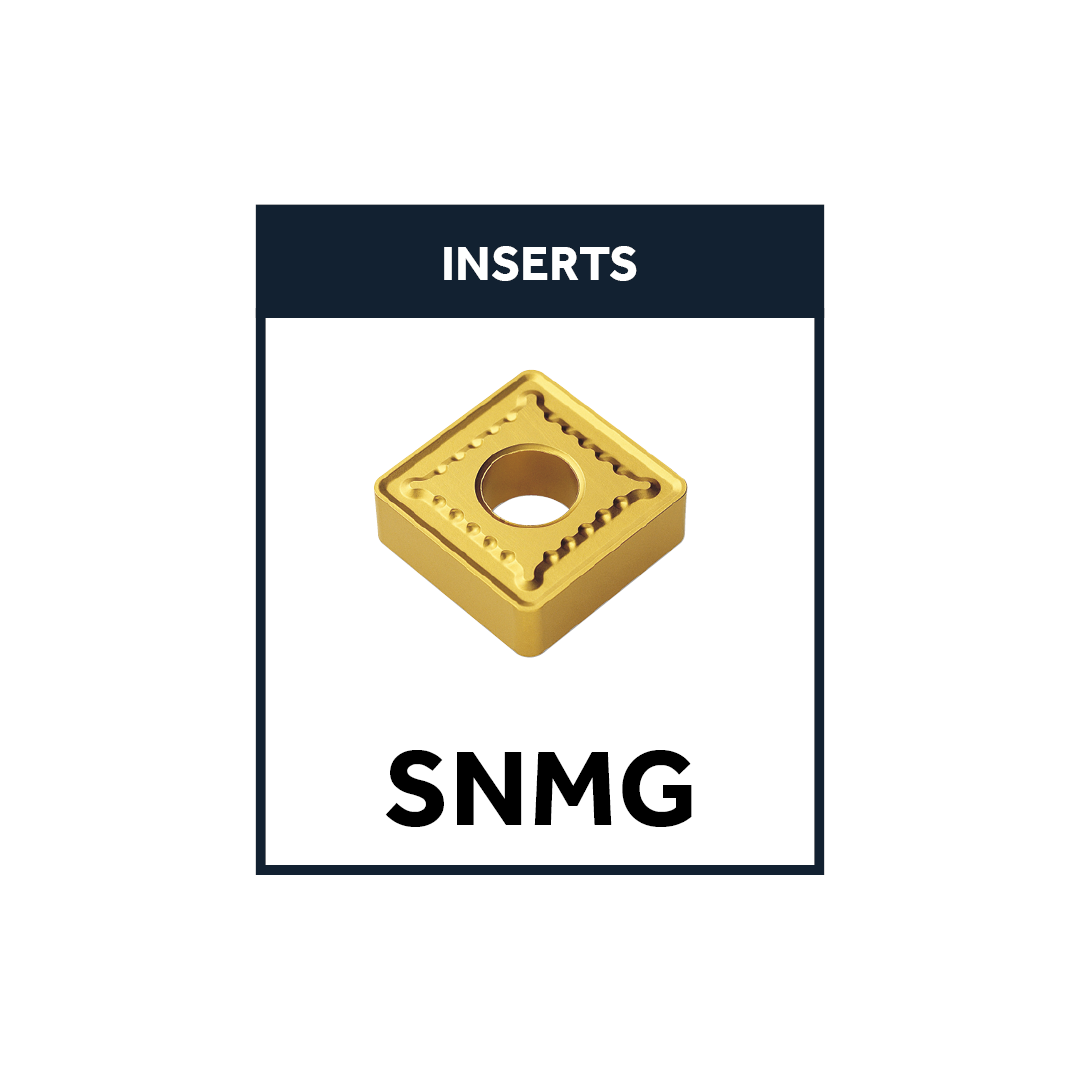

available Suitable for use with SNMG style turning inserts (also suitable for SNMA, SNMM, SNGA, SNGG etc)
available High quality solid steel shank turning tool holder with 75° degree approach angle
available Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts
Read More
Overall Length (mm)250
Shank (mm)40
orange Available for Delivery within 3-4 Weeks *
minus plus
View Full Range
*Estimated lead time, subject to availability.

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Specification

Category Lathe Tools
Sub Category Turning Tools
Sub Category 2 Standard Turning Tools
Shank (mm) 40
Overall Length (mm) 250
ISO Code PSBNL4040-S25
Shank 40mm x 40mm
Hand Left
Insert Size SN**2507
Alternative Part Number PSBNL4040-S25
Screw VHX1236N
Shim SS84N
Lever LV8N
Insert Series SNMG
Through Coolant No
Angle 75°
Holder Style PSBNR/L
Clamp Type Lever Lock
Brand Korloy
Part Numbers
  • Cutwel Part Number 1-06-001254

Description

High quality solid steel shank turning tool holder suitable for use with SNMG style turning inserts (also suitable for SNMA, SNMM, SNGA, SNGG etc). The PSBNR/L series have a Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts with a 75° degree approach angle. Available in Left hand, these turning tool holders are made from Korloy from a high grade tool steel for the highest accuracy, rigidity and best performance turning. Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

Features & Benefits

  • Suitable for use with SNMG style turning inserts (also suitable for SNMA, SNMM, SNGA, SNGG etc)
  • High quality solid steel shank turning tool holder with 75° degree approach angle
  • Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts
  • Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

What time are we open?

We are open Monday to Friday and able to dispatch orders between 8am and 5:45pm Monday to Thursday, and up to 5pm on Friday.

What delivery services do we offer?

To mainland UK we offer FREE UK next day delivery on all standard orders above £59 (ex vat), and £79 (ex vat) on all orders including any liquids.*

Alternatively, we offer a FREE Click and Collect service from our distribution centre in Cleckheaton, West Yorkshire. Click here for the full address.

For standard orders under £59 (ex vat), we offer the following:

  • 1st class post - £2.49
  • DPD Standard Next Day Delivery - £6.50
  • DPD Next Day Pre-12pm - £9.50 or (£5.00 on orders over £59 (ex VAT))
  • DPD Next Day Pre-10.30am - £17.00

For orders containing liquids under £79 (ex vat),  standard UK Mail Next Day Delivery is £8.00 and UK Mail Next Day Pre-12pm Delivery is £13.00.

We also offer Saturday delivery for those that require it. If you order before 5pm on a Friday we offer a range of options which can be viewed here.

For a full breakdown of costs for all types of item and geographical locations including Scottish Highlands, Northern Ireland, Channel Islands & Republic of Ireland, click here.

How do I return an order/item?

Our returns policy is easier than ever. We understand that if an item isn’t correct, then it needs to be returned. If you are wanting to return anything supplied by Cutwel please see our returns page for full instructions.

*T’s & C’s and exclusions apply. Please see our delivery page for more information on all our services including those outside of mainland UK (Republic of Ireland, Northern Ireland, Scottish Highlands, Channel Islands etc).

Filter Items arrow
Code Shank (mm) Overall Length (mm) ISO Code Shank Hand Insert Size Related Products Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Shank (mm)
carrat-down
Overall Length (mm)
carrat-down
ISO Code
carrat-down
Shank
carrat-down
Hand
carrat-down
Insert Size
carrat-down
Shank (mm): 16 Overall Length (mm): 100 ISO Code: PSBNL1616-H09 Shank: 16mm x 16mm Hand: Left Insert Size: SN**0903
orange Available for Delivery within 3-4 Weeks *
£44.62 £37.18
minus plus
Shank (mm): 20 Overall Length (mm): 125 ISO Code: PSBNR2020-K09 Shank: 20mm x 20mm Hand: Right Insert Size: SN**0903
green In Stock for Next Day Delivery *
£46.98 £39.15
minus plus
Shank (mm): 20 Overall Length (mm): 125 ISO Code: PSBNR2020-K12 Shank: 20mm x 20mm Hand: Right Insert Size: SN**1204
green In Stock for Next Day Delivery *
£46.98 £39.15
minus plus
Shank (mm): 20 Overall Length (mm): 125 ISO Code: PSBNL2020-K12 Shank: 20mm x 20mm Hand: Left Insert Size: SN**1204
green In Stock for Next Day Delivery *
£46.98 £39.15
minus plus
Shank (mm): 25 Overall Length (mm): 150 ISO Code: PSBNR2525-M12 Shank: 25mm x 25mm Hand: Right Insert Size: SN**1204
green In Stock for Next Day Delivery *
£52.87 £44.06
minus plus
Shank (mm): 25 Overall Length (mm): 150 ISO Code: PSBNL2525-M12 Shank: 25mm x 25mm Hand: Left Insert Size: SN**1204
green Available for Delivery within 4-5 Days *
£52.87 £44.06
minus plus
Shank (mm): 32 Overall Length (mm): 170 ISO Code: PSBNR3225-P12 Shank: 32mm x 25mm Hand: Right Insert Size: SN**1204
orange Available for Delivery within 3-4 Weeks *
£61.80 £51.50
minus plus
Shank (mm): 32 Overall Length (mm): 170 ISO Code: PSBNR3232-P12 Shank: 32mm x 32mm Hand: Right Insert Size: SN**1204
green Available for Delivery within 4-5 Days *
£61.80 £51.50
minus plus
Shank (mm): 32 Overall Length (mm): 170 ISO Code: PSBNL3225-P12 Shank: 32mm x 25mm Hand: Left Insert Size: SN**1204
green In Stock for Next Day Delivery *
£61.80 £51.50
minus plus
Shank (mm): 25 Overall Length (mm): 150 ISO Code: PSBNR2525-M15 Shank: 25mm x 25mm Hand: Right Insert Size: SN**1506
orange Available for Delivery within 3-4 Weeks *
£52.87 £44.06
minus plus
Shank (mm): 25 Overall Length (mm): 150 ISO Code: PSBNL2525-M15 Shank: 25mm x 25mm Hand: Left Insert Size: SN**1506
orange Available for Delivery within 3-4 Weeks *
£52.87 £44.06
minus plus
Shank (mm): 32 Overall Length (mm): 170 ISO Code: PSBNR3232-P15 Shank: 32mm x 32mm Hand: Right Insert Size: SN**1506
orange Available for Delivery within 3-4 Weeks *
£61.80 £51.50
minus plus
Shank (mm): 32 Overall Length (mm): 170 ISO Code: PSBNL3232-P15 Shank: 32mm x 32mm Hand: Left Insert Size: SN**1506
orange Available for Delivery within 3-4 Weeks *
£61.80 £51.50
minus plus
Shank (mm): 32 Overall Length (mm): 170 ISO Code: PSBNR3232-P19 Shank: 32mm x 32mm Hand: Right Insert Size: SN**1906
orange Available for Delivery within 3-4 Weeks *
£61.80 £51.50
minus plus
Shank (mm): 32 Overall Length (mm): 170 ISO Code: PSBNL3232-P19 Shank: 32mm x 32mm Hand: Left Insert Size: SN**1906
orange Available for Delivery within 3-4 Weeks *
£61.80 £51.50
minus plus
Shank (mm): 40 Overall Length (mm): 250 ISO Code: PSBNR4040-S19 Shank: 40mm x 40mm Hand: Right Insert Size: SN**1906
green Available for Delivery within 4-5 Days *
£126.42 £105.35
minus plus
Shank (mm): 40 Overall Length (mm): 250 ISO Code: PSBNL4040-S19 Shank: 40mm x 40mm Hand: Left Insert Size: SN**1906
green Available for Delivery within 4-5 Days *
£126.42 £105.35
minus plus
Shank (mm): 40 Overall Length (mm): 250 ISO Code: PSBNR4040-S25 Shank: 40mm x 40mm Hand: Right Insert Size: SN**2507
orange Available for Delivery within 3-4 Weeks *
£126.42 £105.35
minus plus
Shank (mm): 40 Overall Length (mm): 250 ISO Code: PSBNL4040-S25 Shank: 40mm x 40mm Hand: Left Insert Size: SN**2507
orange Available for Delivery within 3-4 Weeks *
£126.42 £105.35
minus plus
Shank (mm): 50 Overall Length (mm): 300 ISO Code: PSBNR5050-T25 Shank: 50mm x 50mm Hand: Right Insert Size: SN**2507
orange Available for Delivery within 3-4 Weeks *
£250.51 £208.76
minus plus
Shank (mm): 50 Overall Length (mm): 300 ISO Code: PSBNL5050-T25 Shank: 50mm x 50mm Hand: Left Insert Size: SN**2507
green Available for Delivery within 4-5 Days *
£250.51 £208.76
minus plus
Shank (mm): 40 Overall Length (mm): 250 ISO Code: PSBNR4040-S25-6 Shank: 40mm x 40mm Hand: Right Insert Size: SN**2509
green Available for Delivery within 4-5 Days *
£126.42 £105.35
minus plus
Shank (mm): 40 Overall Length (mm): 250 ISO Code: PSBNL4040-S25-6 Shank: 40mm x 40mm Hand: Left Insert Size: SN**2509
green Available for Delivery within 4-5 Days *
£126.42 £105.35
minus plus
Shank (mm): 50 Overall Length (mm): 300 ISO Code: PSBNR5050-T25-6 Shank: 50mm x 50mm Hand: Right Insert Size: SN**2509
orange Available for Delivery within 3-4 Weeks *
£250.51 £208.76
minus plus
Shank (mm): 50 Overall Length (mm): 300 ISO Code: PSBNL5050-T25-6 Shank: 50mm x 50mm Hand: Left Insert Size: SN**2509
orange Available for Delivery within 3-4 Weeks *
£255.38 £212.82
minus plus
