PSKNR2020-K09 Standard Turning Tool Holder, 20 x 20mm Shank, 125mm Long, Right Hand, 75 Degree Approach, Lever Lock, for SNMG09 inserts - PSKNR/L Series (Korloy)

Cutwel Sku
1-06-003450

PSKNR2020-K09 Standard Turning Tool Holder, 20 x 20mm Shank, 125mm Long, Right Hand, 75 Degree Approach, Lever Lock, for SNMG09 inserts - PSKNR/L Series (Korloy)

Cutwel Sku
1-06-003450
High quality solid steel shank turning tool holder suitable for use with SNMG style turning inserts (also suitable...
Read more
Overall Length (mm)125
Shank (mm)20
minus plus

*Estimated lead time, subject to availability

View Full Range
unavailable 21 days*

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Product Information

Features & Benefits

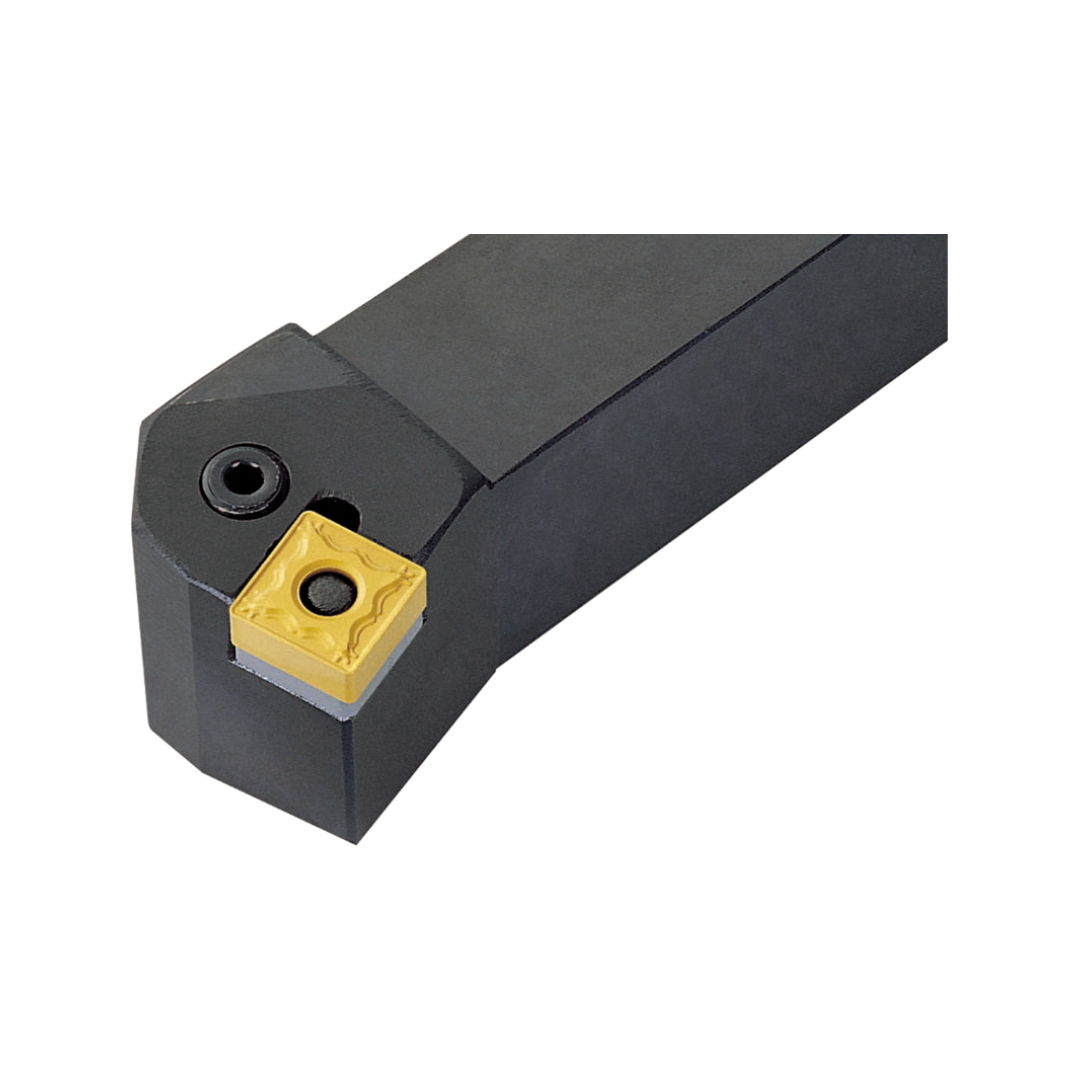

High quality solid steel shank turning tool holder suitable for use with SNMG style turning inserts (also suitable for SNMA, SNMM, SNGA, SNGG etc). The PSKNR/L series have a Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts with a 75° degree approach angle. Available in Right hand, these turning tool holders are made from Korloy from a high grade tool steel for the highest accuracy, rigidity and best performance turning. Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

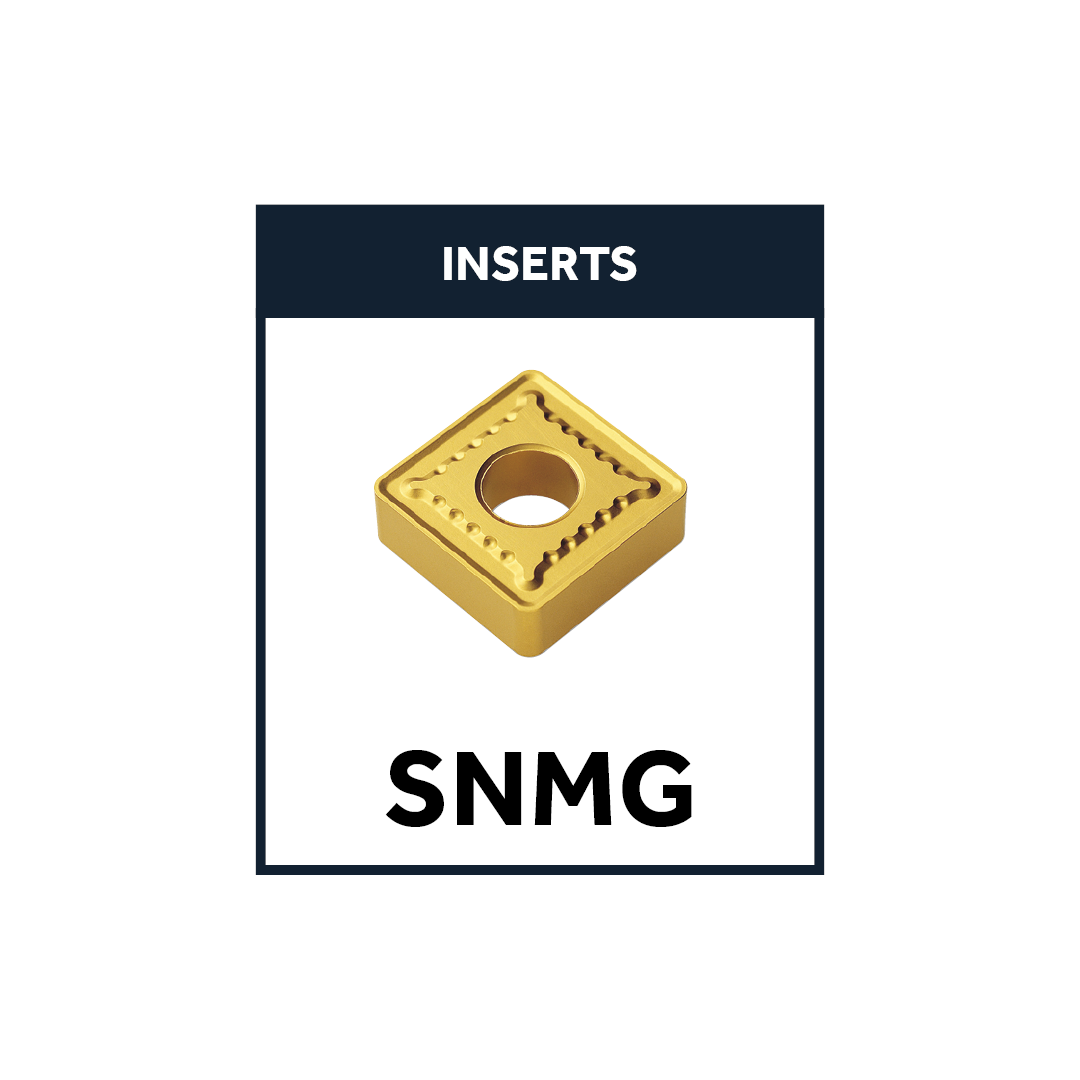

  • Suitable for use with SNMG style turning inserts (also suitable for SNMA, SNMM, SNGA, SNGG etc)

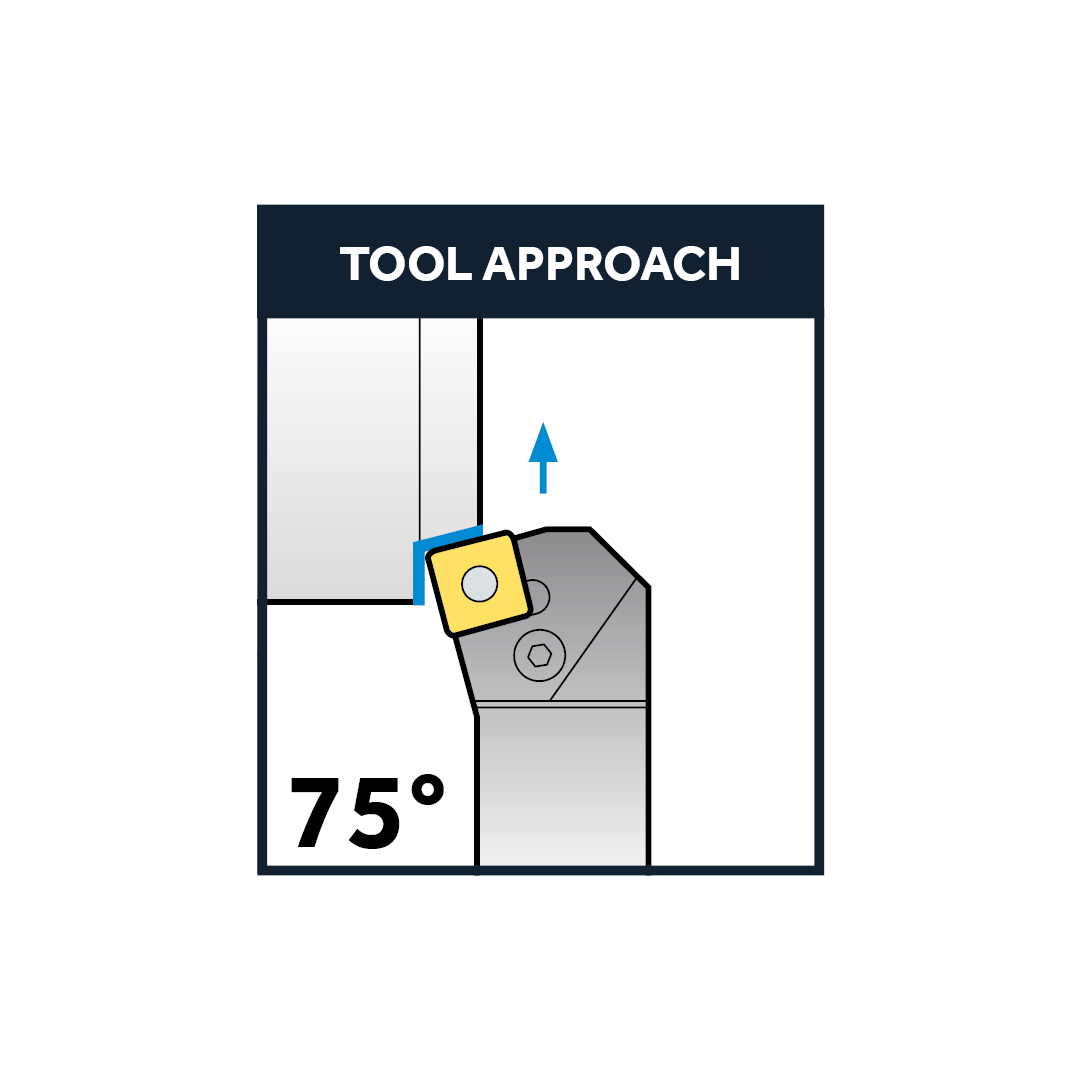

  • High quality solid steel shank turning tool holder with 75° degree approach angle
  • Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts
  • Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

Specification

Category Lathe Tools
Sub Category Turning Tools
Sub Category 2 Standard Turning Tools
Shank (mm) 20
Overall Length (mm) 125
ISO Code PSKNR2020-K09
Shank 20mm x 20mm
Hand Right
Insert Size SN**0903
Alternative Part Number PSKNR2020-K09
Screw VHX0617
Shim SS32
Lever LV3
Insert Series SNMG
Through Coolant No
Angle 75°
Holder Style PSKNR/L
Clamp Type Lever Lock
Brand Korloy
