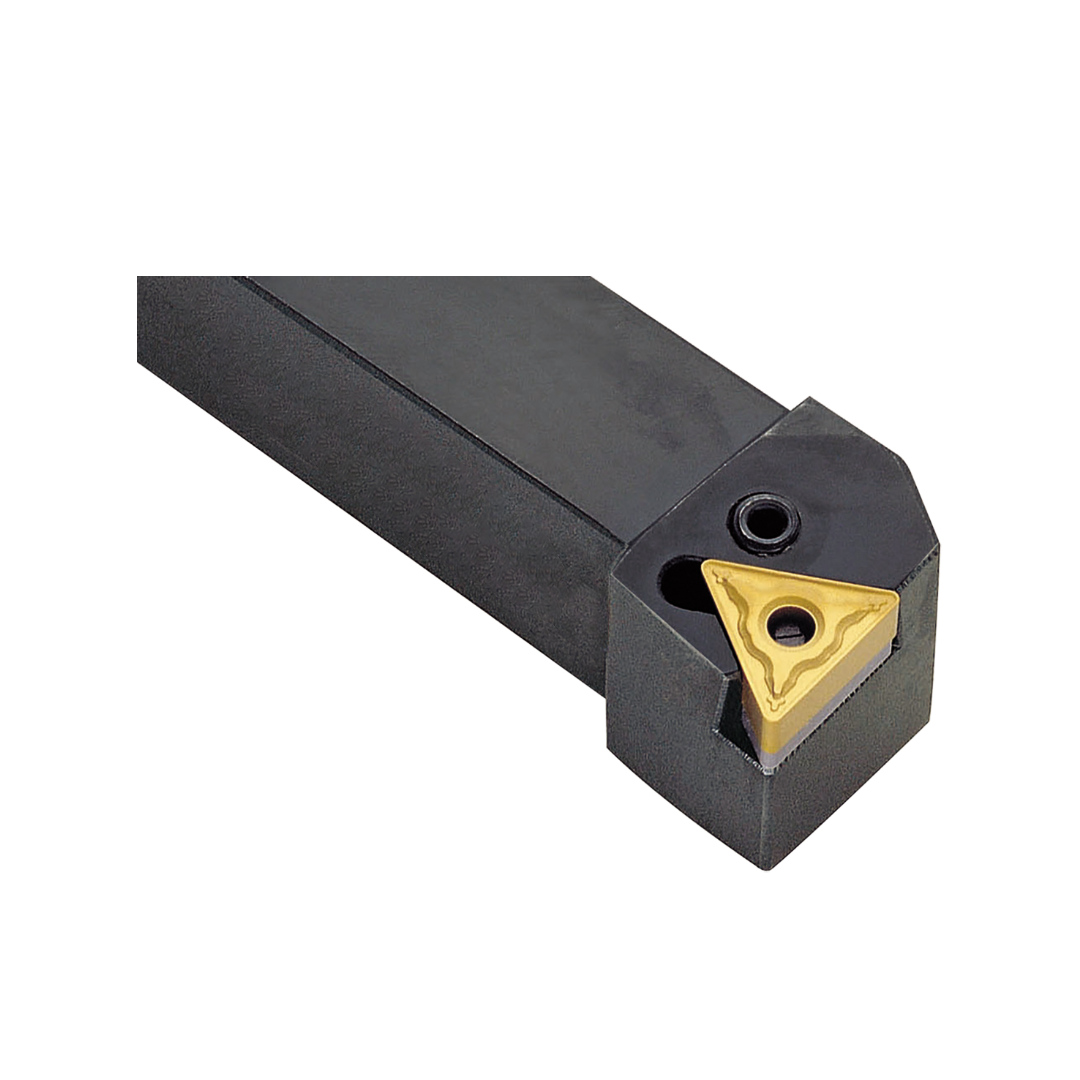

PTFNL3232-P22 Standard Turning Tool Holder, 32 x 32mm Shank, 170mm Long, Left Hand, 90 Degree Approach, Lever Lock, for TNMG22 inserts - PTFNR/L Series (Korloy)

Cutwel Sku
1-06-004154

PTFNL3232-P22 Standard Turning Tool Holder, 32 x 32mm Shank, 170mm Long, Left Hand, 90 Degree Approach, Lever Lock, for TNMG22 inserts - PTFNR/L Series (Korloy)

Cutwel Sku
1-06-004154

Key Features

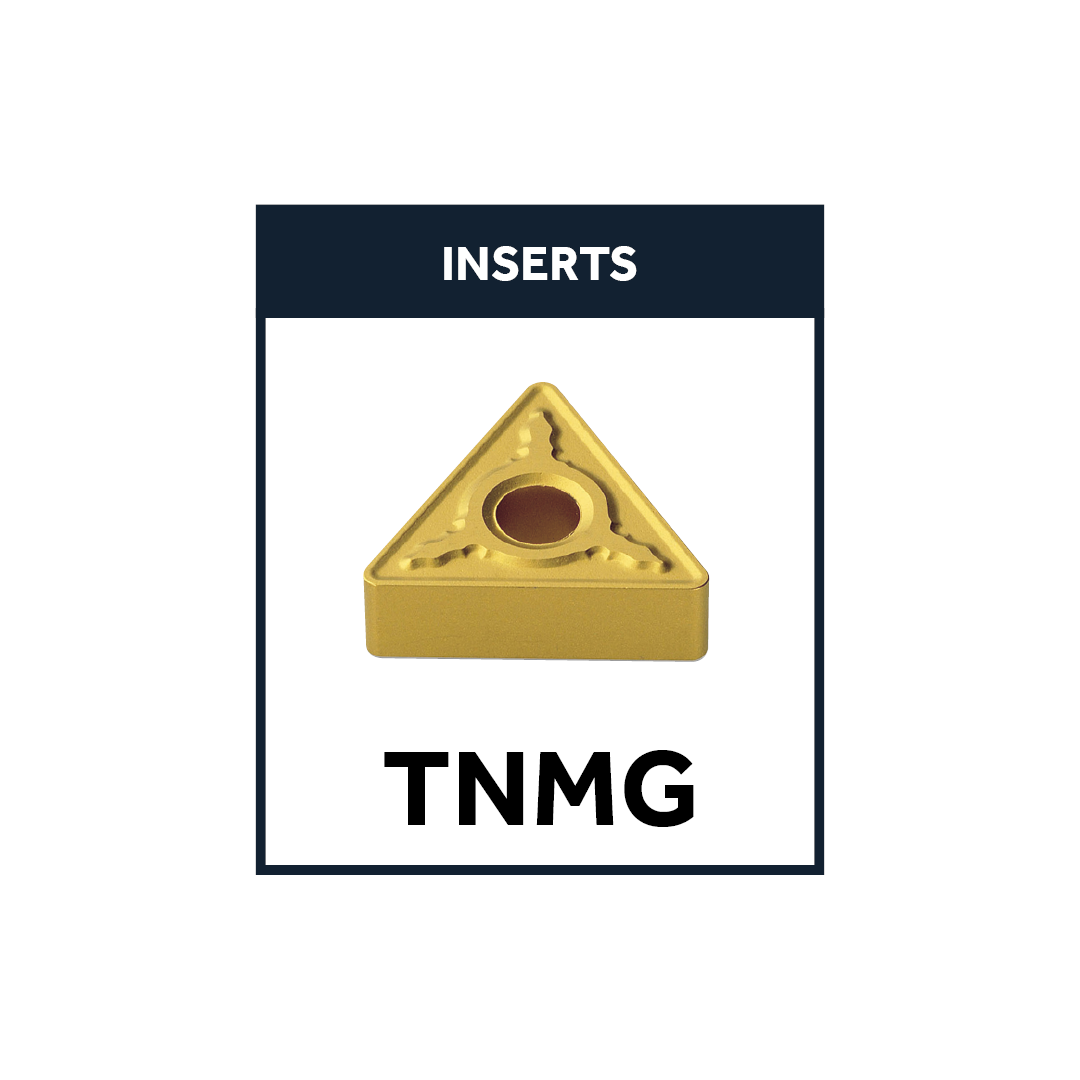

available Suitable for use with TNMG style turning inserts (also suitable for TNMA, TNMM, TNGA, TNGG etc)

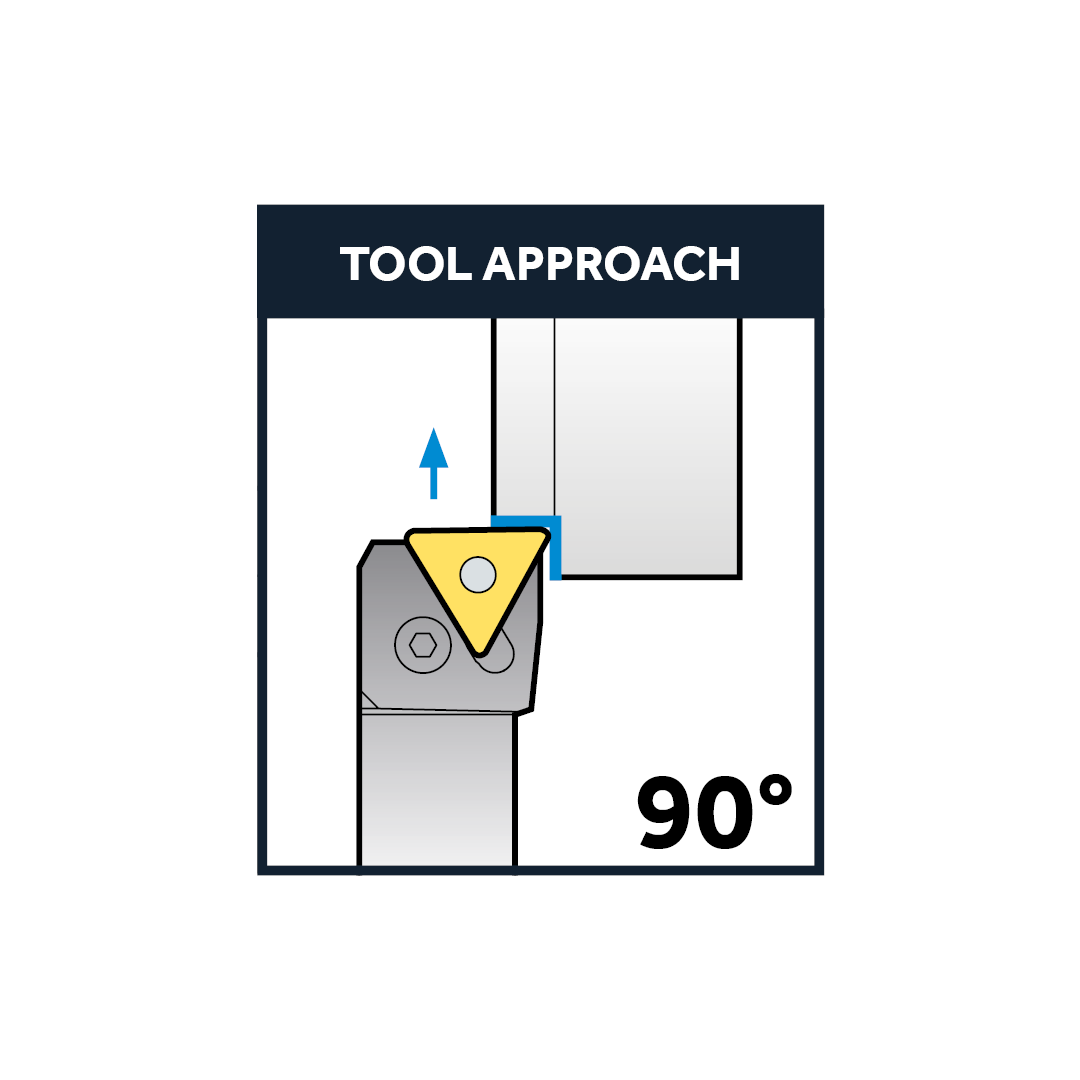

available High quality solid steel shank turning tool holder with 90° degree approach angle
available Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts
Read More
Overall Length (mm)170
Shank (mm)32
green Available for Delivery within 4-5 Days *
minus plus
View Full Range
*Estimated lead time, subject to availability. Based on number of working days.

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Specification

Category Lathe Tools
Sub Category Turning Tools
Sub Category 2 Standard Turning Tools
Shank (mm) 32
Overall Length (mm) 170
ISO Code PTFNL3232-P22
Shank 32mm x 32mm
Hand Left
Insert Size TN**2204
Alternative Part Number PTFNL3232-P22
Screw VHX0821
Shim ST42
Lever LV4
Insert Series TNMG
Through Coolant No
Angle 90°
Holder Style PTFNR/L
Clamp Type Lever Lock
Brand Korloy
Part Numbers
  • Cutwel Part Number 1-06-004154

Description

High quality solid steel shank turning tool holder suitable for use with TNMG style turning inserts (also suitable for TNMA, TNMM, TNGA, TNGG etc). The PTFNR/L series have a Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts with a 90° degree approach angle. Available in Left hand, these turning tool holders are made from Korloy from a high grade tool steel for the highest accuracy, rigidity and best performance turning. Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

Features & Benefits

  • Suitable for use with TNMG style turning inserts (also suitable for TNMA, TNMM, TNGA, TNGG etc)
  • High quality solid steel shank turning tool holder with 90° degree approach angle
  • Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts
  • Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.
