PTFNR3232-P27 Standard Turning Tool Holder, 32 x 32mm Shank, 170mm Long, Right Hand, 90 Degree Approach, Lever Lock, for TNMG27 inserts - PTFNR/L Series (Korloy)

Cutwel Sku
1-06-007723

PTFNR3232-P27 Standard Turning Tool Holder, 32 x 32mm Shank, 170mm Long, Right Hand, 90 Degree Approach, Lever Lock, for TNMG27 inserts - PTFNR/L Series (Korloy)

Cutwel Sku
1-06-007723
High quality solid steel shank turning tool holder suitable for use with TNMG style turning inserts (also suitable...
Read more
Overall Length (mm)170
Shank (mm)32
minus plus
View Full Range
available In stock

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Product Information

Features & Benefits

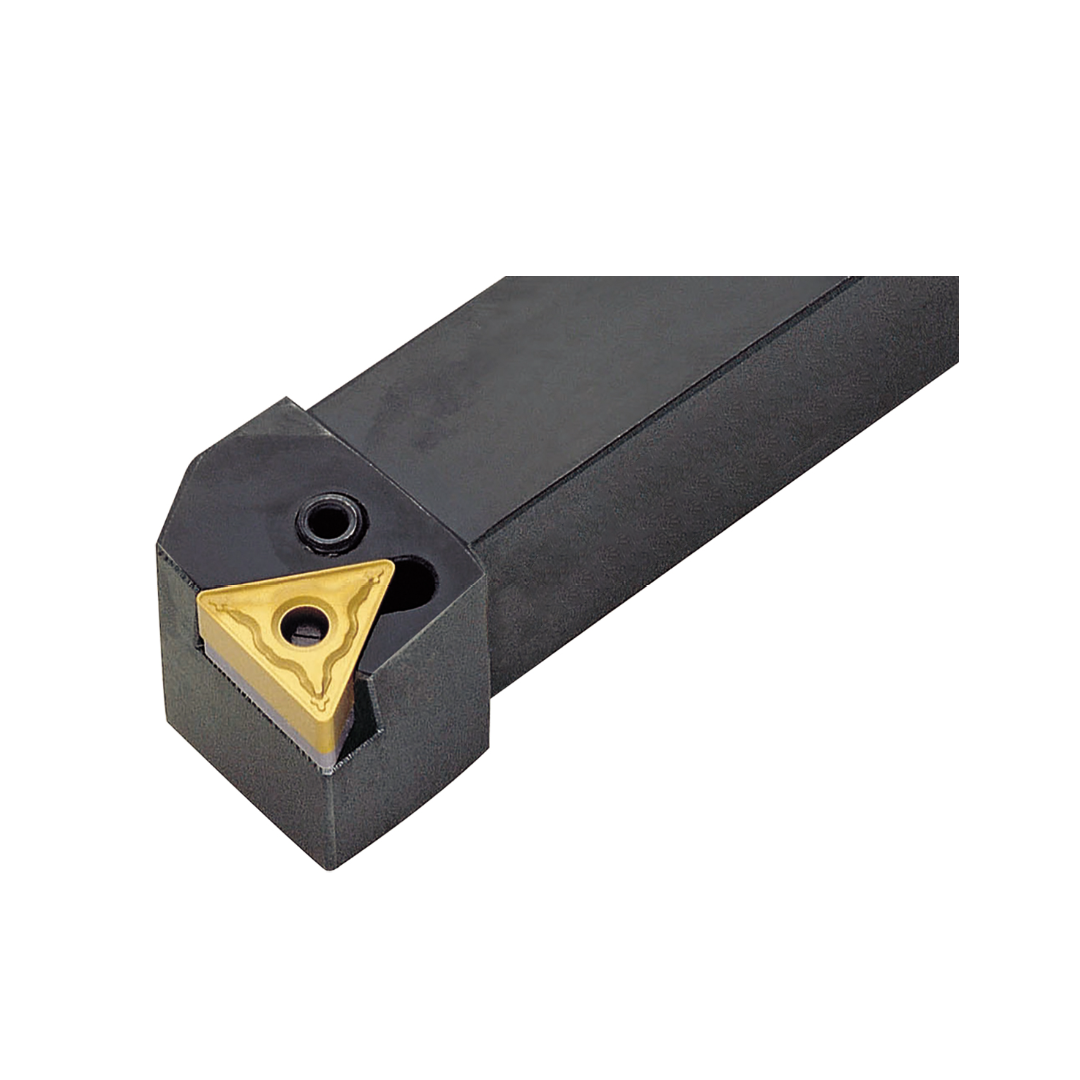

High quality solid steel shank turning tool holder suitable for use with TNMG style turning inserts (also suitable for TNMA, TNMM, TNGA, TNGG etc). The PTFNR/L series have a Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts with a 90° degree approach angle. Available in Right hand, these turning tool holders are made from Korloy from a high grade tool steel for the highest accuracy, rigidity and best performance turning. Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

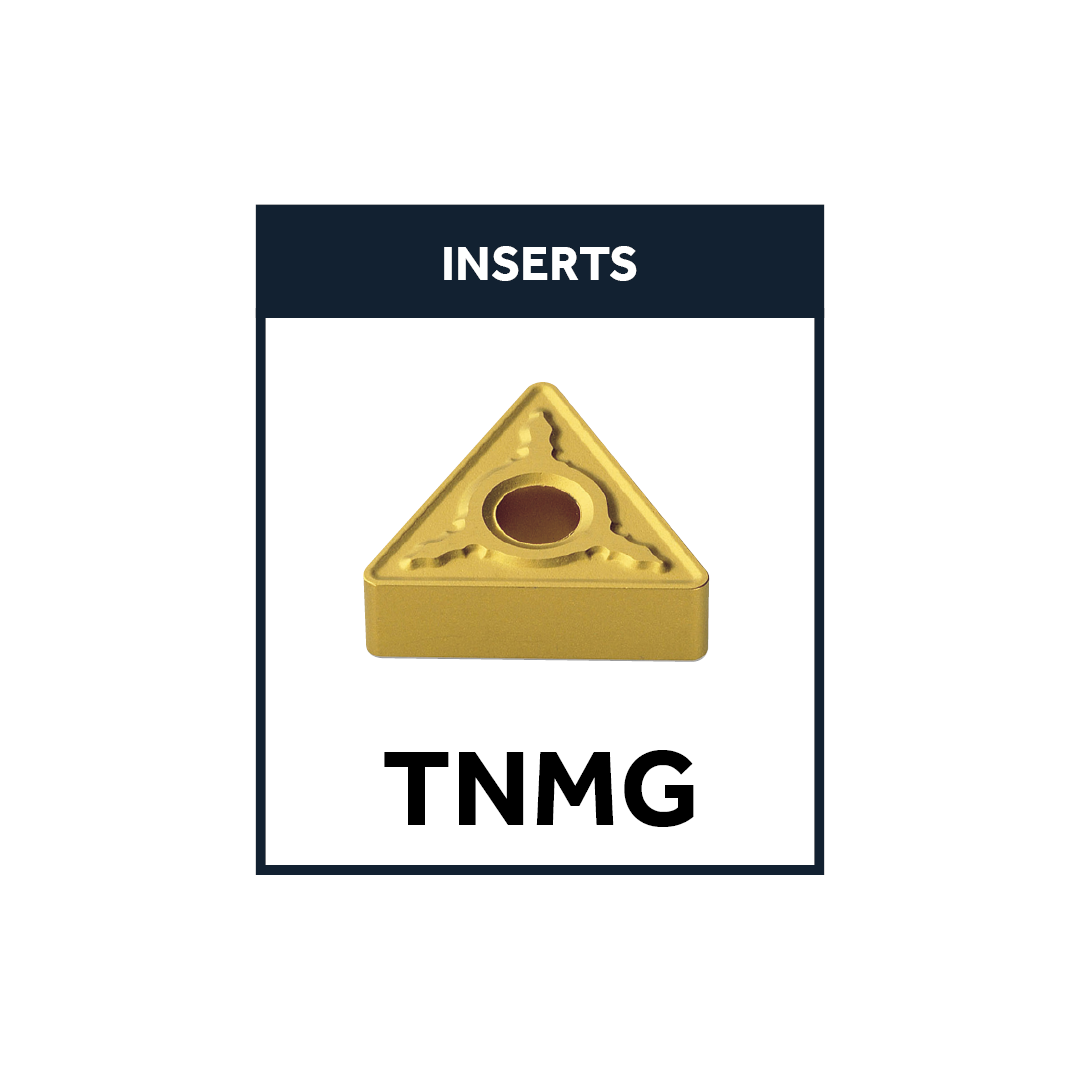

  • Suitable for use with TNMG style turning inserts (also suitable for TNMA, TNMM, TNGA, TNGG etc)

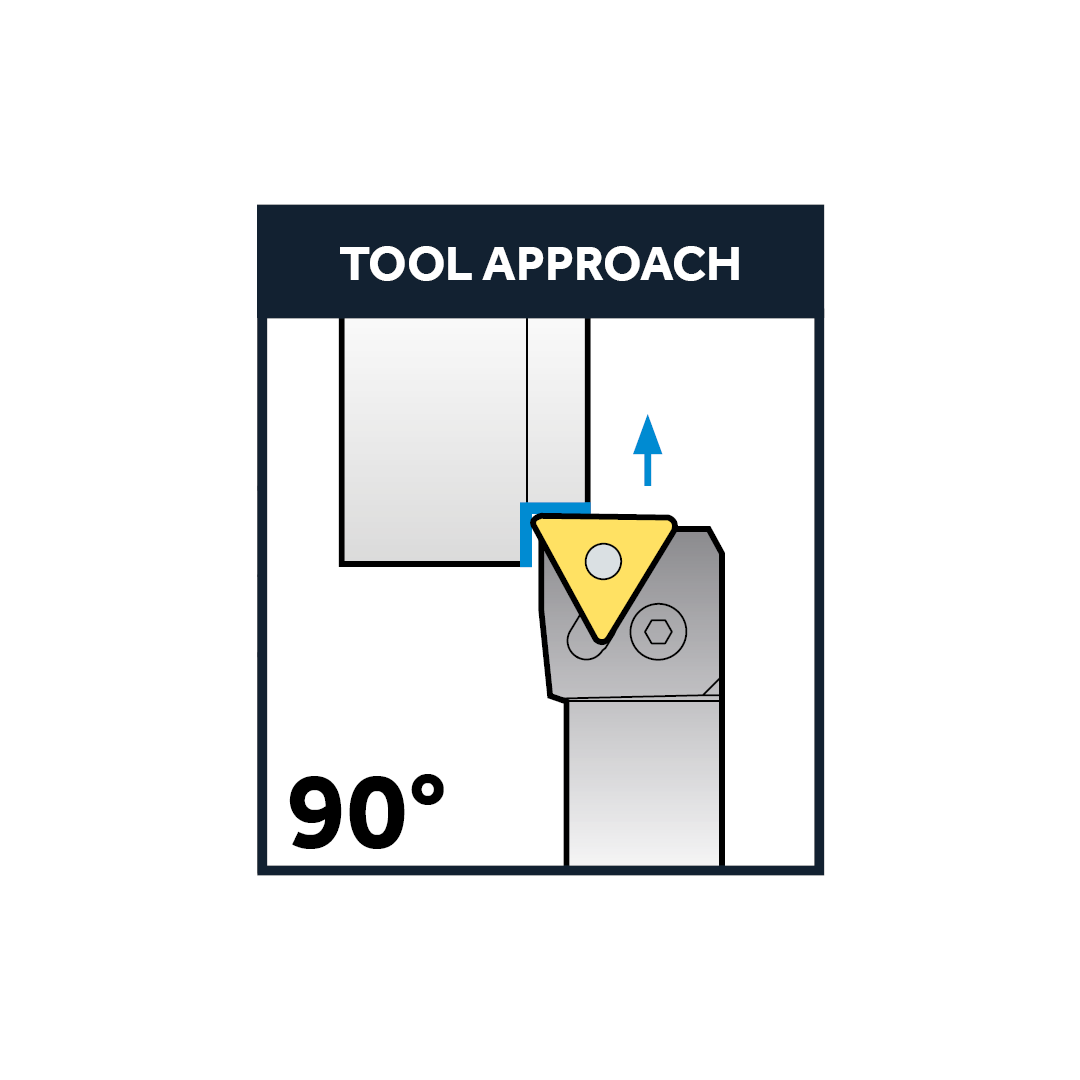

  • High quality solid steel shank turning tool holder with 90° degree approach angle
  • Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts
  • Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

Specification

Category Lathe Tools
Sub Category Turning Tools
Sub Category 2 Standard Turning Tools

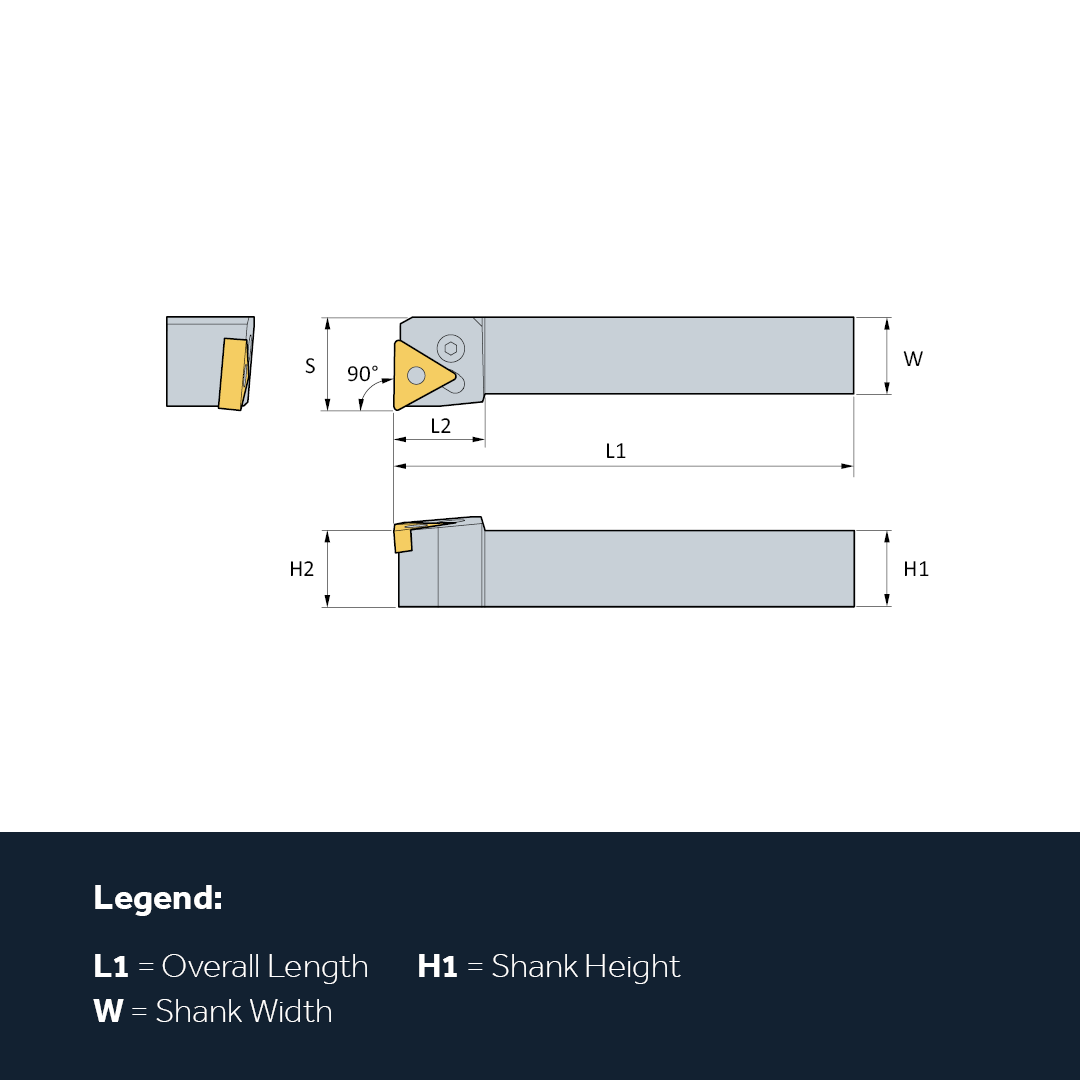

Shank (mm) 32
Overall Length (mm) 170
ISO Code PTFNR3232-P27
Shank 32mm x 32mm
Hand Right
Insert Size TN**2706
Alternative Part Number PTFNR3232-P27
Screw VHX0825
Shim ST53
Lever LV5
Insert Series TNMG
Through Coolant No
Angle 90°
Holder Style PTFNR/L
Clamp Type Lever Lock
Brand Korloy
