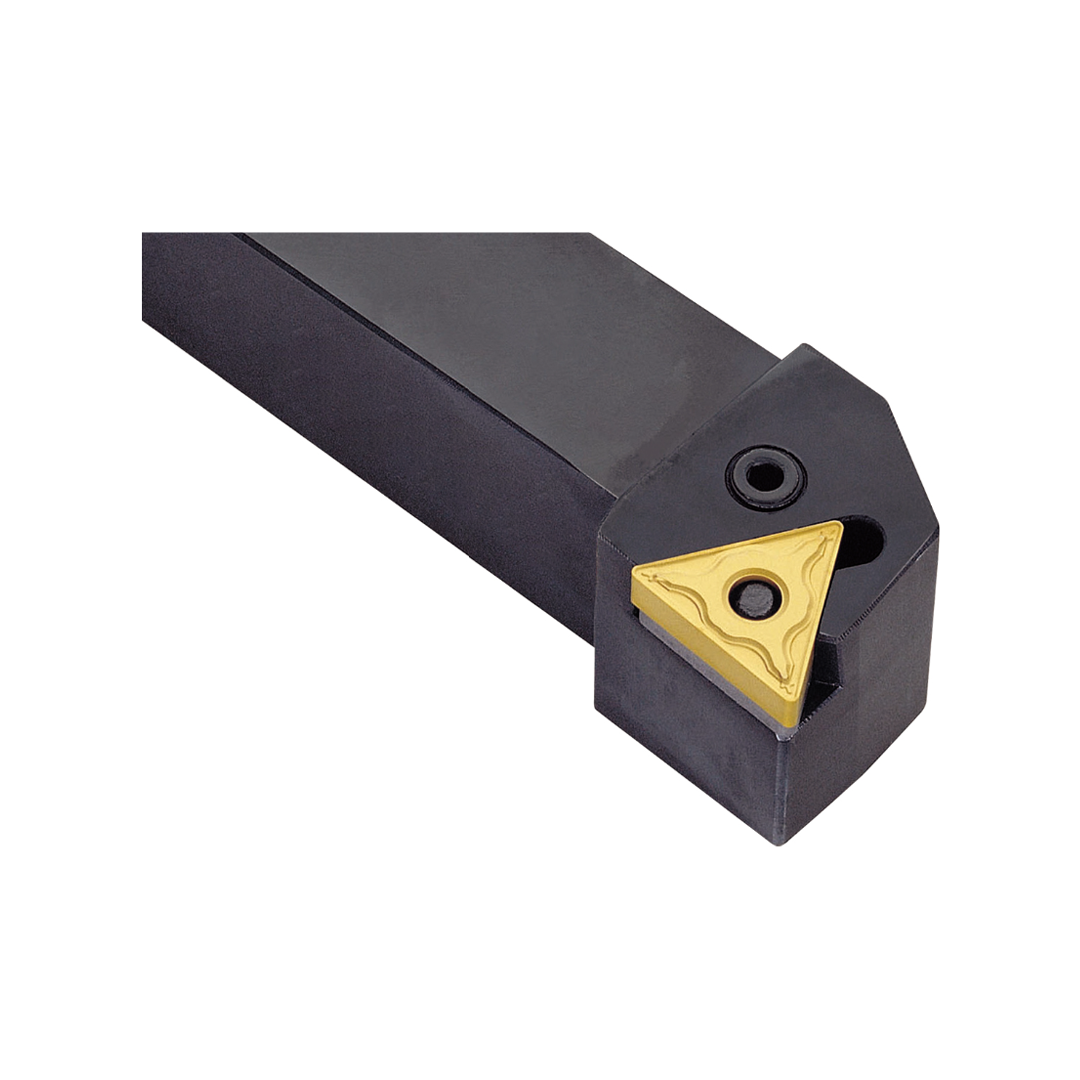

PTGNL2525-M11 Standard Turning Tool Holder, 25 x 25mm Shank, 150mm Long, Left Hand, 90 Degree Approach, Lever Lock, for TNMG11 inserts - PTGNR/L Series (Korloy)

Cutwel Sku
1-06-040279

PTGNL2525-M11 Standard Turning Tool Holder, 25 x 25mm Shank, 150mm Long, Left Hand, 90 Degree Approach, Lever Lock, for TNMG11 inserts - PTGNR/L Series (Korloy)

Cutwel Sku
1-06-040279
High quality solid steel shank turning tool holder suitable for use with TNMG style turning inserts (also suitable...
Read more
Overall Length (mm)150
Shank (mm)25
minus plus

*Estimated lead time, subject to availability

View Full Range
unavailable 21 days*

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Product Information

Features & Benefits

High quality solid steel shank turning tool holder suitable for use with TNMG style turning inserts (also suitable for TNMA, TNMM, TNGA, TNGG etc). The PTGNR/L series have a Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts with a 90° degree approach angle. Available in Left hand, these turning tool holders are made from Korloy from a high grade tool steel for the highest accuracy, rigidity and best performance turning. Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

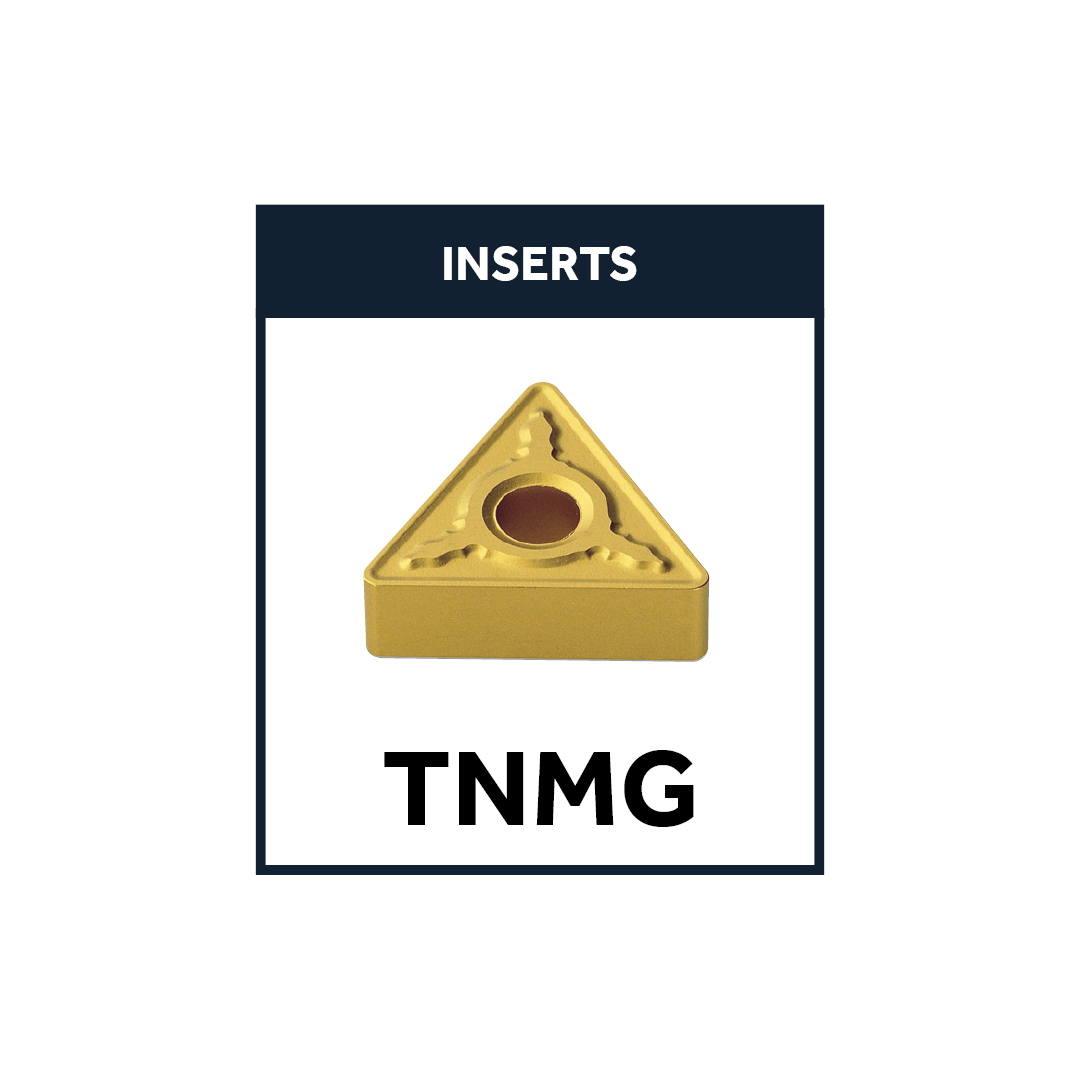

  • Suitable for use with TNMG style turning inserts (also suitable for TNMA, TNMM, TNGA, TNGG etc)

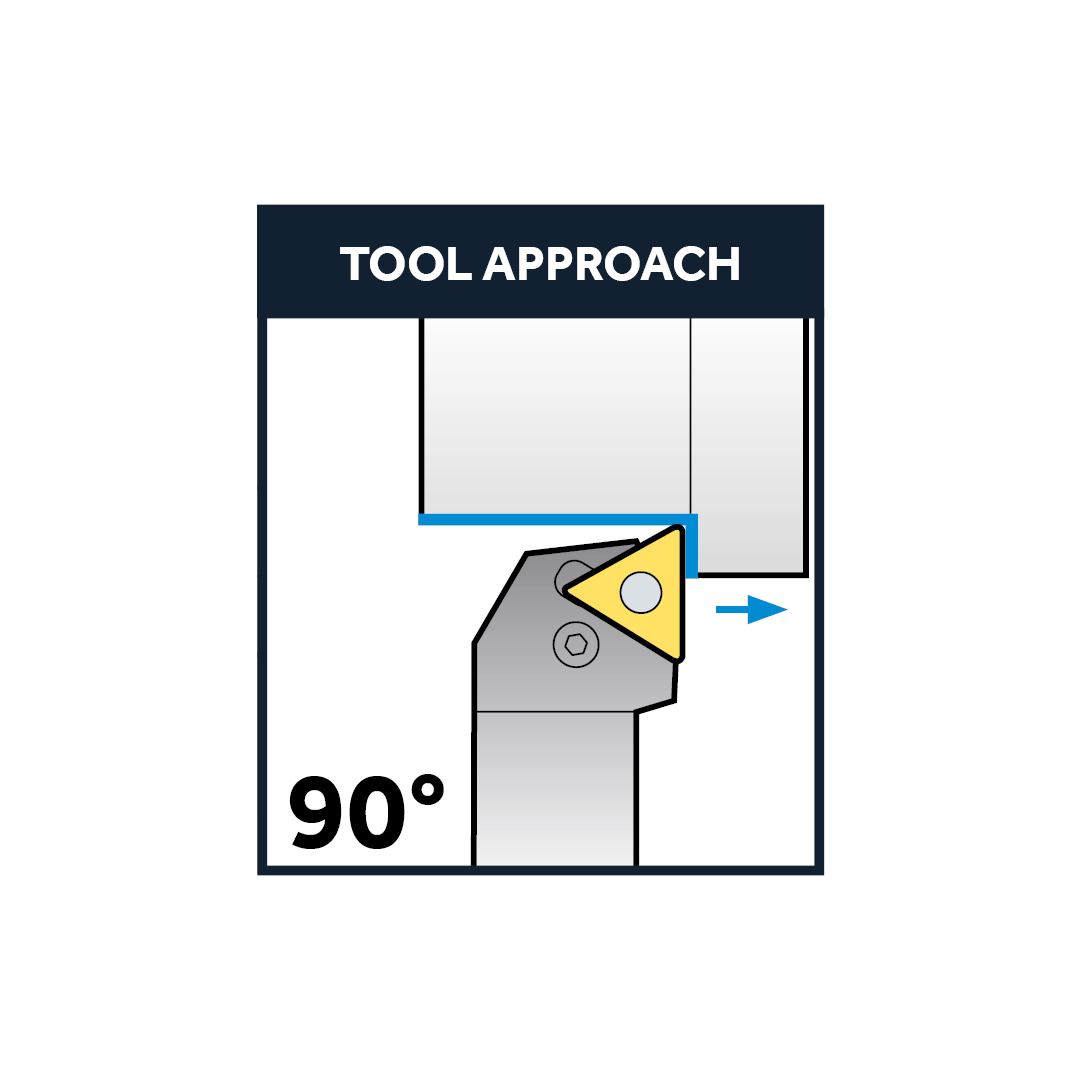

  • High quality solid steel shank turning tool holder with 90° degree approach angle
  • Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts
  • Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

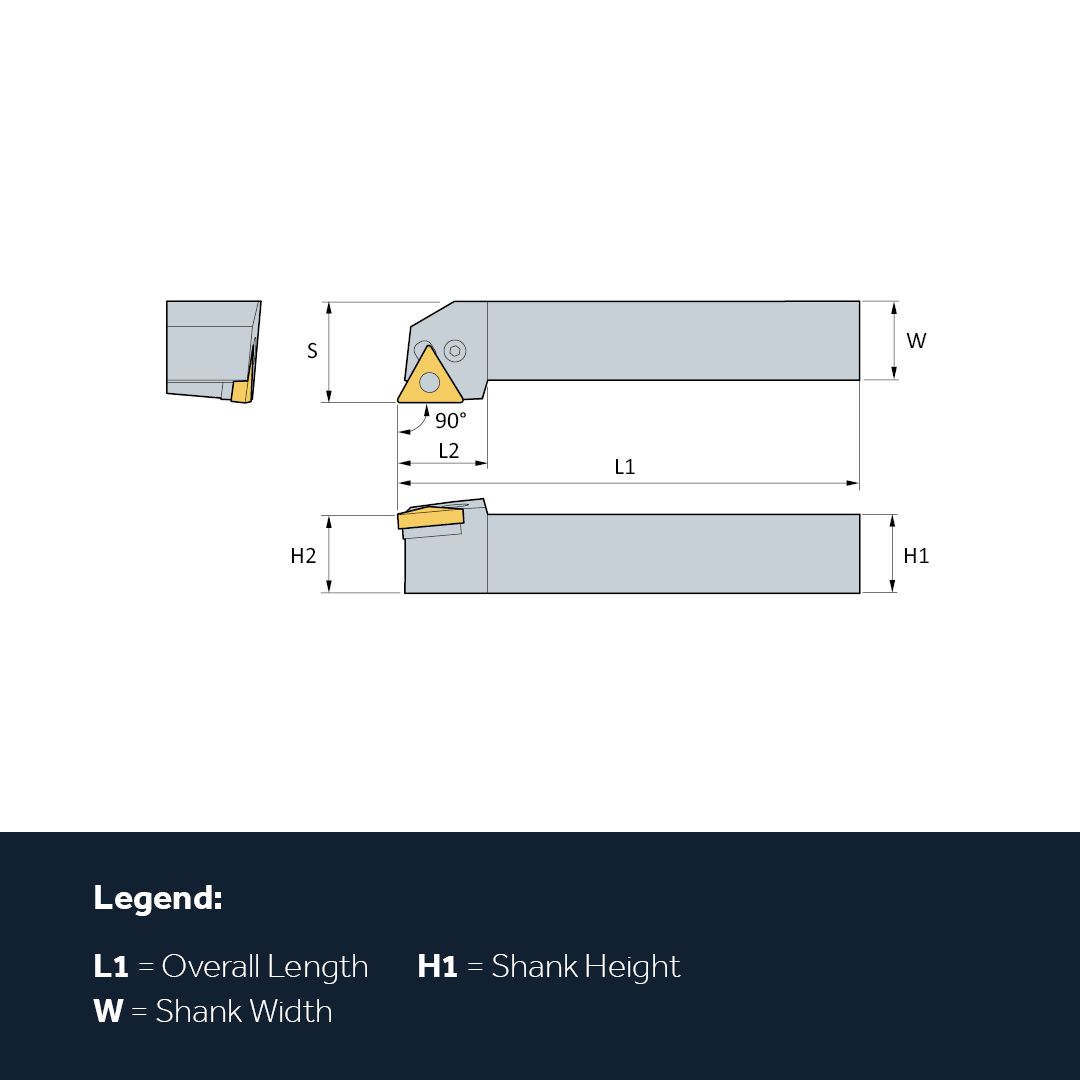

Specification

Category Lathe Tools
Sub Category Turning Tools
Sub Category 2 Standard Turning Tools
Shank (mm) 25
Overall Length (mm) 150
ISO Code PTGNL2525-M11
Shank 25mm x 25mm
Hand Left
Insert Size TN**1103
Alternative Part Number PTGNL2525-M11
Screw VHX0509B
Lever LV2
Insert Series TNMG
Through Coolant No
Angle 90°
Holder Style PTGNR/L
Clamp Type Lever Lock
Brand Korloy
