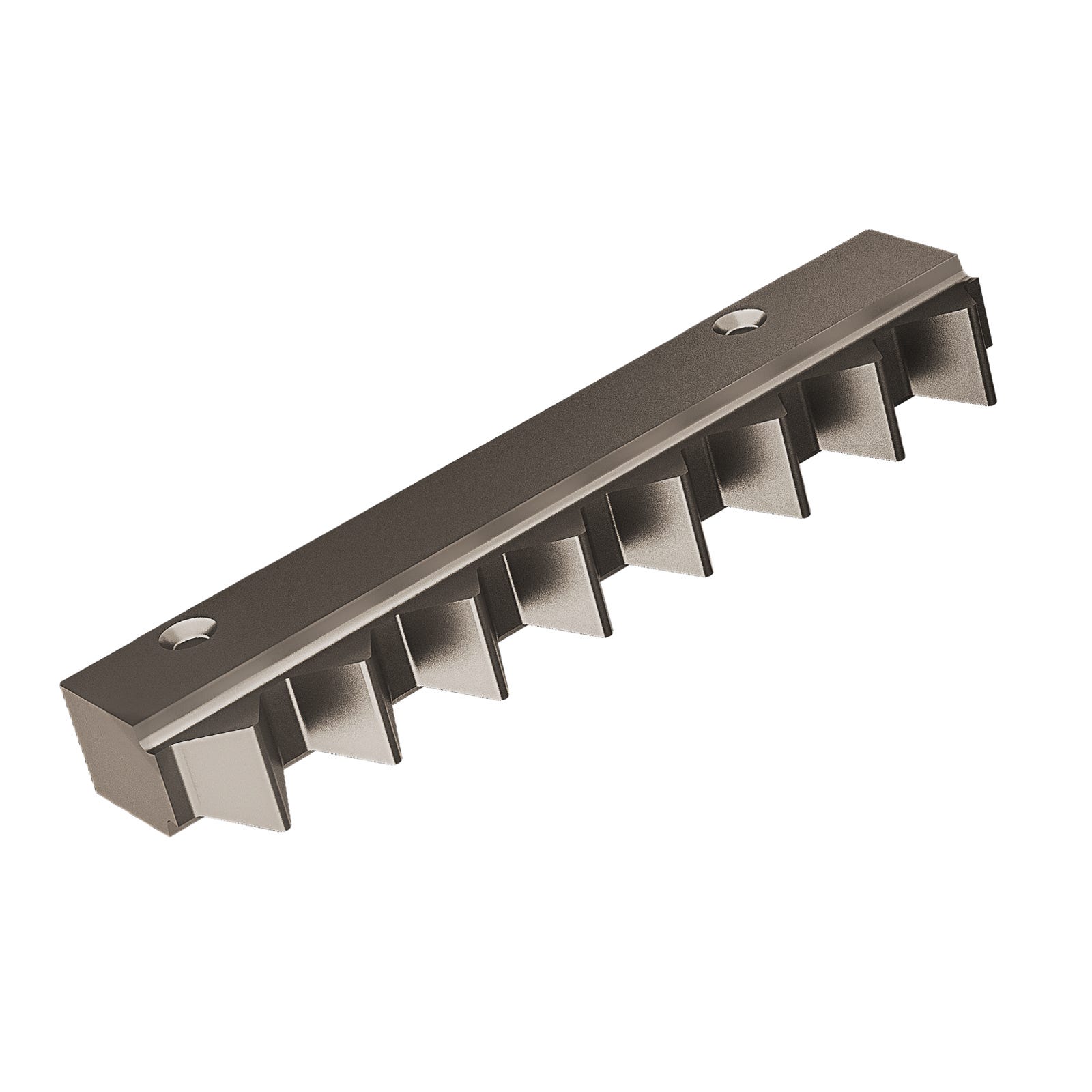

R19EI19BSPTTMVTX Internal & External BSPT Whitworth MiTM Super Fast Thread Milling Inserts (Vardex)

Cutwel Sku
089-00389

R19EI19BSPTTMVTX Internal & External BSPT Whitworth MiTM Super Fast Thread Milling Inserts (Vardex)

Cutwel Sku
089-00389

Key Features

available British Standard Pipe Taper (BSPT) indexable thread milling insert.
available Designed for use in both external and internal applications.
available For use with Vardex MiTM tool holders.
Read More
green Available for Delivery within 2-3 Days *
minus plus
View Full Range
*Estimated lead time, subject to availability. Based on number of working days.

Need Help?

Contact Sales

01924 869660 Call us 8am - 5:30pm Call us 8am - 5pm Call us from 8am on Monday

Specification

Category Threading
Sub Category Thread Mills
Sub Category 2 Indexable Thread Mill Inserts
TPI 19
Teeth 15
Insert Size 19
Alternative Part Number R19EI19BSPTTMVTX
Toolholder RTMNC...A
Le 20.05
Thread Form BSPT
Brand Vargus
Part Numbers
  • Cutwel Part Number 089-00389

Description

British Standard Pipe Taper BSPT MiTM Thread Milling Inserts from Vardex for external & internal thread milling applications. The MiTM system ensures super-fast machining and slashed cycle times when machining threads using long inserts.

Features & Benefits

  • British Standard Pipe Taper (BSPT) indexable thread milling insert.
  • Designed for use in both external and internal applications.
  • For use with Vardex MiTM tool holders.
  • Tolerance class: Standard BSPT.
  • MiTM system designed for super fast machining.
  • Slash cycle times when machining threads using long inserts.
  • VTX grade - First choice coated grade for steel, stainless steel, HRSA’s and cast iron.
  • MiTM tool holders use a new nickel coating for exceptional anti-rust protection.

What time are we open?

We are open Monday to Friday and able to dispatch orders between 8am and 5:30pm Monday to Thursday, and up to 5pm on Friday.

What delivery services do we offer?

To mainland UK we offer FREE UK next day delivery on all standard orders above £69 (ex vat), and £125 (ex vat) on all orders including any liquids.*

Alternatively, we offer a FREE Click and Collect service from our distribution centre in Cleckheaton, West Yorkshire. Click here for the full address.

For standard orders under £69 (ex vat), we offer the following:

  • 1st class post - £2.75
  • DPD Standard Next Day Delivery - £7.00
  • DPD Next Day Pre-12pm - £10.00 or (£5.25 on orders over £69 (ex VAT)
  • DPD Next Day Pre-10.30am - £18.00

For orders containing liquids under £125 (ex vat), standard UK Mail Next Day Delivery is £8.50 and UK Mail Next Day Pre-12pm Delivery is £13.75.

We also offer Saturday delivery for those that require it. If you order before 5pm on a Friday we offer a range of options which can be viewed here.

For a full breakdown of costs for all types of item and geographical locations including Scottish Highlands, Northern Ireland, Channel Islands & Republic of Ireland, click here.

How do I return an order/item?

Our returns policy is easier than ever. We understand that if an item isn’t correct, then it needs to be returned. If you are wanting to return anything supplied by Cutwel please see our returns page for full instructions.

*T’s & C’s and exclusions apply. Please see our delivery page for more information on all our services including those outside of mainland UK (Republic of Ireland, Northern Ireland, Scottish Highlands, Channel Islands etc).

Filter Items arrow
Code TPI Teeth Insert Size Toolholder Stock Price
(Ex VATInc. VAT)
Filter Items
cross
TPI
carrat-down
Teeth
carrat-down
Insert Size
carrat-down
Toolholder
carrat-down
TPI: 19 Teeth: 15 Insert Size: 19 Toolholder: RTMNC...A
green Available for Delivery within 2-3 Days *
£64.48 £53.73
minus plus
TPI: 19 Teeth: 18 Insert Size: 24 Toolholder: RTMNC 2014-26M1
green Available for Delivery within 2-3 Days *
£82.32 £68.60
minus plus
TPI: 14 Teeth: 13 Insert Size: 25 Toolholder: RTMNC....S
green Available for Delivery within 2-3 Days *
£117.78 £98.15
minus plus
TPI: 11 Teeth: 10 Insert Size: 25 Toolholder: RTMNC....S
green Available for Delivery within 2-3 Days *
£117.78 £98.15
minus plus
TPI: 11 Teeth: 17 Insert Size: 40 Toolholder: RTMNC-D45-22-40L6
green Available for Delivery within 2-3 Days *
£108.31 £90.26
minus plus
