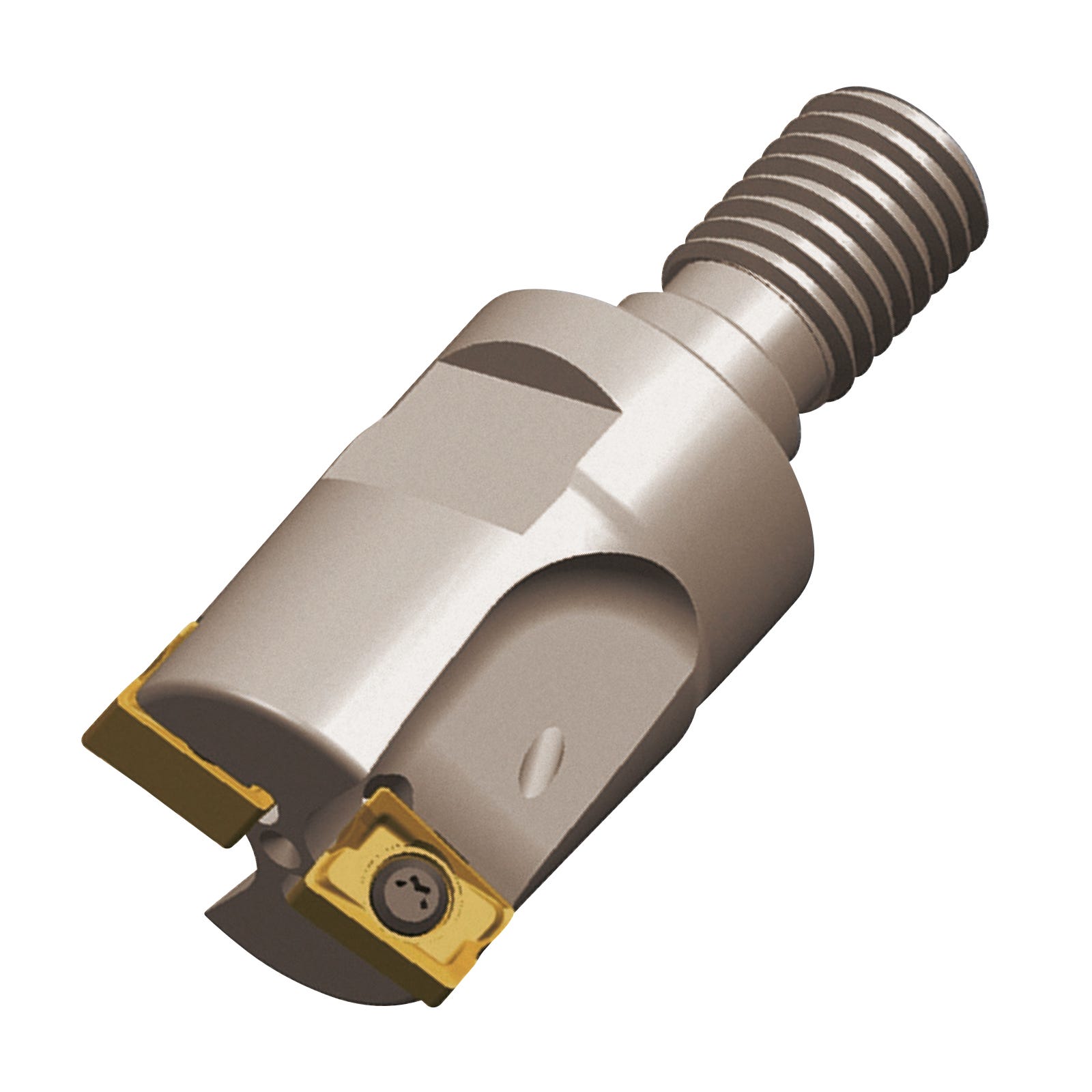

Rich Mill RM4 90 degree Screwed Shank Plunge End Mill for LNEX/LNMX10 Inserts - RM4Z (Korloy)
Rich Mill RM4 90 degree Screwed Shank Plunge End Mill for LNEX/LNMX10 Inserts - RM4Z (Korloy)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|

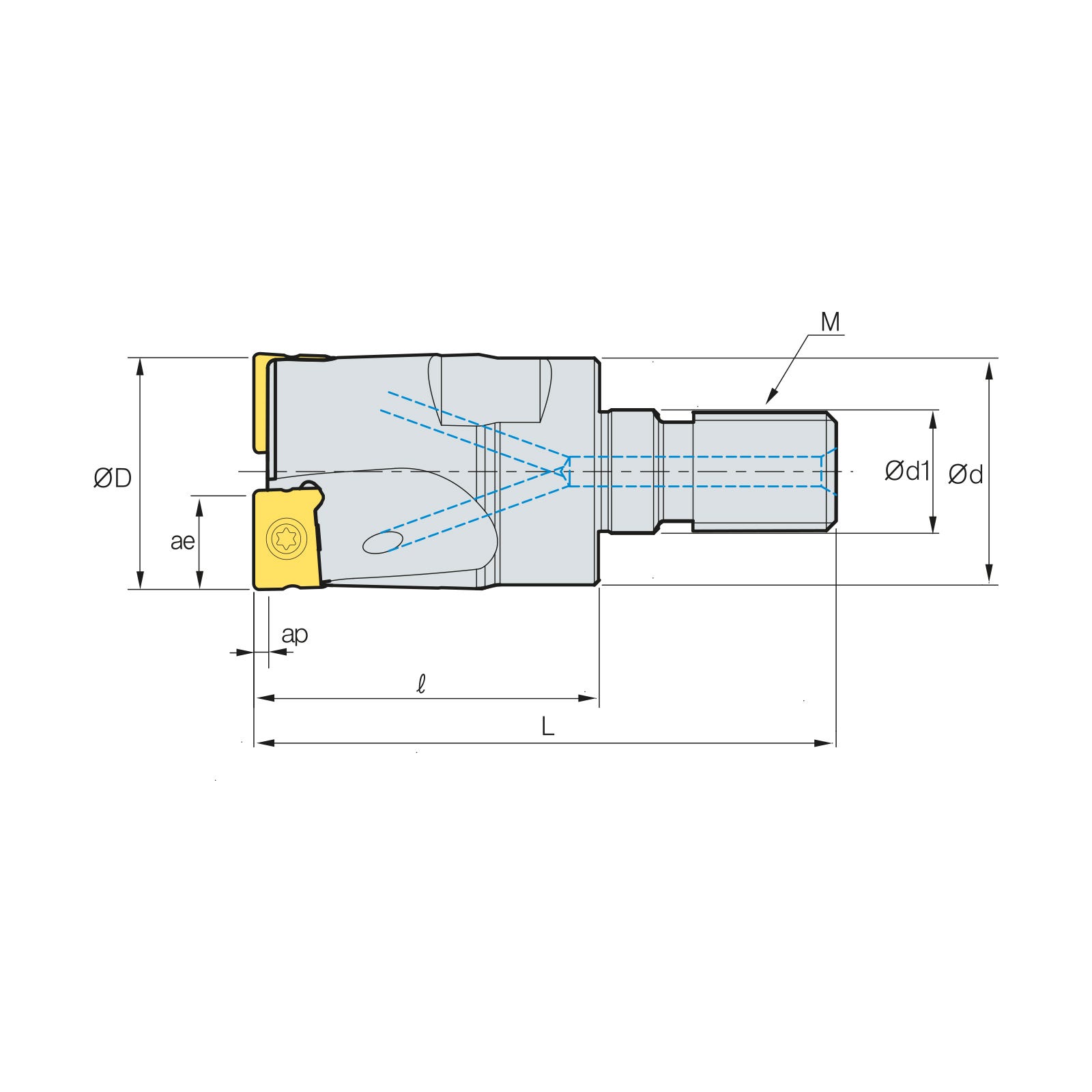

Thread
|
Diameter (mm)
|
Overall Length (mm)
|
Reach (mm)
|
Depth of Cut
|
Teeth
|
Inserts
|
||||
|---|---|---|---|---|---|---|---|---|---|---|
| Thread: M12 | Diameter (mm): 25 | Overall Length (mm): 59 | Reach (mm): 35 | Depth of Cut: 1.5 | Teeth: 2 | Inserts: LNEX10, LNMX10 |
5 days*
|
£142.49
£118.74
|
|
|
| Thread: M16 | Diameter (mm): 32 | Overall Length (mm): 67 | Reach (mm): 40 | Depth of Cut: 1.5 | Teeth: 3 | Inserts: LNEX10, LNMX10 |
In stock
|
£191.99
£159.99
|
|
|
| Thread: M16 | Diameter (mm): 40 | Overall Length (mm): 67 | Reach (mm): 40 | Depth of Cut: 1.5 | Teeth: 4 | Inserts: LNEX10, LNMX10 |
5 days*
|
£237.72
£198.10
|
|
Product Information
Features & Benefits
- Double sided insert gives 4 usable cutting edges, Ideal replacement for APKT style systems
- High rake angle chip breaker combined with strong cutting edge of negative geometry insert
- Available in M tolerance or E tolerance (ground) inserts
- Optional chip breakers for lightweight machine tools
- Dedicated range for plunge milling
- Double sided insert gives 4 usable cutting edges
- Negative insert with the strongest cutting edge
Specification
| Category | Milling |
|---|---|
| Sub Category | Indexable Milling |
| Sub Category 2 | Rich Mill RM4 Indexable Milling System |
| Applicable Materials | Steel, Stainless Steel, Cast Iron |
| Performance | 4 |
| Insert Series | LNMX, LNEX |
| Holder Type | Plunge Mill |
| Application | Face Milling, Plunge Milling, Slotting, Shoulder Milling, Ramping, Helical Cutting |
| Insert Angle | 90° |
| Holder Material | Steel |
| Brand | Korloy |
