RTMNC D45-22-40L6 Conical MiTM Super Fast Thread Milling Shell Mill Holder (Vardex)

Cutwel Sku
077-00006

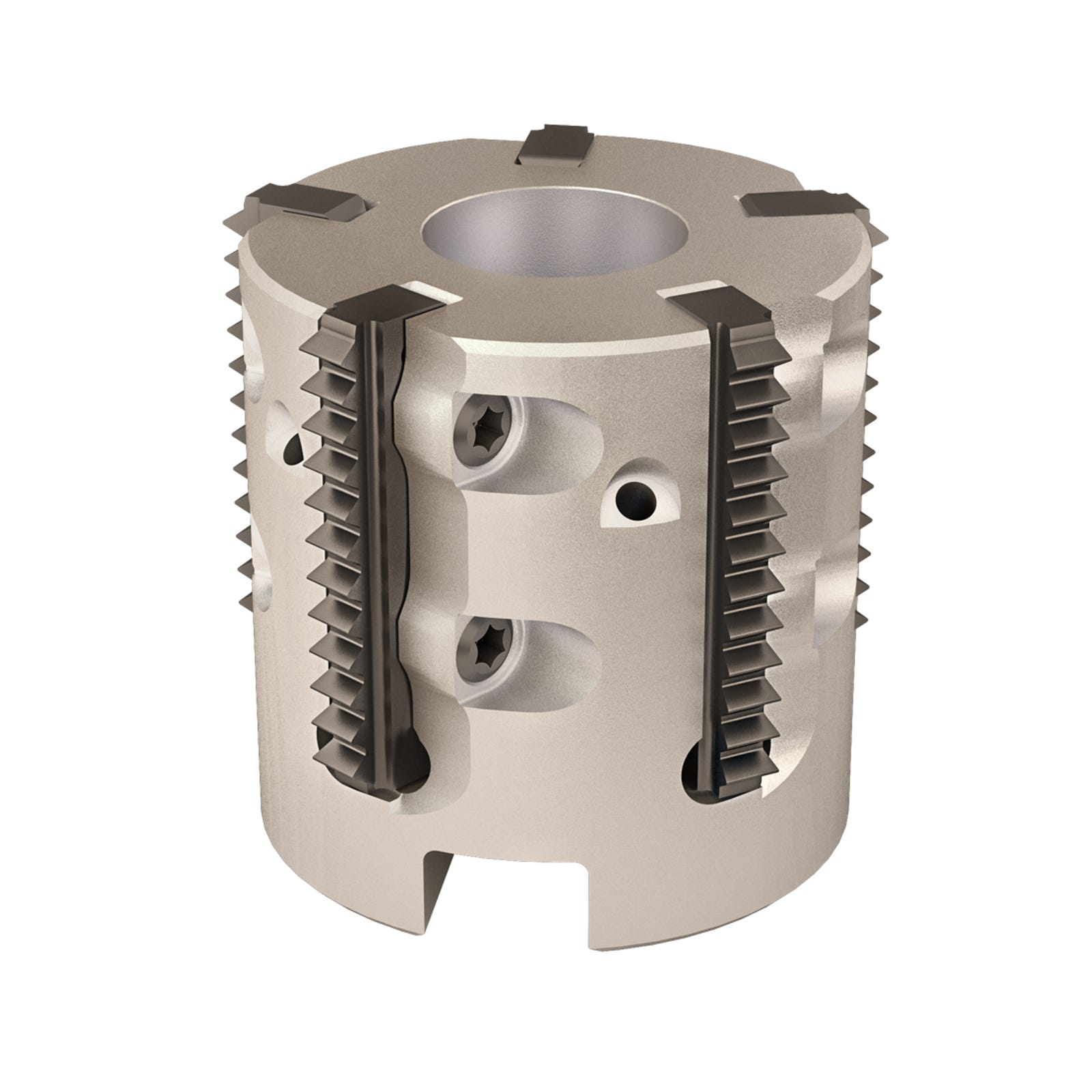

RTMNC D45-22-40L6 Conical MiTM Super Fast Thread Milling Shell Mill Holder (Vardex)

Cutwel Sku
077-00006

Key Features

available Conical indexable thread milling tool holder.
available Shell mill style.
available Supplied with through coolant capability.
Read More
Shank (mm)40
green Available for Delivery within 2-3 Days *
minus plus
View Full Range
*Estimated lead time, subject to availability. Based on number of working days.

Need Help?

Contact Sales

01924 869660 Call us 8am - 5:30pm Call us 8am - 5pm Call us from 8am on Monday

Specification

Category Threading
Sub Category Thread Mills
Sub Category 2 Indexable Thread Mill Holders
Shank (mm) 40
Neck Diameter (mm) 45
Teeth 6
Brand Vargus
Part Numbers
  • Cutwel Part Number 077-00006

Description

Conical Shell Mill MiTM tool holders utilise a new nickel coating to provide superior anti-rust protection. The MiTM system ensures super-fast machining and slashed cycle times when machining threads using long inserts. Through coolant is recommended.

Features & Benefits

  • Conical indexable thread milling tool holder.
  • Shell mill style.
  • Supplied with through coolant capability.
  • For use with Vardex MiTM inserts.

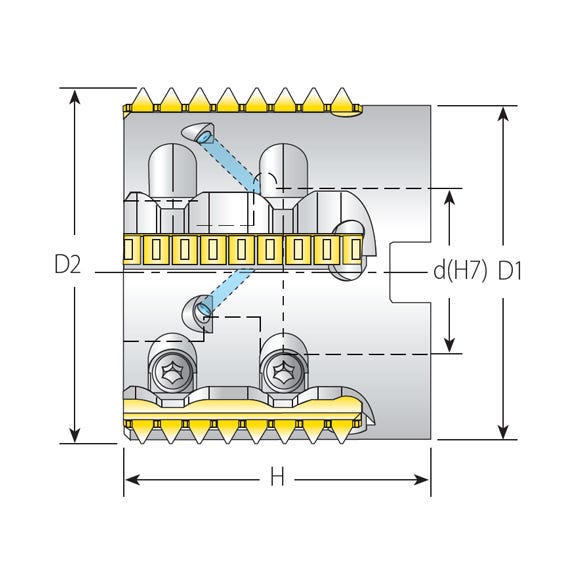

  • Through coolant is recommended, especially when D2 > 0.7 x nominal thread diameter.
  • MiTM system designed for super fast machining.
  • Slash cycle times when machining threads using long inserts.
  • MiTM tool holders use a new nickel coating for exceptional anti-rust protection.
