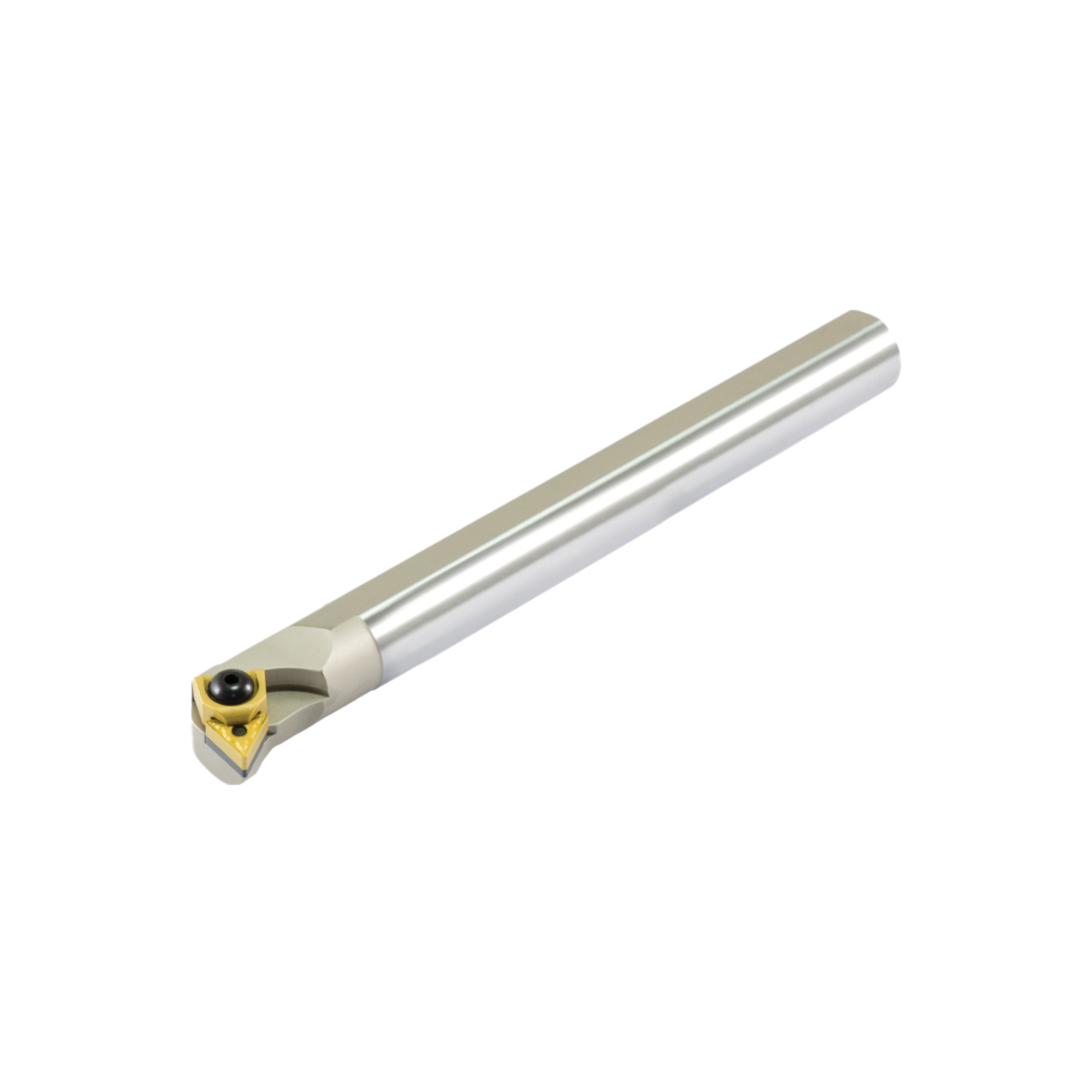

S20R-MTUNR16 20mm Steel Shank Boring Bar, Right Hand, for TNMG16 Inserts, 93 Degree Approach, Multi Lock (YG-1)
S20R-MTUNR16 20mm Steel Shank Boring Bar, Right Hand, for TNMG16 Inserts, 93 Degree Approach, Multi Lock (YG-1)
| Overall Length (mm) | 200 |
|---|---|
| Shank (mm) | 20 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Suitable for use with TNMG style turning inserts (also suitable for TNMA, TNMM, TNGA, TNGG etc)
- General purpose solid steel shank boring bars with boring bar with 93 degree approach angle
- Multi lock style clamping system
- For the best performance it is recommended to clamp on a 1/3 of the bar's length, as a minimum.
- Made by YG-1, a global market leading manufacturer of cutting tools

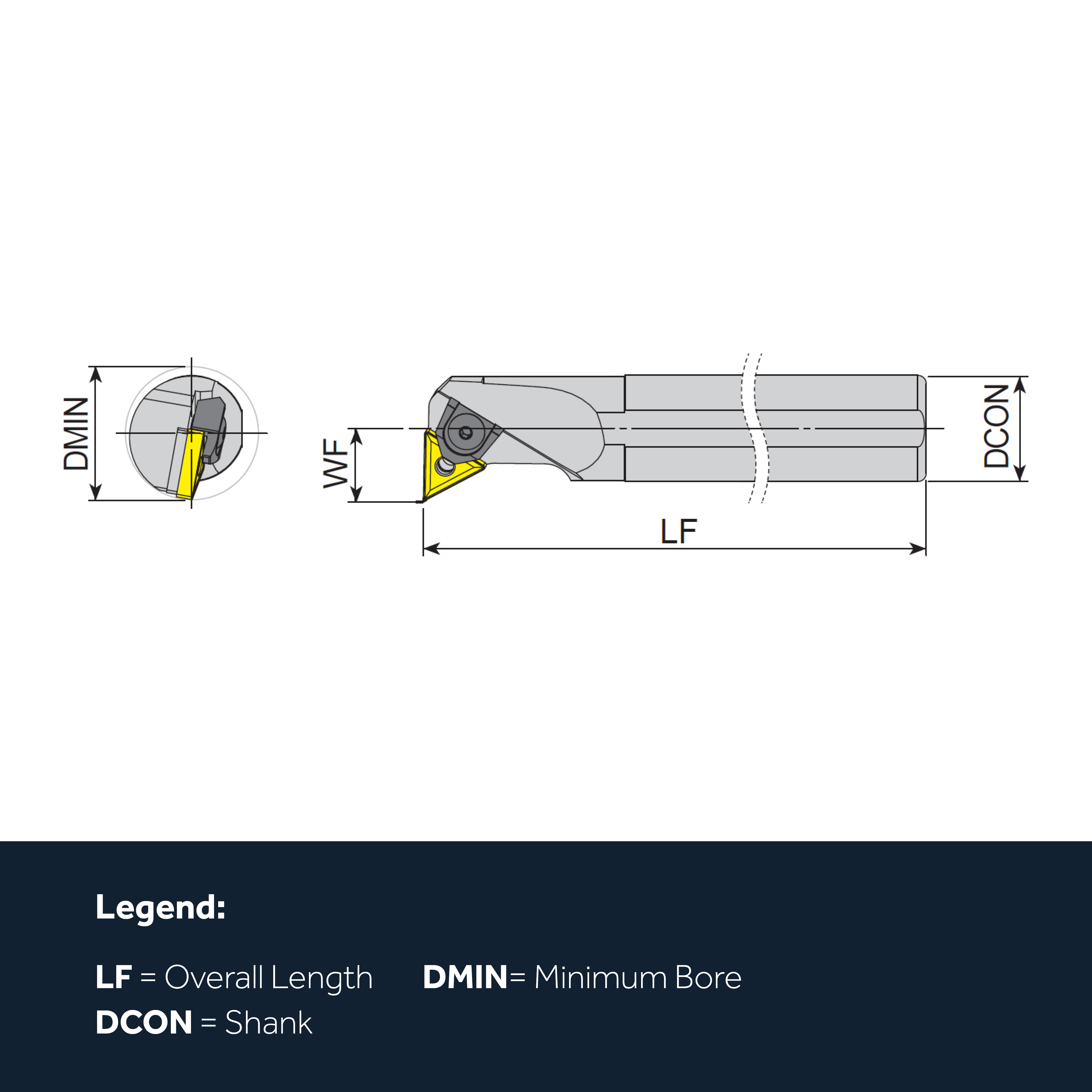

Specification
| Category | Lathe Tools |
|---|---|
| Sub Category | Boring Bars |
| Sub Category 2 | Solid Steel Shank Boring Bars |
| Shank (mm) | 20 |
| Overall Length (mm) | 200 |
| Inserts | TN**16 |
| ISO Code | S20R-MTUNR16 |
| Min Bore | 25 |
| Hand | Right |
| Alternative Part Number | S20R-MTUNR16 |
| Clamp Screw | YAKV-17-M5x15 |
| Clamp | YAMK-02 |

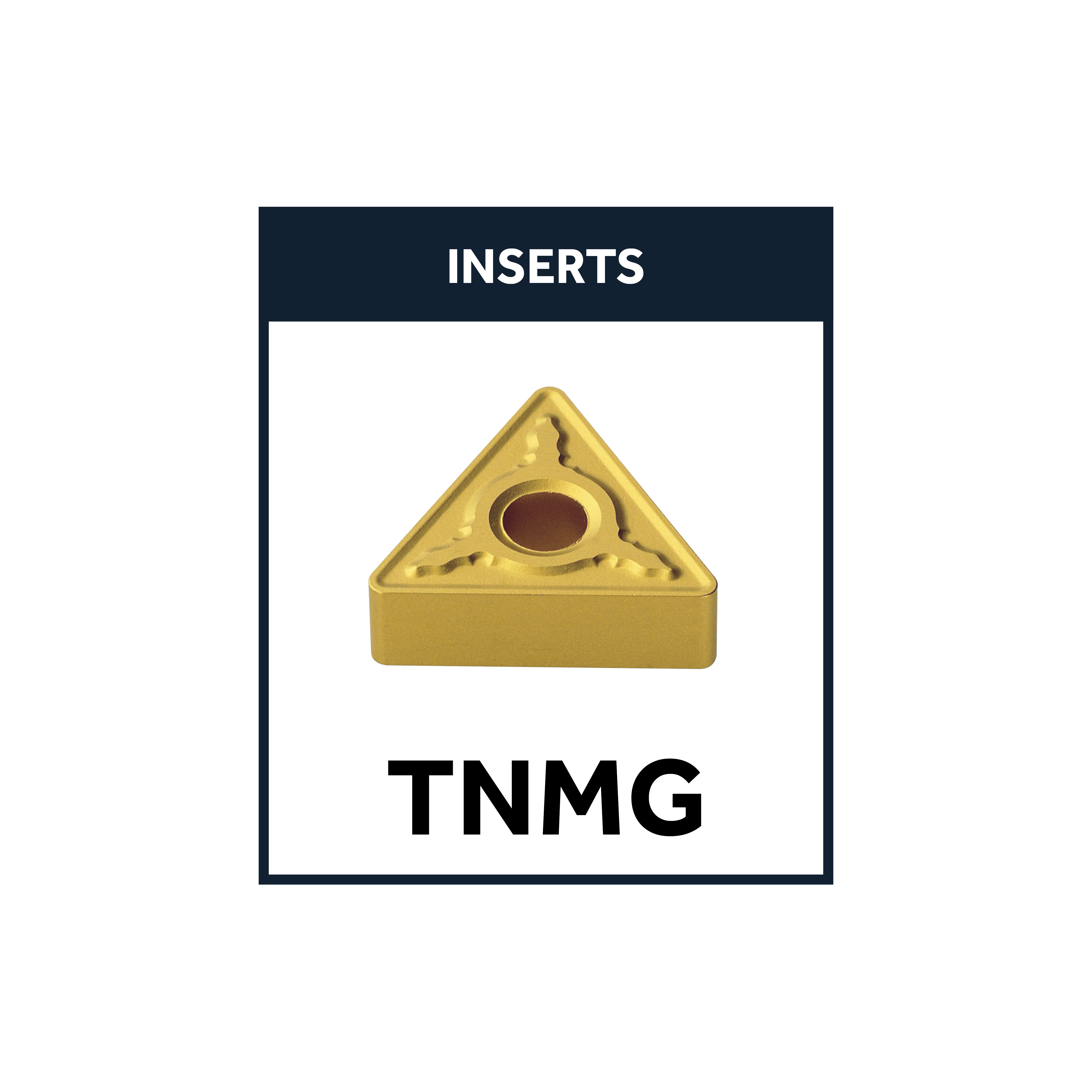

| Insert Series | TNMG |
| Through Coolant | No |

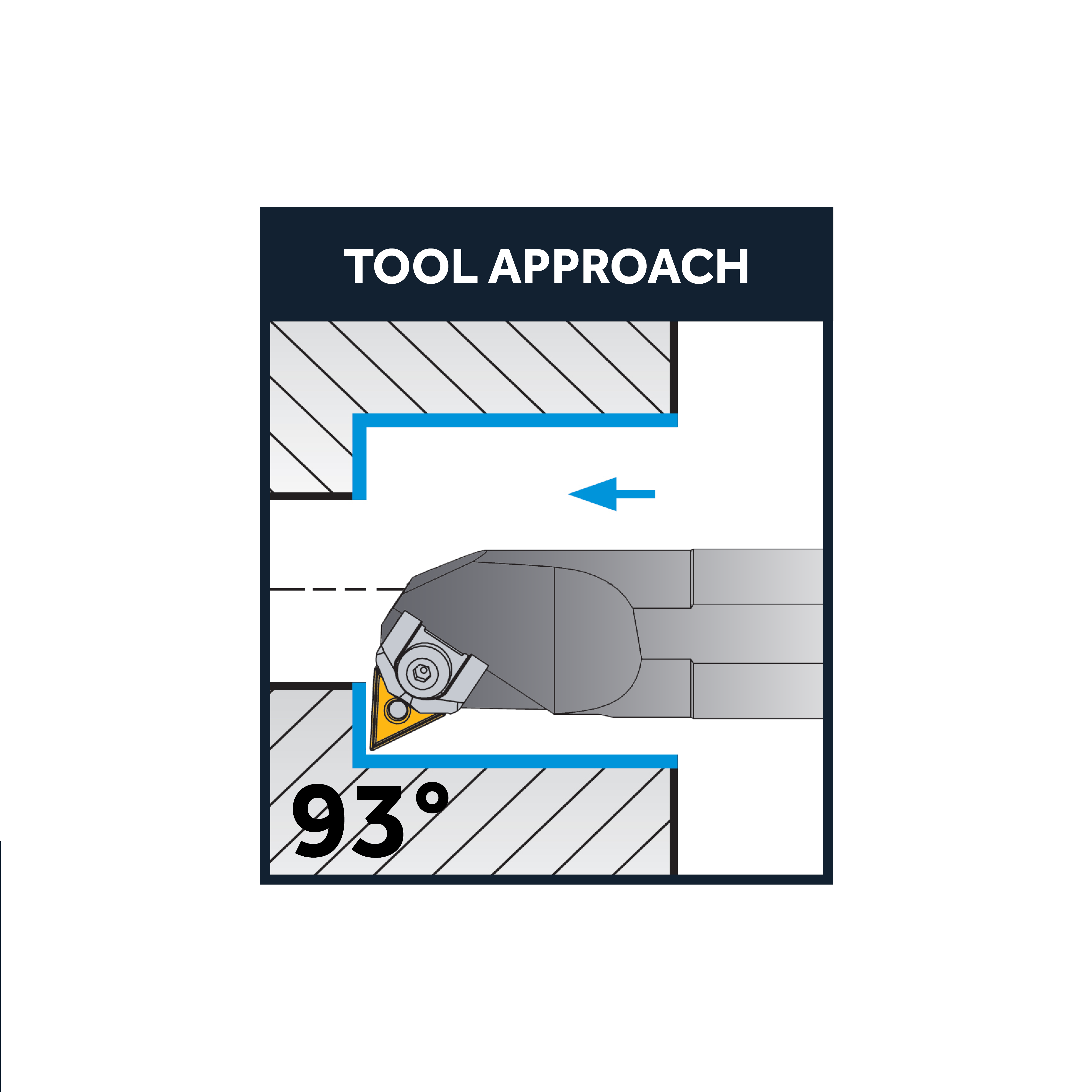

| Angle | 93° |
| Holder Material | Steel |
| Holder Style | MTUNR/L |
| Clamp Type | Multi Lock |
| Brand | YG-1 |
Application
