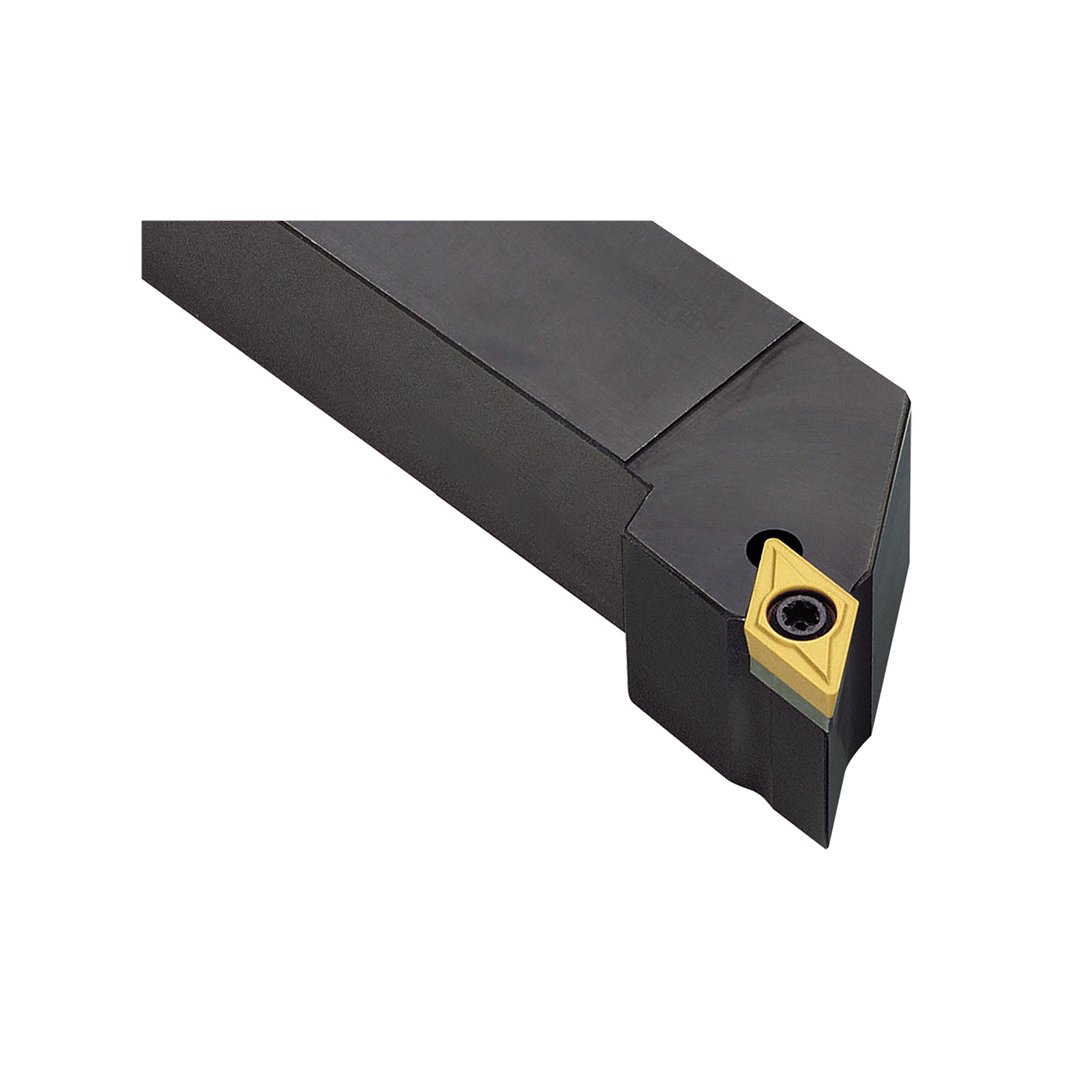

High quality through coolant steel shank turning tool holder suitable for use with DCMT style turning inserts (also suitable for DCGT, DCGW, DCET, DCHT etc). These turning tool holders are designed with smaller shank sizes making them ideal for sliding head (swiss type) lathes. Features a convenient clamping system which utilises a quick hose adapter and quick hose for the coolant supply. The dual coolant holes direct coolant to the cutting edge which improves tool life and chip control. The SDJCR/LHP series have a Screw on clamping system for simple changeover with wrench and screw with a 93° degree approach angle. Available in Left hand, these turning tool holders are made from Korloy from a high grade tool steel for the highest accuracy, rigidity and best performance turning. Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.
Compact designed ideal for sliding head (swiss type) lathes
Convenient clamping system which utilises a quick hose adapter and quick hose for the coolant supply
Dual coolant holes direct coolant to the cutting edge which improves tool life and chip control

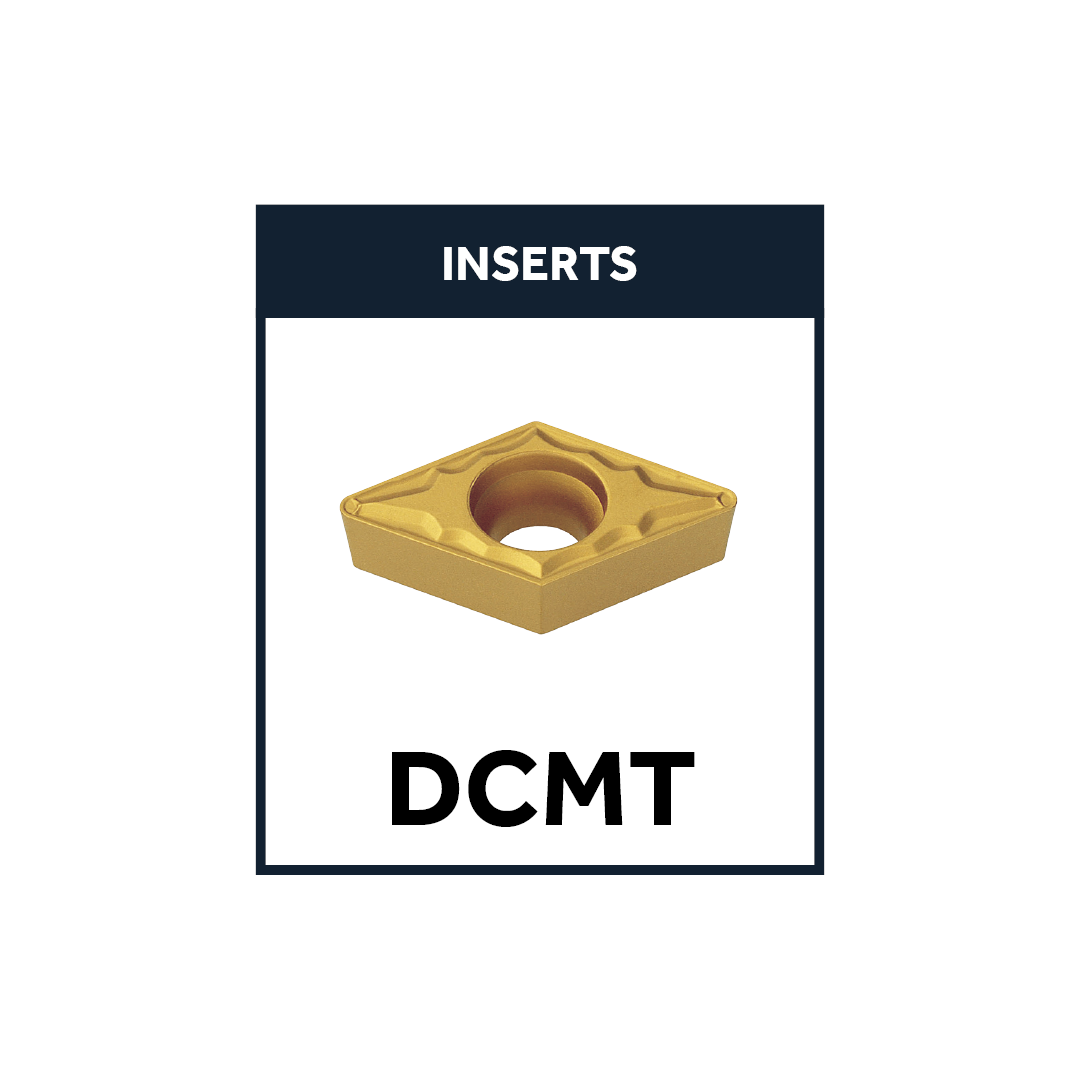

Suitable for use with DCMT style turning inserts (also suitable for DCGT, DCGW, DCET, DCHT etc)

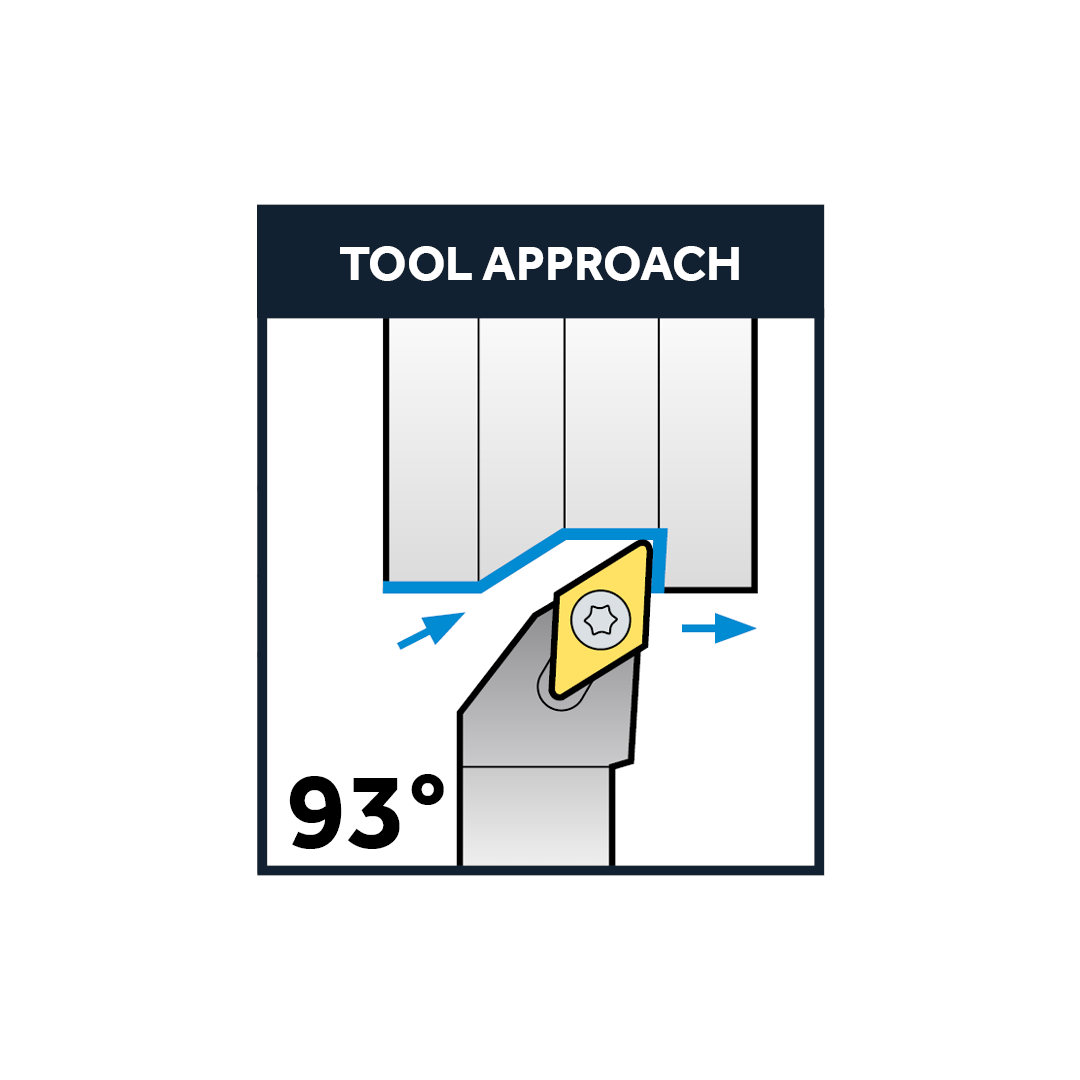

High quality solid steel shank turning tool holder with 93° degree approach angle
Screw on clamping system for simple changeover with wrench and screw
Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.
