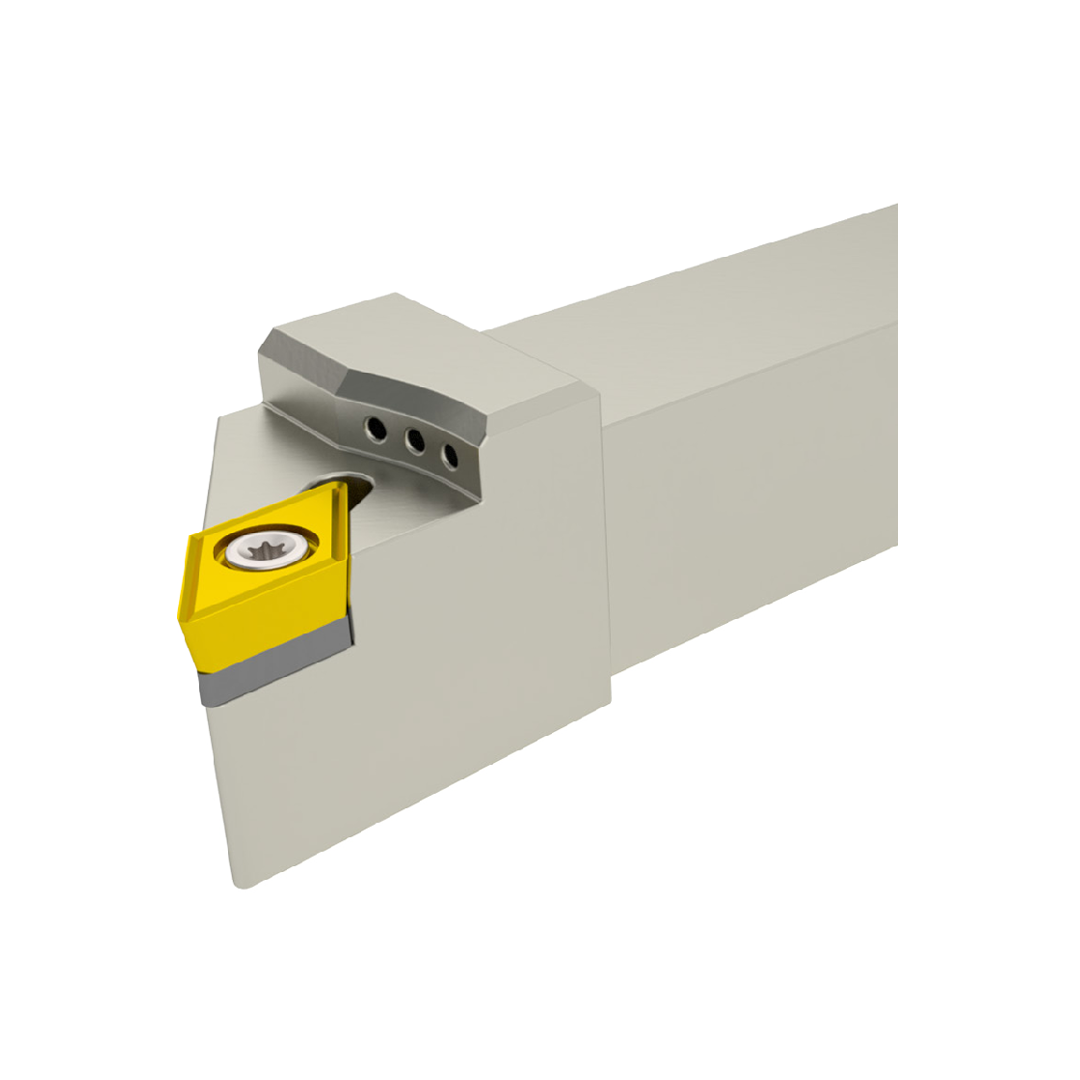

SDJCL2525-M11-IK Through Coolant Turning Tool Holders, 25 x 25mm Shank, 150mm Long, Left Hand, 93 Degree Approach, Screw Clamp, for DCMT11 inserts - SDJCR-IC Series (Teknik)
SDJCL2525-M11-IK Through Coolant Turning Tool Holders, 25 x 25mm Shank, 150mm Long, Left Hand, 93 Degree Approach, Screw Clamp, for DCMT11 inserts - SDJCR-IC Series (Teknik)
| Overall Length (mm) | 150 |
|---|---|
| Shank (mm) | 25 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Through coolant turning tool holder prolongs tool life by directing coolant Left to the cutting edge whilst also assisting with swarf evacuation.

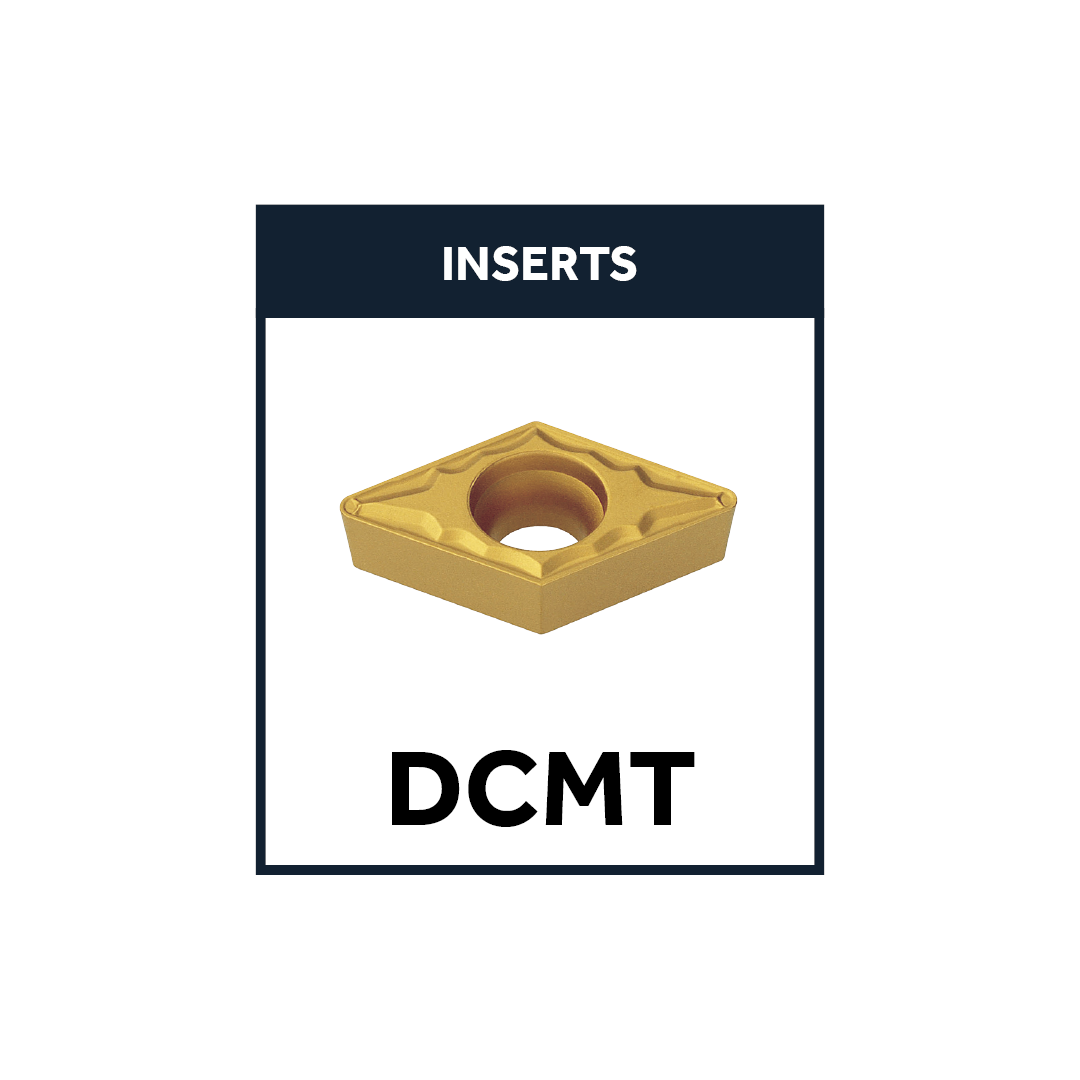

- Suitable for use with DCMT style turning inserts (also suitable for DCGT, DCGW, DCET, DCHT etc)
- High quality solid steel shank turning tool holder with 93° degree approach angle
- Screw on clamping system for simple changeover with wrench and screw
- Made by Teknik, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum
Specification
| Category | Lathe Tools |
|---|---|
| Sub Category | Turning Tools |
| Sub Category 2 | Through Coolant Turning Tools |
| Shank (mm) | 25 |
| Overall Length (mm) | 150 |
| Inserts | DC**11T3 |
| Hand | Left |
| Alternative Part Number | SDJCL2525-M11-IK |
| Screw | FTGA03512 |
| Shim | TA030 |
| Shim Screw | TC048 |
| Torx Key | T8 |
| Clamp Screw | TC068 |
| Insert Series | DCMT |
| Through Coolant | Yes |
| Angle | 93° |
| Holder Style | SDJCR/L |
| Clamp Type | Screw Clamp |
| Brand | Teknik |
