Soft Top Jaws (60° Pitch) for Bison 2605-K Power Chuck - 2605-K Series (Bison)
Scroll back
Scroll back
Soft Top Jaws (60° Pitch) for Bison 2605-K Power Chuck - 2605-K Series (Bison)
These Bison soft top jaws are for use with the 2605-K series Bison Power Chucks. Supplied in a set of 3, these...
Read more
View Products
Related Products

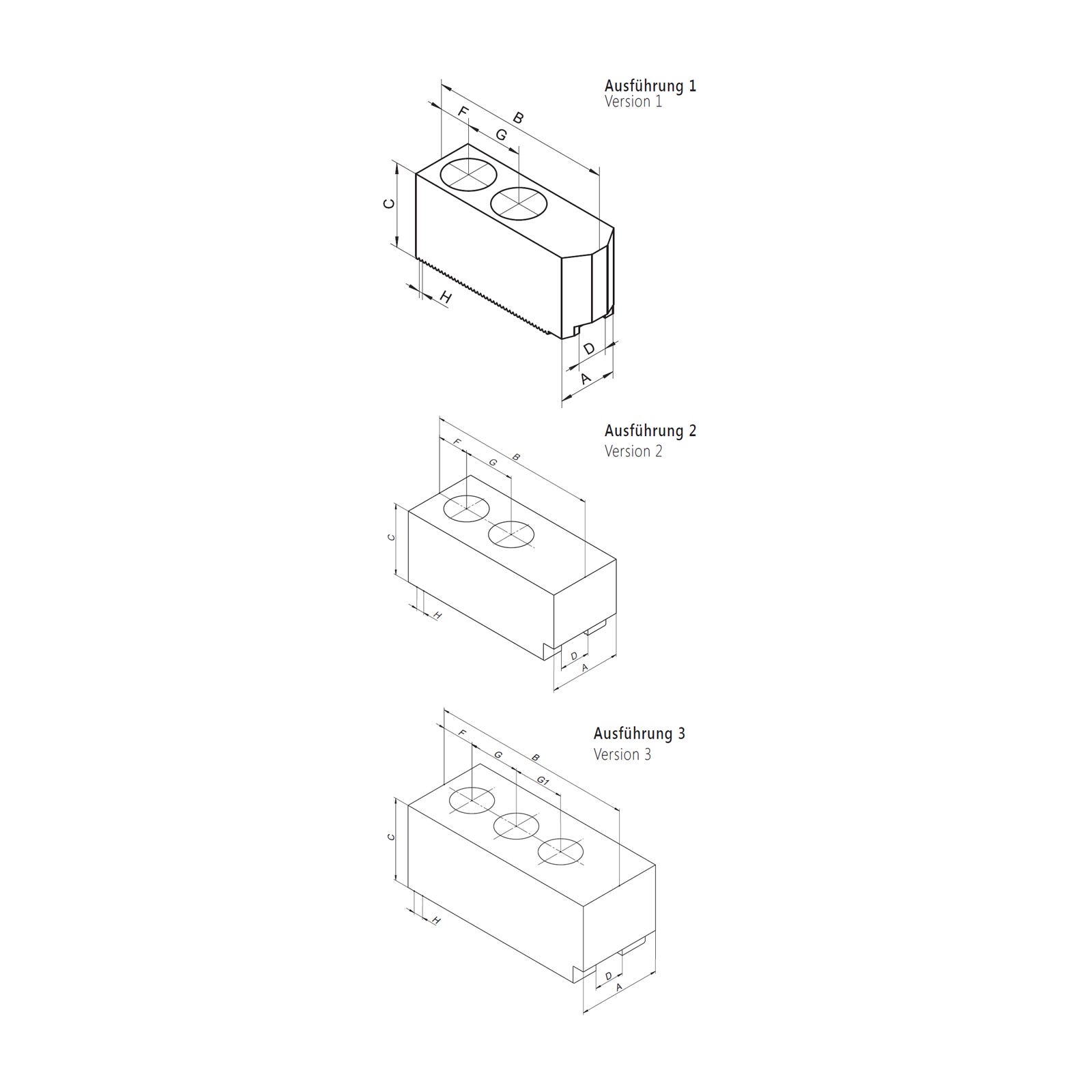

| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
D
|
L
|
Length
|
H
|
Figure
|
A
|
B
|
C
|
Height
|
Type
|
H2
|
E
|
Suitable For
|
F
|
G
|
H3
|
H4
|
H5
|
H6
|
H7
|
H8
|
H9
|
H10
|
J
|
K
|
M
|
N
|
S1
|
S2
|
S3
|
S4
|
S5
|
S6
|
S7
|
Keyway Width
|
Pitch
|
Chuck Size (mm)
|
Chuck Size (inch)
|
Hole Centres
|
Screws
|
Bolt Size
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D: 12 | L: | Length: 129 | H: 1.5 x 60° | Figure: 2 | A: 40 | B: 65 | C: 40 | Height: 45 | Type: 1 | H2: 62 | E: 26 | Suitable For: 2605-160-45K | F: 12 | G: 20 | H3: 86 | H4: 22 | H5: 8 | H6: 55 | H7: 43 | H8: 38 | H9: 20 | H10: M20 | J: | K: | M: 14 | N: | S1: 250 | S2: 50 | S3: 30 | S4: 16 | S5: M12 | S6: 65 | S7: 25 | Keyway Width: 21 | Pitch: 60° | Chuck Size (mm): 250 | Chuck Size (inch): 6" | Hole Centres: 22 | Screws: M10 | Bolt Size: M20 |
6 days*
|
£426.00
£355.00
|
|
|
| D: 14 | L: | Length: 129 | H: 1.5 x 60° | Figure: 2 | A: 40 | B: 95 | C: 40 | Height: 45 | Type: 1 | H2: 62 | E: 26 | Suitable For: 2605-200-52K | F: 24 | G: 25 | H3: 86 | H4: 22 | H5: 8 | H6: 55 | H7: 43 | H8: 38 | H9: 20 | H10: M20 | J: | K: | M: 14 | N: | S1: 250 | S2: 50 | S3: 30 | S4: 16 | S5: M12 | S6: 65 | S7: 25 | Keyway Width: 21 | Pitch: 60° | Chuck Size (mm): 380, 450 | Chuck Size (inch): 8" | Hole Centres: 22 | Screws: M12 | Bolt Size: M20 |
6 days*
|
£507.60
£423.00
|
|
|
| D: 16 | L: | Length: 129 | H: 1.5 x 60° | Figure: 2 | A: 50 | B: 105 | C: 50 | Height: 45 | Type: 1 | H2: 62 | E: 26 | Suitable For: 2605-250-75K | F: 30 | G: 30 | H3: 86 | H4: 22 | H5: 8 | H6: 55 | H7: 43 | H8: 38 | H9: 20 | H10: M20 | J: | K: | M: 14 | N: | S1: 250 | S2: 50 | S3: 30 | S4: 16 | S5: M12 | S6: 65 | S7: 25 | Keyway Width: 21 | Pitch: 60° | Chuck Size (mm): 630, 800 | Chuck Size (inch): 10" | Hole Centres: 22 | Screws: M12 | Bolt Size: M20 |
6 days*
|
£532.80
£444.00
|
|
|
| D: 21 | L: | Length: 129 | H: 1.5 x 60° | Figure: 2 | A: 50 | B: 110 | C: 50 | Height: 45 | Type: | H2: 62 | E: 26 | Suitable For: 2605-315-91K | F: 21 | G: 30 | H3: 86 | H4: 22 | H5: 8 | H6: 55 | H7: 43 | H8: 38 | H9: 20 | H10: M20 | J: | K: | M: 14 | N: | S1: 250 | S2: 50 | S3: 30 | S4: 16 | S5: M12 | S6: 65 | S7: 25 | Keyway Width: 21 | Pitch: 60° | Chuck Size (mm): 200 | Chuck Size (inch): 12" | Hole Centres: 22 | Screws: M16 | Bolt Size: M20 | POA |
|
||
| D: 24 | L: 2.5 | Length: 129 | H: 14 | Figure: 2 | A: 52 | B: 30 | C: 19 | Height: 45 | Type: 1 | H2: 62 | E: 9.53 | Suitable For: 2605-315-91K | F: 7.94 | G: M6x1P | H3: 86 | H4: 22 | H5: 8 | H6: 55 | H7: 43 | H8: 38 | H9: 20 | H10: M20 | J: 11 | K: 3 | M: 21 | N: 7 | S1: 250 | S2: 50 | S3: 30 | S4: 16 | S5: M12 | S6: 65 | S7: 25 | Keyway Width: 21 | Pitch: 60° | Chuck Size (mm): 200 | Chuck Size (inch): 4" | Hole Centres: 22 | Screws: M16 | Bolt Size: M20 |
In stock
|
£53.24
£44.37
|
|
|
| D: 32 | L: 3 | Length: 129 | H: 15 | Figure: 2 | A: 62 | B: 35 | C: 24 | Height: 45 | Type: 1 | H2: 62 | E: 12.68 | Suitable For: 2605-315-91K | F: 7.94 | G: M8x1.25P | H3: 86 | H4: 22 | H5: 8 | H6: 55 | H7: 43 | H8: 38 | H9: 20 | H10: M20 | J: 14 | K: 3.5 | M: 24 | N: 9 | S1: 250 | S2: 50 | S3: 30 | S4: 16 | S5: M12 | S6: 65 | S7: 25 | Keyway Width: 21 | Pitch: 60° | Chuck Size (mm): 200 | Chuck Size (inch): 5" | Hole Centres: 22 | Screws: M16 | Bolt Size: M20 |
In stock
|
£56.24
£46.87
|
|
|
| D: 38.1 | L: 3 | Length: 129 | H: 17.45 | Figure: 2 | A: 73 | B: 37 | C: 26 | Height: 45 | Type: 1 | H2: 62 | E: 12.68 | Suitable For: 2605-315-91K | F: 7.94 | G: M8x1.25P | H3: 86 | H4: 22 | H5: 8 | H6: 55 | H7: 43 | H8: 38 | H9: 20 | H10: M20 | J: 14 | K: 3.5 | M: 25 | N: 9 | S1: 250 | S2: 50 | S3: 30 | S4: 16 | S5: M12 | S6: 65 | S7: 25 | Keyway Width: 21 | Pitch: 60° | Chuck Size (mm): 200 | Chuck Size (inch): 6" | Hole Centres: 22 | Screws: M16 | Bolt Size: M20 |
In stock
|
£65.09
£54.24
|
|
|
| D: 44.4 | L: 3 | Length: 129 | H: 25.3 | Figure: 2 | A: 95 | B: 48 | C: 31 | Height: 45 | Type: 1 | H2: 62 | E: 12.68 | Suitable For: 2605-315-91K | F: 7.94 | G: M10x1.5P | H3: 86 | H4: 22 | H5: 8 | H6: 55 | H7: 43 | H8: 38 | H9: 20 | H10: M20 | J: 17 | K: 3.8 | M: 34 | N: 11 | S1: 250 | S2: 50 | S3: 30 | S4: 16 | S5: M12 | S6: 65 | S7: 25 | Keyway Width: 21 | Pitch: 60° | Chuck Size (mm): 200 | Chuck Size (inch): 7" | Hole Centres: 22 | Screws: M16 | Bolt Size: M20 |
In stock
|
£128.68
£107.23
|
|
|
| D: 54 | L: 3 | Length: 129 | H: 28 | Figure: 2 | A: 110 | B: 48 | C: 37 | Height: 45 | Type: 1 | H2: 62 | E: 19.03 | Suitable For: 2605-315-91K | F: 12.7 | G: M12x1.75P | H3: 86 | H4: 22 | H5: 8 | H6: 55 | H7: 43 | H8: 38 | H9: 20 | H10: M20 | J: 19 | K: 4.2 | M: 34 | N: 13 | S1: 250 | S2: 50 | S3: 30 | S4: 16 | S5: M12 | S6: 65 | S7: 25 | Keyway Width: 21 | Pitch: 60° | Chuck Size (mm): 200 | Chuck Size (inch): 9" | Hole Centres: 22 | Screws: M16 | Bolt Size: M20 |
In stock
|
£91.16
£75.97
|
|
|
| D: 63.5 | L: 3 | Length: 129 | H: 30.75 | Figure: 2 | A: 125 | B: 54 | C: 42 | Height: 45 | Type: 1 | H2: 62 | E: 19.03 | Suitable For: 2605-315-91K | F: 12.7 | G: M12x1.75P | H3: 86 | H4: 22 | H5: 8 | H6: 55 | H7: 43 | H8: 38 | H9: 20 | H10: M20 | J: 19 | K: 4.2 | M: 38 | N: 13 | S1: 250 | S2: 50 | S3: 30 | S4: 16 | S5: M12 | S6: 65 | S7: 25 | Keyway Width: 21 | Pitch: 60° | Chuck Size (mm): 200 | Chuck Size (inch): 12" | Hole Centres: 22 | Screws: M16 | Bolt Size: M20 |
190 days*
|
£139.99
£116.66
|
|
|
| D: 76.2 | L: 6 | Length: 129 | H: 41.9 | Figure: 2 | A: 160 | B: 70 | C: 50 | Height: 45 | Type: 1 | H2: 62 | E: 19.03 | Suitable For: 2605-315-91K | F: 12.7 | G: M16x2P | H3: 86 | H4: 22 | H5: 8 | H6: 55 | H7: 43 | H8: 38 | H9: 20 | H10: M20 | J: 25 | K: 5.5 | M: 48 | N: 17 | S1: 250 | S2: 50 | S3: 30 | S4: 16 | S5: M12 | S6: 65 | S7: 25 | Keyway Width: 21 | Pitch: 60° | Chuck Size (mm): 200 | Chuck Size (inch): 16" | Hole Centres: 22 | Screws: M16 | Bolt Size: M20 |
In stock
|
£263.71
£219.76
|
|
Product Information
Features & Benefits

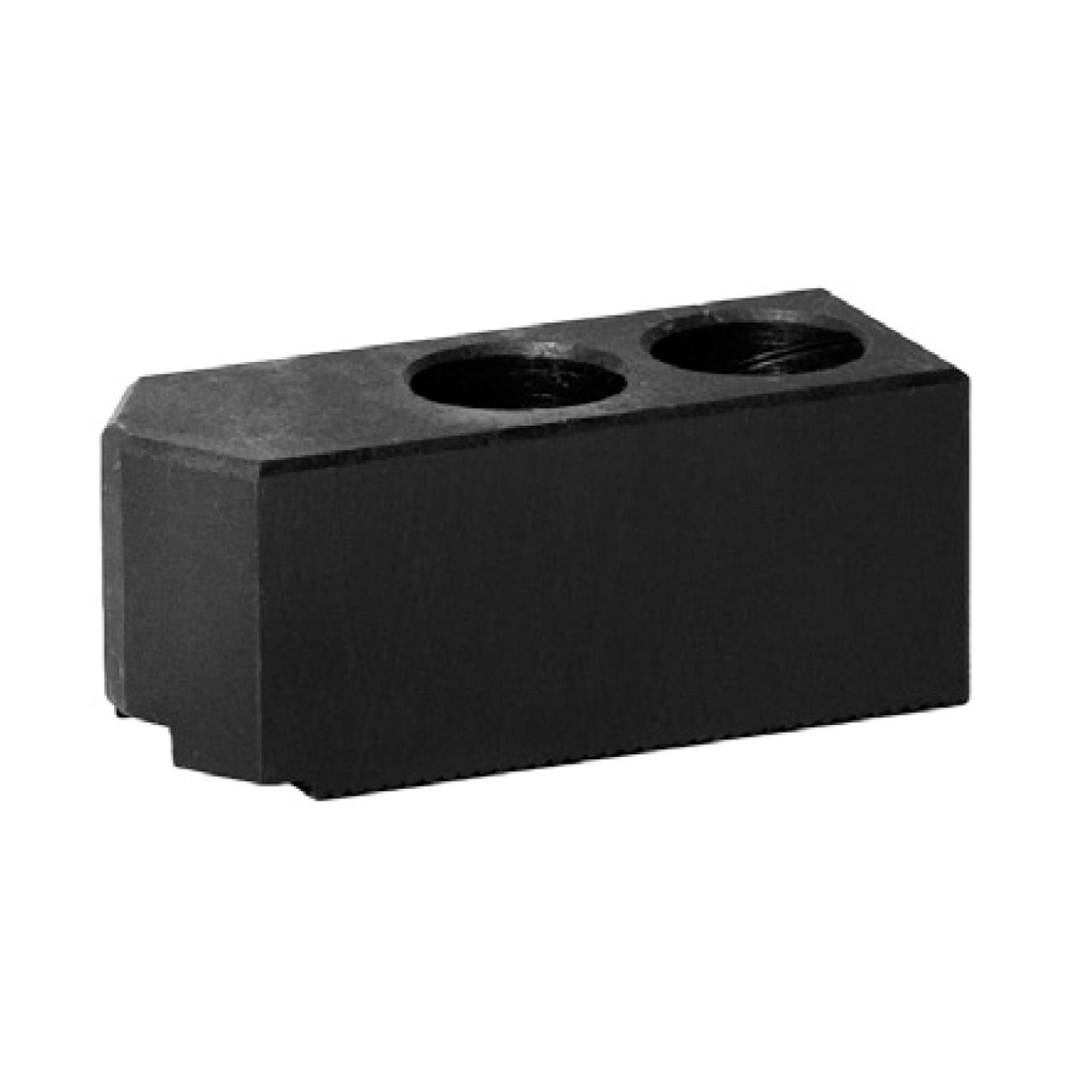

These Bison soft top jaws are for use with the 2605-K series Bison Power Chucks. Supplied in a set of 3, these come with a 60 degree pitch and either 1.5mm or 3mm serrations. Soft jaws can be machined to meet the requirements of clamping a particular shaped workpiece.
- Set of Soft Jaws
- Suitable for use with Bison 2605-K Series
- 60° Pitch
- Available in 1.5/3mm Serrations
- Supplied in a set of 3
- Soft jaws can be machined to meet the requirements of clamping a particular shaped workpiece
Specification
| Category | Workholding |
|---|---|
| Sub Category | Chucks & Jaws |
| Serration Pitch | 1.5 x 60° |
