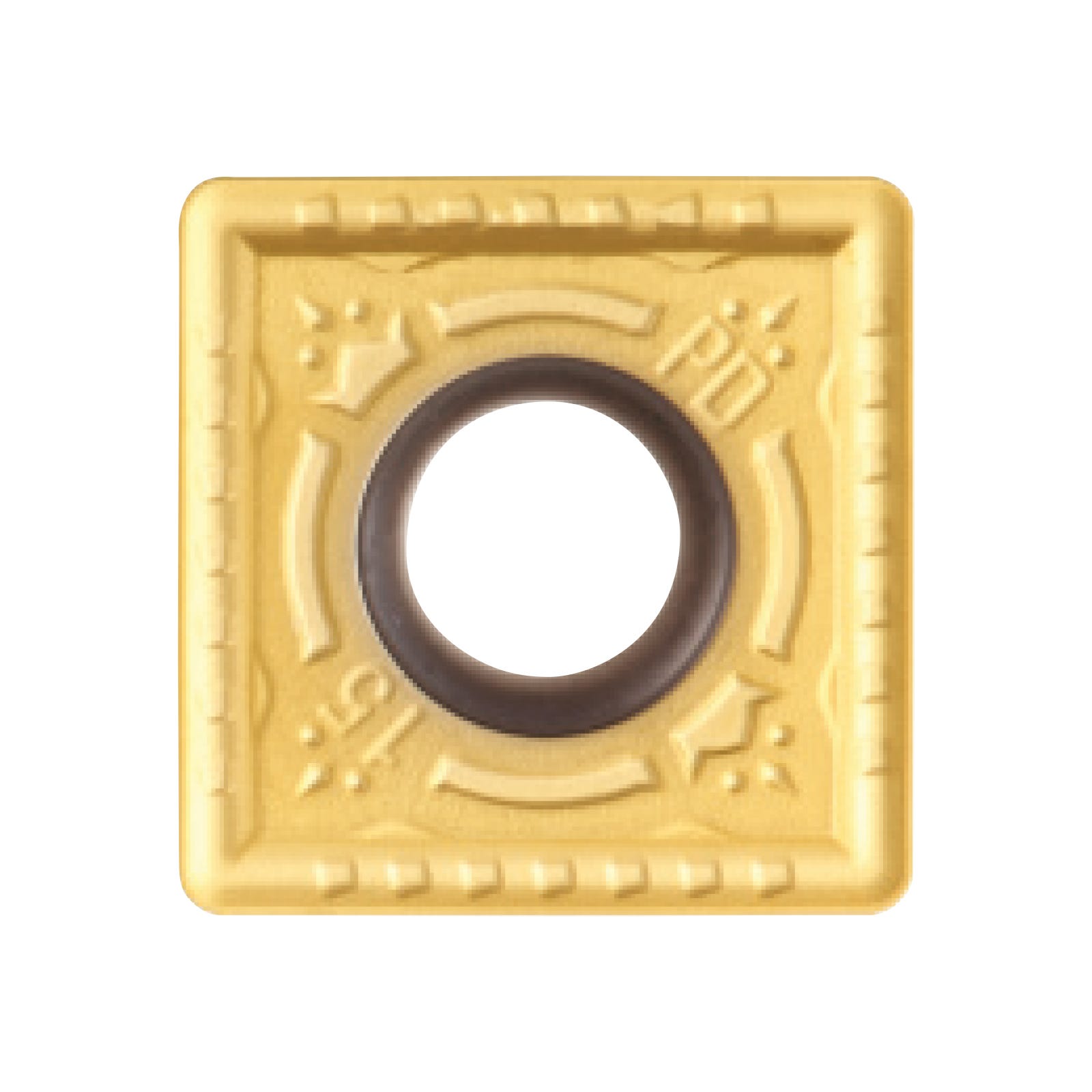

SPMT180510PD PC5300 Peripheral Inserts (General Purpose Grade) for King Drill Indexable U-Drill (Korloy)

Cutwel Sku
1-02-045652

SPMT180510PD PC5300 Peripheral Inserts (General Purpose Grade) for King Drill Indexable U-Drill (Korloy)

Cutwel Sku
1-02-045652

Key Features

available Peripheral Inserts for Outer Pocket
available PC5300 Grade for Machining Steel, Stainless Steel, Exotics and Cast Iron
available For Use With Korloy King Drill
Read More
P
Steel
M
Stainless Steel
K
Cast Iron
S
Exotics
30+ £10.21 £8.51
green In Stock for Next Day Delivery *
minus plus
View Full Range
*Geographical & product exclusions apply. Delivery calculated on checkout.

Need Help?

Contact Sales

01924 869660 Call us 8am - 5:30pm Call us 8am - 5pm Call us from 8am on Monday

Specification

Category Hole Making
Sub Category Indexable Drills
Sub Category 2 King Drill
Radius 1
Diameter Range (mm) 51-60.5
Grade PC5300 (General Purpose)
t 5.5
d1 6
Length 18.2
Applicable Materials Steel, Stainless Steel, Cast Iron, Exotics
Performance 5
Brand Range King Drill
Brand Korloy
Part Numbers
  • Cutwel Part Number 1-02-045652

Description

Korloy's SPMT inserts are suitable for use with the King Drill U-Drill system and are used on the outer pocket. These come in a PC5300 grade for general purpose machining (includes Steel, Stainless Steel, Exotics and Cast Iron). The outer pocket rotates at a high surface speed than the inner pocket. On materials such as alloy steel or cast iron, it is important to select different grades for the 2 pockets to optimise tool wear and prevent central pocket failure.

Features & Benefits

  • Peripheral Inserts for Outer Pocket
  • PC5300 Grade for Machining Steel, Stainless Steel, Exotics and Cast Iron
  • For Use With Korloy King Drill
  • Optimised for Accuracy and Reduced Tool Failure
  • Exceptionally Accurate Compared to other U-Drill/Indexable Drills

What time are we open?

We are open Monday to Friday and able to dispatch orders between 8am and 5:30pm Monday to Thursday, and up to 5pm on Friday.

What delivery services do we offer?

To mainland UK we offer FREE UK next day delivery on all standard orders above £69 (ex vat), and £125 (ex vat) on all orders including any liquids.*

Alternatively, we offer a FREE Click and Collect service from our distribution centre in Cleckheaton, West Yorkshire. Click here for the full address.

For standard orders under £69 (ex vat), we offer the following:

  • 1st class post - £2.75
  • DPD Standard Next Day Delivery - £7.00
  • DPD Next Day Pre-12pm - £10.00 or (£5.25 on orders over £69 (ex VAT)
  • DPD Next Day Pre-10.30am - £18.00

For orders containing liquids under £125 (ex vat), standard UK Mail Next Day Delivery is £8.50 and UK Mail Next Day Pre-12pm Delivery is £13.75.

We also offer Saturday delivery for those that require it. If you order before 5pm on a Friday we offer a range of options which can be viewed here.

For a full breakdown of costs for all types of item and geographical locations including Scottish Highlands, Northern Ireland, Channel Islands & Republic of Ireland, click here.

How do I return an order/item?

Our returns policy is easier than ever. We understand that if an item isn’t correct, then it needs to be returned. If you are wanting to return anything supplied by Cutwel please see our returns page for full instructions.

*T’s & C’s and exclusions apply. Please see our delivery page for more information on all our services including those outside of mainland UK (Republic of Ireland, Northern Ireland, Scottish Highlands, Channel Islands etc).

Filter Items arrow
Code Diameter Range (mm) Radius Grade t d1 Length Related Products Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Diameter Range (mm)
carrat-down
Radius
carrat-down
Grade
carrat-down
t
carrat-down
d1
carrat-down
Length
carrat-down
Diameter Range (mm): 12-13.5 Radius: 0.4 Grade: PC5300 (General Purpose) t: 2.4 d1: 2.3 Length: 4.7
green In Stock for Next Day Delivery *
30+ £9.89 £8.24
£14.12 £11.77
minus plus
Diameter Range (mm): 14-16 Radius: 0.4 Grade: PC5300 (General Purpose) t: 2.4 d1: 2.3 Length: 5.1
green In Stock for Next Day Delivery *
30+ £9.85 £8.21
£14.08 £11.73
minus plus
Diameter Range (mm): 16.5-19.5 Radius: 0.5 Grade: PC5300 (General Purpose) t: d1: 2.5 Length: 6.2
green In Stock for Next Day Delivery *
30+ £9.88 £8.23
£14.11 £11.76
minus plus
Diameter Range (mm): 20-23.5 Radius: 0.7 Grade: PC5300 (General Purpose) t: d1: 2.8 Length: 7.5
green In Stock for Next Day Delivery *
30+ £9.88 £8.23
£14.11 £11.76
minus plus
Diameter Range (mm): 24-29.5 Radius: 0.8 Grade: PC5300 (General Purpose) t: d1: 3.4 Length: 9.2
green In Stock for Next Day Delivery *
30+ £9.88 £8.23
£14.10 £11.75
minus plus
Diameter Range (mm): 30-35.5 Radius: 0.8 Grade: PC5300 (General Purpose) t: 4 d1: 4 Length: 11
green In Stock for Next Day Delivery *
30+ £9.86 £8.22
£14.09 £11.74
minus plus
Diameter Range (mm): 36-42.5 Radius: 1 Grade: PC5300 (General Purpose) t: 4.5 d1: 4.5 Length: 13
green In Stock for Next Day Delivery *
30+ £10.21 £8.51
£14.58 £12.15
minus plus
Diameter Range (mm): 43-50.5 Radius: 1 Grade: PC5300 (General Purpose) t: 5 d1: 5.5 Length: 15.2
green In Stock for Next Day Delivery *
30+ £10.21 £8.51
£14.58 £12.15
minus plus
Diameter Range (mm): 51-60.5 Radius: 1 Grade: PC5300 (General Purpose) t: 5.5 d1: 6 Length: 18.2
green In Stock for Next Day Delivery *
30+ £10.21 £8.51
£14.59 £12.16
minus plus
