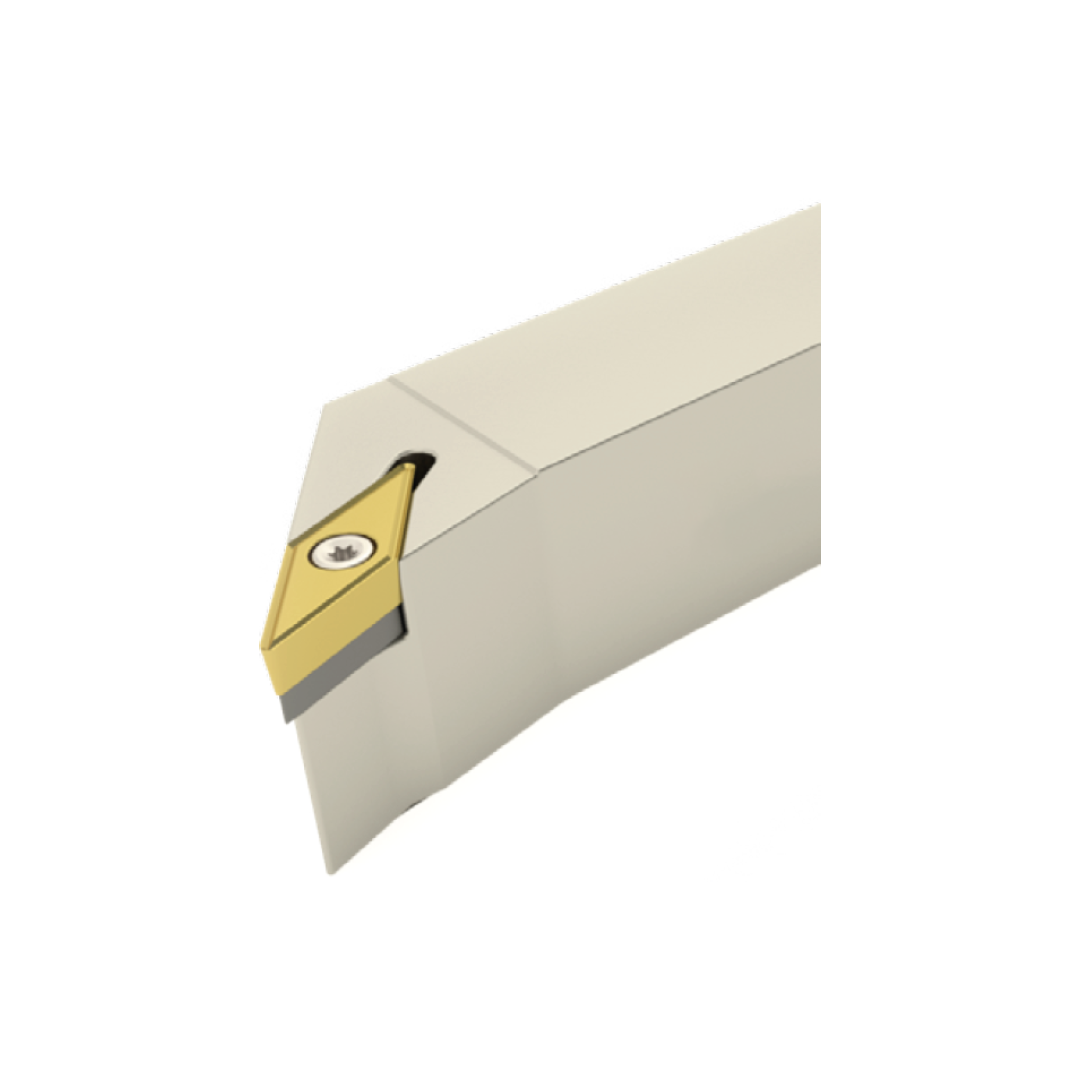

SVHBL2525-M16 Standard Turning Tool Holder, 25 x 25mm Shank, 150mm Long, Left Hand, 107.5 Degree Approach, Screw Clamp, for VBMT16 inserts - SVHBR/L Series (Teknik)
SVHBL2525-M16 Standard Turning Tool Holder, 25 x 25mm Shank, 150mm Long, Left Hand, 107.5 Degree Approach, Screw Clamp, for VBMT16 inserts - SVHBR/L Series (Teknik)
| Overall Length (mm) | 150 |
|---|---|
| Shank (mm) | 25 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits

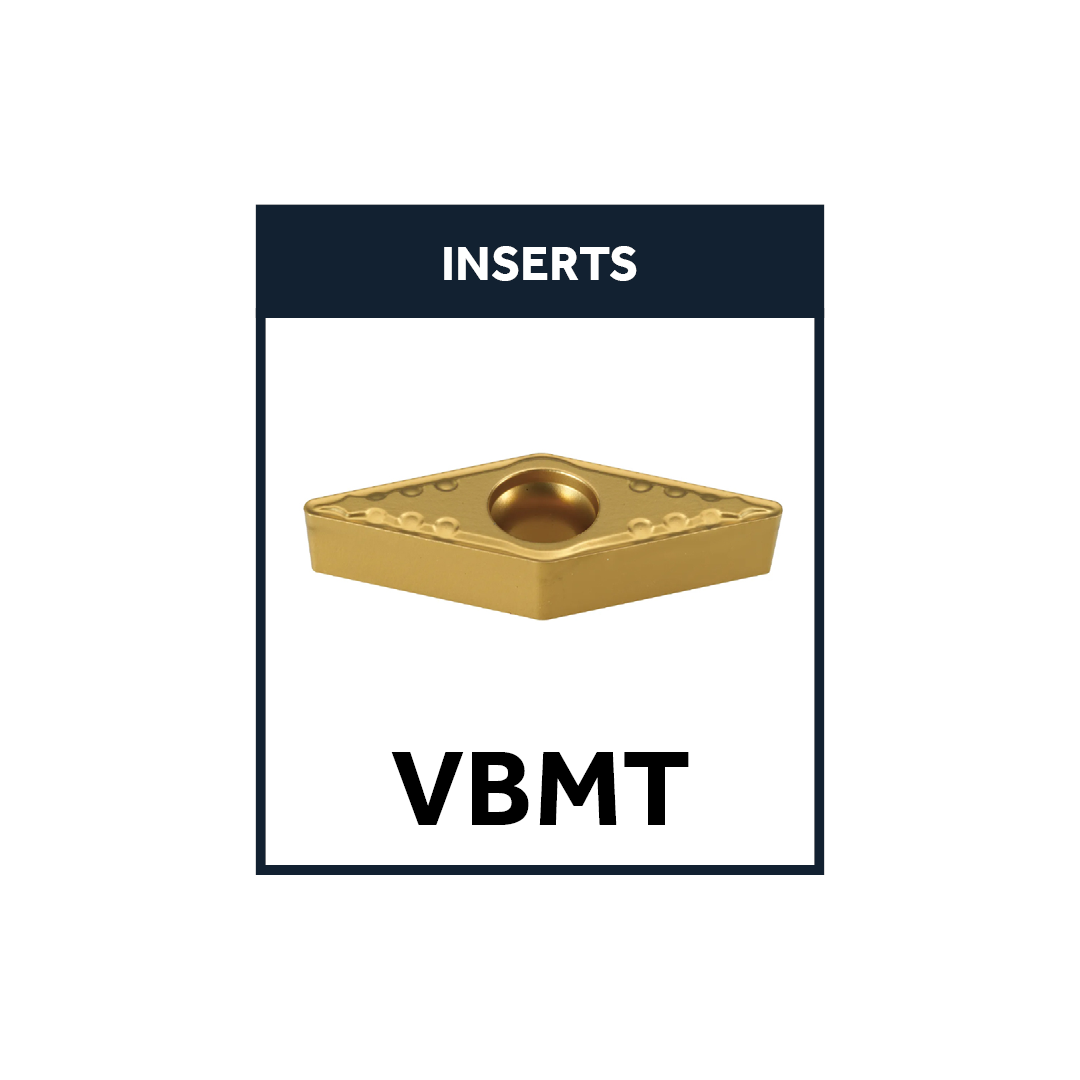

- Suitable for use with VBMT and VBGT style turning inserts

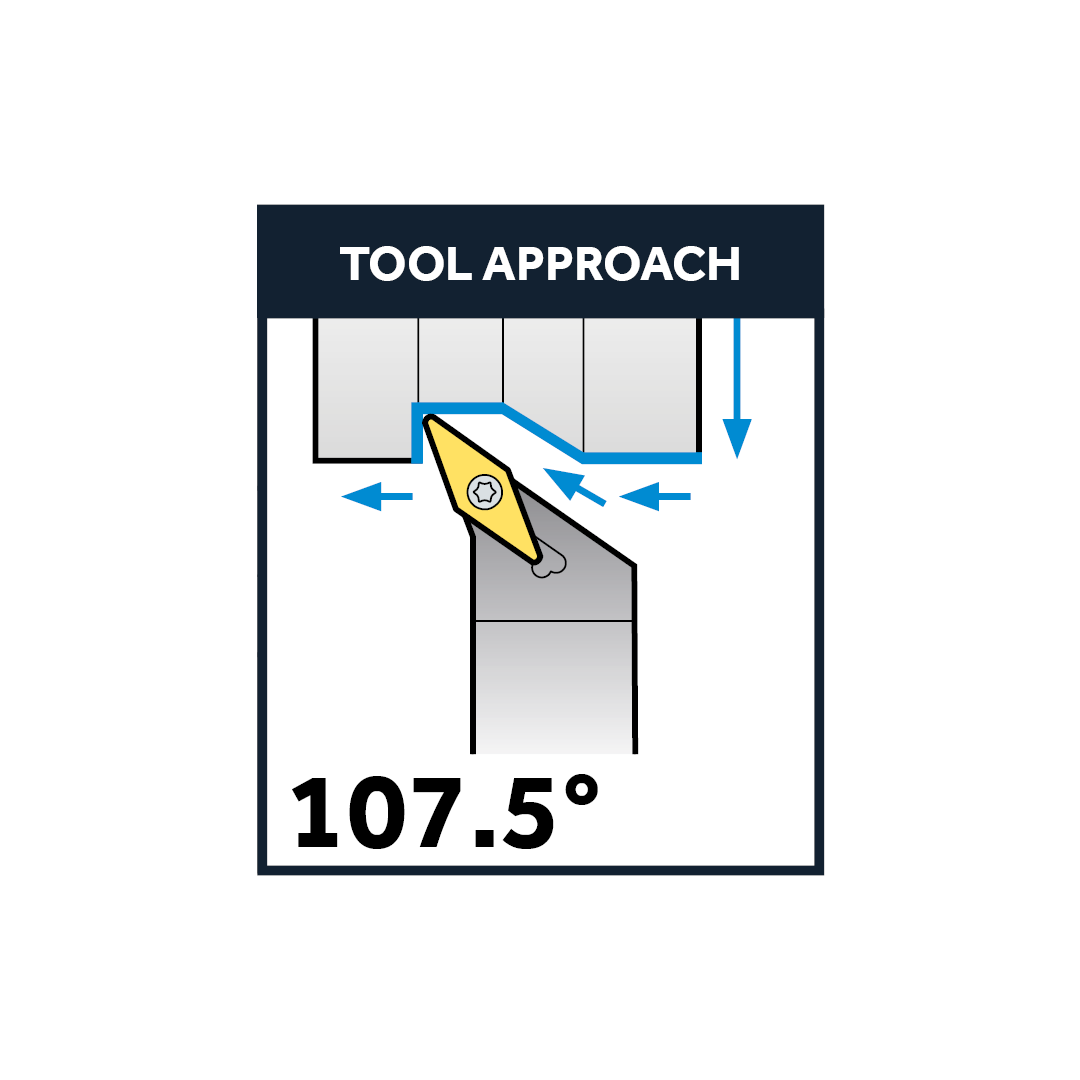

- High quality solid steel shank turning tool holder with 107.5° degree approach angle
- Screw on clamping system for simple changeover with wrench and screw
- Made by Teknik, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum
Specification
| Category | Lathe Tools |
|---|---|
| Sub Category | Turning Tools |
| Sub Category 2 | Standard Turning Tools |
| Shank (mm) | 25 |
| Overall Length (mm) | 150 |
| ISO Code | SVHBL2525-M16 |
| Shank | 25mm x 25mm |
| Hand | Left |
| Alternative Part Number | SVHBL2525-M16 |
| Screw | FTGA03512 |
| Shim | TA034 |
| Shim Screw | TC048 |
| Torx Key | T15 |
| Clamp Screw | TC068 |
| Insert Series | VBMT |
| Through Coolant | No |
| Angle | 107.5° |
| Holder Style | SVHBR/L |
| Clamp Type | Screw Clamp |
| Brand | Teknik |
