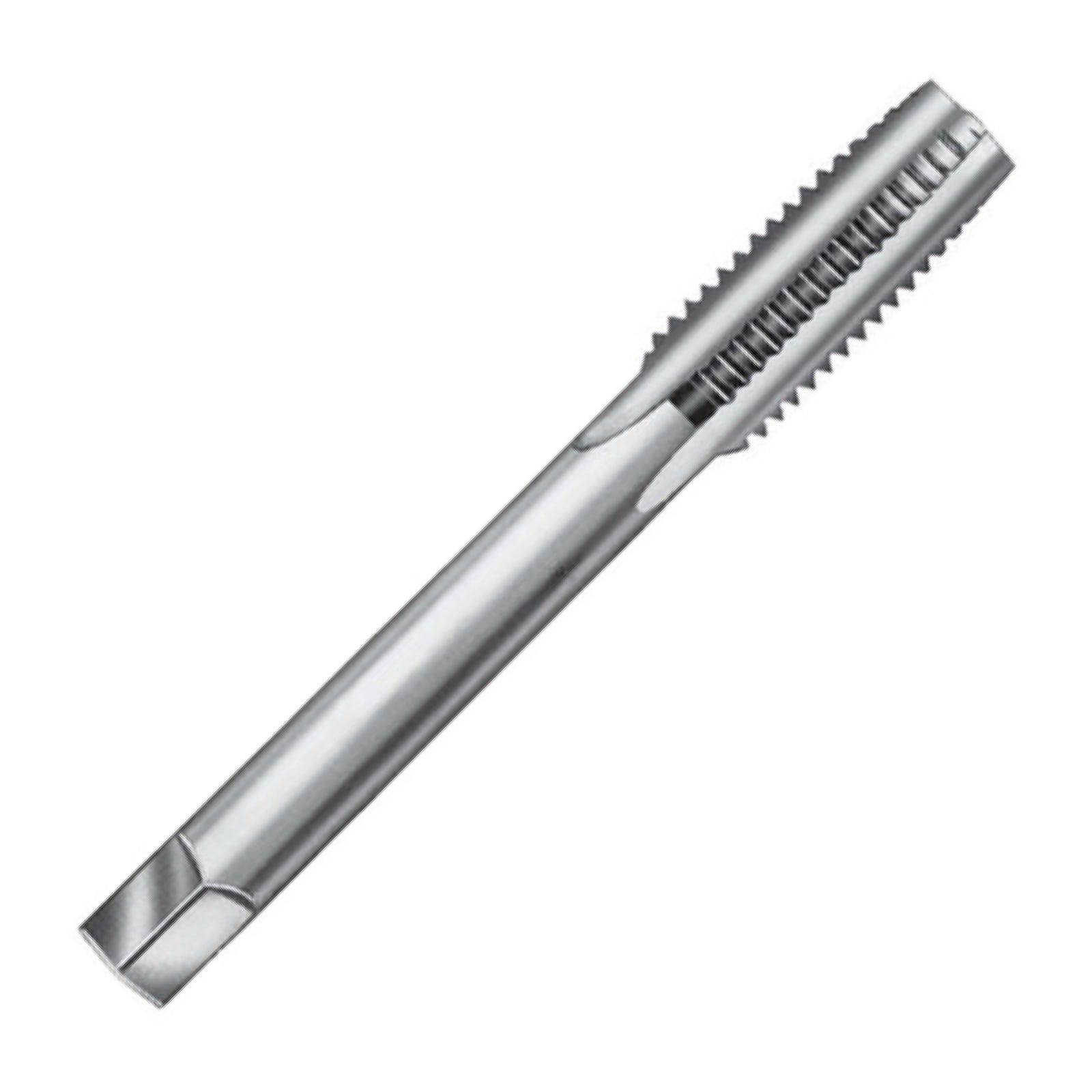

UNF HSS Bottom/Plug Hand Tap - 60200 (Presto)

(60200-BOTTOM) Performance

Starting at £8.89 £7.41

The Presto 60200 series HSS UNF Bottom Hand Tap comes uncoated for use on steel and non-ferrous materials. The bright finish prevents swarf sticking to the tap flutes. These can also be used as a machine tap if required.
  • P
  • N
View Products
ØD1 (Diameter) Pitch TPI L1 (Flute Length) L2 (Length) ØD2 (Shank) K (Square) Accessories Stock Price (ex VAT) Qty Action
No.0 80 8 41 2.5 2
Approx. 3 days. Subject to availability
£94.81 £79.01

ØD1 (Diameter) No.0
TPI 80
L1 (Flute Length) 8
L2 (Length) 41
ØD2 (Shank) 2.5
K (Square) 2
- +
6020003N
More Information
No.1 72 8 41 2.5 2
Approx. 3 days. Subject to availability
£44.48 £37.07

ØD1 (Diameter) No.1
TPI 72
L1 (Flute Length) 8
L2 (Length) 41
ØD2 (Shank) 2.5
K (Square) 2
- +
6020013N
More Information
No.2 64 9.5 44.5 2.8 2.24
Approx. 3 days. Subject to availability
£32.18 £26.82

ØD1 (Diameter) No.2
TPI 64
L1 (Flute Length) 9.5
L2 (Length) 44.5
ØD2 (Shank) 2.8
K (Square) 2.24
- +
6020023N
More Information
No.3 56 9.5 44.5 2.8 2.24
Approx. 3 days. Subject to availability
£32.18 £26.82

ØD1 (Diameter) No.3
TPI 56
L1 (Flute Length) 9.5
L2 (Length) 44.5
ØD2 (Shank) 2.8
K (Square) 2.24
- +
6020033N
More Information
No.4 48 16 48 3.15 2.5
Approx. 3 days. Subject to availability
£21.56 £17.97

ØD1 (Diameter) No.4
TPI 48
L1 (Flute Length) 16
L2 (Length) 48
ØD2 (Shank) 3.15
K (Square) 2.5
- +
6020043N
More Information
No.5 44 16 48 3.15 2.5
Approx. 3 days. Subject to availability
£21.56 £17.97

ØD1 (Diameter) No.5
TPI 44
L1 (Flute Length) 16
L2 (Length) 48
ØD2 (Shank) 3.15
K (Square) 2.5
- +
6020053N
More Information
No.6 40 19 50 3.55 2.8
Approx. 3 days. Subject to availability
£13.14 £10.95

ØD1 (Diameter) No.6
TPI 40
L1 (Flute Length) 19
L2 (Length) 50
ØD2 (Shank) 3.55
K (Square) 2.8
- +
6020063N
More Information
No.8 36 13 53 4.5 3.55
Approx. 3 days. Subject to availability
£13.14 £10.95

ØD1 (Diameter) No.8
TPI 36
L1 (Flute Length) 13
L2 (Length) 53
ØD2 (Shank) 4.5
K (Square) 3.55
- +
6020083N
More Information
No.10 32 16 58 5 4
In Stock
£10.44 £8.70

ØD1 (Diameter) No.10
TPI 32
L1 (Flute Length) 16
L2 (Length) 58
ØD2 (Shank) 5
K (Square) 4
- +
60200103N
More Information
No.12 28 17 62 5.6 4.5
Approx. 3 days. Subject to availability
£15.01 £12.51

ØD1 (Diameter) No.12
TPI 28
L1 (Flute Length) 17
L2 (Length) 62
ØD2 (Shank) 5.6
K (Square) 4.5
- +
60200123N
More Information
1/4" 28 19 66 6.3 5
In Stock
£8.89 £7.41

ØD1 (Diameter) 1/4"
TPI 28
L1 (Flute Length) 19
L2 (Length) 66
ØD2 (Shank) 6.3
K (Square) 5
- +
60200-143
More Information
5/16" 24 22 72 8 6.3
Approx. 3 days. Subject to availability
£10.02 £8.35

ØD1 (Diameter) 5/16"
TPI 24
L1 (Flute Length) 22
L2 (Length) 72
ØD2 (Shank) 8
K (Square) 6.3
- +
60200-5163
More Information
3/8" 24 24 80 10 8
In Stock
£12.48 £10.40

ØD1 (Diameter) 3/8"
TPI 24
L1 (Flute Length) 24
L2 (Length) 80
ØD2 (Shank) 10
K (Square) 8
- +
60200-383
More Information
7/16" 20 25 85 8 6.3
In Stock
£17.96 £14.97

ØD1 (Diameter) 7/16"
TPI 20
L1 (Flute Length) 25
L2 (Length) 85
ØD2 (Shank) 8
K (Square) 6.3
- +
60200-7163
More Information
1/2" 20 29 89 9 7.1
In Stock
£17.96 £14.97

ØD1 (Diameter) 1/2"
TPI 20
L1 (Flute Length) 29
L2 (Length) 89
ØD2 (Shank) 9
K (Square) 7.1
- +
60200-123
More Information
9/16" 18 30 95 11.2 9
Approx. 3 days. Subject to availability
£22.76 £18.97

ØD1 (Diameter) 9/16"
TPI 18
L1 (Flute Length) 30
L2 (Length) 95
ØD2 (Shank) 11.2
K (Square) 9
- +
60200-9163
More Information
5/8" 18 32 102 12.5 10
Approx. 3 days. Subject to availability
£29.10 £24.25

ØD1 (Diameter) 5/8"
TPI 18
L1 (Flute Length) 32
L2 (Length) 102
ØD2 (Shank) 12.5
K (Square) 10
- +
60200-583
More Information
3/4" 16 37 112 14 11.2
In Stock
£26.87 £22.39

ØD1 (Diameter) 3/4"
TPI 16
L1 (Flute Length) 37
L2 (Length) 112
ØD2 (Shank) 14
K (Square) 11.2
- +
60200-343
More Information
7/8" 14 38 118 16 12.5
Approx. 3 days. Subject to availability
£39.91 £33.26

ØD1 (Diameter) 7/8"
TPI 14
L1 (Flute Length) 38
L2 (Length) 118
ØD2 (Shank) 16
K (Square) 12.5
- +
60200-783
More Information
1" 12 45 130 18 14
Approx. 3 days. Subject to availability
£55.12 £45.93

ØD1 (Diameter) 1"
TPI 12
L1 (Flute Length) 45
L2 (Length) 130
ØD2 (Shank) 18
K (Square) 14
- +
602001-3
More Information
1" 1/8 12 37 127 20 16
Approx. 3 days. Subject to availability
£91.72 £76.43

ØD1 (Diameter) 1" 1/8
TPI 12
L1 (Flute Length) 37
L2 (Length) 127
ØD2 (Shank) 20
K (Square) 16
- +
602001-183
More Information
1" 1/4 12 37 137 22.4 18
Approx. 3 days. Subject to availability
£124.52 £103.77

ØD1 (Diameter) 1" 1/4
TPI 12
L1 (Flute Length) 37
L2 (Length) 137
ØD2 (Shank) 22.4
K (Square) 18
- +
602001-143
More Information
1" 3/8 12 39 144 25 20
Approx. 3 days. Subject to availability
£142.80 £119.00

ØD1 (Diameter) 1" 3/8
TPI 12
L1 (Flute Length) 39
L2 (Length) 144
ØD2 (Shank) 25
K (Square) 20
- +
602001-383
More Information
1" 1/2 12 39 149 28 22.4
Approx. 3 days. Subject to availability
£172.42 £143.68

ØD1 (Diameter) 1" 1/2
TPI 12
L1 (Flute Length) 39
L2 (Length) 149
ØD2 (Shank) 28
K (Square) 22.4
- +
602001-123
More Information
Features & Benefits
  • UNF Thread Form
  • Bottom/Plug Hand Tap
  • Made from HSS
  • Uncoated (Bright Finish)
  • Suitable for use on Steel and Non-Ferrous Materials
  • Straight Flute
  • 2B Tolerance
  • 60° Thread Angle
  • A, 8-10 Chamfer Lead
  • Can also be used as a machine tap if required
Specification
Specification
Coating Description Bright Finish
Tolerance 2B
Performance 2
Hand Right Hand
Thread Form UNF (Unified Fine)
Surface Treatment Uncoated
Substrate HSS
Hand Tap Type Bottom
Thread Angle 60°
Substrate Description High Speed Steel
Applicable Materials Non-Ferrous, Steel
Product Range Hand Taps
Brand Presto
Cutwel Sku 60200-BOTTOM
