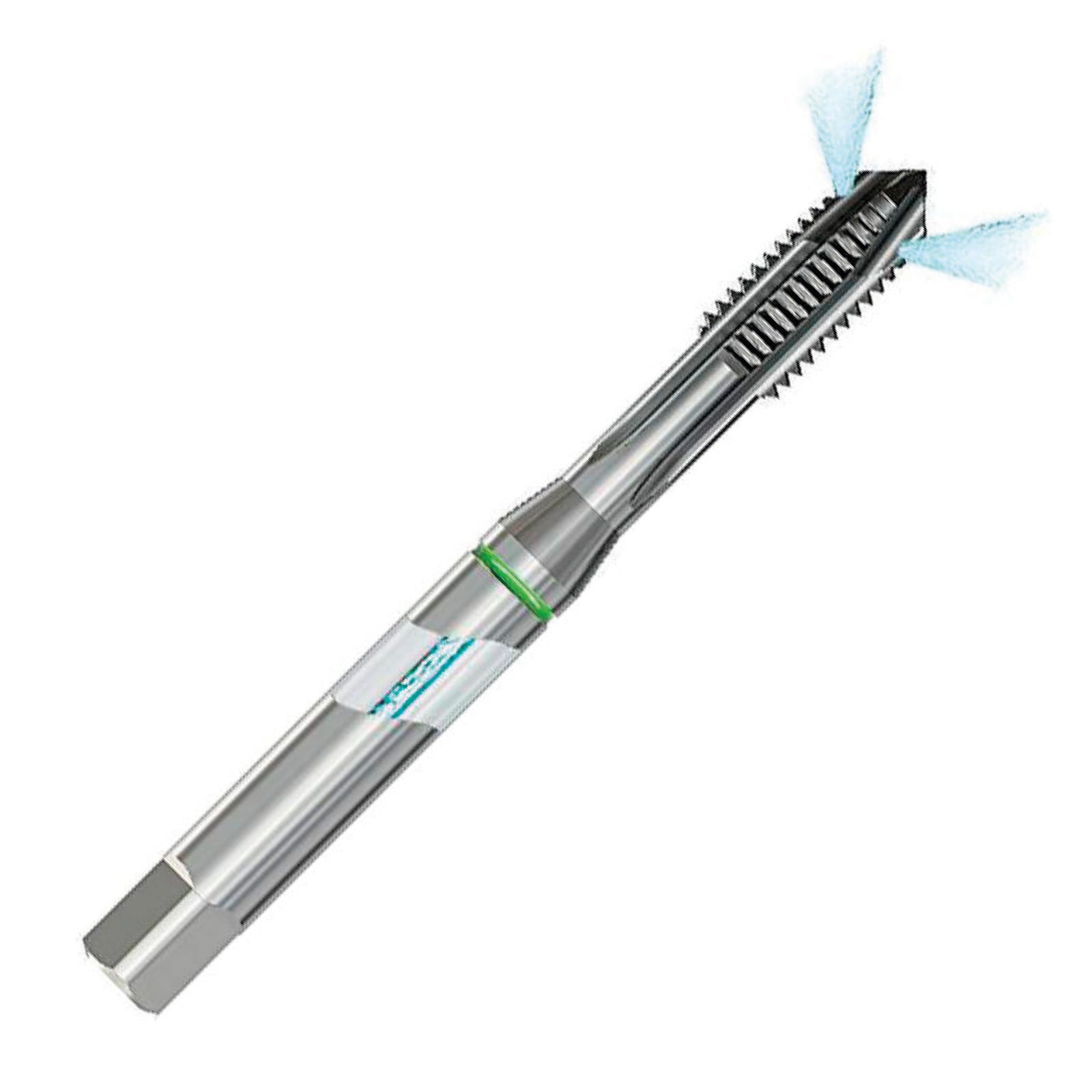

M14 x 2mm Metric Coarse Powder Metal Spiral Point TiN XP Coated Universal Plus Machine Tap with Through Coolant - K24/25M-FORY-XP Series (UFS)
M14 x 2mm Metric Coarse Powder Metal Spiral Point TiN XP Coated Universal Plus Machine Tap with Through Coolant - K24/25M-FORY-XP Series (UFS)

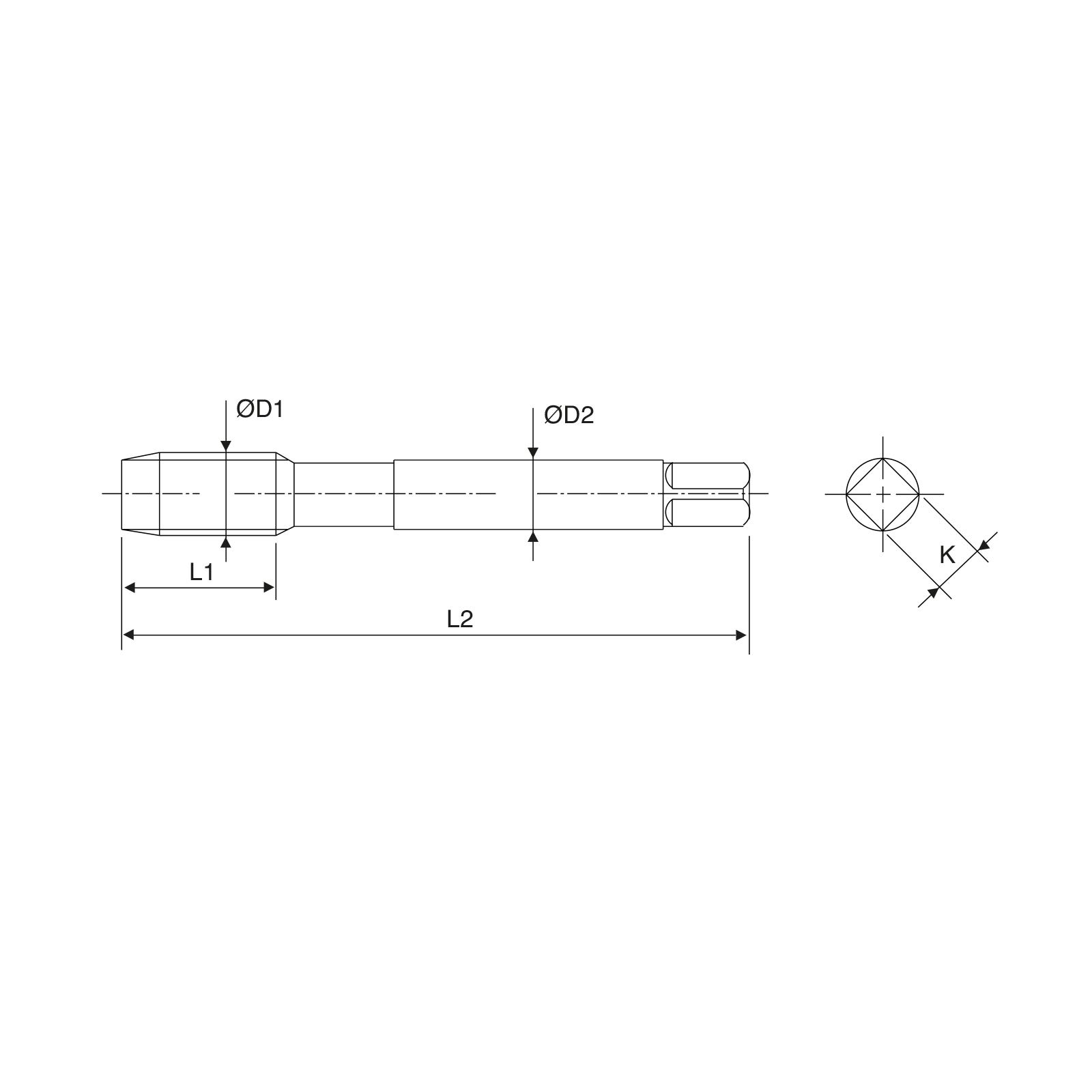

| Overall Length (mm) | 110 |
|---|---|
| Flute Length (mm) | 28 |
| Shank (mm) | 11 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Metric Coarse Universal Plus Machine Tap
- Powder Metal Substrate for increased tool life
- For High Performance Purpose Tapping on Steel, Pre-Hardened Steel, Stainless Steel, Cast Iron & Copper
- Patented design to prevent over feeding and premature tap failure
- Bright finish prevents swarf sticking to the tap flutes
- Spiral point geometry for through holes
- TiN XP coating for increased tool life
- Through coolant enables excellent chip evacuation and increases tool life
Specification
| Shank (mm) | 11 |
|---|---|
| Category | Threading |
| Overall Length (mm) | 110 |
| Flute Length (mm) | 28 |
| Substrate | HSS-PM |
| Surface Treatment | Coated (PVD/CVD) |
| Depth | 3.5xD |
| Helix Angle | 60° |
| Coating Description | TiN XP Coated Coated |
| Substrate Description | Powder Metal 3 |
| Performance | 5 |
| Brand Range | Top-line tap |
| Flutes | 3 |
| Applicable Materials | Steel, Hardened Steel, Stainless Steel, Cast Iron, Non-Ferrous |
| Pitch | 2 |
| Thread Form | Metric ISO |
| Drill Diameter | 12 |
| Square | 9 |
| Oil Grooves | No |
| Flute Geometry | Spiral Point |
