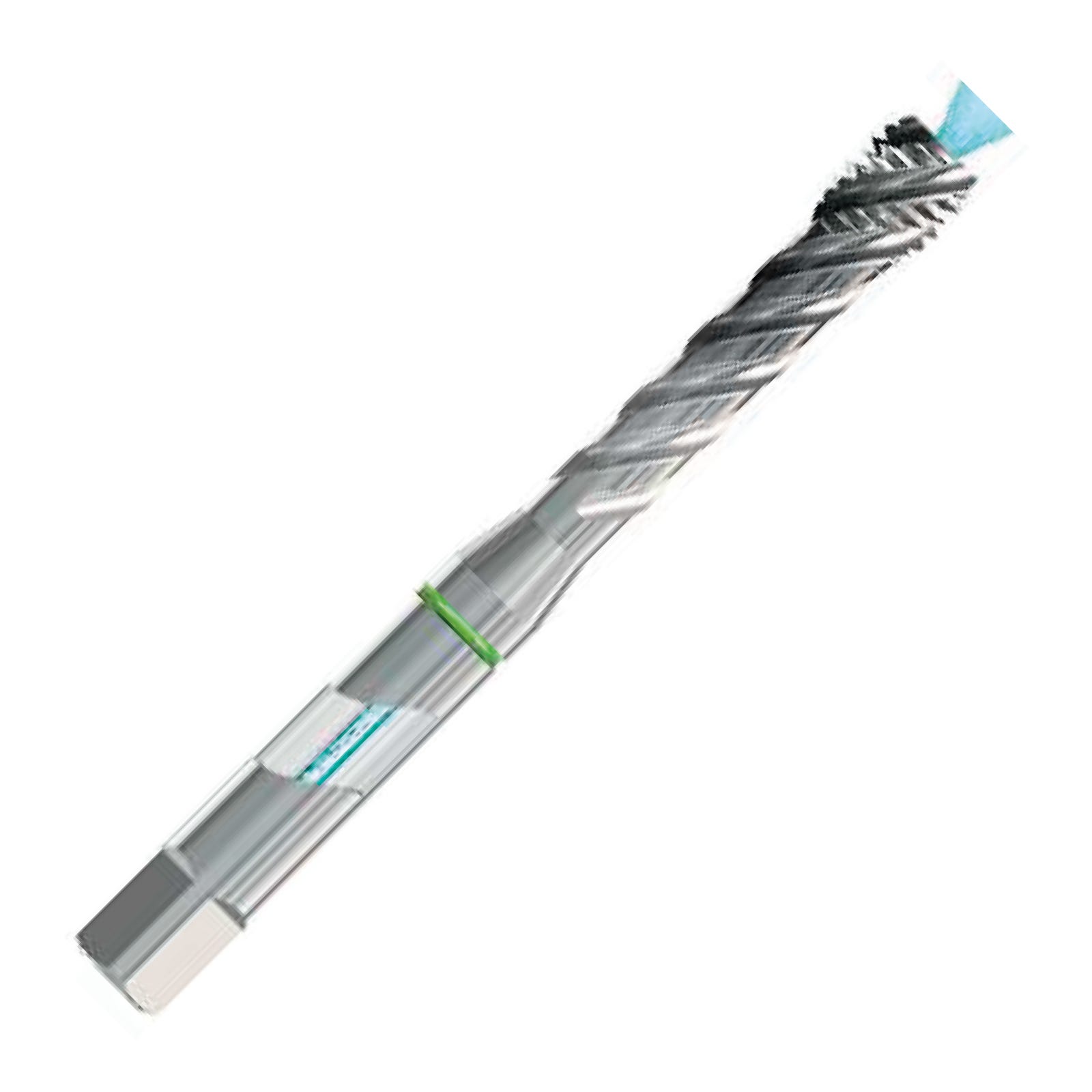

M8 x 1.25mm Metric Coarse Powder Metal Spiral Flute TiN XP Coated Universal Plus Machine Tap with Through Coolant - K82/83M-FORY-XP Series (UFS)
M8 x 1.25mm Metric Coarse Powder Metal Spiral Flute TiN XP Coated Universal Plus Machine Tap with Through Coolant - K82/83M-FORY-XP Series (UFS)

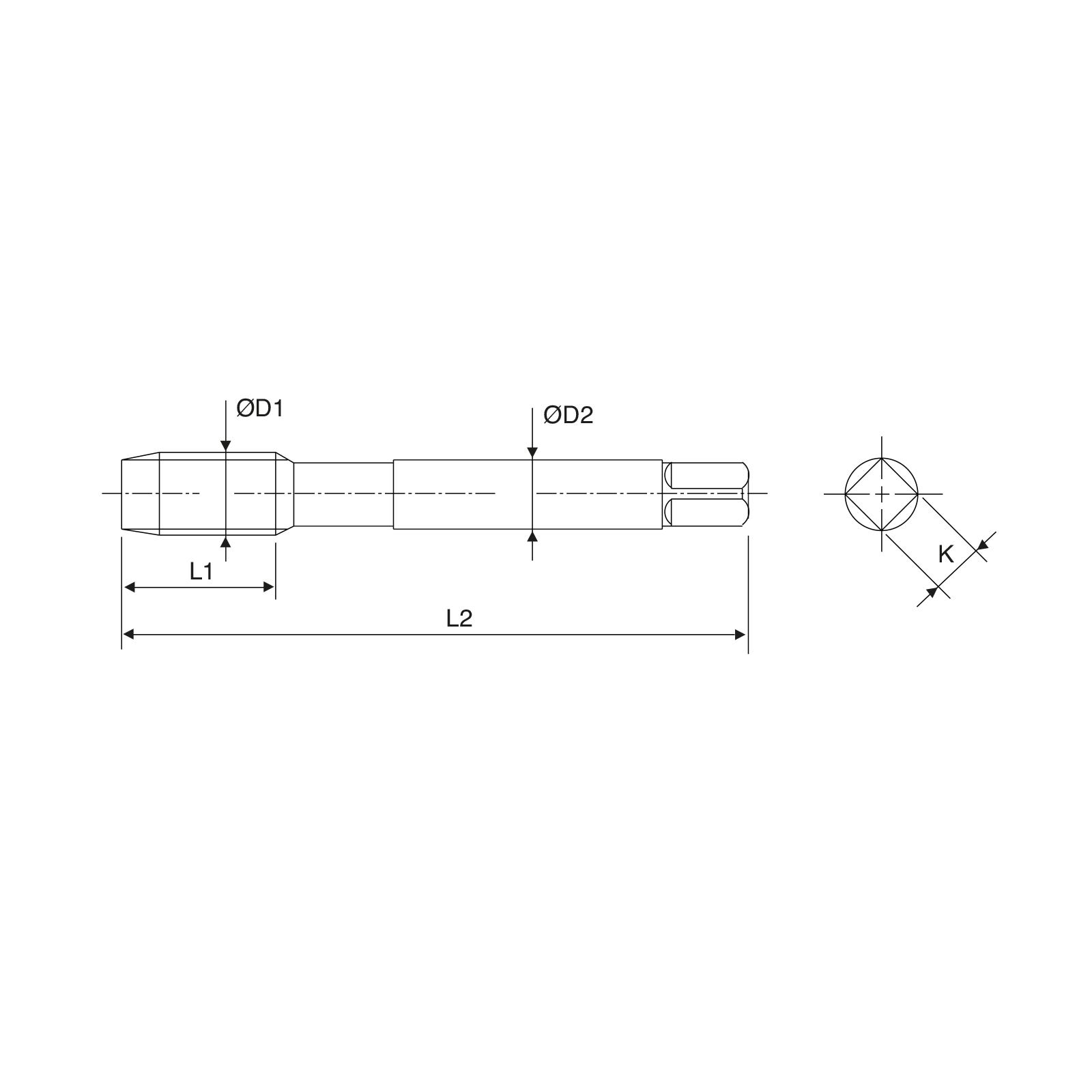

| Overall Length (mm) | 90 |
|---|---|
| Flute Length (mm) | 13 |
| Shank (mm) | 8 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Metric Coarse Universal Plus Machine Tap
- Powder Metal Substrate for increased tool life
- For High Performance Purpose Tapping on Steel, Pre-Hardened Steel, Stainless Steel, Cast Iron & Copper
- Patented design to prevent over feeding and premature tap failure
- Bright finish prevents swarf sticking to the tap flutes
- Spiral Flute geometry for Blind Holes
- TiN XP coating for increased tool life
- Through coolant enables excellent chip evacuation and increases tool life
Specification
| Category | Threading |
|---|---|
| Sub Category | Machine Taps |
| Thread | M8 |
| Sub Category 2 | High Performance Universal Machine Taps |
| Shank (mm) | 8 |
| Pitch | 1.25 |
| Flute Length (mm) | 13 |
| Overall Length (mm) | 90 |
| Flutes | 3 |
| Drill Diameter | 6.8 |
| Square | 6.2 |
| Substrate | HSS-PM |
| Oil Grooves | No |
| Surface Treatment | Coated (PVD/CVD) |
| Depth | 3.5xD |
| Applicable Materials | Steel, Hardened Steel, Stainless Steel, Cast Iron, Non-Ferrous |
| Flute Geometry | Spiral Flute |
| Performance | 5 |
| Coating Description | TiN XP Coated Coated |
| Substrate Description | Powder Metal 3 |
| Helix Angle | 60° |
| Brand Range | Top-line tap |
| Thread Form | Metric ISO |
| Brand | UFS |
