M12 x 1.75 Metric Coarse HSSE 5% Cobalt Spiral Flute INOX Machine Tap (6H Tolerance) for Stainless Steel - TB914 Series (YG-1)

Cutwel Sku
TB914506

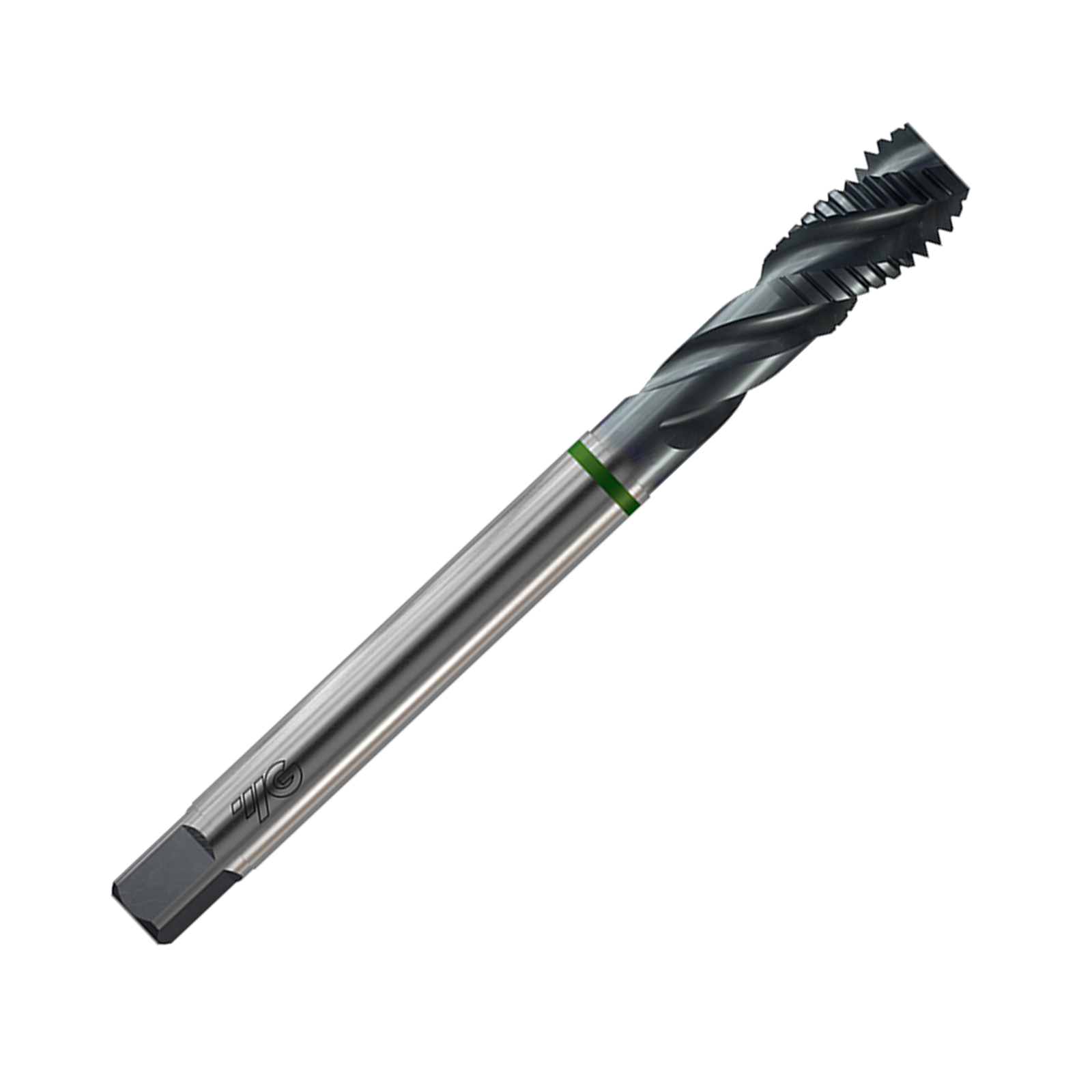

M12 x 1.75 Metric Coarse HSSE 5% Cobalt Spiral Flute INOX Machine Tap (6H Tolerance) for Stainless Steel - TB914 Series (YG-1)

Cutwel Sku
TB914506
The YG-1 TB914 series machine taps offer high performance machining. Made from a HSSE substrate, they have a 6H...
Read more
Overall Length (mm)110
Flute Length (mm)18
Shank (mm)9
minus plus
View Full Range
available In stock

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Product Information

Features & Benefits

The YG-1 TB914 series machine taps offer high performance machining. Made from a HSSE substrate, they have a 6H tolerance and are ideal for tapping steel and stainless steel. The TB914 series has a spiral flute geometry suitable for tapping blind holes. Made by YG-1 from South Korea, the global market leading manufacturer of cutting tools.
  • HSSE 5% cobalt substrate
  • Spiral flute, steam tempered
  • With 6H tolerance
  • Form C
  • Ideal for machining steel and stainless steel
  • Special flute geometry and excellent chip evacuation

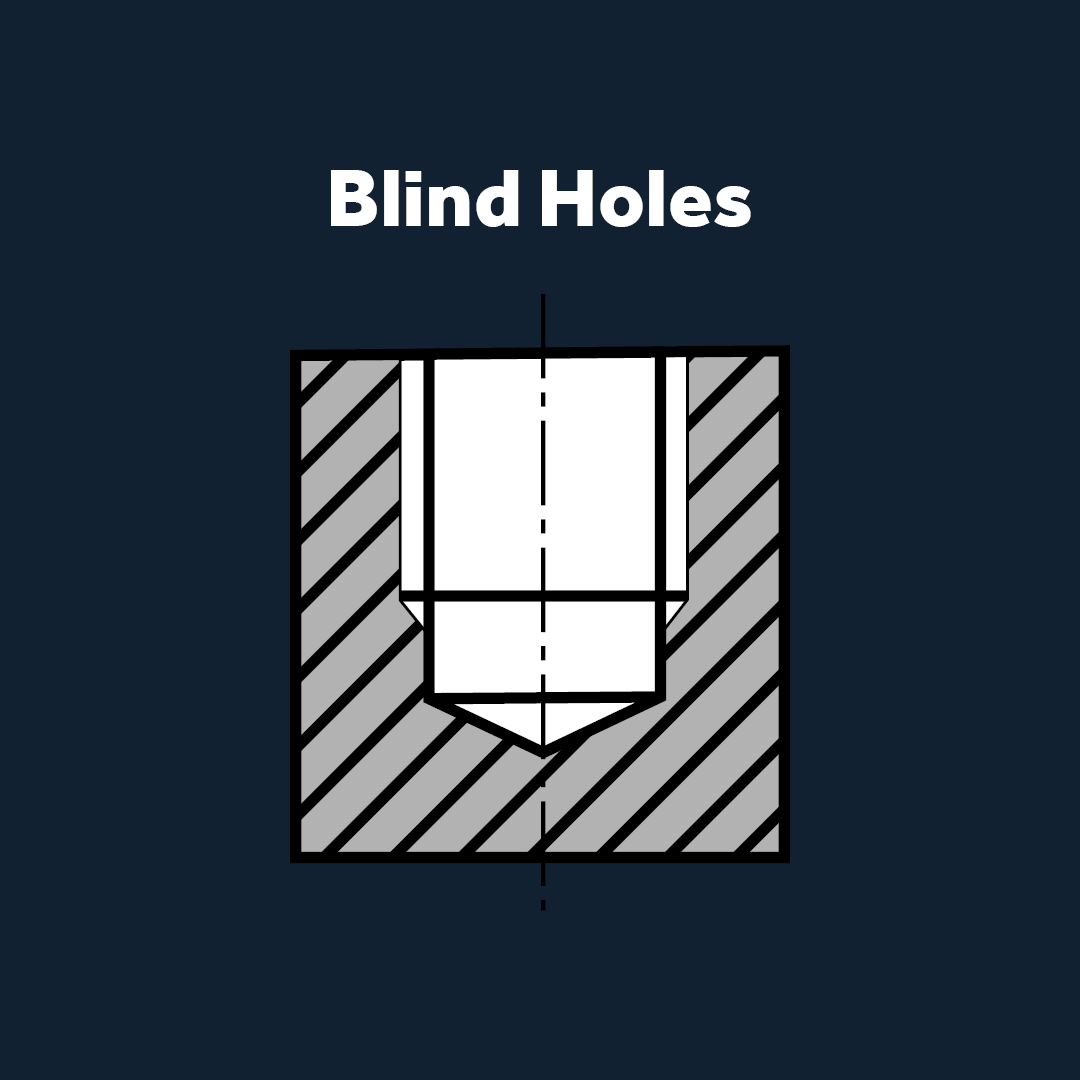

  • With recessed threads for machine tapping of deep blind holes

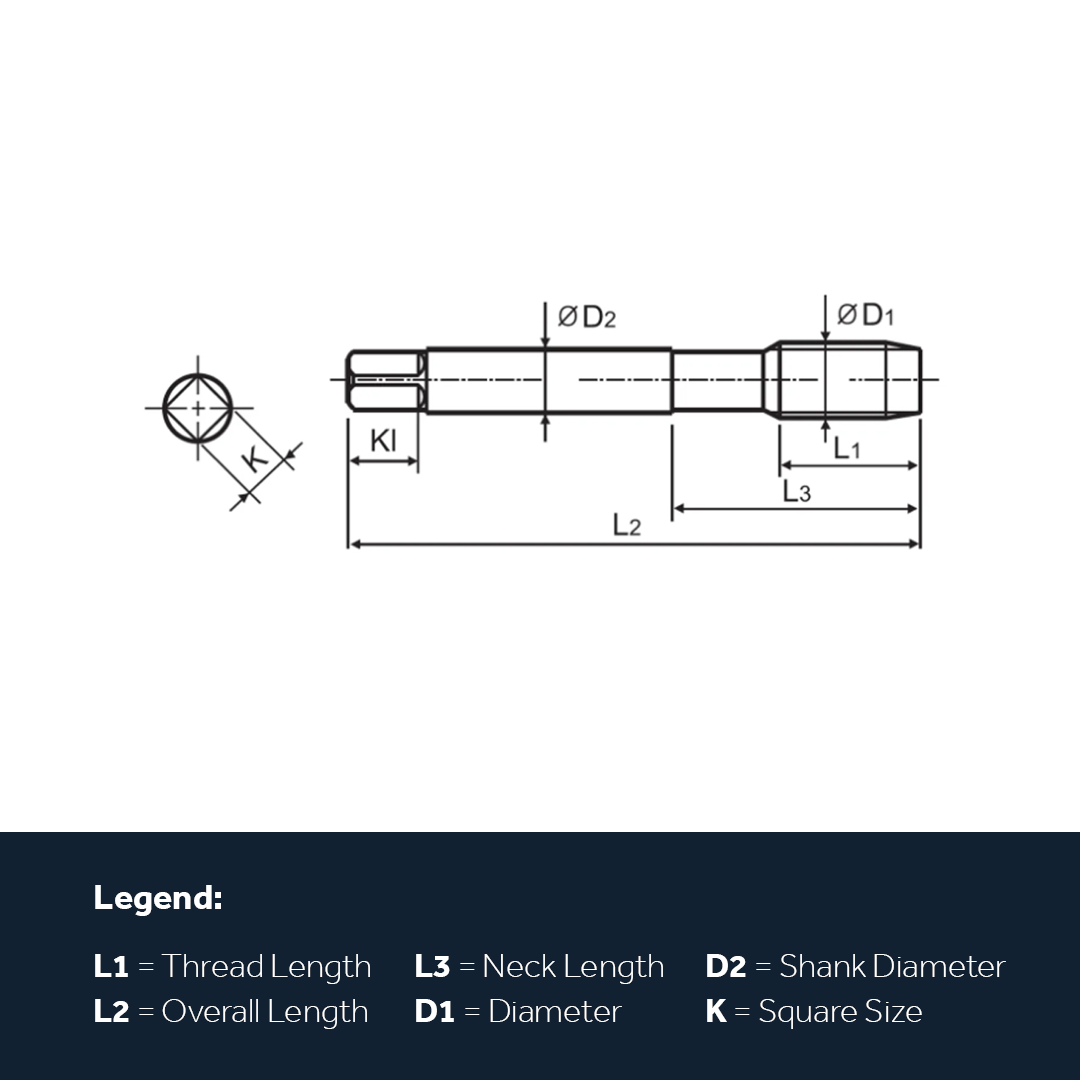

Specification

Category Threading
Sub Category Machine Taps
Thread M12
Sub Category 2 Stainless Steel (INOX) Machine Taps
Shank (mm) 9
Pitch 1.75
Flute Length (mm) 18
Overall Length (mm) 110
Flutes 3
L3 44
Drill Diameter 10.3
Square 7
Thread Angle 60 Degree
Substrate HSS
Oil Grooves No
Flute Geometry Spiral Flute
Performance 4
Through Coolant No
Substrate Description HSS-E
Thread Form Metric ISO
Chamfer Lead Form C
Brand YG-1
