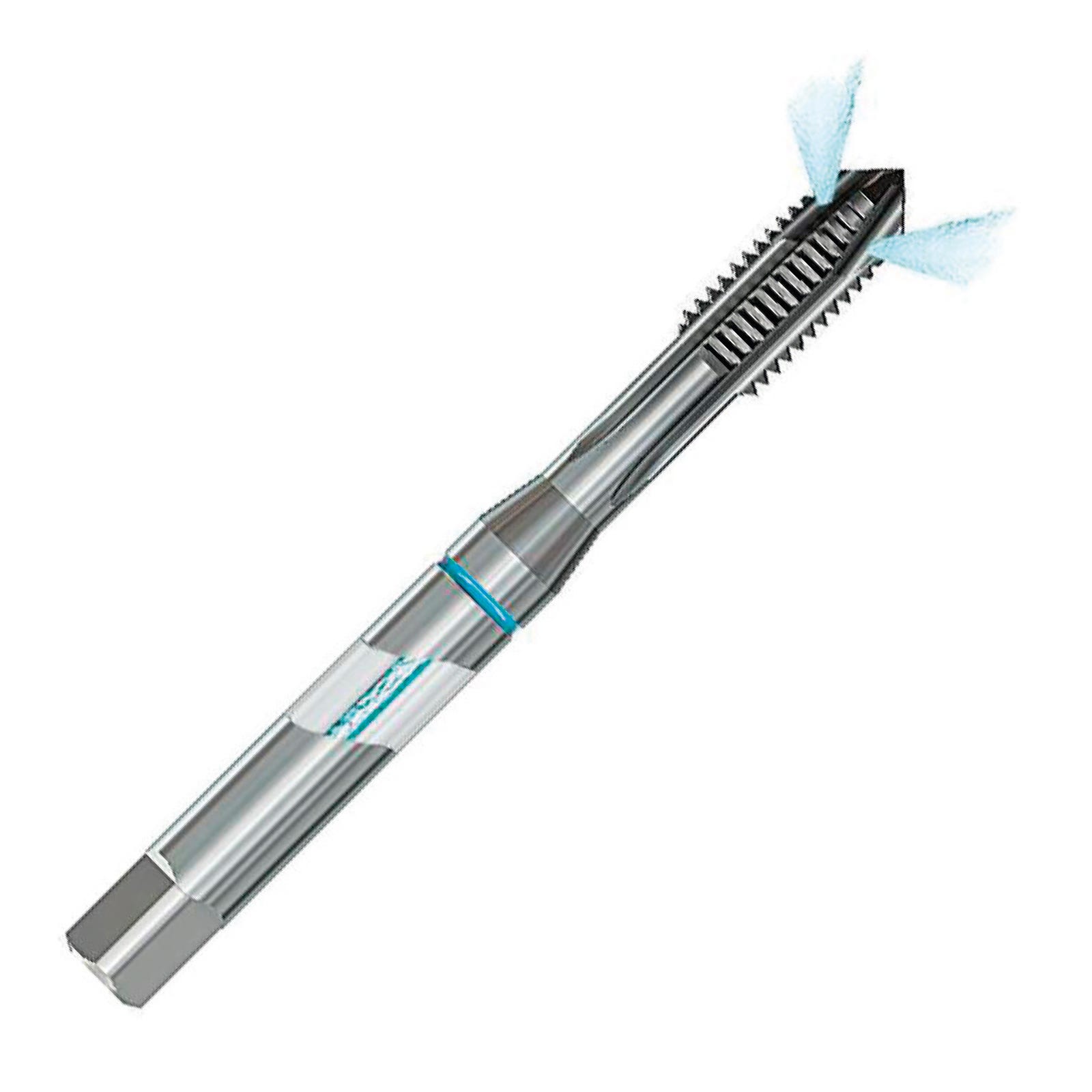

M6 x 1mm Metric Coarse Powder Metal Spiral Point INOX Machine Tap (6HX Tolerance) for Stainless Steel with Through Coolant - K24/25MX-FORY-TXC Series (UFS)
M6 x 1mm Metric Coarse Powder Metal Spiral Point INOX Machine Tap (6HX Tolerance) for Stainless Steel with Through Coolant - K24/25MX-FORY-TXC Series (UFS)

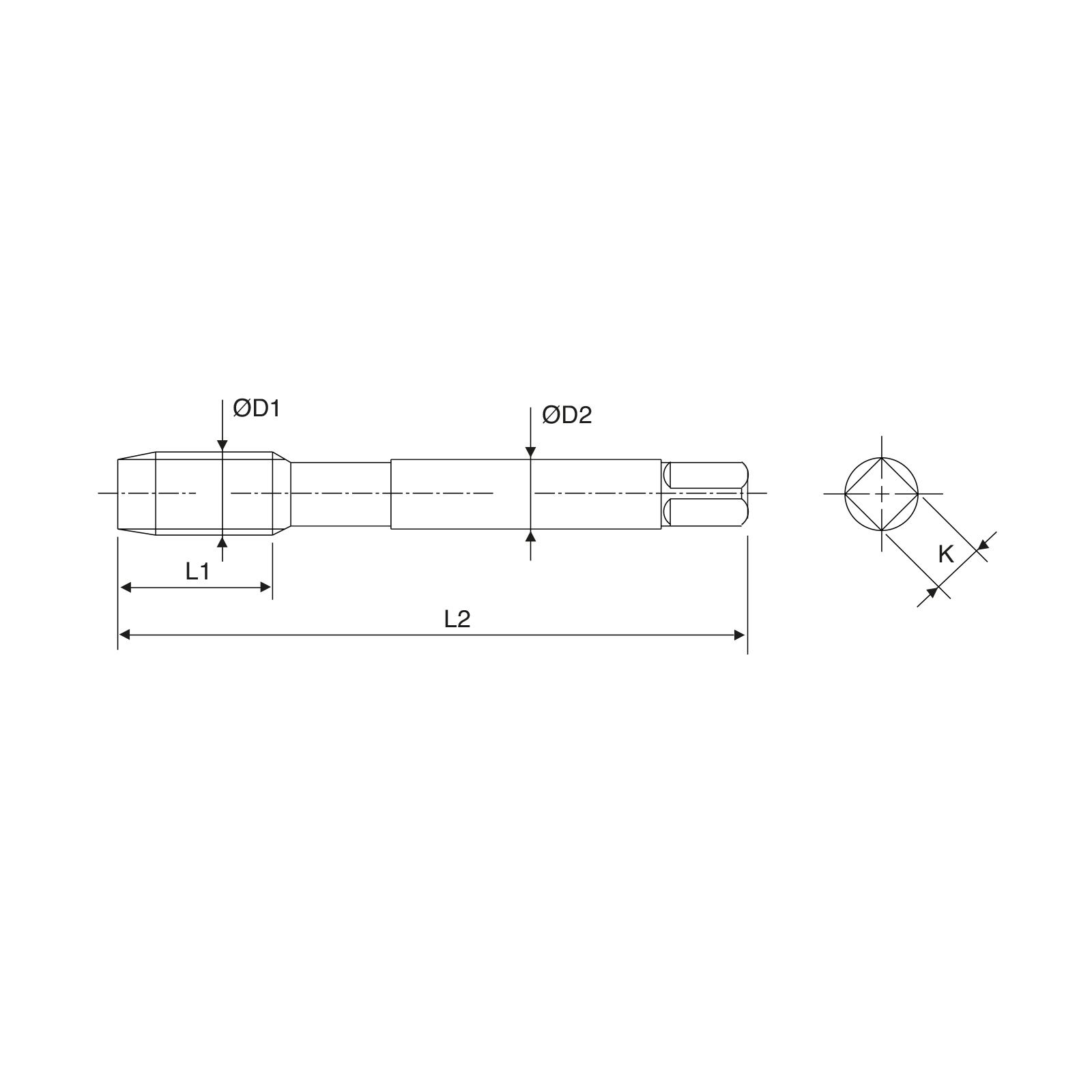

| Overall Length (mm) | 80 |
|---|---|
| Flute Length (mm) | 16 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Metric Coarse Machine Tap for Stainless Steel
- Powder Metal Substrate
- Spiral Point for Through Holes
- TiAlN Coating for Exeptional Wear Resistance
- For Ultra High Performance Tapping of Stainless Steel, Carbon Steel and Alloy Steel (also suitable for Pre-Hardened Steel)
- INOX taper prevents oversized threads and premature tap failure
- Through coolant enables excellent chip evacuation & provides increased tool life
Specification
| Category | Threading |
|---|---|
| Sub Category | Machine Taps |
| Thread | M6 |
| Sub Category 2 | Stainless Steel (INOX) Machine Taps |
| Pitch | 1 |
| Flute Length (mm) | 16 |
| Overall Length (mm) | 80 |
| Flutes | 3 |
| Drill Diameter | 4.9 |
| Square | 6 |
| Substrate | HSS-PM |
| Oil Grooves | No |
| Surface Treatment | Coated (PVD/CVD) |
| Depth | 3.5xD |
| Applicable Materials | Steel, Hardened Steel, Stainless Steel |
| Flute Geometry | Spiral Point |
| Performance | 5 |
| Coating Description | TiAIN +C |
| Substrate Description | Powder Metal 3 |
| Helix Angle | 60° |
| Brand Range | Top-line Tap |
| Thread Form | Metric ISO |
| Brand | UFS |
Application
