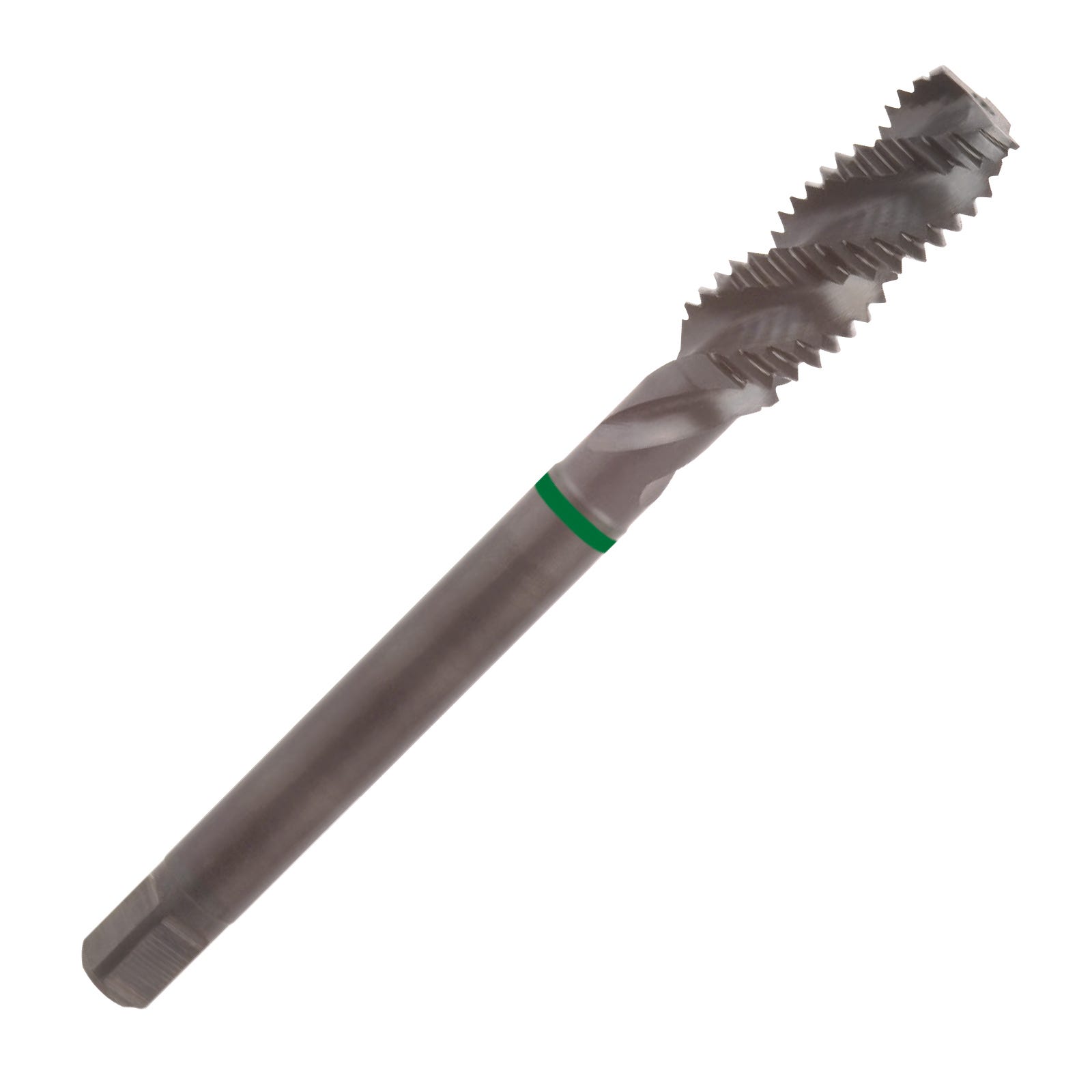

Metric Fine Powder Metal Spiral Flute INOX Machine Tap (6H Tolerance) for Stainless Steel - TQ754 Series (YG-1)
Metric Fine Powder Metal Spiral Flute INOX Machine Tap (6H Tolerance) for Stainless Steel - TQ754 Series (YG-1)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Thread
|
Shank (mm)
|
Pitch
|
Flute Length (mm)
|
Overall Length (mm)
|
TPI
|
Flutes
|
Drill Diameter
|
Square
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Thread: M4 | Shank (mm): 21 | Pitch: 0.5 | Flute Length (mm): 5 | Overall Length (mm): 63 | TPI: | Flutes: 3 | Drill Diameter: 2.1 | Square: 2.8 |
5 days*
|
£26.06
£21.72
|
|
|
| Thread: M6 | Shank (mm): 30 | Pitch: 0.5 | Flute Length (mm): 5 | Overall Length (mm): 80 | TPI: | Flutes: 3 | Drill Diameter: 3.4 | Square: 4.5 |
5 days*
|
£30.00
£25.00
|
|
|
| Thread: M7 | Shank (mm): 30 | Pitch: 0.75 | Flute Length (mm): 10 | Overall Length (mm): 80 | TPI: | Flutes: 3 | Drill Diameter: 4.3 | Square: 5.5 |
5 days*
|
£43.57
£36.31
|
|
|
| Thread: M8 | Shank (mm): 30 | Pitch: 0.75 | Flute Length (mm): 8 | Overall Length (mm): 80 | TPI: | Flutes: 3 | Drill Diameter: 4.9 | Square: 6 |
In stock
|
£33.47
£27.89
|
|
|
| Thread: M10 | Shank (mm): 40 | Pitch: 1.25 | Flute Length (mm): 16 | Overall Length (mm): 100 | TPI: | Flutes: 3 | Drill Diameter: 5.5 | Square: 7 |
In stock
|
£38.74
£32.28
|
|
|
| Thread: M10 | Shank (mm): 36 | Pitch: 0.75 | Flute Length (mm): 10 | Overall Length (mm): 90 | TPI: | Flutes: 3 | Drill Diameter: 5.5 | Square: 7 |
5 days*
|
£47.93
£39.94
|
|
|
| Thread: M12 | Shank (mm): 40 | Pitch: 1.5 | Flute Length (mm): 15 | Overall Length (mm): 100 | TPI: | Flutes: 3 | Drill Diameter: 7 | Square: 9 |
5 days*
|
£42.08
£35.07
|
|
|
| Thread: M12 | Shank (mm): 40 | Pitch: 1.25 | Flute Length (mm): 15 | Overall Length (mm): 100 | TPI: | Flutes: 3 | Drill Diameter: 7 | Square: 9 |
5 days*
|
£45.96
£38.30
|
|
|
| Thread: M12 | Shank (mm): 40 | Pitch: 1 | Flute Length (mm): 11 | Overall Length (mm): 100 | TPI: | Flutes: 3 | Drill Diameter: 7 | Square: 9 |
In stock
|
£44.15
£36.79
|
|
|
| Thread: 1/8" | Shank (mm): | Pitch: | Flute Length (mm): 15 | Overall Length (mm): 90 | TPI: 28 | Flutes: 3 | Drill Diameter: 5.5 | Square: 7 |
5 days*
|
£42.30
£35.25
|
|
|
| Thread: 1/4" | Shank (mm): | Pitch: | Flute Length (mm): 22 | Overall Length (mm): 100 | TPI: 19 | Flutes: 3 | Drill Diameter: 9 | Square: 11 |
In stock
|
£58.80
£49.00
|
|
|
| Thread: 3/8" | Shank (mm): | Pitch: | Flute Length (mm): 22 | Overall Length (mm): 100 | TPI: 19 | Flutes: 3 | Drill Diameter: 9 | Square: 12 |
In stock
|
£74.23
£61.86
|
|
|
| Thread: 1/2" | Shank (mm): | Pitch: | Flute Length (mm): 25 | Overall Length (mm): 125 | TPI: 14 | Flutes: 3 | Drill Diameter: 12 | Square: 16 |
In stock
|
£103.33
£86.11
|
|
Product Information
Features & Benefits
- Metric Fine Machine Tap for Stainless Steel
- Powder Metal Substrate
- Spiral Flute for Blind Holes
- VAP surface treatment reduces friction
- For High Performance Tapping of Stainless Steel (also suitable for Soft Steel, Structural Steel & Copper)
- Excellent for stickier materials such as 316 stainless or soft steels
Specification
| Category | Threading |
|---|---|
| Sub Category | Machine Taps |
| Sub Category 2 | Stainless Steel (INOX) Machine Taps |
| Substrate | HSS-PM |
| Oil Grooves | No |
| Surface Treatment | Uncoated |
| Depth | 2.5xD |
| Applicable Materials | Steel, Stainless Steel, Non-Ferrous |
| Flute Geometry | Spiral Flute |
| Performance | 5 |
| Coating Description | VAP finish |
| Substrate Description | Powder Metal |
| Helix Angle | 60° |
| Brand Range | Combo Tap |
| Thread Form | Metric ISO |
| Brand | YG-1 |
