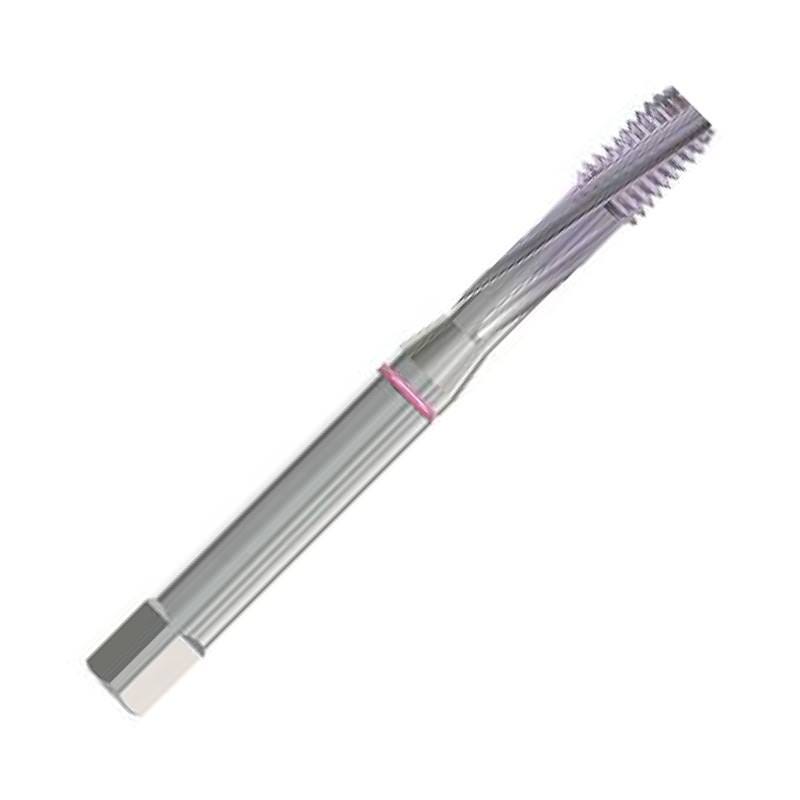

UNC Powder Metal Spiral Point TiCN Coated Machine Taps for Titanium & Titanium Alloys - K42/43UNC-CT Series (UFS)
UNC Powder Metal Spiral Point TiCN Coated Machine Taps for Titanium & Titanium Alloys - K42/43UNC-CT Series (UFS)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|

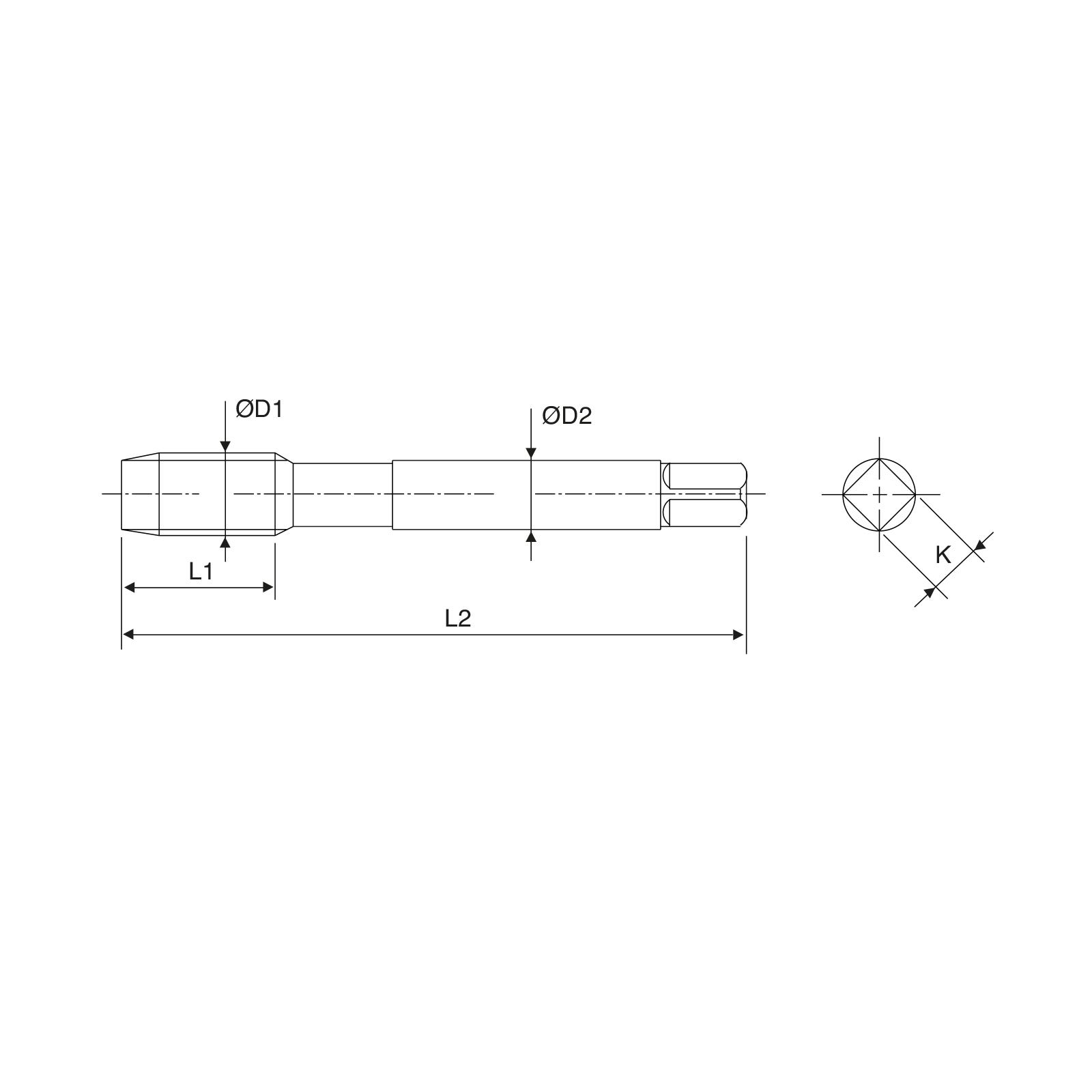

Shank (mm)
|
Flute Length (mm)
|
Overall Length (mm)
|
TPI
|
Flutes
|
Thread
|
Drill Diameter
|
Square
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Shank (mm): 6 | Flute Length (mm): 8 | Overall Length (mm): 70 | TPI: 24 | Flutes: 3 | Thread: No.10 | Drill Diameter: 3.9 | Square: 4.9 |
9 days*
|
£30.86
£25.72
|
|
|
| Shank (mm): 7 | Flute Length (mm): 10 | Overall Length (mm): 80 | TPI: 20 | Flutes: 3 | Thread: 1/4" | Drill Diameter: 5.1 | Square: 5.5 |
In stock
|
£36.73
£30.61
|
|
|
| Shank (mm): 8 | Flute Length (mm): 13 | Overall Length (mm): 90 | TPI: 18 | Flutes: 3 | Thread: 5/16" | Drill Diameter: 6.6 | Square: 6.2 |
In stock
|
Special Price
£19.30
£16.08
Was
£39.38
£32.82
|
|
|
| Shank (mm): 10 | Flute Length (mm): 15 | Overall Length (mm): 100 | TPI: 16 | Flutes: 3 | Thread: 3/8" | Drill Diameter: 8 | Square: 8 |
In stock
|
£41.75
£34.79
|
|
|
| Shank (mm): 9 | Flute Length (mm): 18 | Overall Length (mm): 110 | TPI: 13 | Flutes: 3 | Thread: 1/2" | Drill Diameter: 10.8 | Square: 7 |
In stock
|
£53.77
£44.81
|
|
|
| Shank (mm): 12 | Flute Length (mm): 20 | Overall Length (mm): 110 | TPI: 11 | Flutes: 3 | Thread: 5/8" | Drill Diameter: 13.5 | Square: 9 |
9 days*
|
£74.98
£62.48
|
|
|
| Shank (mm): 14 | Flute Length (mm): 25 | Overall Length (mm): 125 | TPI: 10 | Flutes: 3 | Thread: 3/4" | Drill Diameter: 16.5 | Square: 11 |
9 days*
|
£99.11
£82.59
|
|
|
| Shank (mm): 8 | Flute Length (mm): 15 | Overall Length (mm): 100 | TPI: 14 | Flutes: 4 | Thread: 7/6" | Drill Diameter: 9.4 | Square: 6.2 |
9 days*
|
£49.03
£40.86
|
|
Product Information
Features & Benefits
- Metric Coarse Machine Tap
- Powder Metal Subtrate
- Specially designed for Titanium & Titanium Alloys
- TiCN coating for titanium alloys, high chrome stainless steel, cast iron & high strength bronze
- Left Hand 15° helix provides additional strength
- Spiral flute geometry for blind holes
Specification
| Category | Threading |
|---|---|
| Substrate | HSS-PM |
| Surface Treatment | Coated (PVD/CVD) |
| Depth | 1.5xD |
| Helix Angle | 60° |
| Coating Description | TiCN Coated |
| Substrate Description | Powder Metal 3 |
| Performance | 5 |
| Brand Range | Top-line Tap |
| Applicable Materials | Hardened Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics |
| Thread Form | UNC (Unified Coarse) |
| Oil Grooves | No |
| Flute Geometry | Spiral Flute |
| Sub Category | Machine Taps |
Application
