No.6 x 32TPI UNC HSS 5% Cobalt Spiral Flute Thread Repair Machine Taps (2B Tolerance) - TC944 Series (YG-1)
No.6 x 32TPI UNC HSS 5% Cobalt Spiral Flute Thread Repair Machine Taps (2B Tolerance) - TC944 Series (YG-1)
| Overall Length (mm) | 70 |
|---|---|
| Flute Length (mm) | 8 |
| Shank (mm) | 6 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- UNC Thread Repair Machine Tap
- HSS 5% Cobalt Substrate
- For repairing damaged threads when combined with any popular brand of thread repair insert
- Suitable for use on Steel, Copper, Aluminium, Titanium and Nickel
- Bright finish to prevent any swarf sticking to the flutes
- Spiral Flute for Blind Holes

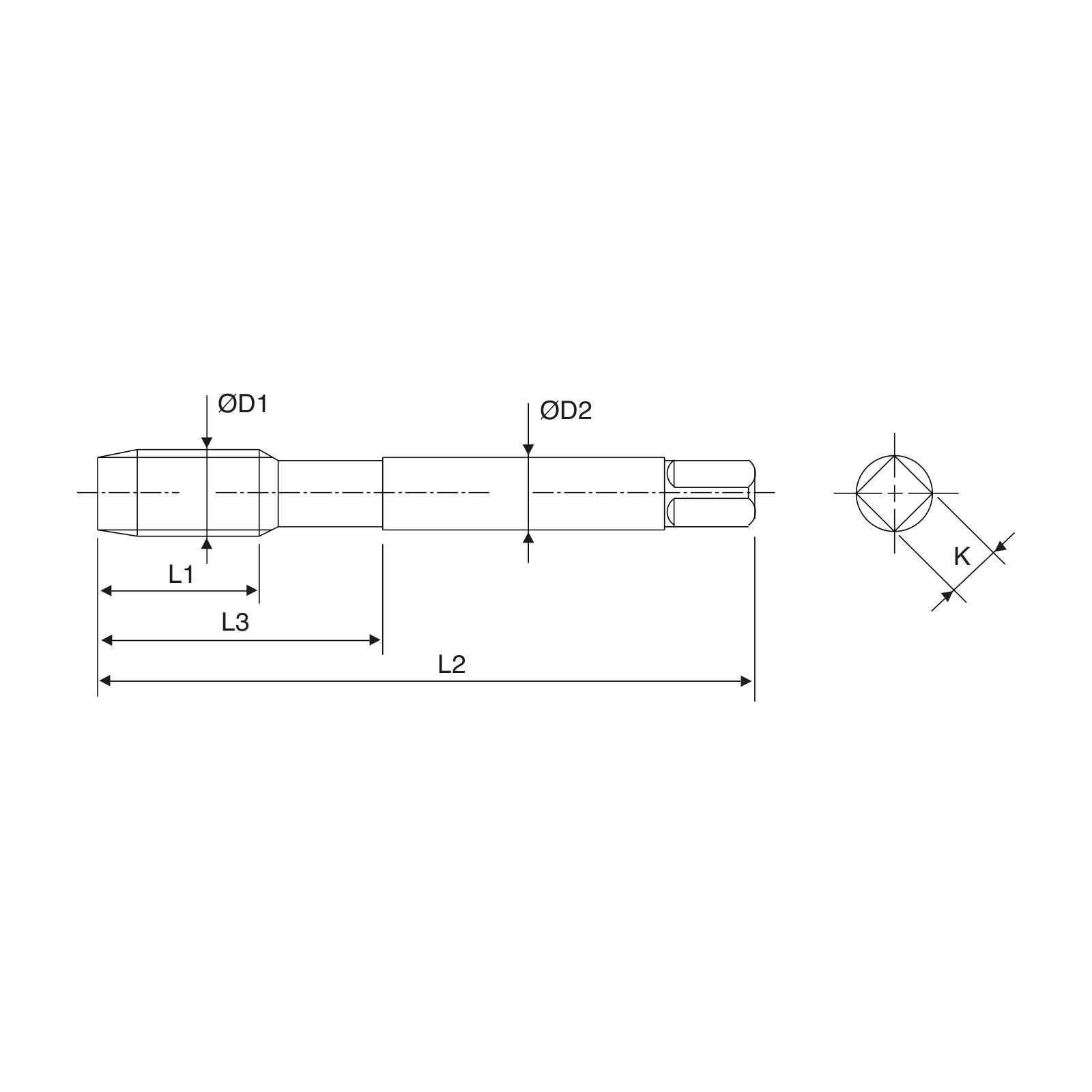

Specification
| Category | Threading |
|---|---|
| Sub Category | Machine Taps |
| Thread | No.6 |
| Sub Category 2 | Thread Repair Machine Taps |
| Shank (mm) | 6 |
| Flute Length (mm) | 8 |
| Overall Length (mm) | 70 |
| TPI | 32 |
| Flutes | 3 |
| L3 | 25 |
| Drill Diameter | 3.8 |
| Square | 4.9 |
| Thread | No.6 |
| Substrate | HSS |
| Oil Grooves | No |
| Surface Treatment | Uncoated |
| Depth | 2.5xD |
| Applicable Materials | Steel, Non-Ferrous, Exotics |
| Flute Geometry | Spiral Flute |
| Performance | 4 |
| Coating Description | Bright Finish |
| Through Coolant | No |
| Substrate Description | HSS 5% Cobalt |
| Helix Angle | 60° |
| Thread Form | UNC (Unified Coarse) |
| Brand | YG-1 |
