40mm Smooth-Cut Anti-Vibration Modular Vardex Threading Head, for 16NR / 3IR Inserts (Vargus) - VAS40-IR3227-3

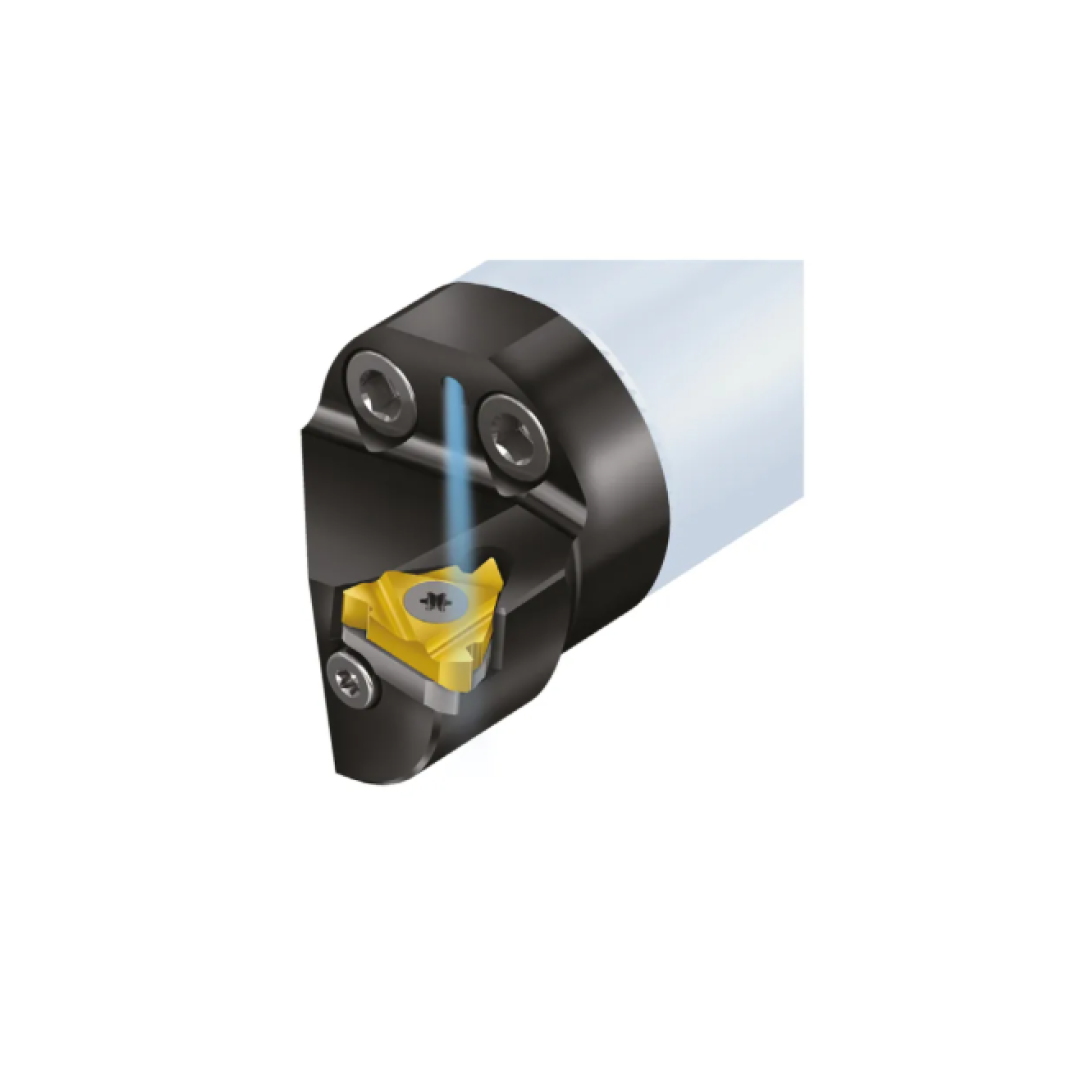

40mm Smooth-Cut Anti-Vibration Modular Vardex Threading Head, for 16NR / 3IR Inserts (Vargus) - VAS40-IR3227-3
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits

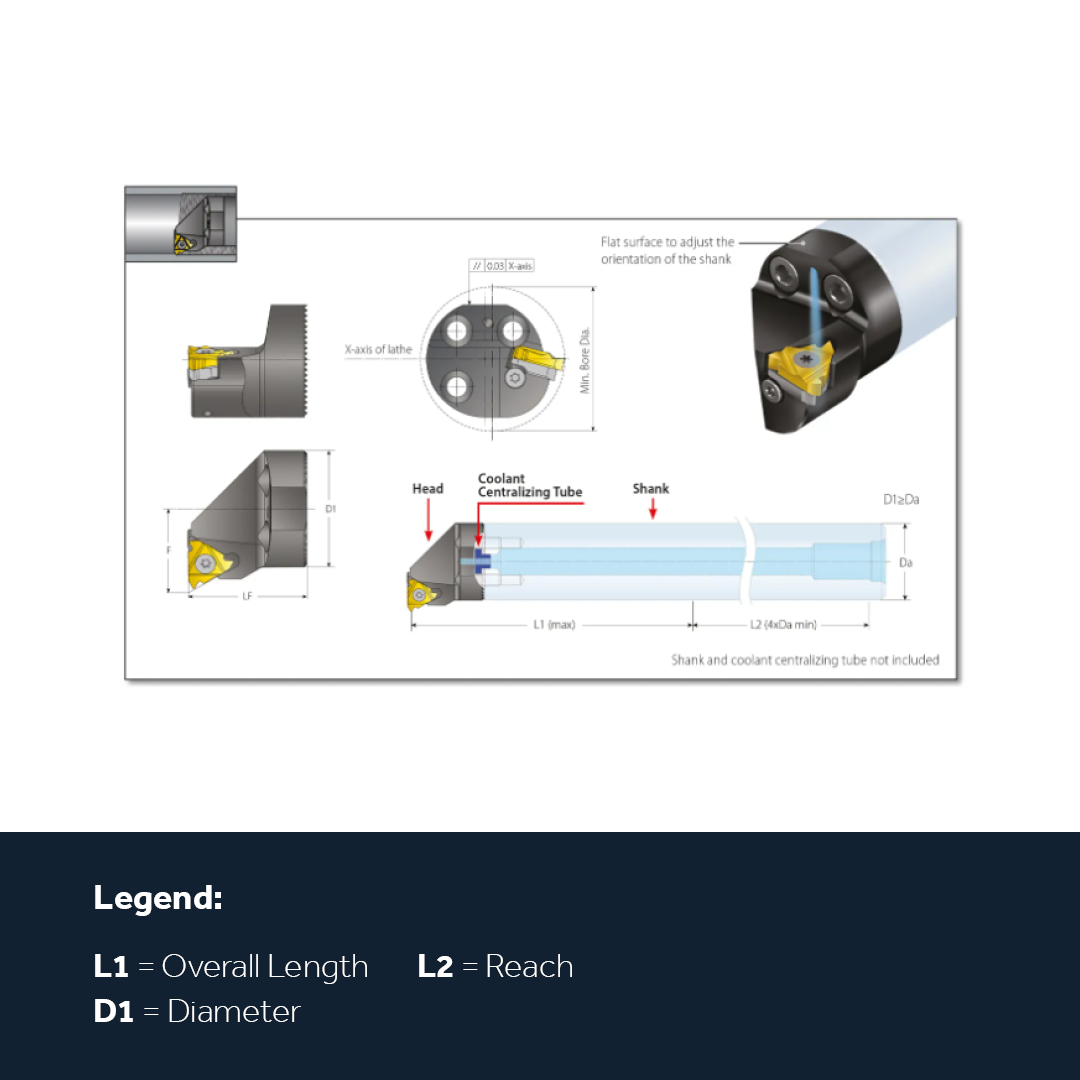

- Smooth-Cut range from Vardex contain modular threading heads suitable for anti-vibration shanks.
- Threading heads are suitable for High Pressure Coolant up to 70 bar for better chip evacuation and increased tool life.
- Compatible with the most common anti-vibration shanks in the market.
- Same head can be used with wide range of shanks of different lengths.
- Maximum overhang 5xDa (Da - shank diameter).
- Shank and coolant centralising tube not included.
- Vardex are the global number 1 thread turning tool manufacturer
Specification
| Category | Threading |
|---|---|
| Sub Category | Thread Turning Tools |
| Sub Category 2 | Thread Turning Holders |
| D1 | 40 |
| Inserts | 16NR / 3IR |
| Min Bore | 50 |
| Alternative Part Number | VAS40-IR3227-3 |
| Screw | SA3T |
| Wrench | YI3 |
| Applicable Materials | Non-Ferrous |
| Through Coolant | Yes |

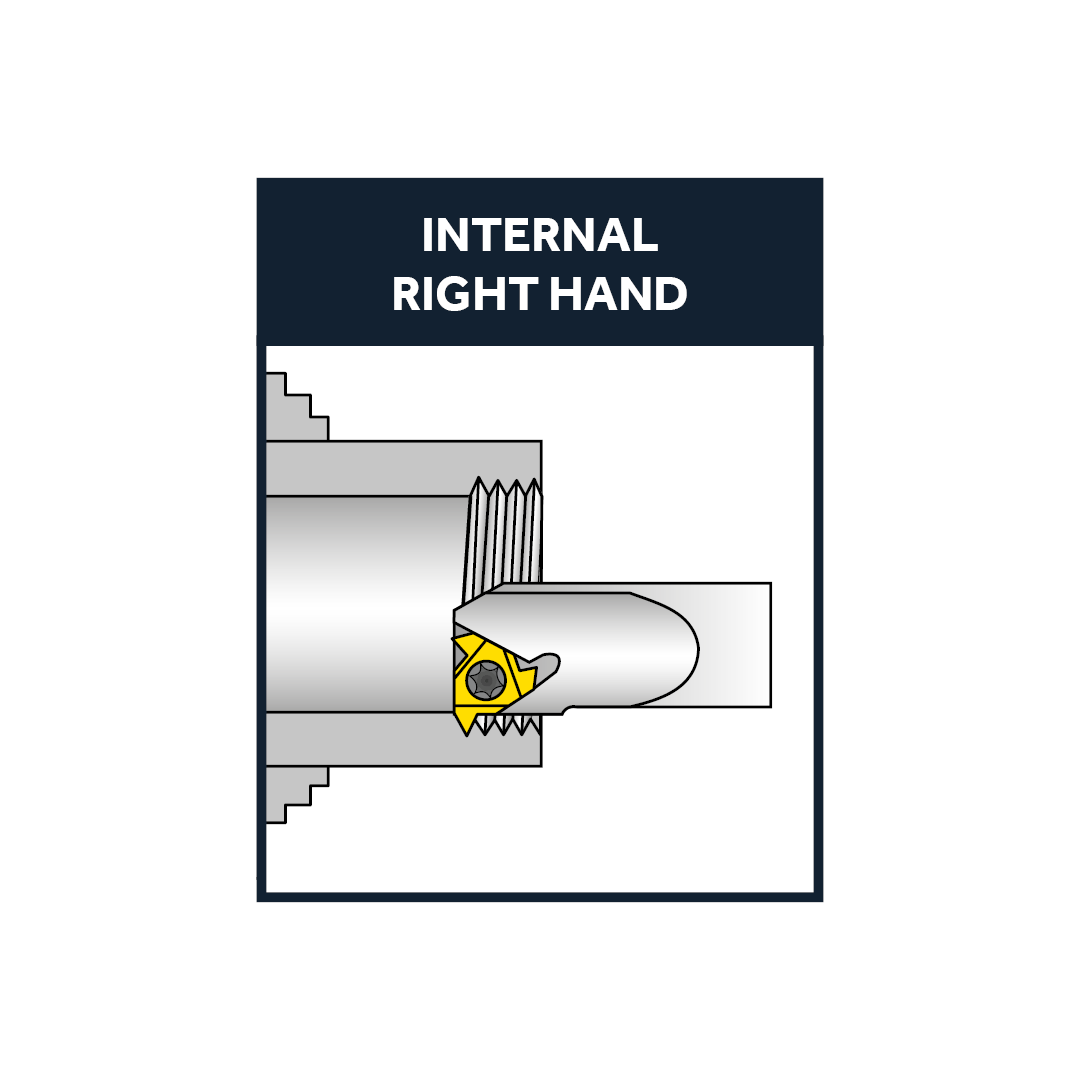

| Hand | Right Hand |
| Clamp Type | Screw Clamping |
| Brand | Vardex |
