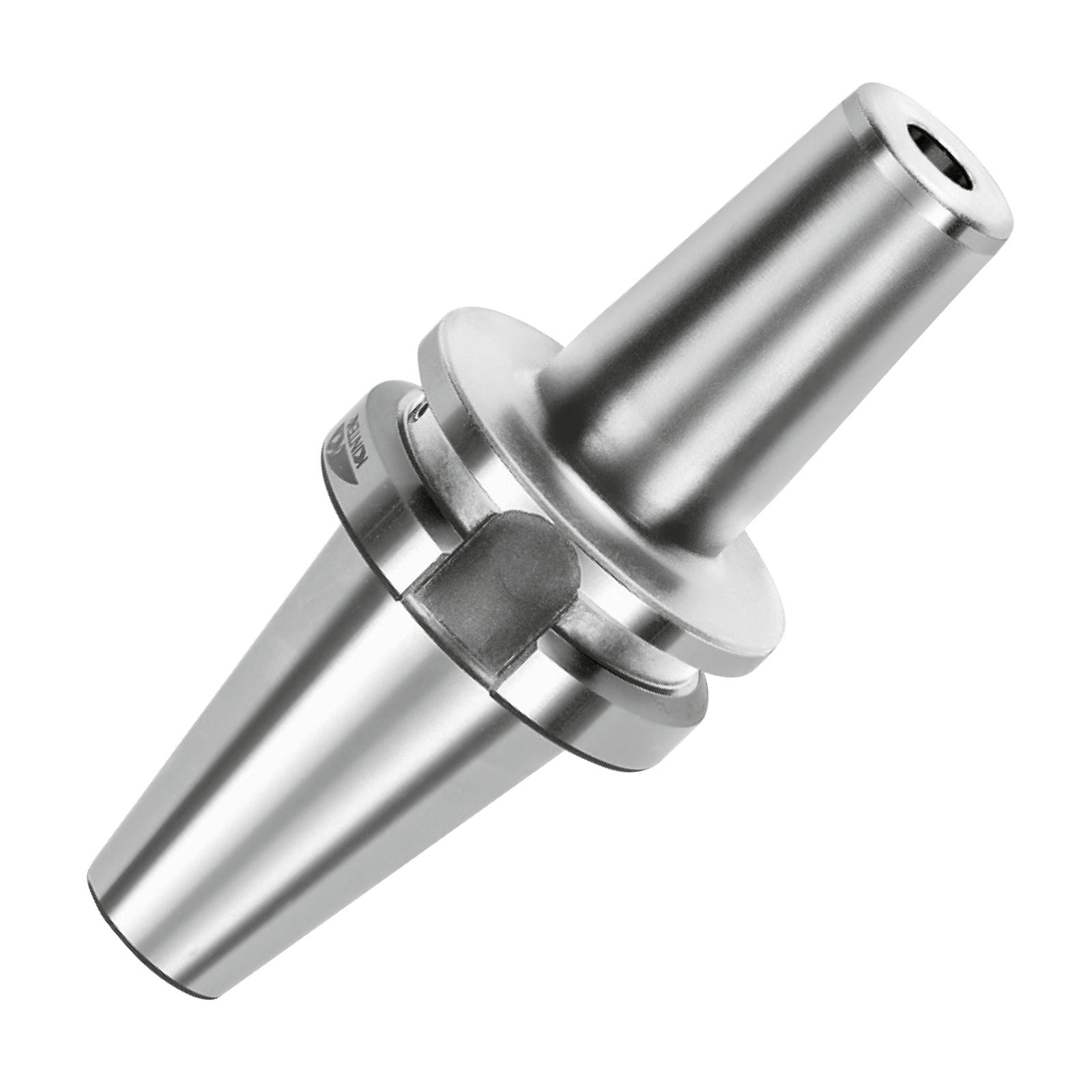

DSK40 Shrink Fit Chuck 25,000RPM G2.5 (Cutwel Pro)

(DSK40-DC-SFC-CUT)

Starting at £299.24 £249.37

DSK40 Cutwel Pro Standard 4.5° Shrink Fit Chucks offer a high performance clamping solution, balanced to 25,000RPM G2.5. Cutwel Pro Shrink chucks provide exceptional value whilst maintaining exceptional quality and performance. The 4.5° profile is suitable for most milling & drilling requirements offering excellent clamping strength and rigidty with a much slimmer nose profile than conventional tool holders.
View Products
Clamping Capacity Gauge Length Nose Diameter Stock Price (ex VAT) Qty Action
6 90 21
Approx. 5 days. Subject to availability
£299.24 £249.37

Clamping Capacity 6
Gauge Length 90
Nose Diameter 21
- +
DSK40H90K06-HTT
More Information
8 90 21
Approx. 5 days. Subject to availability
£299.24 £249.37

Clamping Capacity 8
Gauge Length 90
Nose Diameter 21
- +
DSK40H90K08-HTT
More Information
10 90 24
Approx. 5 days. Subject to availability
£299.24 £249.37

Clamping Capacity 10
Gauge Length 90
Nose Diameter 24
- +
DSK40H90K10-HTT
More Information
12 90 24
Approx. 5 days. Subject to availability
£299.24 £249.37

Clamping Capacity 12
Gauge Length 90
Nose Diameter 24
- +
DSK40H90K12-HTT
More Information
16 90 27
Approx. 5 days. Subject to availability
£299.24 £249.37

Clamping Capacity 16
Gauge Length 90
Nose Diameter 27
- +
DSK40H90K16-HTT
More Information
20 100 33
Approx. 5 days. Subject to availability
£299.24 £249.37

Clamping Capacity 20
Gauge Length 100
Nose Diameter 33
- +
DSK40H100K20-HTT
More Information
25 100 44
Approx. 5 days. Subject to availability
£299.24 £249.37

Clamping Capacity 25
Gauge Length 100
Nose Diameter 44
- +
DSK40H100K25-HTT
More Information
32 100 44
Approx. 5 days. Subject to availability
£299.24 £249.37

Clamping Capacity 32
Gauge Length 100
Nose Diameter 44
- +
DSK40H100K32-HTT
More Information
Features & Benefits
  • 4.5° Taper
  • Hardness 52±2HRc
  • Balanced to 25,000RPM G2.5
  • High run-out accuracy 0.003mm
  • Gauge length up to 100mm
  • Shrink temperature 100-420° (Max 500°)
  • Ultra-long service life without distortion due to high quality hot work steel
  • Double contact Taper and face
Specification
Specification
Product Range Shrink Fit Chucks
Brand Cutwel Pro
Taper Description Double Contact
Balance 25,000RPM G2.5
Taper DSK40
Cutwel Sku DSK40-DC-SFC-CUT
