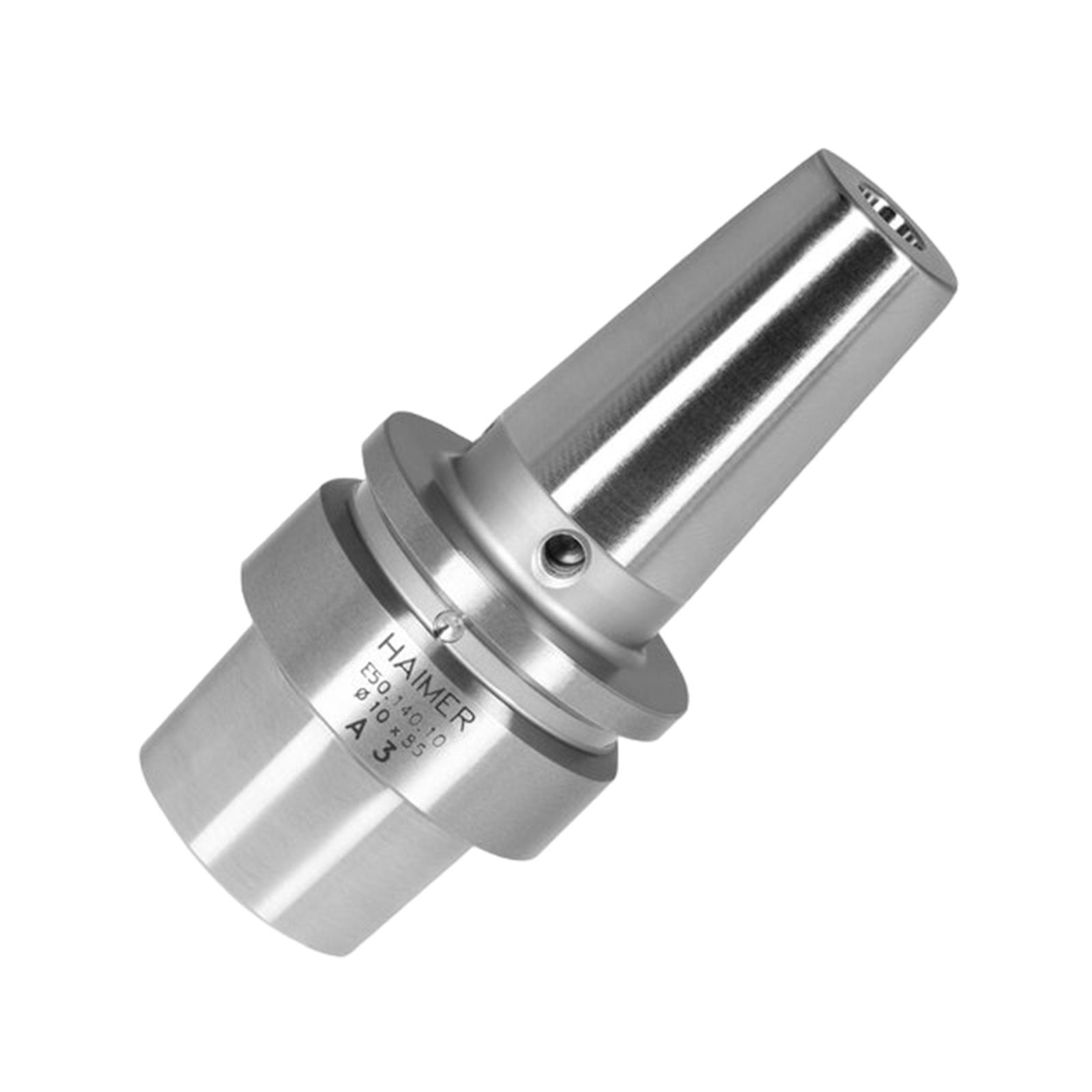

10mm HSK50E Standard Shrink Fit Chuck (130mm Long) Balanced to 25,000RPM G2.5 (Haimer)
10mm HSK50E Standard Shrink Fit Chuck (130mm Long) Balanced to 25,000RPM G2.5 (Haimer)
| Diameter (mm) | 10 |
|---|
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Chuck body fine balanced U < 1gmm
- For highest machining capacity in high-speed manufacturing
- Extreme clamping torque by high pressing in the clamping bore
- Without threaded holes in order to balance with balancing screws
- Threaded bores for simple and fast balancing with screws
- High runout accuracy (< 0.003mm)
- More accurate than DIN
- For HSS and solid carbide tools with h6 shank tolerance
- Heat resistant hot-working steel, hardened 54-2 HRC
- With slits along the clamping bore for cooling from outside
- Supplied without coolant tube and backup screw
- Made in Germany by leading supplier Haimer
Specification
| Category | Toolholding |
|---|---|
| Sub Category | Spindle Tooling |
| Sub Category 2 | Shrink Fit Chucks |
| Diameter (mm) | 10 |
| Gauge Length | 130 |
| Taper | HSK50E |
| Taper Description | HSK |
| Brand | Haimer |
