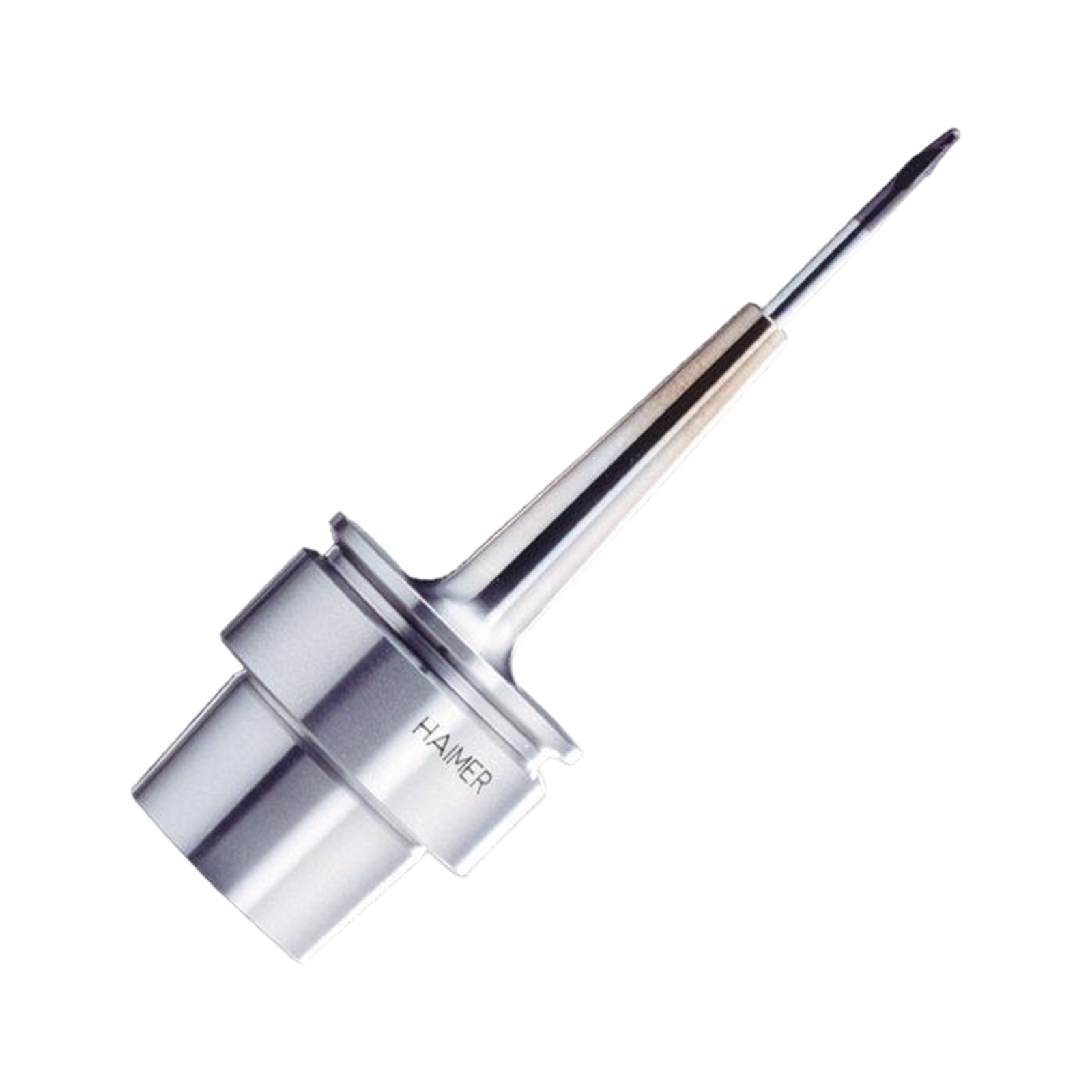

6mm HSK50E Mini Shrink Chuck (80mm Long) Balanced to 25,000RPM G2.5 (Haimer)
6mm HSK50E Mini Shrink Chuck (80mm Long) Balanced to 25,000RPM G2.5 (Haimer)
| Diameter (mm) | 6 |
|---|
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Chuck body fine balanced U < 1gmm
- Extreme clamping torque by high pressing in the clamping bore
- Very slim design with 3° contour – for jobs difficult to accesss
- For all solid carbide tools with h6 shank tolerance
- Slim design with high clamping forces
- High runout accuracy (3μm)
- Optimum rigidity and no disturbing edges
- With 3° slope for dies and molds
- Tool holders fine balanced
- More accurate than DIN
- Supplied without coolant tube
- For clamping shank tools, suitable for use with all available shrink fit units
- Made in Germany by leading supplier Haimer
Specification
| Category | Toolholding |
|---|---|
| Sub Category | Spindle Tooling |
| Sub Category 2 | Shrink Fit Chucks |
| Diameter (mm) | 6 |
| Gauge Length | 80 |
| Taper | HSK50E |
| Taper Description | HSK |
| Brand | Haimer |
