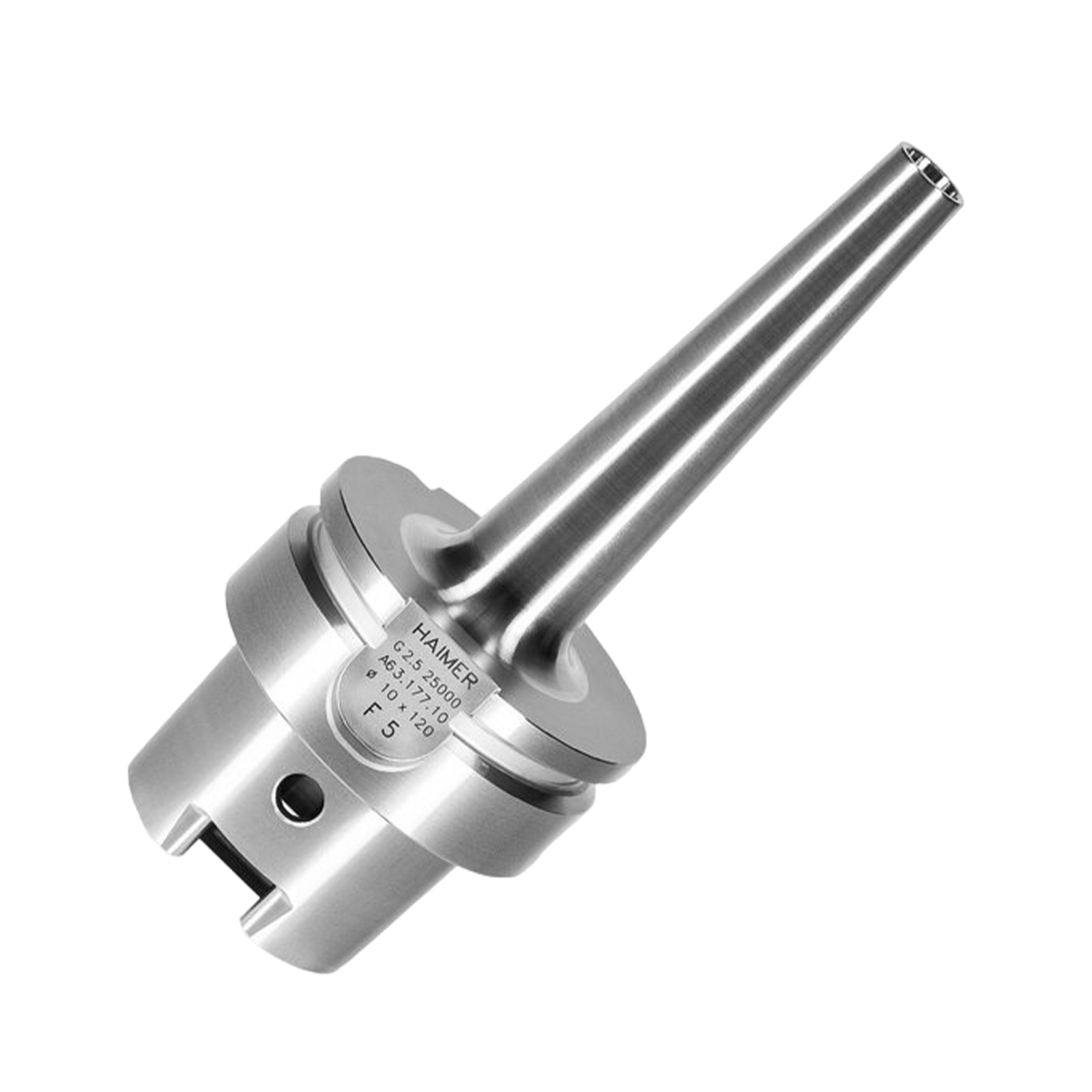

HSK63A Extra Slim Mini Shrink Fit Chuck Balanced to 25,000RPM G2.5 (Haimer)
Diameter (mm)
|
Gauge Length
|
||||
---|---|---|---|---|---|
Diameter (mm): 6 | Gauge Length: 80 |
5 days*
|
Special Price
£251.94
£209.95
Was
£296.40
£247.00
|
|
|
Diameter (mm): 8 | Gauge Length: 80 |
5 days*
|
Special Price
£251.94
£209.95
Was
£296.40
£247.00
|
|
|
Diameter (mm): 10 | Gauge Length: 80 |
5 days*
|
Special Price
£251.94
£209.95
Was
£296.40
£247.00
|
|
|
Diameter (mm): 12 | Gauge Length: 80 |
5 days*
|
Special Price
£251.94
£209.95
Was
£296.40
£247.00
|
|
|
Diameter (mm): 3 | Gauge Length: 120 |
5 days*
|
£307.20
£256.00
|
|
|
Diameter (mm): 4 | Gauge Length: 120 |
5 days*
|
£307.20
£256.00
|
|
|
Diameter (mm): 5 | Gauge Length: 120 |
5 days*
|
£307.20
£256.00
|
|
|
Diameter (mm): 6 | Gauge Length: 120 |
5 days*
|
Special Price
£271.32
£226.10
Was
£319.20
£266.00
|
|
|
Diameter (mm): 8 | Gauge Length: 120 |
5 days*
|
Special Price
£271.32
£226.10
Was
£319.20
£266.00
|
|
|
Diameter (mm): 10 | Gauge Length: 120 |
5 days*
|
Special Price
£271.32
£226.10
Was
£319.20
£266.00
|
|
|
Diameter (mm): 12 | Gauge Length: 120 |
5 days*
|
Special Price
£271.32
£226.10
Was
£319.20
£266.00
|
|
Product Information
Features & Benefits
- Chuck fine balanced G2.5 at 25.000RPM
- Extreme clamping torque by high pressing in the clamping bore
- Very slim design with 3° contour – for jobs difficult to accesss
- For all solid carbide tools with h6 shank tolerance
- Extreme slim design with no disturbing edges
- High runout accuracy (3μm)
- Optimum rigidity and high clamping force
- With 3° slope for dies and molds
- Tool holders fine balanced
- More accurate than DIN
- Supplied without coolant tube
- For clamping shank tools, suitable for use with all available shrink fit units
- Made in Germany by leading supplier Haimer
Specification
Category | Toolholding |
---|---|
Sub Category | Spindle Tooling |
Sub Category 2 | Shrink Fit Chucks |
Taper | HSK63A |
Taper Description | HSK |
Brand | Haimer |
