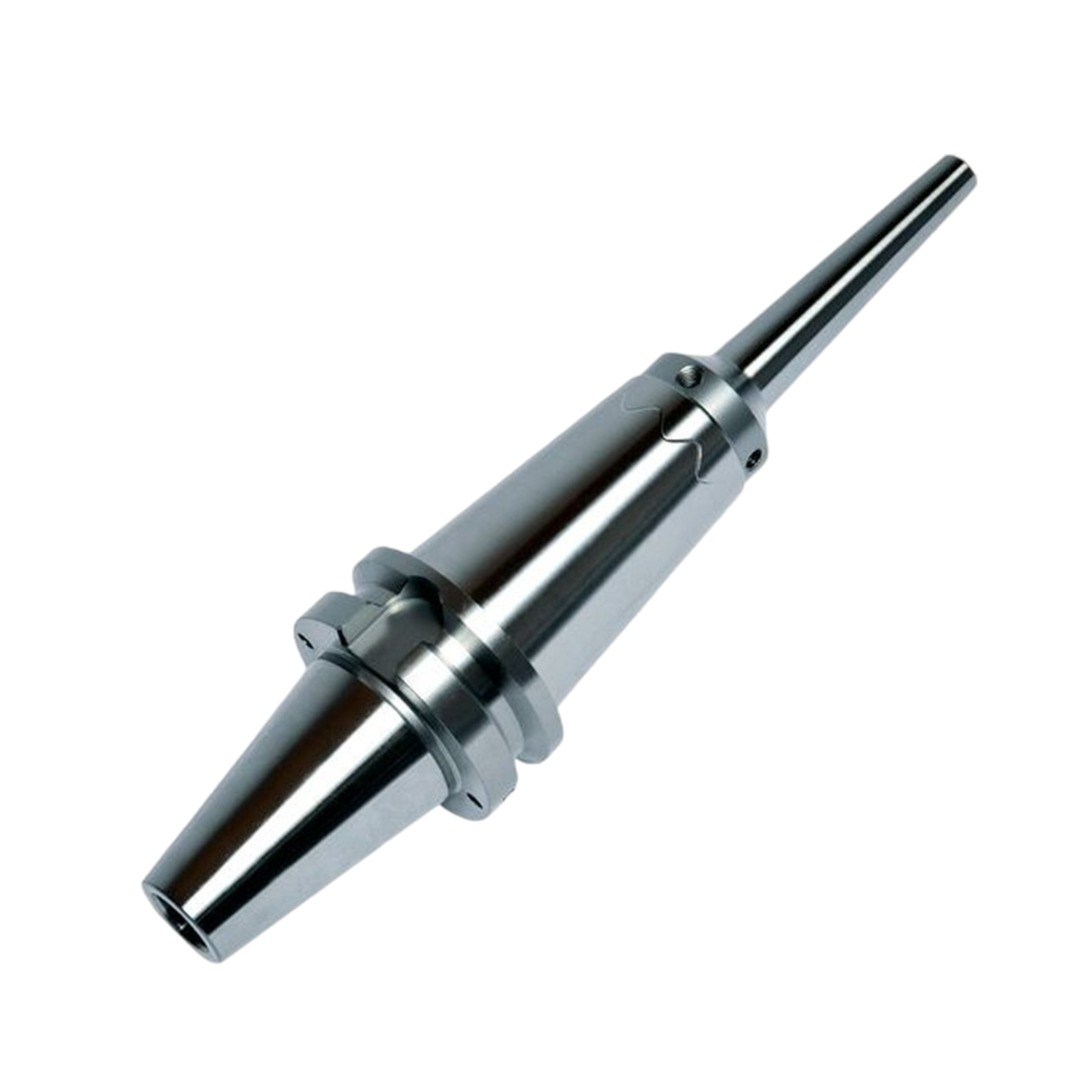

12mm DBT40 Extra Slim Power Mini Shrink Chuck (160mm Long) Balanced to 25,000RPM G2.5 (Haimer)
12mm DBT40 Extra Slim Power Mini Shrink Chuck (160mm Long) Balanced to 25,000RPM G2.5 (Haimer)
| Diameter (mm) | 12 |
|---|
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Chuck body fine balanced G2.5 at 25.000RPM
- Extreme clamping torque by high pressing in the clamping bore
- Very slim design with 3° contour – for jobs difficult to access
- Low tendency towards vibrations due to optimised outer contour
- Efficient milling is possible with an angled tool even at long protruding lengths
- For solid carbide tools with h6 shank tolerance
- High runout accuracy (< 0.003mm)
- Short chamfer and 3° slope at the top
- Coolant supply form JD
- Threaded holes in order to balance with balancing screws
- Suitable to all inductive shrink fit units
- Made in Germany by leading supplier Haimer
Specification
| Category | Toolholding |
|---|---|
| Sub Category | Spindle Tooling |
| Sub Category 2 | Shrink Fit Chucks |
| Diameter (mm) | 12 |
| Gauge Length | 160 |
| Taper | DBT40 |
| Brand | Haimer |
