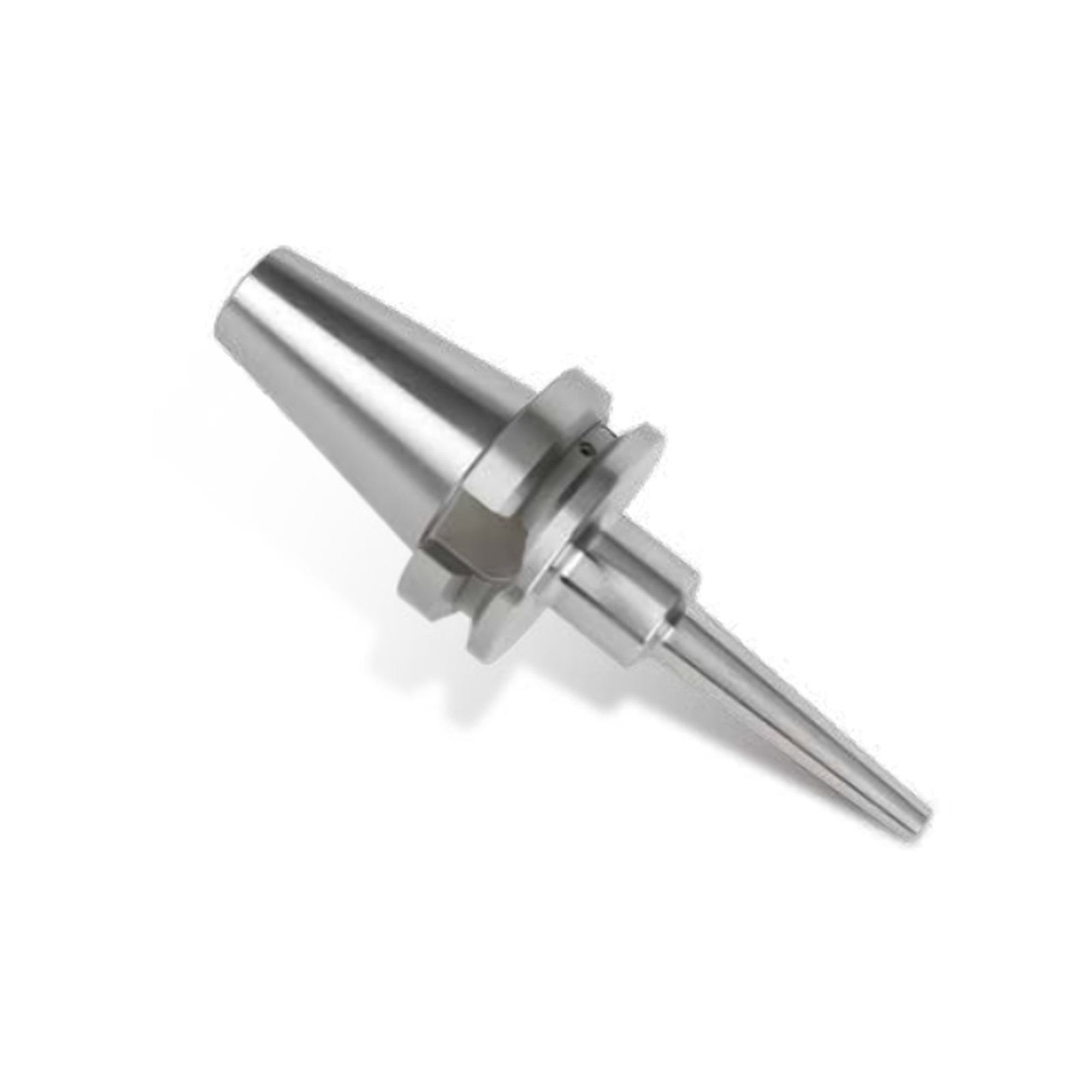

4mm BT40 Ultra Slim 3 Degree Shrink Fit Chuck (160mm Long) 25,000RPM G2.5 (YG-1) - BT40AD/B-SFHS4-160
4mm BT40 Ultra Slim 3 Degree Shrink Fit Chuck (160mm Long) 25,000RPM G2.5 (YG-1) - BT40AD/B-SFHS4-160
| Diameter (mm) | 4 |
|---|
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Extra slim shrink fit chuck for high performance
- 3° taper
- Through coolant: AD/B
- Balanced to 25,000RPM G2.5
- High run-out accuracy 0.003mm
- For ultimate reliability, repeatability and machining quality
- Ultra-long service life without distortion due to high quality hot work steel
Specification
| Category | Toolholding |
|---|---|
| Sub Category | Spindle Tooling |
| Sub Category 2 | Shrink Fit Chucks |
| Diameter (mm) | 4 |
| Gauge Length | 160 |
| Nose Diameter | 7 |
| Type | Ultra Slim 3° |
| Balance | 25,000RPM G2.5 |
| Taper | BT40 |
| Taper Description | BT MAS |
| Brand | YG-1 |
