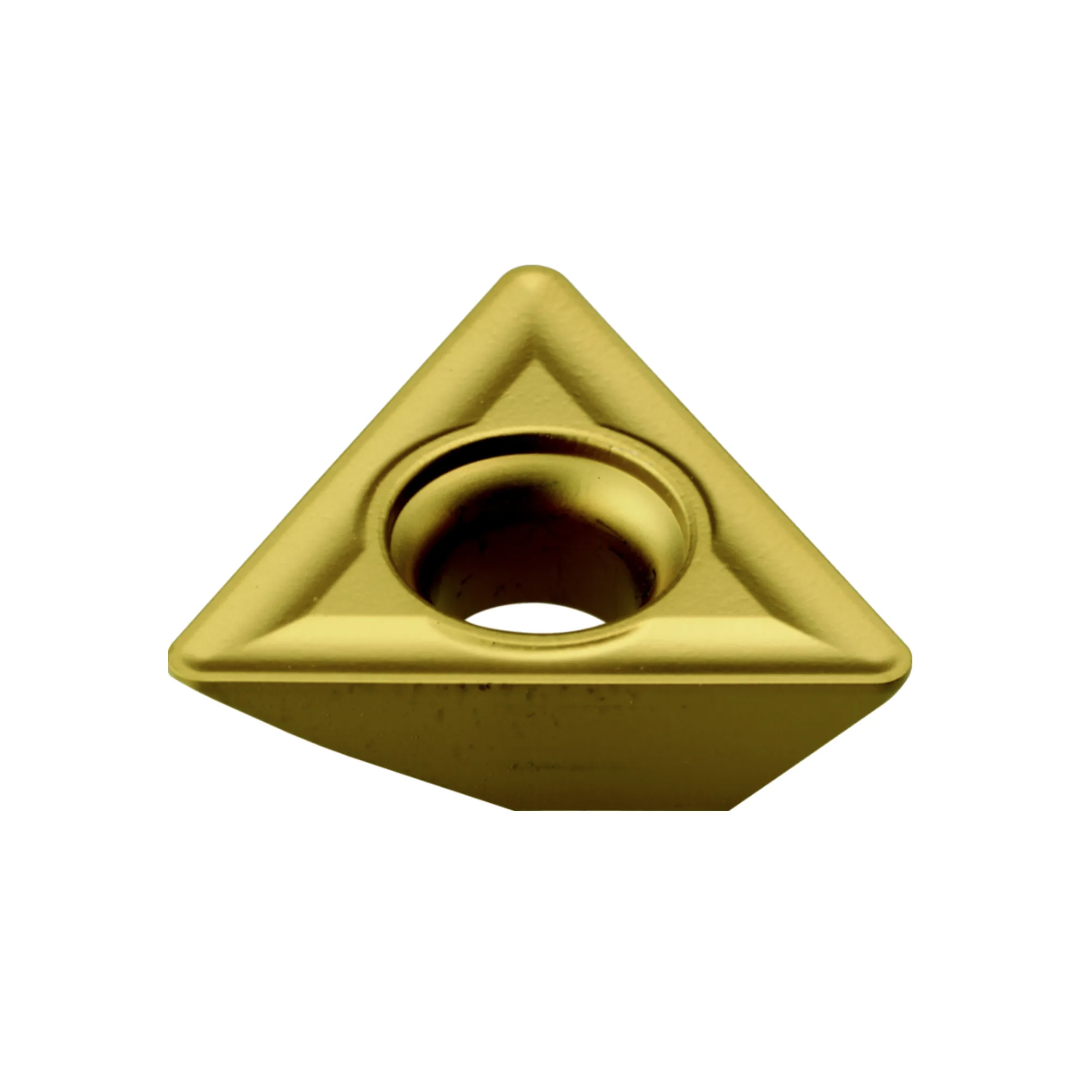

TWX16R-KC PC5300 45 Degree Indexable Multifunctional Chamfer Mill Inserts, Universal Grade (Korloy)
TWX16R-KC PC5300 45 Degree Indexable Multifunctional Chamfer Mill Inserts, Universal Grade (Korloy)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- For use with 45 degree multifunctional chamfer mill
- Multifunctional inserts suitable for chamfering, grooving and centering
- 3 cutting edges for economical machining
- Optimised major cutting edge and chip breaker design for longer tool life
- Made by Korloy, South Korea's leading manufacturer of high quality indexable tooling.
Specification
| Category | Milling |
|---|---|
| Sub Category | Form Milling |
| Sub Category 2 | Chamfer Milling Tools |
| Designation | TWX16R |
| Radius | 0.8 |
| Insert Radius (mm) | 0.8 |
| Grade | PC5300 (General Purpose) |

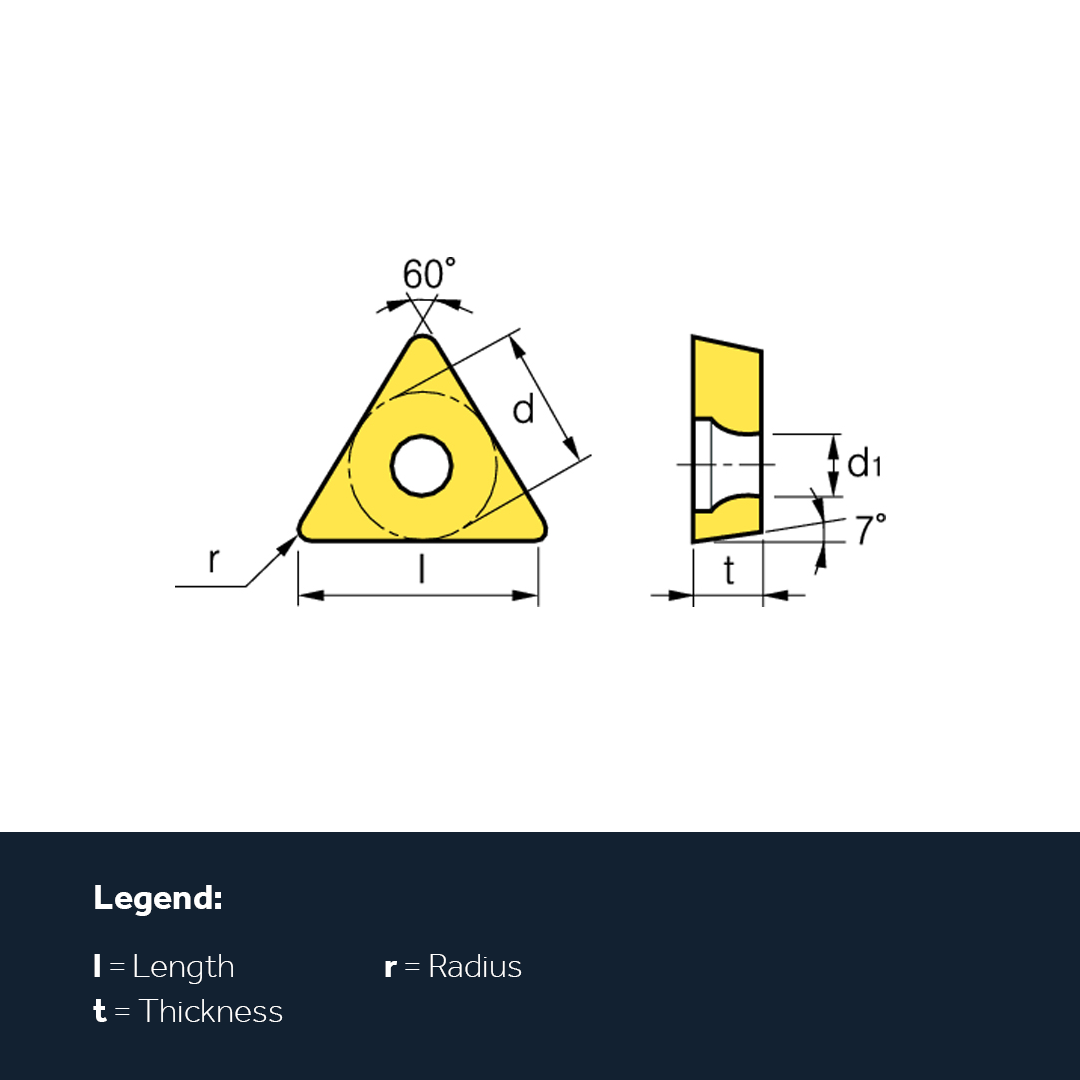

| d | 9.525 |
| t | 3.97 |
| d1 | 3.97 |
| l | 16.5 |
| Alternative Part Number | TWX16R-KC PC5300 |
| Insert Series | TWX-KC |
| Brand | Korloy |
