Quick Gun Change Direct Mount Pull Back Lathe Collet Chuck - DKF Series (Klamp)
Scroll back
Scroll back
Quick Gun Change Direct Mount Pull Back Lathe Collet Chuck - DKF Series (Klamp)

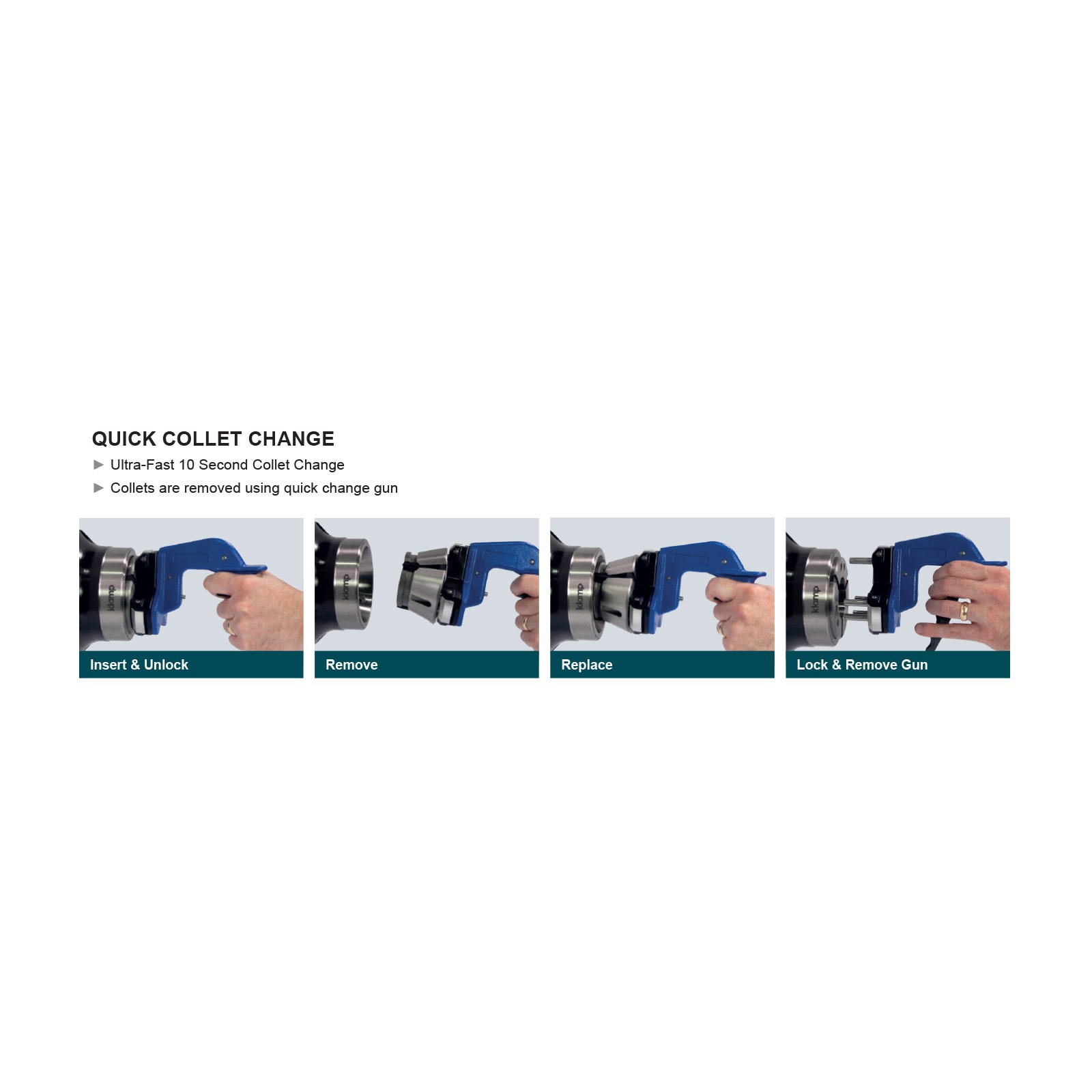

Fully compatible with DT collects (quick gun change style). Pull back type with direct mount system that mounts...
Read more
View Products
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
D
|
L
|
H
|
Max RPM
|
A
|
B
|
C
|
E
|
F
|
G
|
Clamping Force
|
Mount
|
Max Input Force
|
Sleeve Stroke
|
Collet Size
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D: 60 | L: 150 | H: 39.5 | Max RPM: 6000 | A: 100 | B: 110 | C: 15 | E: M58x2 | F: 65 | G: 25 (max) / 20.5 (min) | Clamping Force: 60kN | Mount: Z140 | Max Input Force: 35kN | Sleeve Stroke: 4.5 | Collet Size: 42L/42R/42D/42E (3-42mm) |
3 days*
|
£1,387.38
£1,156.15
|
|
|
| D: 60 | L: 150 | H: 39.5 | Max RPM: 6000 | A: 100 | B: 110 | C: 15 | E: M58x2 | F: 65 | G: 10 (max) / 5.5 (min) | Clamping Force: 60kN | Mount: A5 | Max Input Force: 35kN | Sleeve Stroke: 4.5 | Collet Size: 42L/42R/42D/42E (3-42mm) |
3 days*
|
£1,354.38
£1,128.65
|
|
|
| D: 60 | L: 165 | H: 19 | Max RPM: 6500 | A: 120 | B: 89 | C: 25 | E: M70x2 | F: 79 | G: 20.5 (max) / 16 (min) | Clamping Force: 94kN | Mount: A5 | Max Input Force: 40kN | Sleeve Stroke: 4.5 | Collet Size: 52L/52R/52D/52E (4-52mm) |
3 days*
|
£1,429.37
£1,191.14
|
|
|
| D: 60 | L: 165 | H: 19 | Max RPM: 6500 | A: 120 | B: 89 | C: 25 | E: M85x2 | F: 92 | G: 16 (max) / 11.5 (min) | Clamping Force: 94kN | Mount: A6 | Max Input Force: 40kN | Sleeve Stroke: 4.5 | Collet Size: 52L/52R/52D/52E (4-52mm) |
3 days*
|
£1,429.37
£1,191.14
|
|
|
| D: 60 | L: 210 | H: 19 | Max RPM: 6500 | A: 120 | B: 109 | C: 45 | E: M85x2 | F: 92 | G: -4 (max) / 0.5 (min) | Clamping Force: 94kN | Mount: A8 | Max Input Force: 40kN | Sleeve Stroke: 4.5 | Collet Size: 52L/52R/52D/52E (4-52mm) |
3 days*
|
£1,625.86
£1,354.88
|
|
|
| D: 60 | L: 165 | H: 19 | Max RPM: 6000 | A: 130 | B: 95 | C: 25 | E: M70x2 | F: 79 | G: 44 (max) / 39.5 (min) | Clamping Force: 105kN | Mount: A5 | Max Input Force: 45kN | Sleeve Stroke: 4.5 | Collet Size: 65L/65R/65D/65E (4-65mm) |
3 days*
|
£1,609.36
£1,341.13
|
|
|
| D: 60 | L: 165 | H: 19 | Max RPM: 6000 | A: 130 | B: 95 | C: 25 | E: M85x2 | F: 92 | G: 44 (max) / 39.5 (min) | Clamping Force: 105kN | Mount: A6 | Max Input Force: 45kN | Sleeve Stroke: 4.5 | Collet Size: 65L/65R/65D/65E (4-65mm) |
3 days*
|
£1,408.38
£1,173.65
|
|
|
| D: 60 | L: 210 | H: 19 | Max RPM: 6000 | A: 130 | B: 115 | C: 45 | E: M85x2 | F: 92 | G: -4 (max) / 0.5 (min) | Clamping Force: 105kN | Mount: A8 | Max Input Force: 45kN | Sleeve Stroke: 4.5 | Collet Size: 65L/65R/65D/65E (4-65mm) |
3 days*
|
£1,592.87
£1,327.39
|
|
|
| D: 70 | L: 230 | H: 38 | Max RPM: 5500 | A: 160 | B: 109.5 | C: | E: M105x2 | F: 115 | G: 32 (max) / 36.5 (min) | Clamping Force: 115kN | Mount: Z220 | Max Input Force: 50kN | Sleeve Stroke: 4.5 | Collet Size: 80L/80R/80D/80E (4-80mm) |
3 days*
|
£2,489.78
£2,074.82
|
|
|
| D: 68 | L: 230 | H: 38 | Max RPM: 5500 | A: 160 | B: 134.5 | C: 25 | E: M92x2 | F: 100 | G: 5 (max) / 9.5 (min) | Clamping Force: 115kN | Mount: A6 | Max Input Force: 50kN | Sleeve Stroke: 4.5 | Collet Size: 80L/80R/80D/80E (4-80mm) |
3 days*
|
£2,858.76
£2,382.30
|
|
|
| D: 70 | L: 280 | H: 38 | Max RPM: 5500 | A: 160 | B: 127.5 | C: 18 | E: M105x2 | F: 115 | G: 14 (max) / 18.5 (min) | Clamping Force: 115kN | Mount: A8 | Max Input Force: 50kN | Sleeve Stroke: 4.5 | Collet Size: 80L/80R/80D/80E (4-80mm) |
3 days*
|
£2,858.76
£2,382.30
|
|
|
| D: 70 | L: 280 | H: 38 | Max RPM: 5500 | A: 160 | B: 156.5 | C: 47 | E: M105x2 | F: 115 | G: -15 (max) / -10.5 (min) | Clamping Force: 115kN | Mount: A11 | Max Input Force: 50kN | Sleeve Stroke: 4.5 | Collet Size: 80L/80R/80D/80E (4-80mm) |
3 days*
|
£3,382.21
£2,818.51
|
|
Product Information
Features & Benefits
Fully compatible with DT collects (quick gun change style). Pull back type with direct mount system that mounts directly to the spindle to ensure a consistent mounting without the need for correction. The collet is pulled into the chuck to close and pushed out to open. This action means that back stops cannot be provided and must be used where accurate axial positioning is not important.
- Direct mount: This system mounts directly to the spindle to ensure a consistent mounting without the need for correction.
- First operation collet chuck: Klamp DHP collet chucks are suitable for collets which have a +/-0.5mm gripping range.
- The collet chuck is suitable for rough and unfinished bar, preparing it for a high accuracy second operation work.
- Pull back action: The collet is pulled into the chuck to close and pushed out to open. This action means that back stops cannot be provided and must be used where accurate axial positioning is not important.
- Case hardened: Optimising the rigidity, strength and durability.
- Short body, wide range: DT collets allow for a compact body design maximising the lathe work envelope. Gripping capacities of the series range from 3mm to 80mm.
- Made in the United Kingdom
Specification
| Category | Workholding |
|---|---|
| Sub Category | Workholding Collets & Chucks |
