0-200N Digital Force Gauge (Moore & Wright)

Cutwel Sku
MWT-8140

0-200N Digital Force Gauge (Moore & Wright)

Cutwel Sku
MWT-8140
This compact and user-friendly handheld digital compression force gauge from Moore & Wright features an...
Read more
minus plus

*Estimated lead time, subject to availability

View Full Range
unavailable 5 days*

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Product Information

Features & Benefits

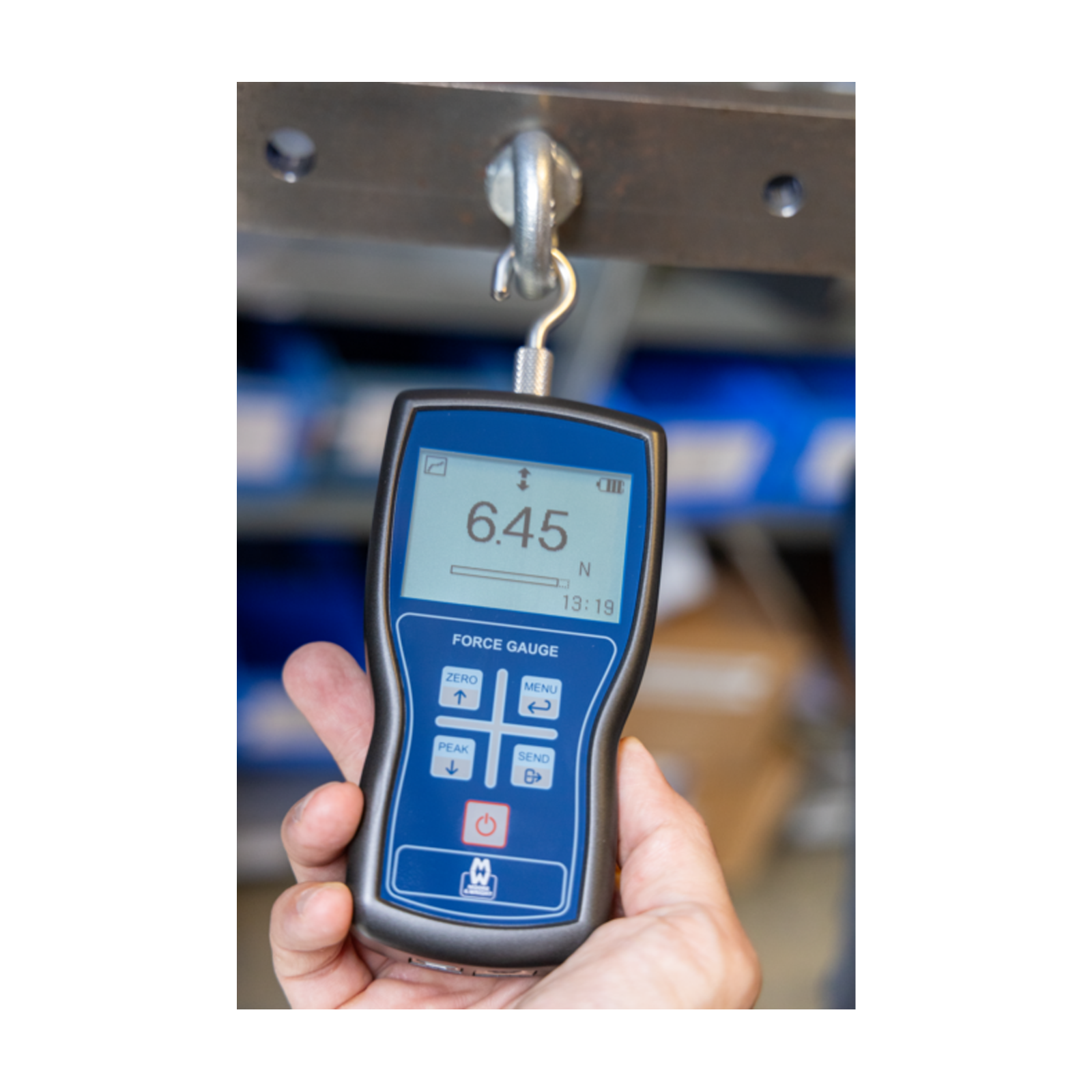

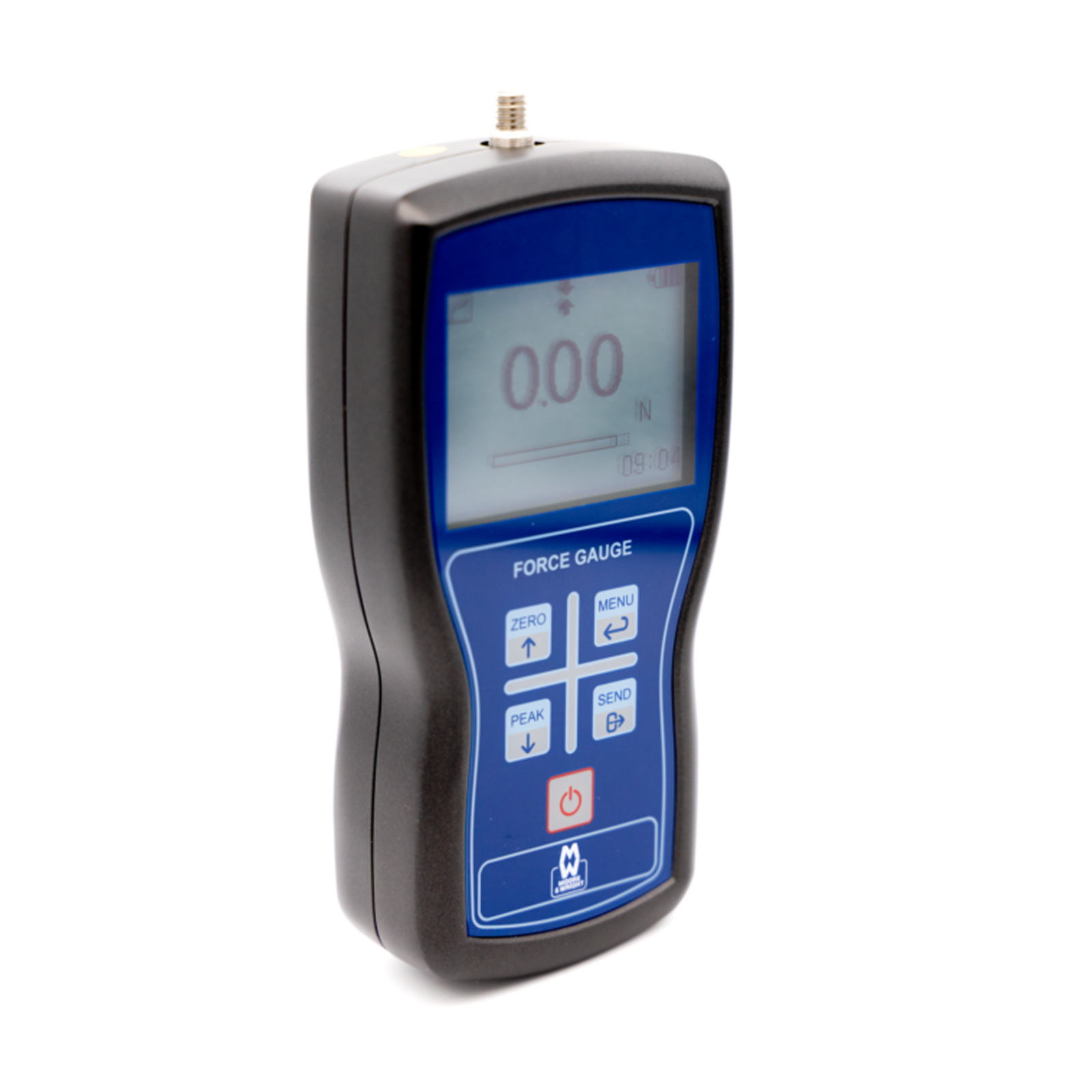

This compact and user-friendly handheld digital compression force gauge from Moore & Wright features an intuitive and clear digital display, as well as an advanced microprocessor ensuring high accuracy compressive and tensile force testing. Featuring a compact durable metal housing with threaded holes for mounting to a frame. Models cover a variety of different ranges and resolutions. Each is supplied with a selection of measuring heads to contact the object under test, including a hook and extension shaft.
  • User friendly touch keypad & full-format 160x128 dot matrix LCD (2.8 inch) backlit display with display update rate of 10 times per second
  • Accuracy = +/- 0.2% F.S.
  • Overload capacity = 150% of F.S. (LCD blinks beyond 110%)
  • Compact and durable metal housing
  • Selectable units of N, gf, kgf, ozf, and lbf

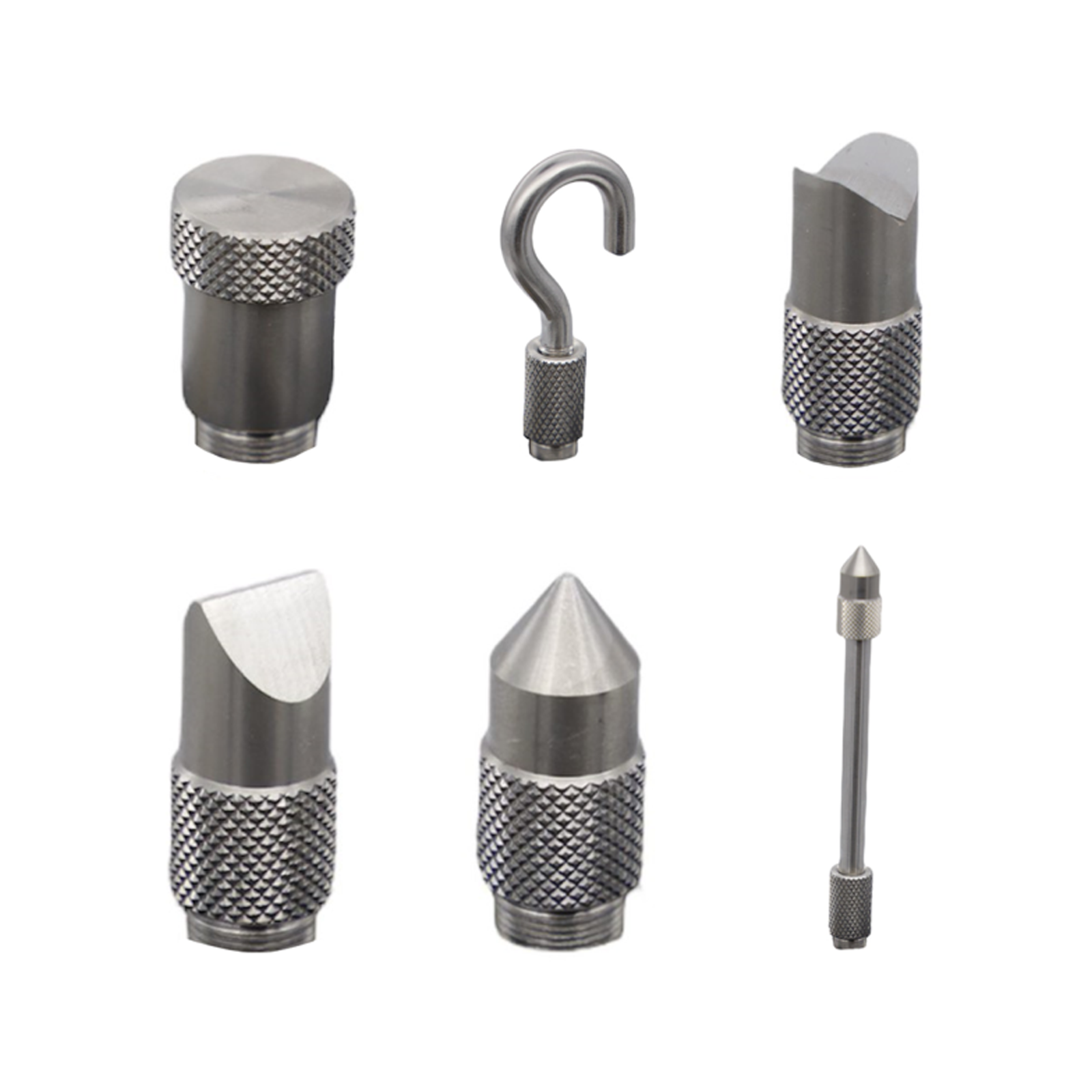

  • Supplied with a selection of measuring heads
  • Easily mountable to an external frame
  • Automatic display inversion depending on orientation
  • Mechanical overload protection
  • Includes USB charging cable
  • RS232 communication and alarm output port
  • Suitable in operating environments of -10 to 40°C and relative humidity of 20-80%
  • 1000 data memory
  • Includes 3.6VDC 800MAH Ni-MH rechargable batteries with approx. 14 hours per charge
  • Supplied in a hard plastic case to house all accessories

Specification

Category Measuring
Sub Category Force Gauges
Range 0-200N
Resolution 0.05N
Brand Moore & Wright

Application
