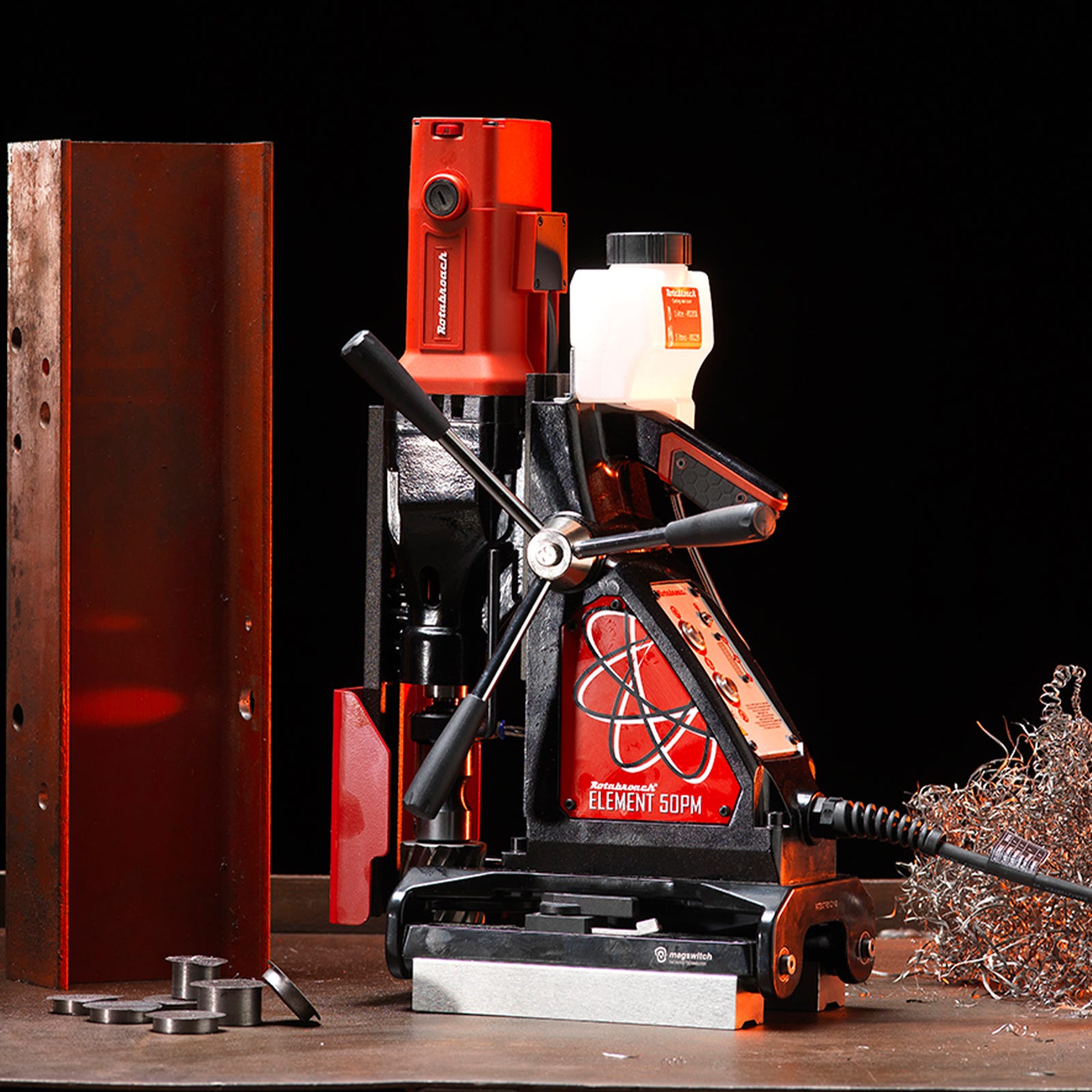

110V Element 50 with Pivot Magnet Mag Drill (Rotabroach)

110V Element 50 with Pivot Magnet Mag Drill (Rotabroach)

The Element 50 Mag Drill with Pivot Magnet is a pivot pased permanent magnet, allowing you to work on thin gauge...
Read more
View Products

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm
Filter Items arrow
Code Overall Length (mm) Depth of Cut Morse Taper Height Voltage Magnet Size Stroke Cutter Capacity Twist Drill Capacity Drill Chuck Capacity Tapping No Load Speed Motor Countersink Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Overall Length (mm)
carrat-down
Depth of Cut
carrat-down
Morse Taper
carrat-down
Height
carrat-down
Voltage
carrat-down
Magnet Size
carrat-down
Stroke
carrat-down
Cutter Capacity
carrat-down
Twist Drill Capacity
carrat-down
Drill Chuck Capacity
carrat-down
Tapping
carrat-down
No Load Speed
carrat-down
Motor
carrat-down
Countersink
carrat-down
Overall Length (mm): 317 Depth of Cut: 50 Morse Taper: MT2 Height: 640 Voltage: 110v (Please enquire for 230V) Magnet Size: 277x190mm Stroke: 150 Cutter Capacity: 50 Twist Drill Capacity: 20 Drill Chuck Capacity: 13 Tapping: M20 No Load Speed: 100-500RPM Motor: 1500W Countersink: 30
unavailable 7 days*
£2,652.88 £2,210.73
minus plus

*Estimated lead time, subject to availability

Product Information

Features & Benefits

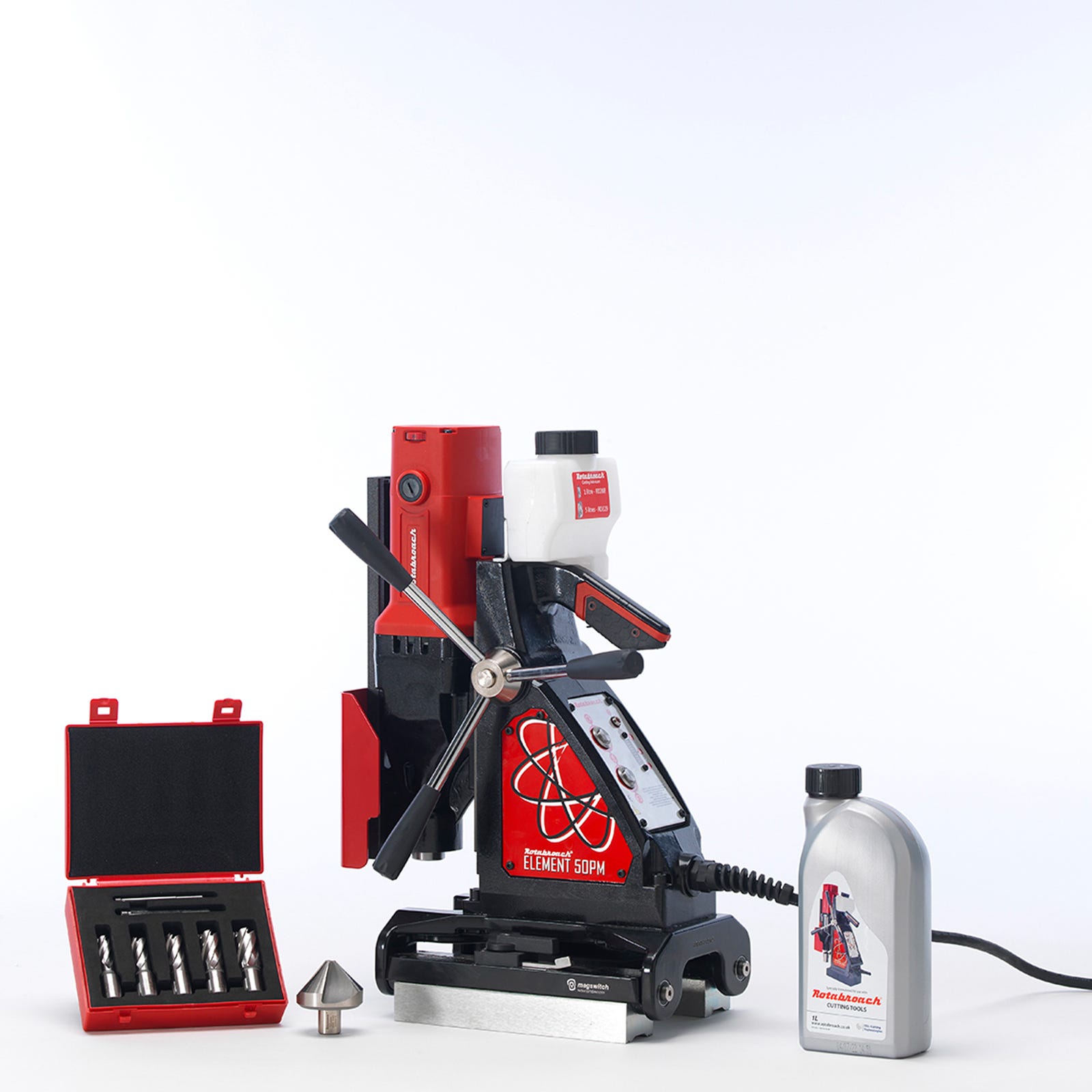

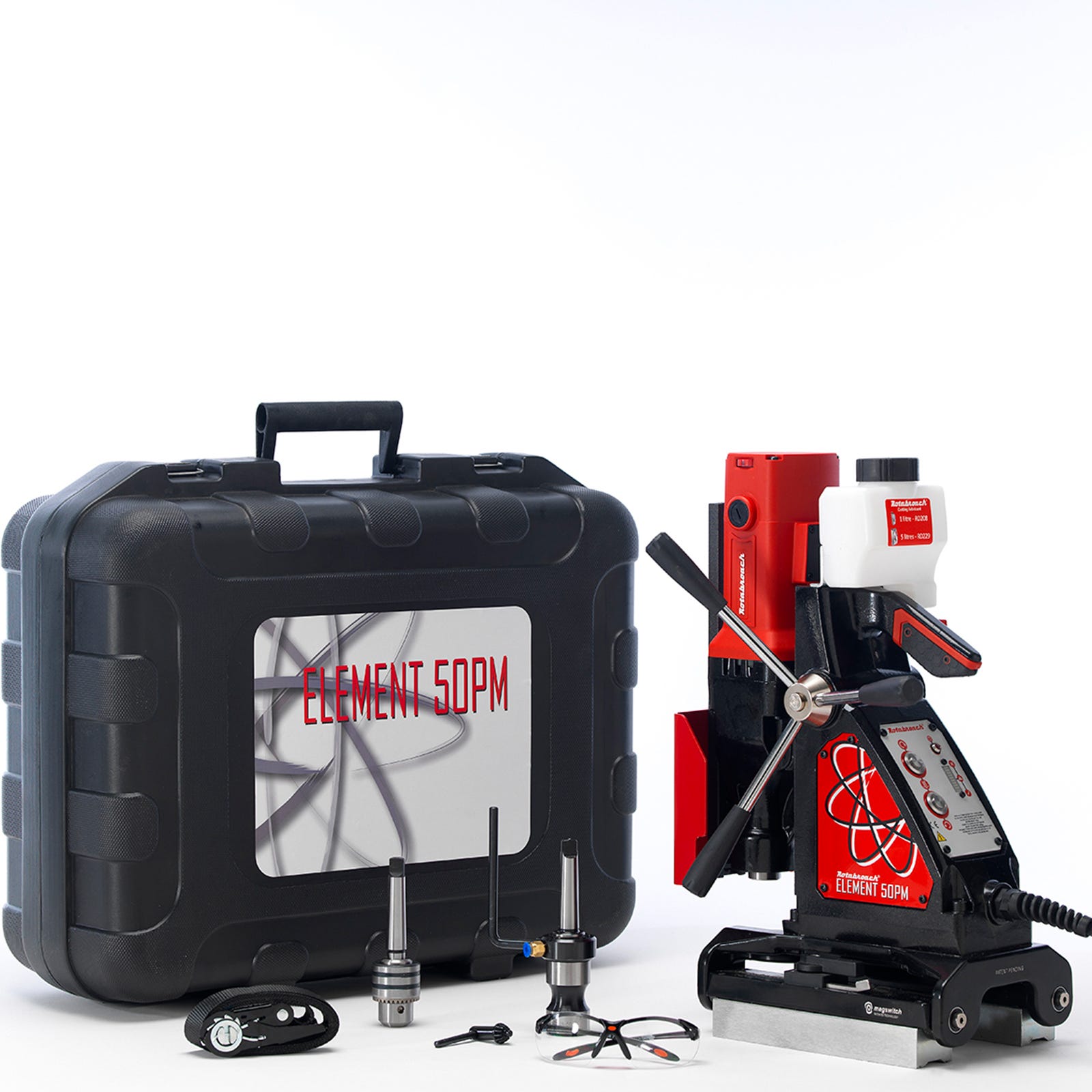

The Element 50 Mag Drill with Pivot Magnet is a pivot pased permanent magnet, allowing you to work on thin gauge material as thin as 3mm thick. It performs equally well on curved, uneven and flat surfaces, perfect for pipework contractors, ship building and power generation sites, looking for increased safety and versatility. The Element 50 Pivot Magnet comes supplied with a carry case, internal coolant system, safety strap, stationary ring, 3mm hexagon key, 6mm hexagon key, arbor shank, arbor assembly, 13mm chuck, drill chuck adapter, drill chuck and key, drift and safety goggles. Features a quick release interchangeable handle. The 230V version is available upon request. For further information please contact our technical team on 01924 869 615.
  • Pivot pased permanent magnet, allowing you to work on thin gauge material as thin as 3mm thick.
  • It performs equally well on curved, uneven and flat surfaces.
  • Perfect for pipework contractors, ship building and power generation sites, looking for increased safety and versatility.
  • Supplied with a carry case, internal coolant system, safety strap, stationary ring, 3mm hexagon key, 6mm hexagon key, arbor shank, arbor assembly, 13mm chuck, drill chuck adapter, drill chuck and key, drift and safety goggles.
  • Features a quick release interchangeable handle.
  • The 230V version is available upon request.
  • For further information please contact our technical team on 01924 869 615.
  • Specification

    Category Hole Making
    Sub Category Mag Drills
    Brand Range Element 50 with Pivot Magnet Mag Drill
    Brand Rotabroach
