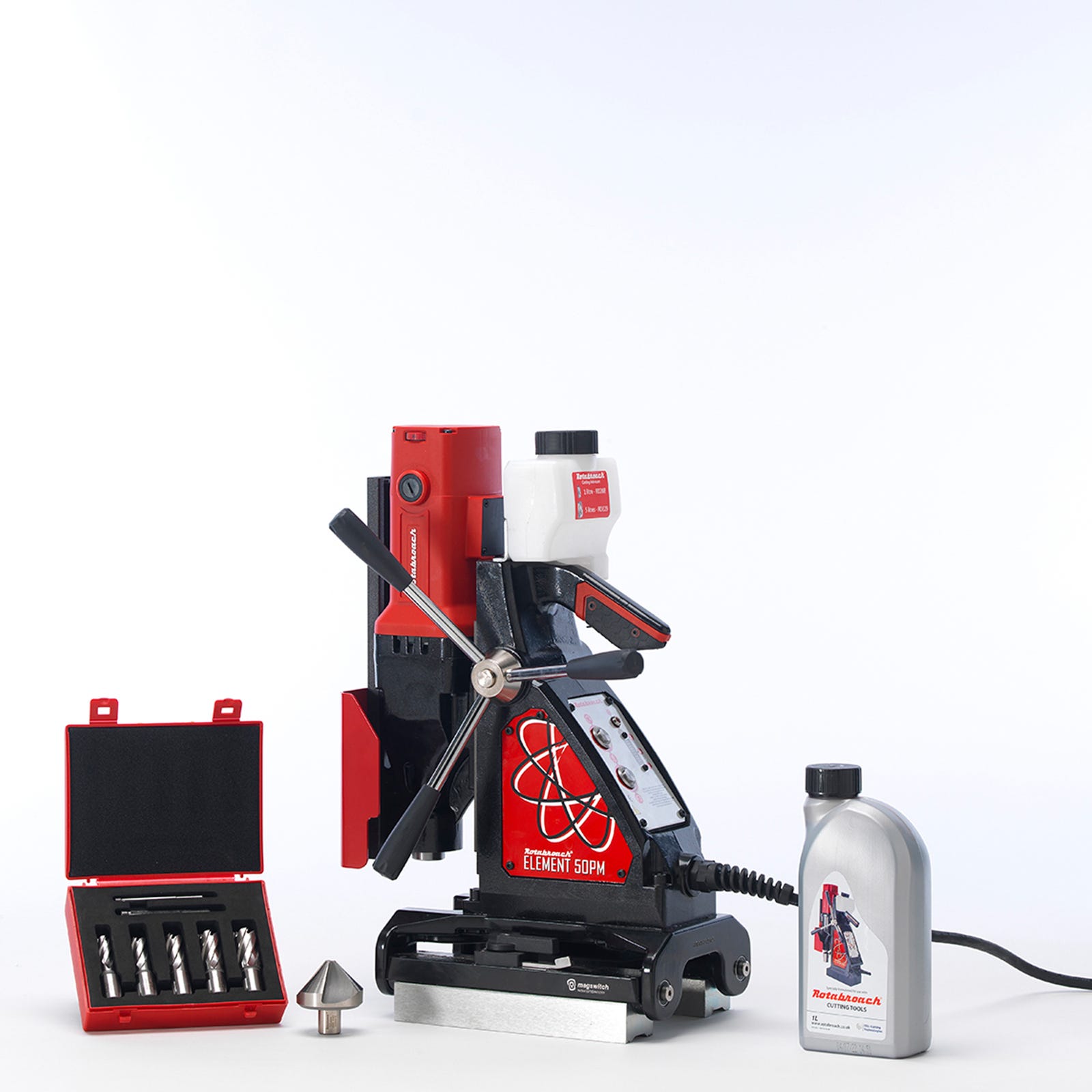

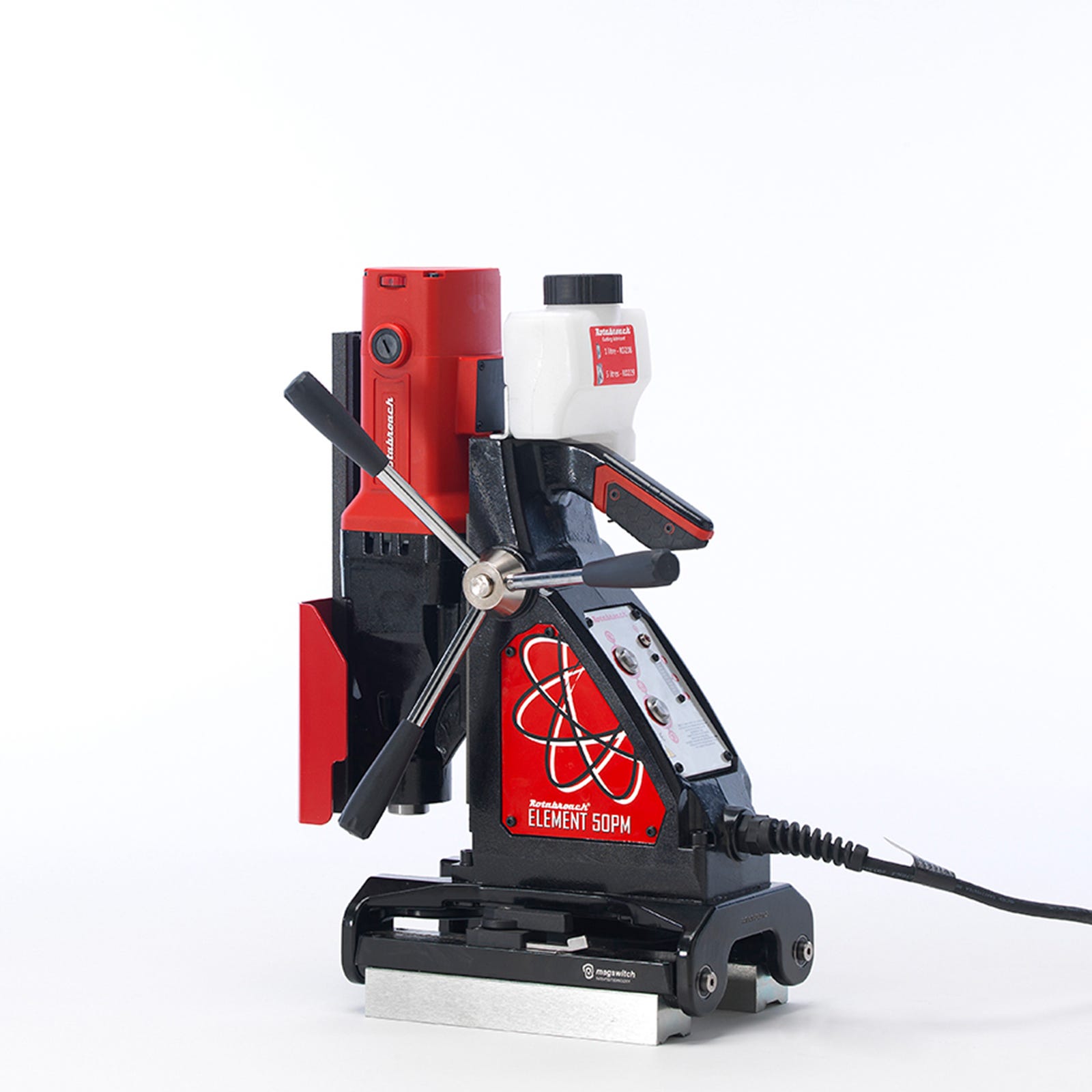

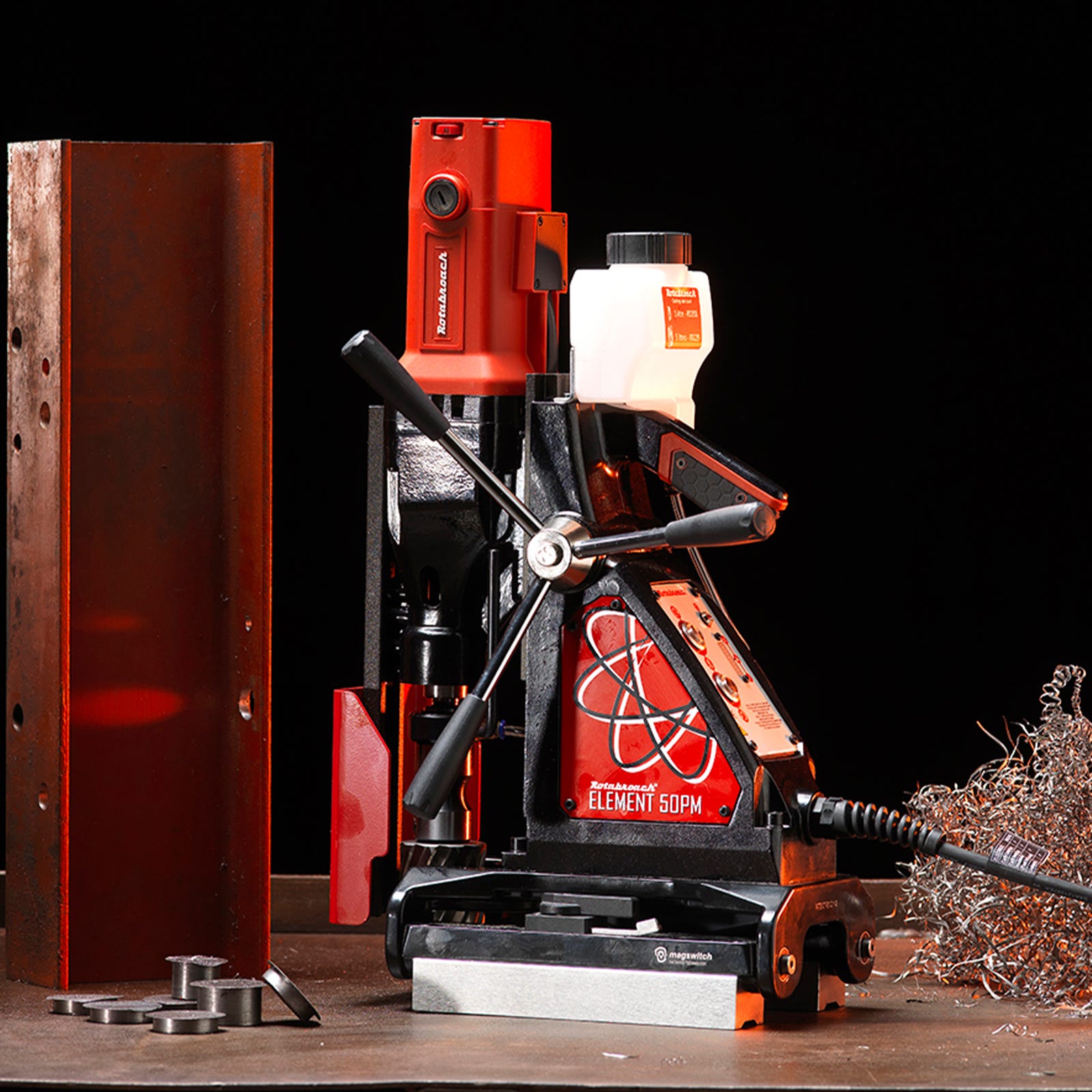

The Element 50 Mag Drill with Pivot Magnet is a pivot pased permanent magnet, allowing you to work on thin gauge material as thin as 3mm thick. It performs equally well on curved, uneven and flat surfaces, perfect for pipework contractors, ship building and power generation sites, looking for increased safety and versatility. The Element 50 Pivot Magnet comes supplied with a carry case, internal coolant system, safety strap, stationary ring, 3mm hexagon key, 6mm hexagon key, arbor shank, arbor assembly, 13mm chuck, drill chuck adapter, drill chuck and key, drift and safety goggles. Features a quick release interchangeable handle. The 230V version is available upon request. For further information please contact our technical team on 01924 869 615.
Pivot pased permanent magnet, allowing you to work on thin gauge material as thin as 3mm thick.
It performs equally well on curved, uneven and flat surfaces.
Perfect for pipework contractors, ship building and power generation sites, looking for increased safety and versatility.

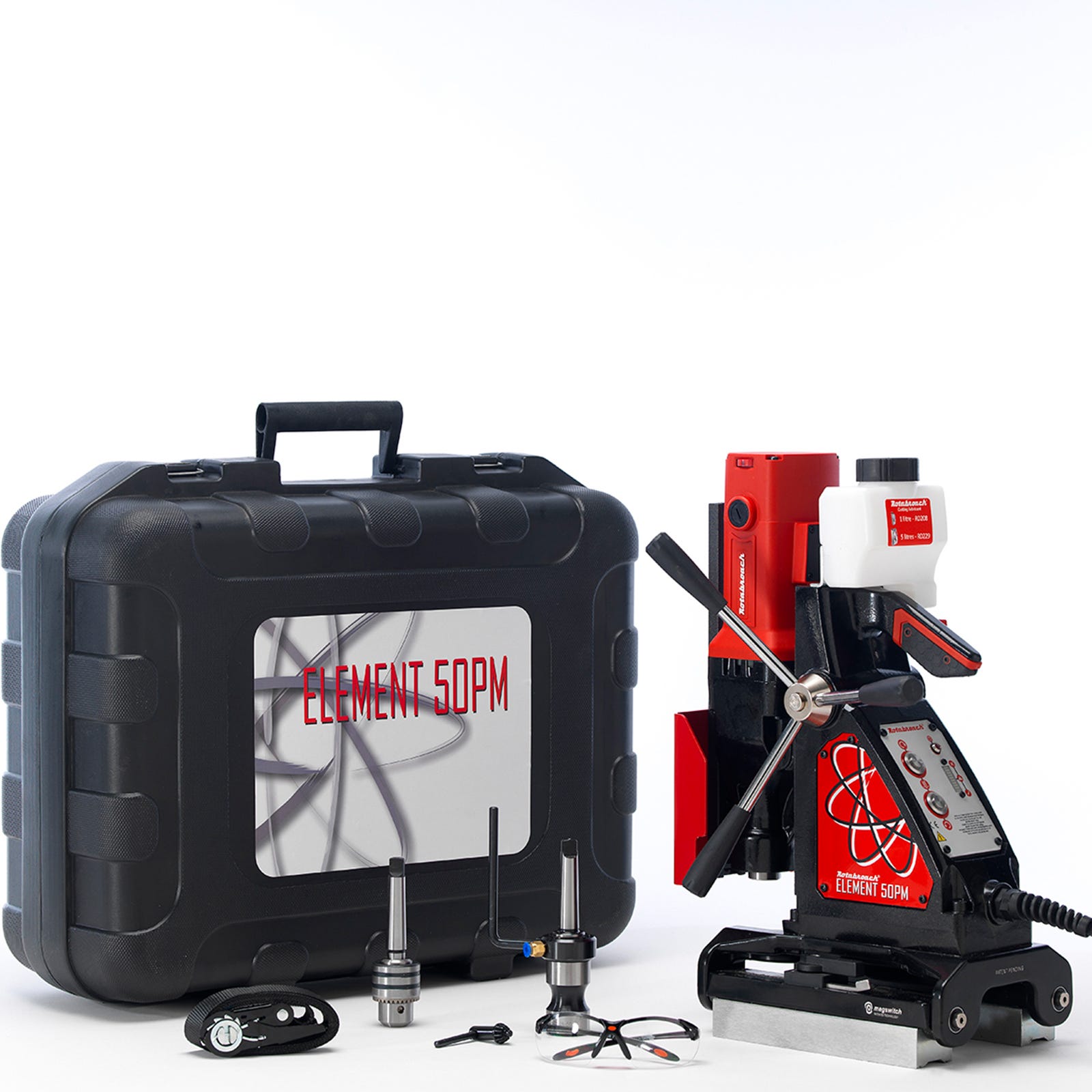

Supplied with a carry case, internal coolant system, safety strap, stationary ring, 3mm hexagon key, 6mm hexagon key, arbor shank, arbor assembly, 13mm chuck, drill chuck adapter, drill chuck and key, drift and safety goggles.
Features a quick release interchangeable handle.
The 230V version is available upon request.
For further information please contact our technical team on 01924 869 615.
Specification
Category
Hole Making
Sub Category
Mag Drills
Overall Length (mm)
317
Depth of Cut
50
Morse Taper
MT2
Height
640
Weight
18
Voltage
110v (Please enquire for 230V)
Magnet Size
277x190mm
Stroke
150
Cutter Capacity
50
Twist Drill Capacity
20
Drill Chuck Capacity
13
Tapping
M20
No Load Speed
100-500RPM
Motor
1500W
Countersink
30
Brand Range
Element 50 with Pivot Magnet Mag Drill
Brand
Rotabroach
Application
